Siemens 6AV2181-8XP00-0AX0 Industrial SD Memory Card for SIMATIC HMI

Siemens 6AV2181-8XP00-0AX0: Industrial Data Link for SIMATIC HMI Smart Factory Networks

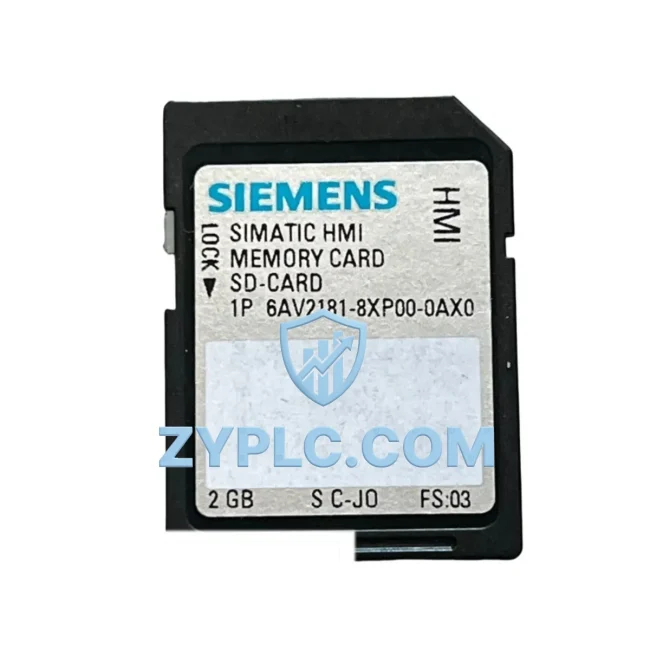

The Siemens 6AV2181-8XP00-0AX0 is an industrial-grade SD memory card engineered specifically for the SIMATIC HMI product family, delivering reliable non-volatile data storage at the heart of modern smart factory communication architectures. In an era where uninterrupted data flow between field devices, controllers, and supervisory systems defines operational efficiency, this memory card serves as the critical storage backbone that keeps HMI panels, SCADA gateways, and automation networks running without interruption.

Designed to operate within Siemens’ SIMATIC ecosystem, the 6AV2181-8XP00-0AX0 supports seamless integration with SIMATIC HMI Comfort Panels, Basic Panels, and Mobile Panels, enabling persistent storage of project data, runtime logs, alarm records, trend archives, and recipe management files. When a SIMATIC HMI panel communicates with a Siemens S7-1500 PLC or S7-1200 PLC via PROFINET or MPI/PROFIBUS DP, the memory card ensures that all configuration data, communication parameters, and visualization projects are retained even through power cycles — a fundamental requirement for industrial environments where downtime translates directly to production loss.

Network Communication Table

Connected Automation Data Flow

In a fully connected smart factory, the 6AV2181-8XP00-0AX0 sits at the intersection of operator interaction and machine intelligence. Consider a typical production line where a Siemens S7-1500 PLC manages a series of servo drives and variable frequency drives (VFDs) controlling conveyor speed and robotic arm positioning. The SIMATIC HMI Comfort Panel — loaded with its visualization project stored on this SD memory card — displays real-time process values pulled via PROFINET from the S7-1500, including motor current, temperature readings from IO-Link sensors, and production counters from remote I/O modules such as the ET 200SP distributed I/O system.

When operators interact with the HMI panel to adjust setpoints or acknowledge alarms, those commands travel through the PROFINET network back to the S7-1500 PLC, which then relays control signals to the connected drives and actuators. The 6AV2181-8XP00-0AX0 memory card stores the alarm history, trend data, and recipe parameters locally on the panel, ensuring that even if the network connection to the SCADA server is temporarily interrupted, the HMI continues to operate with full functionality. This local data resilience is critical in environments where network latency or temporary disconnections cannot be allowed to halt operator visibility.

At the supervisory level, a WinCC SCADA system or WinCC Unified platform aggregates data from multiple SIMATIC HMI panels across the plant floor. The memory card’s stored project data ensures that each panel boots consistently with the correct visualization screens, communication driver configurations, and tag mappings — eliminating configuration drift that can occur in large multi-panel deployments. For facilities using Siemens SINEMA Remote Connect or TeleService for remote diagnostics, the HMI panel’s stored data provides the baseline configuration reference that remote engineers rely on when troubleshooting from off-site.

In process industries where SIMATIC PCS 7 distributed control systems are deployed, the 6AV2181-8XP00-0AX0 supports operator stations that bridge field instrumentation — including pressure transmitters, flow meters, and temperature sensors communicating via HART or PROFIBUS PA — with the plant-wide DCS network. The memory card’s role in maintaining HMI project integrity ensures that process graphics, faceplates, and alarm management configurations remain consistent across planned and unplanned restarts.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and supervisory systems operate in silos, unable to share process information efficiently. The 6AV2181-8XP00-0AX0 directly addresses this challenge by enabling SIMATIC HMI panels to serve as intelligent data aggregation and visualization nodes within a unified PROFINET or PROFIBUS network architecture.

In facilities where legacy equipment communicates via older protocols such as MPI or PROFIBUS DP alongside modern PROFINET devices, the SIMATIC HMI panel — backed by this memory card — can simultaneously display data from both legacy S7-300 PLCs and new S7-1500 systems, providing operators with a unified view of the production process without requiring a complete network overhaul. This protocol bridging capability is essential for phased modernization projects where capital constraints prevent full system replacement.

For remote monitoring applications, the stored project data on the 6AV2181-8XP00-0AX0 enables HMI panels to maintain full visualization capability during WAN link interruptions, ensuring that local operators retain process visibility even when connectivity to central SCADA servers is degraded. When connectivity is restored, alarm logs and trend data stored on the memory card are synchronized back to the central historian, maintaining data continuity for compliance and analysis purposes.

Production line transparency — the ability to see real-time OEE metrics, batch tracking data, and quality control parameters — depends on HMI panels that boot reliably and display accurate, up-to-date information. The 6AV2181-8XP00-0AX0 ensures that visualization projects are always available, supporting the kind of production transparency that modern MES and ERP integration demands. As factories scale and additional HMI panels are deployed, the standardized SD card format simplifies project replication and version management across multiple operator stations.

Industrial Connectivity FAQ

Q1: Is the Siemens 6AV2181-8XP00-0AX0 compatible with all SIMATIC HMI panel generations?
The 6AV2181-8XP00-0AX0 is designed for use with SIMATIC HMI Comfort Panels, Basic Panels, and Mobile Panels that feature a compatible SD card slot. Compatibility should be verified against the specific panel model’s technical documentation, as older panel generations may use different memory card formats. ZYPLC recommends confirming the target panel model before ordering.

Q2: How does this memory card support SCADA and remote monitoring integration?
The SD card stores the complete HMI project, including communication driver configurations, tag mappings, alarm definitions, and trend archives. This ensures that the HMI panel maintains full SCADA integration parameters locally, enabling continued operation during network interruptions and providing a consistent data reference for remote diagnostic tools such as Siemens SINEMA Remote Connect.

Q3: What is the warranty and pre-shipment testing policy for the 6AV2181-8XP00-0AX0?
All units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal industrial operating conditions. Each unit undergoes functional verification testing prior to shipment to ensure compatibility and performance meet Siemens specifications. Expedited shipping options are available to minimize production downtime for urgent requirements.

Q4: Can this memory card be used for firmware updates and project transfers between HMI panels?
Yes. The 6AV2181-8XP00-0AX0 supports project transfer and firmware update functions when used with compatible SIMATIC HMI panels and the TIA Portal engineering environment. This capability simplifies commissioning of multiple identical panels and supports field firmware updates without requiring a laptop connection, reducing maintenance time on the production floor.
