Siemens 6AV6542-0CC10-0AX0 Industrial Network Interface for OP270 Systems

Siemens 6AV6542-0CC10-0AX0 Industrial Network Interface for OP270 Systems: Bridging Field Devices and Smart Factory Data Flows

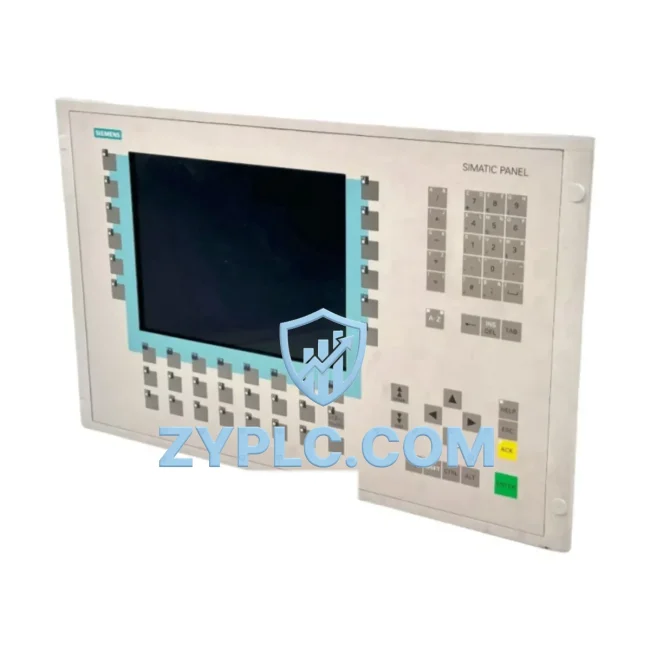

The Siemens 6AV6542-0CC10-0AX0, part of the SIMATIC HMI OP270 series, is a high-performance operator panel engineered to serve as a critical industrial network interface within complex automation architectures. Designed for demanding manufacturing environments, this 10-inch CSTN keypad-based HMI panel supports PROFIBUS-DP and MPI communication protocols, enabling seamless data exchange between field-level devices, PLC controllers, remote I/O modules, SCADA systems, and upper-level management platforms. Whether deployed on a discrete assembly line, a process control loop, or a distributed smart factory network, the 6AV6542-0CC10-0AX0 delivers the real-time visibility and control that modern industrial operations demand.

In today’s interconnected factory environments, the ability to visualize, monitor, and respond to process data in real time is no longer optional — it is a fundamental requirement for operational efficiency, safety, and competitiveness. The OP270 panel addresses this need by acting as a robust local interface node that aggregates signals from sensors, actuators, and drives, then presents actionable data to operators while simultaneously feeding structured information upstream to SCADA and MES platforms. Its industrial-grade construction, combined with Siemens’ proven WinCC flexible runtime environment, ensures reliable 24/7 operation in environments subject to vibration, temperature variation, and electromagnetic interference.

Network Communication Table

Connected Automation Data Flow

The 6AV6542-0CC10-0AX0 sits at the intersection of field-level signal acquisition and upper-level data management, making it an indispensable node in any PROFIBUS-based automation network. At the field level, process signals originating from distributed sensors — including temperature transmitters, pressure transducers, and flow meters — are collected by remote I/O modules such as the Siemens ET 200M or ET 200S, which communicate upstream via PROFIBUS-DP at speeds up to 12 Mbit/s. These signals are processed by SIMATIC S7-300 or S7-400 PLC controllers, which execute the control logic and pass structured data to the OP270 panel for real-time operator visualization.

On the drive side, variable frequency drives (VFDs) and servo controllers — such as those in the Siemens SINAMICS G120 or MICROMASTER 440 series — report operational parameters including motor speed, torque, and fault codes directly over the PROFIBUS network. The OP270 panel displays these values in real time, enabling operators to detect anomalies, acknowledge alarms, and initiate corrective actions without leaving the workstation. Alarm management is handled through WinCC flexible’s integrated alarm system, which logs events with timestamps and severity levels for post-incident analysis.

For broader system integration, the OP270 connects to SCADA platforms via the SIMATIC WinCC SCADA server or third-party OPC-DA/UA gateways, enabling plant-wide data aggregation and KPI dashboards. Industrial Ethernet switches — such as the Siemens SCALANCE X series — provide the backbone network infrastructure that links the HMI panel, PLC controllers, engineering workstations, and cloud-edge gateways into a unified industrial LAN. Where legacy equipment using older serial protocols must be integrated, protocol conversion gateways bridge the communication gap, ensuring that data from older Siemens S5 controllers or third-party PLCs flows seamlessly into the modern PROFIBUS/MPI network topology.

At the edge, industrial IoT gateways collect aggregated process data from the SCADA layer and forward it to cloud-based analytics platforms or MES systems, enabling predictive maintenance, OEE tracking, and remote diagnostics. The 6AV6542-0CC10-0AX0 thus functions not merely as a local display terminal, but as a critical data relay point in a fully connected smart factory architecture — from sensor signal to cloud dashboard, every data packet passes through or is influenced by the visibility and control that this HMI panel provides.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible systems — a condition commonly referred to as the “data island” problem. Legacy equipment running proprietary protocols, standalone PLCs without network connectivity, and HMI panels that lack SCADA integration all contribute to operational blind spots where critical process data is trapped at the device level and never reaches the decision-makers who need it.

The Siemens 6AV6542-0CC10-0AX0 directly addresses this challenge through its native PROFIBUS-DP and MPI protocol support, which provides a standardized communication backbone compatible with the vast majority of Siemens automation hardware deployed in the field over the past two decades. By connecting the OP270 panel to an existing PROFIBUS network, plant engineers can immediately begin aggregating data from previously isolated devices — including older SIMATIC S7-300 controllers, ET 200 remote I/O stations, and SINAMICS drive systems — into a unified visualization and monitoring environment.

Remote monitoring capabilities are further enhanced through integration with WinCC flexible’s remote access features, which allow authorized personnel to view live process screens, acknowledge alarms, and review historical trend data from engineering workstations located anywhere on the plant network. This eliminates the need for physical presence at the machine level for routine monitoring tasks, reducing response times and enabling faster fault diagnosis.

Production line transparency is achieved through the OP270’s ability to display real-time KPIs — including cycle times, reject rates, and equipment availability — directly on the shop floor, empowering operators to make data-driven decisions without waiting for end-of-shift reports. System scalability is ensured by PROFIBUS’s support for up to 126 nodes per network segment, allowing the automation architecture to grow alongside production capacity without requiring a complete network redesign. Every unit of the 6AV6542-0CC10-0AX0 supplied by ZYPLC undergoes functional testing and communication verification prior to shipment, ensuring that the panel integrates into your network without delay.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 6AV6542-0CC10-0AX0 support, and are they compatible with third-party PLCs?
The 6AV6542-0CC10-0AX0 natively supports PROFIBUS-DP and MPI protocols, which are primarily optimized for integration with Siemens SIMATIC S7-300, S7-400, and S5 controller families. Integration with third-party PLCs is possible through PROFIBUS-DP slave interfaces or protocol conversion gateways, though compatibility should be verified against the specific third-party controller’s PROFIBUS implementation. For mixed-vendor environments, we recommend consulting the device’s GSD file and testing communication prior to full deployment.

Q2: How does the OP270 panel handle network latency and ensure real-time data accuracy on the shop floor?
PROFIBUS-DP operates as a deterministic fieldbus protocol with cycle times typically in the range of 1–10 milliseconds at 12 Mbit/s, making it well-suited for real-time control and monitoring applications. The OP270 panel’s WinCC flexible runtime environment is optimized to refresh display values in synchronization with the PLC scan cycle, ensuring that operators always view current process states. Network latency issues are most commonly caused by excessive node counts, cable length violations, or termination errors — all of which can be diagnosed using Siemens PROFIBUS diagnostic tools.

Q3: Can the 6AV6542-0CC10-0AX0 be integrated into an existing SCADA system without replacing the current PLC infrastructure?
Yes. The OP270 panel is designed to operate as a local HMI node within an existing PROFIBUS/MPI network without requiring changes to the PLC program or network topology. SCADA integration is achieved by connecting the OP270 to the same PROFIBUS segment as the PLC, or by using a WinCC flexible PC runtime station as an OPC server that bridges HMI data to the SCADA platform. This approach allows organizations to enhance their visualization and monitoring capabilities incrementally, protecting existing infrastructure investments.

Q4: What does the 12-month warranty cover, and how does ZYPLC verify product quality before shipment?
Every Siemens 6AV6542-0CC10-0AX0 unit supplied by ZYPLC is subject to a pre-shipment functional test that verifies display operation, keypad response, communication port integrity, and power supply performance. The 12-month warranty covers hardware defects and communication failures attributable to manufacturing or component faults under normal operating conditions. Units are shipped with appropriate anti-static and shock-protective packaging to prevent transit damage. For urgent replacement requirements, ZYPLC maintains inventory stock available for immediate dispatch with global logistics support.
