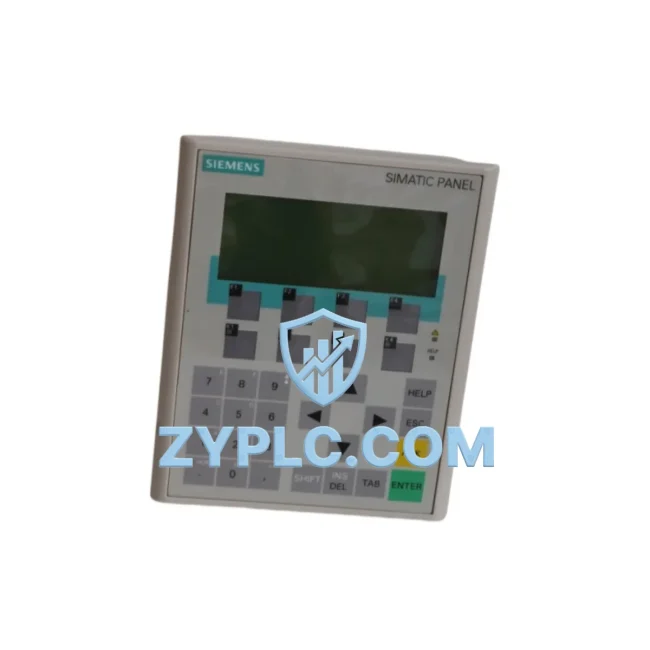

The Siemens 6AV6641-0CA01-0AX1 is a SIMATIC OP 77B HMI Operator Panel engineered for seamless industrial data communication across MPI (Multi-Point Interface) networks. Designed to serve as the critical human-machine interface node in Siemens-based automation architectures, this panel bridges field-level devices and supervisory control systems with precision, reliability, and real-time responsiveness. Whether deployed on a discrete manufacturing line, a process control loop, or a complex multi-zone production facility, the 6AV6641-0CA01-0AX1 delivers the connectivity and visualization performance that modern smart factories demand.

In today’s industrial environment, data transparency is not optional — it is the foundation of operational efficiency. The 6AV6641-0CA01-0AX1 addresses this need by providing a robust MPI communication interface that connects directly to Siemens S7-300 and S7-400 PLCs, enabling high-speed, deterministic data exchange between the controller layer and the operator interface. This eliminates the latency and data loss risks associated with legacy serial communication, ensuring that process variables, alarm states, and production metrics are always current and actionable at the operator level.

Network Communication Table

Connected Automation Data Flow

The 6AV6641-0CA01-0AX1 sits at the intersection of field-level sensing and supervisory control, making it an indispensable node in any Siemens-based automation data chain. At the signal acquisition layer, field instruments — including Siemens SITRANS pressure transmitters, temperature sensors, and flow meters — feed real-time process data into the S7-300 or S7-400 PLC via distributed I/O modules such as the ET 200S or ET 200M remote I/O systems. The PLC processes this data and exposes it over the MPI network, where the 6AV6641-0CA01-0AX1 retrieves and displays it in real time for operator review.

Within the control architecture, the OP 77B panel communicates directly with the CPU 315-2 DP or CPU 414-2 DP controllers, reading process tags, writing setpoints, and acknowledging alarms without requiring an intermediate gateway. This direct MPI coupling reduces network overhead and ensures sub-second response times for critical operator interactions. When the plant topology requires integration with PROFIBUS DP field devices — such as Siemens SINAMICS G120 variable frequency drives or SIRIUS motor starters — the S7 PLC acts as the protocol bridge, aggregating PROFIBUS data and presenting it through the MPI interface to the OP 77B panel.

At the supervisory level, WinCC SCADA systems connect to the same MPI/PROFIBUS network segment via a CP 5611 or CP 5613 communication processor, enabling plant-wide data aggregation, trend logging, and remote alarm management. The 6AV6641-0CA01-0AX1 complements this architecture by providing localized operator control at the machine level, while WinCC handles enterprise-level reporting and KPI dashboards. For facilities requiring remote diagnostics, the S7-300 CPU’s integrated Ethernet port or an additional CP 343-1 communication module can extend the data path to MES and ERP systems, creating a fully transparent data flow from sensor to boardroom.

In multi-zone production environments, multiple OP 77B panels can be networked on the same MPI segment alongside other SIMATIC HMI devices such as the TP 177B or MP 277 panels, allowing zone-specific operator interfaces to coexist within a unified control network. This scalability makes the 6AV6641-0CA01-0AX1 an ideal choice for phased factory automation projects where connectivity infrastructure must grow with production capacity.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different equipment generations and vendors. Legacy machines often rely on proprietary serial interfaces or outdated fieldbus standards that cannot natively exchange data with modern Ethernet-based SCADA or MES platforms. The Siemens 6AV6641-0CA01-0AX1 addresses this challenge by serving as a standardized MPI interface point that consolidates operator interaction and data visibility into a single, protocol-consistent node within the Siemens automation ecosystem.

Data silos — where production data is trapped within individual machine controllers and never surfaced to plant management systems — are a direct consequence of inadequate HMI and network infrastructure. By deploying the 6AV6641-0CA01-0AX1 as the operator interface for S7-300 or S7-400 controlled machines, plant engineers gain immediate access to real-time process variables, fault codes, and production counters that would otherwise remain invisible at the supervisory level. This data visibility is the first step toward production line transparency and continuous improvement initiatives.

Remote monitoring and diagnostics are increasingly critical in facilities where maintenance teams cannot be physically present at every machine at all times. The MPI network architecture supported by the 6AV6641-0CA01-0AX1 enables remote access to PLC data through STEP 7 programming software and WinCC flexible runtime, allowing engineers to diagnose faults, adjust parameters, and review alarm histories from a central engineering workstation. This capability significantly reduces mean time to repair (MTTR) and minimizes unplanned downtime.

For facilities planning to expand their automation footprint, the 6AV6641-0CA01-0AX1 provides a proven, scalable foundation. Its compatibility with the full SIMATIC S7 controller family and the broader Siemens TIA Portal ecosystem means that future upgrades — whether adding new I/O modules, integrating additional HMI panels, or migrating to PROFINET-based architectures — can be accomplished without replacing the existing operator interface infrastructure. This protects capital investment while enabling continuous system evolution.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6AV6641-0CA01-0AX1 over an MPI network?
The MPI protocol used by the 6AV6641-0CA01-0AX1 supports data transfer rates up to 187.5 kbps, with typical tag update cycles in the range of 100–500 milliseconds depending on network load and the number of connected nodes. For time-critical applications, it is recommended to limit the MPI segment to fewer than 16 nodes and optimize the PLC data block structure to minimize polling overhead.

Q2: Is the 6AV6641-0CA01-0AX1 compatible with PROFIBUS DP networks?
The 6AV6641-0CA01-0AX1 communicates natively via MPI and does not directly support PROFIBUS DP as a standalone interface. However, when connected to an S7-300 or S7-400 PLC with a PROFIBUS DP port (such as the CPU 315-2 DP), the PLC acts as a gateway, allowing the OP 77B panel to indirectly access data from PROFIBUS DP field devices including drives, remote I/O, and intelligent sensors.

Q3: How is network stability ensured in multi-panel MPI installations?
MPI network stability in multi-panel installations is maintained through proper bus termination at both ends of the network segment, correct assignment of unique MPI node addresses to each device, and adherence to maximum cable length specifications (typically 50 meters at 187.5 kbps without repeaters). Siemens recommends using shielded PROFIBUS/MPI cables and grounding the shield at one point to minimize electromagnetic interference in industrial environments.

Q4: What does the 12-month warranty cover, and is the unit tested before shipment?
Every 6AV6641-0CA01-0AX1 unit supplied by ZYPLC is functionally tested prior to shipment to verify communication interface integrity, display operation, and keypad functionality. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Units are carefully packaged to prevent transit damage, and our technical team provides post-sale support for installation, configuration, and network integration queries.
