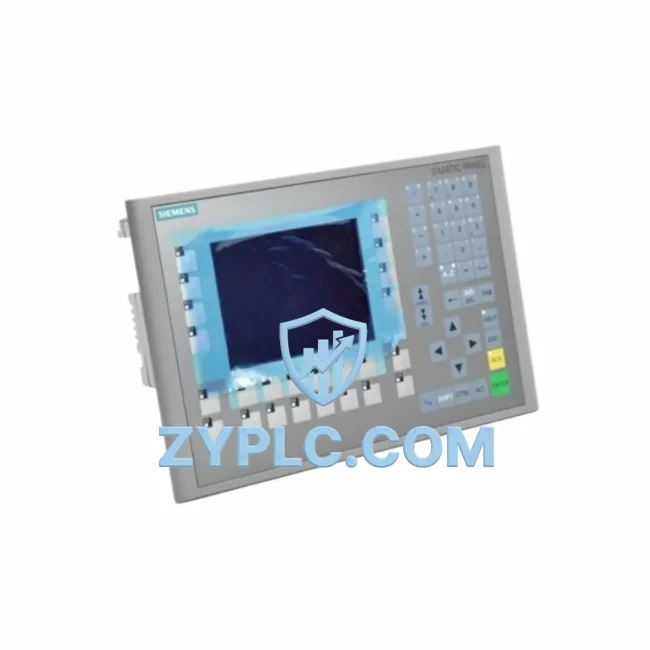

Siemens 6AV6643-0BA01-1AX0 Industrial Network Interface for OP 277 Systems

Siemens 6AV6643-0BA01-1AX0: Industrial Data Link for Smart Factory Connectivity

The Siemens 6AV6643-0BA01-1AX0 is a high-performance SIMATIC HMI OP 277 Operator Panel engineered to serve as a critical node in industrial network communication architectures. With native Profibus DP protocol support, this 6-inch operator panel bridges the gap between field-level devices and supervisory control systems, enabling seamless, real-time data exchange across the entire automation hierarchy. Whether deployed on a discrete manufacturing line, a process plant, or a complex multi-zone smart factory, the 6AV6643-0BA01-1AX0 delivers the connectivity, visualization, and diagnostic capabilities that modern industrial environments demand.

In today’s smart factory landscape, data isolation remains one of the most persistent challenges. Field sensors, variable frequency drives, remote I/O modules, and PLC controllers often operate on disparate communication layers, creating bottlenecks that impede real-time decision-making. The 6AV6643-0BA01-1AX0 addresses this directly by acting as a Profibus DP-compliant HMI gateway, aggregating process data from the field layer and presenting it in a structured, operator-readable format while simultaneously feeding upstream SCADA and DCS platforms with live production metrics.

Network Communication Table

Connected Automation Data Flow

The 6AV6643-0BA01-1AX0 sits at the intersection of field instrumentation and supervisory control, making it indispensable in multi-layer industrial communication architectures. In a typical smart factory deployment, signal acquisition begins at the sensor and actuator layer — pressure transmitters, temperature sensors, and proximity switches feed raw process data into remote I/O modules such as the Siemens ET 200S or ET 200M distributed I/O systems. These modules communicate upstream via Profibus DP, where the 6AV6643-0BA01-1AX0 receives, processes, and visualizes the data in real time.

At the controller layer, the OP 277 panel interfaces directly with Siemens S7-300 and S7-400 PLCs — the backbone of countless process and discrete manufacturing installations worldwide. When paired with a Siemens CP 342-5 Profibus communication processor, the data pipeline extends further, enabling the PLC to exchange structured process blocks with the HMI panel at cycle times well within the demands of real-time control. For newer installations leveraging the S7-1500 platform, the 6AV6643-0BA01-1AX0 can be integrated via a Profibus DP master interface, maintaining backward compatibility while supporting modern TIA Portal engineering workflows.

Drive-level integration is equally seamless. Siemens SINAMICS G120 and MICROMASTER 440 variable frequency drives, both of which support Profibus DP as a standard fieldbus option, can be monitored and parameterized directly through the OP 277 panel. Operators gain real-time visibility into drive speed references, output frequency, fault codes, and energy consumption — all without leaving the HMI interface. This eliminates the need for dedicated drive commissioning tools during routine production monitoring.

At the network infrastructure layer, industrial Ethernet switches and Profibus repeaters such as the Siemens SCALANCE X series ensure signal integrity across extended cable runs and multi-drop Profibus segments. The 6AV6643-0BA01-1AX0 benefits from this robust network backbone, maintaining stable communication even in electrically noisy environments typical of heavy industry. For facilities transitioning toward hybrid Profibus/Profinet architectures, a Siemens IE/PB Link PN IO gateway can bridge the two protocols, allowing the OP 277 panel to remain operational within a modernized network topology.

At the supervisory level, SCADA platforms such as Siemens WinCC or third-party systems receive aggregated process data from the HMI layer via OPC DA/UA servers or direct Profibus DP master connections. The 6AV6643-0BA01-1AX0 supports alarm logging, trend recording, and recipe management — functions that feed directly into MES and ERP data pipelines, enabling production transparency from the shop floor to the enterprise level.

Solving Data Isolation in Industrial Sites

One of the most common pain points in legacy industrial installations is protocol fragmentation. When field devices, PLCs, drives, and supervisory systems speak different communication languages, data silos form — and real-time production visibility becomes impossible. The Siemens 6AV6643-0BA01-1AX0 resolves this by serving as a Profibus DP-native HMI gateway that standardizes data presentation across heterogeneous device ecosystems.

For facilities where remote monitoring has historically required on-site personnel, the OP 277 panel’s alarm management and trend logging capabilities enable operators to detect anomalies, track process deviations, and initiate corrective actions from a centralized control room — or via remote SCADA access. This dramatically reduces unplanned downtime and accelerates fault diagnosis cycles.

Production line transparency is another area where the 6AV6643-0BA01-1AX0 delivers measurable value. By consolidating process data from multiple Profibus DP segments into a single operator interface, plant managers gain a unified view of OEE metrics, batch progress, and equipment health — without the complexity of deploying additional middleware or protocol converters. System expansion is equally straightforward: additional Profibus DP nodes can be added to the network without reconfiguring the HMI panel, thanks to the scalable architecture of the SIMATIC OP 277 platform.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, including communication link verification, display calibration, and protocol handshake confirmation. Stock availability is maintained to support urgent project timelines, and all units are covered by a 12-month warranty from the date of shipment.

Industrial Connectivity FAQ

Q1: What is the maximum Profibus DP transmission speed supported by the 6AV6643-0BA01-1AX0?
The OP 277 panel supports Profibus DP transmission rates of up to 12 Mbit/s, consistent with the EN 50170 standard. In practice, most installations operate at 1.5 Mbit/s or 6 Mbit/s to balance speed with cable length constraints. The baud rate is automatically negotiated with the Profibus DP master during network initialization.

Q2: Is the 6AV6643-0BA01-1AX0 compatible with both S7-300 and S7-1500 PLC platforms?
Yes. The OP 277 panel is fully compatible with the Siemens S7-300 and S7-400 PLC families via native Profibus DP. For S7-1500 systems, integration is achieved through a Profibus DP master module or an IE/PB Link gateway, allowing the panel to operate within both legacy and modern SIMATIC automation architectures.

Q3: How does the panel handle network instability or communication interruptions?
The 6AV6643-0BA01-1AX0 incorporates built-in communication watchdog functions that detect Profibus DP link failures and trigger configurable alarm responses. In the event of a network interruption, the panel retains the last valid process values and displays a communication fault alarm, enabling operators to take immediate corrective action without data loss.

Q4: What warranty and pre-shipment testing does ZYPLC provide for this unit?
All Siemens 6AV6643-0BA01-1AX0 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment testing that includes Profibus DP communication verification, display functionality checks, and power-on self-test confirmation. In-stock units are available for immediate dispatch to support urgent project and maintenance requirements.
