Siemens 6AV6647-0AH11-3AX1 Industrial Network Interface for SIMATIC Basic Systems

Siemens 6AV6647-0AH11-3AX1: Industrial Data Link for Smart Factory Connectivity

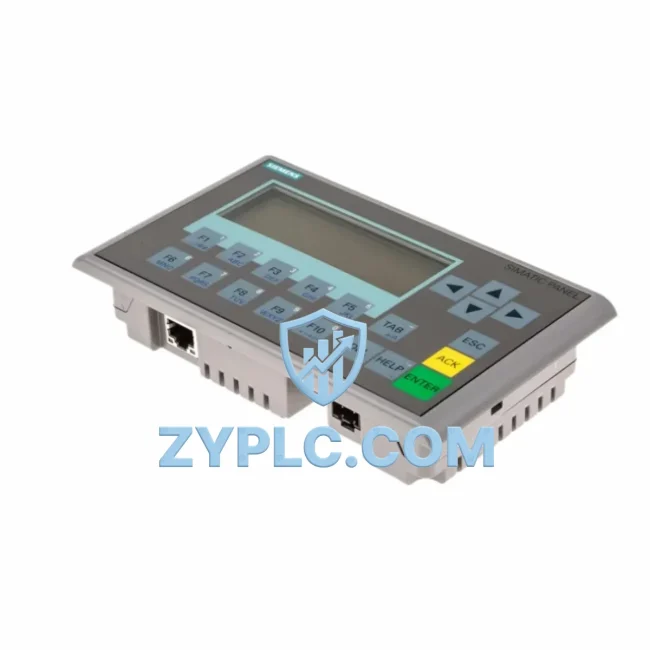

The Siemens 6AV6647-0AH11-3AX1, commercially known as the KTP400 Basic Mono PN, is a compact 4-inch PROFINET-enabled Human Machine Interface panel engineered for seamless integration within SIMATIC-based automation architectures. Designed to serve as the critical visualization and communication node between field devices and upper-level control systems, this HMI panel bridges the gap between real-time process data and operator decision-making in modern industrial environments.

In today’s smart factory landscape, data transparency across every layer of the automation pyramid is non-negotiable. The 6AV6647-0AH11-3AX1 fulfills this demand by providing a robust PROFINET communication interface that connects directly to SIMATIC S7-1200 and S7-1500 PLC controllers, enabling high-speed, deterministic data exchange across the plant network. Whether deployed on a standalone machine cell or integrated into a multi-node PROFINET ring topology, this panel delivers consistent, low-latency visualization performance.

Network Communication Table

Connected Automation Data Flow

The 6AV6647-0AH11-3AX1 sits at the intersection of field-level sensing and supervisory control, making it an indispensable component in any layered industrial network. Signal acquisition begins at the sensor and actuator layer — proximity switches, temperature transmitters, and pressure transducers feed raw process values into distributed remote I/O modules such as the Siemens ET 200SP or ET 200MP. These I/O nodes communicate upstream via PROFINET to the SIMATIC S7-1200 PLC, where ladder logic and function block programs process the data and generate control outputs.

The 6AV6647-0AH11-3AX1 connects directly to the same PROFINET segment as the S7-1200, receiving real-time variable updates through the TIA Portal-configured HMI connection. Operators on the shop floor can monitor live process values, acknowledge alarms, and trigger manual overrides — all through the panel’s touch-and-key interface — without requiring a dedicated PC workstation. This dramatically reduces response time during fault conditions and eliminates the need for serial RS-485 polling that introduces latency in legacy systems.

For more complex topologies, the panel integrates smoothly alongside the Siemens SCALANCE X208 managed industrial Ethernet switch, which provides PROFINET-compliant switching with VLAN segmentation and port mirroring for network diagnostics. When the automation cell must communicate with a SIMATIC S7-300 or S7-400 controller that lacks a native PROFINET interface, a Siemens CP 343-1 or CP 443-1 communication processor bridges the legacy MPI/PROFIBUS DP network to the PROFINET backbone, ensuring the 6AV6647-0AH11-3AX1 can still visualize data from older controller generations.

At the drive layer, SINAMICS G120 variable frequency drives equipped with a PROFINET-capable Control Unit (CU250S-2 PN) publish motor speed, torque, and fault status directly onto the network. The 6AV6647-0AH11-3AX1 can display this drive data in real time, giving maintenance engineers immediate visibility into motor performance without accessing the drive cabinet. Similarly, Siemens SIRIUS 3RW soft starters with IO-Link or PROFINET interfaces contribute motor load data to the same network segment.

For sites requiring SCADA-level integration, the panel’s data is aggregated by a Siemens SINAUT or a third-party OPC UA gateway, which translates PROFINET process values into OPC UA or Modbus TCP for transmission to WinCC SCADA servers or MES platforms. This multi-protocol data path — from sensor to PLC to HMI to SCADA — forms the complete industrial data chain that the 6AV6647-0AH11-3AX1 anchors at the machine level.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different equipment generations and vendors. A typical production facility may operate PROFIBUS DP legacy networks alongside newer PROFINET segments, with Modbus RTU devices on serial links and Ethernet/IP nodes on a separate subnet. Without a coherent visualization strategy, operators are forced to consult multiple interfaces, increasing the risk of missed alarms and delayed responses.

The 6AV6647-0AH11-3AX1 addresses this by serving as a unified visualization point for the PROFINET domain, while TIA Portal’s integrated engineering environment allows engineers to configure data exchange between PROFINET and other protocol zones through software gateways. When paired with a Siemens IE/PB Link PN IO module, the panel can indirectly display data from PROFIBUS DP field devices, effectively dissolving the protocol boundary that would otherwise create a data silo.

Remote monitoring and diagnostics are equally critical for reducing unplanned downtime. The PROFINET interface of the 6AV6647-0AH11-3AX1 supports remote access via the TIA Portal’s online diagnostic functions, allowing engineers to read HMI alarm logs, check communication status, and update screen configurations from a central engineering station without physical access to the panel. For geographically distributed sites, this capability — combined with a Siemens SCALANCE M876 industrial LTE router — enables full remote HMI diagnostics over cellular networks.

Production line transparency is further enhanced by the panel’s alarm management system, which logs timestamped fault events and operator acknowledgments. This audit trail feeds into OEE (Overall Equipment Effectiveness) calculations at the MES level, providing management with accurate data on equipment availability, performance, and quality — the three pillars of smart manufacturing. The 6AV6647-0AH11-3AX1 thus transforms isolated machine data into actionable factory intelligence.

System scalability is built into the PROFINET architecture itself. As production capacity grows, additional SIMATIC S7-1200 controllers, ET 200SP I/O stations, and SINAMICS drives can be added to the PROFINET network without redesigning the existing topology. The 6AV6647-0AH11-3AX1 can be reconfigured in TIA Portal to display data from newly added devices, ensuring the HMI layer scales in step with the physical plant.

Every unit of the 6AV6647-0AH11-3AX1 supplied by ZYPLC undergoes pre-shipment functional testing, verifying PROFINET communication establishment, display operation, and key/touch input response before dispatch. Stock availability is maintained to support urgent project timelines, and all units are covered by a 12-month warranty against manufacturing defects.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6AV6647-0AH11-3AX1 over PROFINET?
The 6AV6647-0AH11-3AX1 communicates over standard PROFINET IO at 10/100 Mbps Ethernet. HMI update cycles are configurable in TIA Portal, typically set between 100 ms and 1,000 ms depending on the number of tags and network load. For most machine-level visualization tasks, a 200–500 ms update cycle provides responsive operator feedback without overloading the PROFINET segment.

Q2: Is the 6AV6647-0AH11-3AX1 compatible with non-Siemens PLCs via PROFINET?
The panel is optimized for use with SIMATIC controllers configured in TIA Portal. While PROFINET is an open standard (IEC 61158), the WinCC Basic runtime on this panel communicates using Siemens-specific HMI connections. Integration with third-party PROFINET controllers is possible through OPC UA or Modbus TCP gateways, but direct native connection is recommended only with SIMATIC S7-1200 and S7-1500 series PLCs.

Q3: How is network stability ensured in high-vibration or electrically noisy industrial environments?
The 6AV6647-0AH11-3AX1 is designed to IEC 61131-2 environmental standards, with EMC compliance for industrial installation. For network stability, it is recommended to use shielded Industrial Ethernet cables (Cat 5e or Cat 6 with foil shielding) and to connect the cable shield to the DIN rail ground at both ends. Managed switches such as the SCALANCE X208 provide additional network resilience through RSTP (Rapid Spanning Tree Protocol) for redundant ring topologies.

Q4: What warranty and after-sales support does ZYPLC provide for the 6AV6647-0AH11-3AX1?
ZYPLC provides a 12-month warranty on all 6AV6647-0AH11-3AX1 units covering manufacturing defects and communication failures under normal operating conditions. Pre-shipment testing is performed on every unit to verify PROFINET connectivity and display functionality. Technical support for installation, TIA Portal configuration, and network integration is available via email and phone throughout the warranty period.
