Siemens 6DD1660-0BJ0 Communication Module for SIMADYN D

Siemens 6DD1660-0BJ0 Communication Module for SIMADYN D: Compatibility and Replacement Notes

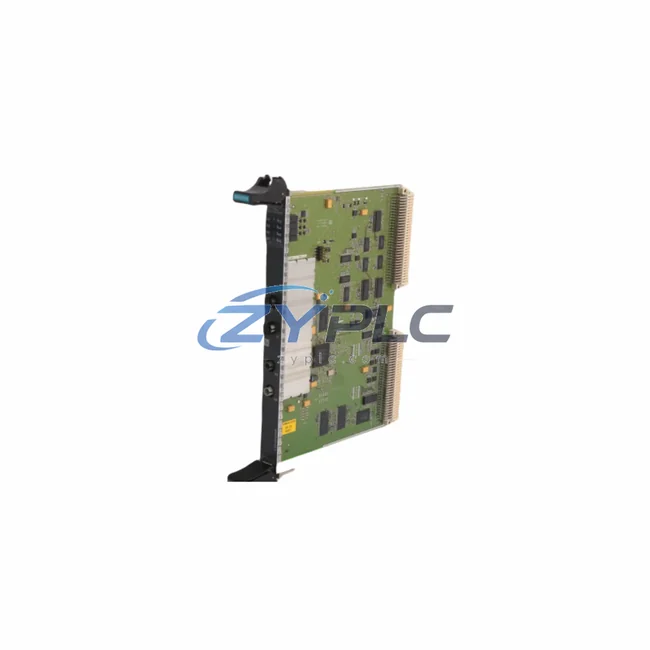

In modern industrial automation, no component operates in isolation. The Siemens 6DD1660-0BJ0 is a dedicated communication module engineered for the SIMADYN D and TDC (Technology and Drive Control) control platform — a high-performance, rack-based system widely deployed in power generation, rolling mills, paper machines, marine propulsion, and large-scale process industries. Understanding the 6DD1660-0BJ0 requires understanding the layered architecture it serves: from the CPU layer down through I/O expansion, network communication, power distribution, HMI integration, and field-level execution.

The 6DD1660-0BJ0 occupies the communication layer of the SIMADYN D rack system, acting as the data bridge between the central processing units and external control networks or supervisory systems. In a typical SIMADYN D installation, the central processor — such as the 6DD1606-0AD0 or 6DD1600-0BA1 processor board — handles real-time closed-loop control tasks at sub-millisecond cycle times. The 6DD1660-0BJ0 offloads communication overhead from these processors, ensuring that time-critical control loops are not interrupted by network polling or data exchange tasks. This architectural separation is fundamental to achieving deterministic control performance in demanding applications.

Within the rack backplane, the 6DD1660-0BJ0 interfaces directly with adjacent modules through the SIMADYN D bus structure. Alongside application modules such as the 6DD1611-0AD0 and memory expansion boards like the 6DD1610-0AH6, the communication module participates in a tightly coupled module ecosystem. The backplane itself acts as the high-speed internal highway, allowing the CPU, I/O modules, and communication boards to exchange data at rates that far exceed what external fieldbus networks can achieve. This internal coherence is what makes the SIMADYN D platform suitable for multi-axis coordinated drives and complex process interlocks.

At the I/O layer, the 6DD1660-0BJ0 coordinates with digital and analog I/O modules — including the 6DD1682-0CH0 digital I/O board and 6DD1681-0GK0 analog input module — to relay process values and setpoints between the field instrumentation and the supervisory control layer. In applications such as hot strip rolling mills or turbine governor systems, the accuracy and latency of this data path directly affect product quality and plant safety. The communication module ensures that field signals are accurately represented in the supervisory SCADA or DCS layer without introducing timing jitter that could compromise control fidelity.

Power integrity is another dimension of system architecture that the 6DD1660-0BJ0 depends upon. The SIMADYN D rack is typically powered by dedicated power supply modules such as the 6DD2920-0AR6 PM6 power module, which provides regulated DC voltages to all rack-mounted boards. Stable power delivery is essential for the communication module’s internal oscillators and interface transceivers to maintain signal integrity across long cable runs and electrically noisy industrial environments. In redundant power configurations, dual PM6 modules ensure that a single power supply failure does not interrupt communication between the control system and the plant network.

From a network architecture perspective, the 6DD1660-0BJ0 supports integration with higher-level systems through standardized industrial communication protocols. In many installations, it interfaces with PROFIBUS DP networks, enabling the SIMADYN D controller to exchange data with distributed I/O stations, variable frequency drives, and intelligent field devices. In more complex architectures, the T400 technology board or CS7 communication module may be used in conjunction with the 6DD1660-0BJ0 to handle protocol conversion or to bridge between different network segments within the same control cabinet. This layered communication design supports both vertical integration (from field to enterprise) and horizontal integration (between peer controllers in a coordinated drive system).

For HMI and operator interface integration, the 6DD1660-0BJ0 enables the SIMADYN D system to publish real-time process data to SIMATIC WinCC or other SCADA platforms. Operators can monitor drive speeds, torques, temperatures, and fault states from centralized workstations, while the communication module handles the data serialization and network transport transparently. This visibility is critical for process optimization, alarm management, and regulatory compliance in industries such as petrochemicals, water treatment, and metals processing.

Redundancy is a key design consideration in any critical automation system, and the SIMADYN D architecture supports hot-standby CPU configurations where the 6DD1660-0BJ0 plays a role in synchronizing state data between the active and standby processors. In the event of a CPU fault, the communication module facilitates a bumpless transfer to the standby unit, maintaining network connectivity and preventing process upsets. This capability is particularly valued in continuous process industries where unplanned shutdowns carry significant economic and safety consequences.

From a maintenance and lifecycle perspective, the 6DD1660-0BJ0 is a field-replaceable unit that can be swapped without disturbing adjacent modules in the rack, provided the system is taken to a safe state. Siemens’ modular rack design means that spare modules can be held in inventory and deployed rapidly during planned maintenance windows or emergency repairs. ZYPLC supports RFQ sourcing for the 6DD1660-0BJ0 and related SIMADYN D components, supporting customers with fast dispatch and a warranty terms confirmed during quotation on all supplied units. Each module undergoes functional verification before shipment to ensure compatibility with existing rack configurations.

Product Specification Table

System Compatibility Notes

A complete SIMADYN D control system integrating the 6DD1660-0BJ0 typically includes the following coordinated components working in concert. The 6DD1606-0AD0 serves as the central processor, executing real-time control algorithms while the 6DD1660-0BJ0 handles all external communication tasks. The 6DD1600-0BA1 processor board may be used in parallel or redundant CPU configurations to increase computational capacity. Application-specific logic is implemented on the 6DD1611-0AD0 application module, which shares the backplane with the communication board. Memory expansion is provided by the 6DD1610-0AH6 memory module, supporting large control programs and data logging functions.

At the I/O layer, the 6DD1682-0CH0 digital I/O module handles binary signals from field devices such as contactors, limit switches, and solenoid valves, while the 6DD1681-0GK0 analog input module processes 4–20 mA and ±10 V signals from transmitters and transducers. Power to the entire rack assembly is supplied by the 6DD2920-0AR6 PM6 power module, with a second unit installed in redundant configurations. For advanced protocol bridging or technology functions, the T400 technology board and CS7 communication module extend the system’s connectivity to additional network segments or specialized drive interfaces. Together, these modules form a cohesive, validated control architecture in which the 6DD1660-0BJ0 serves as the communication backbone.

Industrial Application Notes

The Siemens 6DD1660-0BJ0 finds application across a broad range of heavy industrial sectors where the SIMADYN D and TDC platforms are established standards. In steel and metals processing, the module enables coordinated communication between rolling mill drive controllers and the level-2 process automation system, supporting thickness control, speed synchronization, and tension regulation across multiple mill stands. In power generation, it interfaces turbine governor controllers with plant DCS systems, transmitting speed, load, and protection signals in real time.

In petrochemical and refinery applications, the 6DD1660-0BJ0 supports integration of compressor and pump drive systems with the plant-wide SCADA, enabling remote monitoring and setpoint adjustment from the control room. Water and wastewater treatment facilities use the module to connect variable-speed pump drives with supervisory control systems, optimizing energy consumption and maintaining process stability. In mining and mineral processing, the module’s robust industrial design withstands the vibration, dust, and temperature extremes of underground and surface operations. Packaging and converting lines benefit from the module’s ability to synchronize multi-axis drive systems through a common communication backbone, ensuring precise registration and throughput consistency.

Product Compatibility FAQ

Q1: Is the 6DD1660-0BJ0 compatible with both SIMADYN D and TDC rack systems?
The 6DD1660-0BJ0 is designed for the SIMADYN D platform, which shares architectural heritage with the TDC (Technology and Drive Control) system. Compatibility with a specific rack configuration depends on the backplane version and firmware revision of the installed CPU modules. It is recommended to verify the rack assembly drawing and module compatibility matrix from the Siemens SIMADYN D system documentation before installation. ZYPLC’s technical team can assist with compatibility verification based on your existing rack configuration.

Q2: Can the 6DD1660-0BJ0 be replaced without removing adjacent modules from the rack?
In most SIMADYN D rack configurations, individual modules are designed for independent extraction and insertion, provided the rack is de-energized or the system is placed in a safe maintenance state. The module connector and guide rails allow for single-slot removal without disturbing neighboring boards. However, it is strongly recommended to follow Siemens’ documented hot-swap procedures and to verify whether your specific rack revision supports live module replacement before attempting field substitution during operation.

Q3: What does the warranty terms confirmed during quotation from ZYPLC cover for the 6DD1660-0BJ0?
ZYPLC’s warranty terms confirmed during quotation covers functional defects in the 6DD1660-0BJ0 under normal operating conditions consistent with Siemens’ published environmental and electrical specifications. Each unit is tested prior to dispatch to verify communication interface functionality and backplane connector integrity. In the event of a warranty claim, ZYPLC provides replacement or repair support with priority handling to minimize system downtime. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental range.
