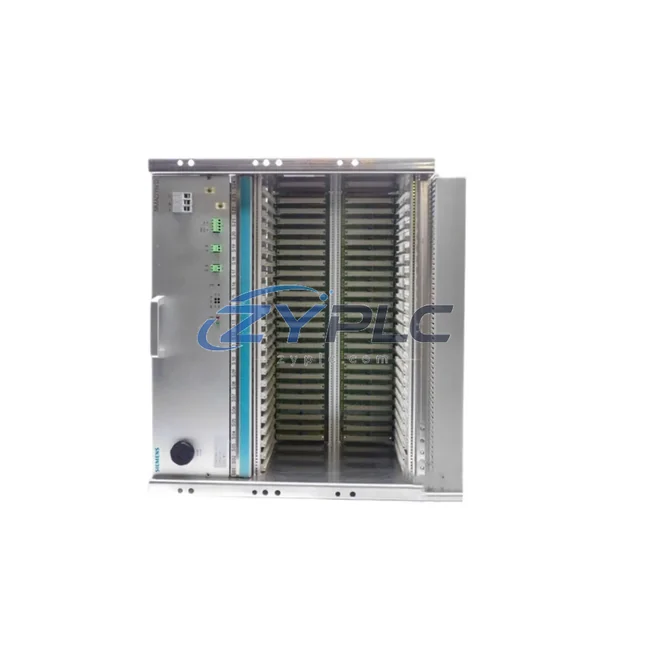

Siemens 6DD1682-0CC0 Card Rack for SIMADYN D

Siemens 6DD1682-0CC0 Card Rack for SIMADYN D: Control System and Upstream–Downstream Coordination

The Siemens 6DD1682-0CC0 is a high-integrity card rack (subrack) engineered specifically for deployment within the SIMADYN D modular digital control platform. Rather than functioning as a standalone enclosure, this subrack serves as the structural and electrical backbone of a layered automation architecture — providing the mechanical housing, backplane bus connectivity, and power distribution rails that allow SIMADYN D processor cards, I/O modules, and communication interfaces to operate as a unified, deterministic control system.

In modern industrial automation, the physical rack is far more than a passive chassis. The 6DD1682-0CC0 defines the system boundary within which signal integrity, module sequencing, and inter-card communication are governed. Its backplane architecture supports the high-speed parallel bus used by SIMADYN D processor modules such as the 6DD1600-0AK0 and 6DD1601-0AK0, ensuring that cycle-time-critical data exchange between the CPU card and function modules occurs without latency or arbitration conflict. This is particularly important in closed-loop drive control, turbine regulation, and rolling mill automation, where deterministic scan times directly affect process stability.

Product Specification Table

System Compatibility Notes

The 6DD1682-0CC0 subrack is the integration point for the full SIMADYN D module ecosystem. A complete control node built around this rack typically includes a SIMADYN D CPU card (such as the 6DD1600-0AK0 or 6DD1601-0AK0) as the central processing unit, responsible for executing the real-time control algorithms that govern drive speed, torque, or process variables. Alongside the CPU, analog and digital I/O function modules — for example the 6DD1606-0AA0 analog input card or the 6DD1607-0AA0 digital I/O module — are inserted into the rack slots and communicate with the processor via the backplane bus without requiring external wiring between cards.

Power integrity across the rack is maintained by a dedicated SIMADYN D power supply unit, such as the 6DD1682-0BA0 or equivalent rack-mount PSU, which feeds regulated 24 VDC to all installed modules through the backplane power rails. This eliminates the need for individual module power wiring and reduces the risk of ground loops or voltage drop across the I/O layer.

For systems requiring communication with higher-level SCADA platforms or distributed control networks, a PROFIBUS DP communication card — such as the 6DD1684-0GD0 — can be installed directly into the rack, enabling the SIMADYN D node to participate in a PROFIBUS segment alongside Siemens S7-300 or S7-400 PLCs, ET 200 distributed I/O stations, and third-party field devices. In architectures where the SIMADYN D system must interface with a Siemens SIMATIC S7-400 as a supervisory controller, the rack-resident communication module handles all protocol translation and data mapping transparently.

At the human-machine interface layer, operator panels such as the Siemens OP7 or TP270 HMI terminals connect to the SIMADYN D system via the MPI or PROFIBUS interface, providing real-time visualization of process variables, alarm management, and parameter adjustment without interrupting the control loop. The physical separation between the HMI communication path and the backplane bus ensures that operator interactions do not introduce jitter into the control cycle.

For applications requiring redundancy, a second 6DD1682-0CC0 rack can be configured as a hot-standby node, with the primary and standby CPUs synchronized via a dedicated redundancy link. This architecture is commonly deployed in power generation, petrochemical, and water treatment facilities where unplanned downtime carries significant operational or safety consequences. The modular nature of the SIMADYN D platform means that individual cards — including terminal modules such as the 6DD1682-0HC0 — can be replaced without disturbing adjacent modules, reducing mean time to repair and supporting planned maintenance windows.

Industrial Application Notes

The 6DD1682-0CC0 card rack has been deployed across a broad range of heavy industrial and process automation environments. In steel rolling mill applications, the SIMADYN D rack serves as the drive control node for main mill motors, with the CPU card executing speed and tension regulation algorithms at sub-millisecond cycle times. The rack’s backplane bus architecture ensures that analog speed feedback from encoder cards and torque reference outputs to drive interface modules are processed within a single scan cycle, maintaining strip tension consistency across tandem mill stands.

In power generation facilities — including gas turbine, steam turbine, and hydroelectric plants — the SIMADYN D system has historically been used for turbine governor control and excitation regulation. The 6DD1682-0CC0 rack provides the physical platform for the governor CPU and its associated analog I/O modules, with PROFIBUS connectivity linking the turbine control node to the plant DCS. The warranty terms confirmed during quotation on replacement racks supports the maintenance planning cycles typical of power plant outage schedules.

In petrochemical and refinery process control, the SIMADYN D rack is used in compressor control and pump drive regulation applications, where the combination of high-speed closed-loop control and robust backplane communication is essential for process safety and efficiency. The rack’s compatibility with PROFIBUS DP allows seamless integration into existing Siemens PCS 7 or SIMATIC S7-based plant automation networks.

For water and wastewater treatment plants, the 6DD1682-0CC0 supports pump station automation and aeration control, with the SIMADYN D system providing variable-speed drive coordination across multiple pump units. The modular rack architecture allows operators to expand I/O capacity by adding function modules without replacing the core CPU or communication infrastructure.

In mining and mineral processing environments, the rack is deployed in conveyor drive control, crusher regulation, and hoisting system automation, where the combination of deterministic control performance and robust industrial construction ensures reliable operation under high-vibration and high-dust conditions.

Product Compatibility FAQ

Q1: Is the 6DD1682-0CC0 compatible with all SIMADYN D processor and I/O modules, and can it be mixed with newer Siemens control platforms?
The 6DD1682-0CC0 is designed for the SIMADYN D module family and is fully compatible with SIMADYN D CPU cards, function modules, and communication cards that share the same backplane bus standard. It is not directly interchangeable with SIMATIC S7-300 or S7-400 racks, as those platforms use different backplane bus architectures. However, SIMADYN D nodes can be integrated into S7-based networks via PROFIBUS DP communication cards installed in the rack, enabling coexistence within a common automation network. For system expansion or migration planning, our engineering team can advise on compatible module combinations and communication gateway options.

Q2: What installation and commissioning considerations apply when deploying the 6DD1682-0CC0 in a new or replacement control cabinet?
The rack must be installed in a control cabinet that provides adequate forced-air ventilation, particularly when all module slots are populated. Power supply sizing should account for the aggregate current draw of all installed modules, with a recommended 20% headroom above calculated load. During commissioning, module slot assignments must match the hardware configuration defined in the SIMADYN D engineering tool (STRUC G or equivalent), as the CPU card reads slot addresses from the backplane during initialization. Grounding of the rack frame to the cabinet PE rail is mandatory for EMC compliance and personnel safety. Our team provides pre-shipment functional testing and configuration documentation to support site commissioning.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning for SIMADYN D systems?
The warranty terms confirmed during quotation covers manufacturing defects, backplane bus integrity failures, and functional faults attributable to the rack hardware under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. For maintenance planning purposes, the warranty period aligns with typical annual plant outage cycles, allowing facilities to schedule rack replacements or spare unit qualification during planned shutdowns. We supports RFQ sourcing for 6DD1682-0CC0 units and associated SIMADYN D modules to support both emergency replacement and planned maintenance programs, with global shipping available to minimize system downtime.
