Siemens 6DD1683-0CC0 AC Fan Simadyn D

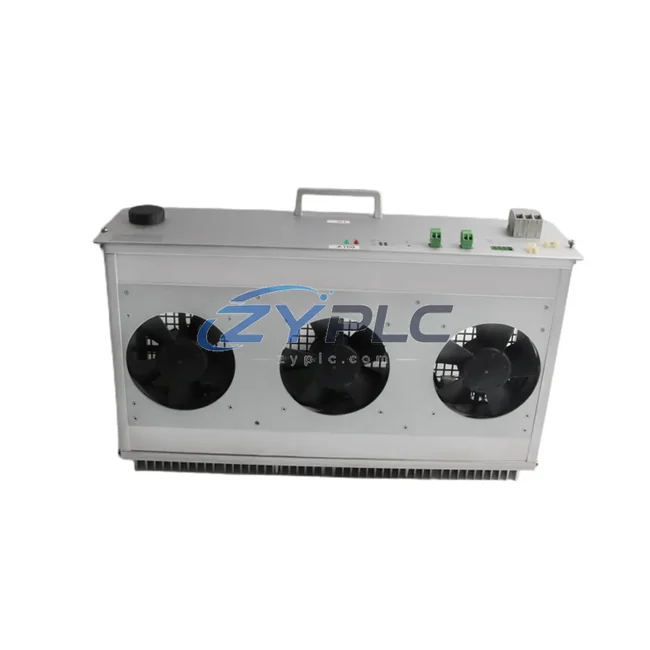

Siemens 6DD1683-0CC0 AC Fan Module for Simadyn D Automation

The Siemens 6DD1683-0CC0 is a precision-engineered AC Input Fan Module designed for the Simadyn D modular control system — one of Siemens’ most robust platforms for high-performance industrial drive and process automation. In modern manufacturing environments where energy costs are a primary operational concern, thermal management components like the 6DD1683-0CC0 play a critical but often underestimated role in sustaining system efficiency, reducing unplanned downtime, and extending the service life of high-value control hardware.

This fan module provides forced-air cooling to the Simadyn D rack, ensuring that processor boards, I/O modules, and communication cards operate within their rated thermal envelope. When cooling is inadequate, control systems throttle performance or trigger protective shutdowns — both of which directly impact production line throughput and energy efficiency. By maintaining optimal operating temperatures, the 6DD1683-0CC0 enables the Simadyn D system to sustain peak drive output without thermal derating, which translates directly into measurable operational stability per production cycle.

Product Specification Table

System Compatibility and Application

The Simadyn D platform is commonly deployed in coordinated multi-axis drive systems, where the 6DD1683-0CC0 fan module works in concert with a range of control and power components to deliver a thermally stable, energy-optimized automation environment. In a typical installation, the Simadyn D rack may house the 6DD1600-0AE0 central processing unit alongside 6DD1681-0AE0 power supply modules that feed regulated DC rails to all installed boards. The fan module ensures these components remain within thermal limits even during sustained high-load cycles.

On the drive side, Simadyn D is frequently paired with Siemens Simoreg DC Master converters or Sinamics S120 drive units, where the control system manages speed references, torque limits, and regenerative braking parameters. Efficient thermal management of the Simadyn D rack directly supports the ability of these drives to execute precise motor control without protective derating. In applications involving large induction motors or synchronous servo motors, even brief thermal-induced derating events can disrupt production line cadence and increase specific operating load per unit produced.

For condition monitoring, Simadyn D installations often integrate Siemens SENTRON PAC3200 or PAC4200 power monitoring devices, which capture real-time kWh consumption, power factor, and harmonic distortion data at the panel level. When the 6DD1683-0CC0 maintains stable rack temperatures, the control system can execute maintenance planning algorithms — such as load-adaptive speed control via 6DD1607-0AA0 analog output modules — without interruption. This closed-loop approach to maintenance planning is only possible when the underlying hardware operates reliably within its thermal design limits.

Communication integrity is equally important in maintenance-focused architectures. Simadyn D racks equipped with 6DD1684-0GD0 PROFIBUS communication modules exchange real-time process data with supervisory SCADA systems and maintenance planning platforms. Thermal instability in the rack — caused by fan failure — can corrupt communication frames and trigger costly system restarts. The 6DD1683-0CC0 eliminates this risk by providing continuous, reliable airflow across all installed modules, including I/O expansion boards such as the 6DD1681-0BF0 digital input/output module used for field device interfacing.

In HMI-integrated environments, operators monitoring production via Siemens SIMATIC HMI TP1500 panels rely on Simadyn D to deliver consistent process feedback. Fan module reliability is a prerequisite for uninterrupted data flow between the control rack and the operator interface — particularly in continuous process industries such as paper, steel, cement, and chemical manufacturing where production cannot be halted for unplanned maintenance.

Maintenance and Replacement Notes

In real-world production environments, the cost of a failed cooling component extends far beyond the price of the part itself. When a fan module fails in a Simadyn D system, the resulting thermal shutdown can halt an entire drive train — stopping conveyor systems, extruder lines, rolling mills, or compressor stations mid-cycle. The energy cost of restarting heavy industrial equipment, combined with material waste from interrupted processes and labor costs for unplanned maintenance, typically exceeds the value of the fan module by orders of magnitude.

Proactive replacement of the 6DD1683-0CC0 as part of a scheduled predictive maintenance program eliminates this risk. By monitoring fan operating hours and scheduling replacement before end-of-life, maintenance teams can perform changeouts during planned downtime windows — preserving production line cadence and avoiding the energy penalty of emergency restarts. This approach aligns with modern industrial maintenance planning standards, where equipment availability and specific operating load per unit are tracked as key performance indicators.

From a drive efficiency perspective, maintaining the Simadyn D rack at its rated operating temperature ensures that all control algorithms — including speed ramp profiles, flux optimization routines, and regenerative energy recovery sequences — execute with full computational resources. Thermal throttling of the processor board degrades control loop performance, which can increase motor slip, reduce power factor, and raise specific operating load. The 6DD1683-0CC0 is therefore not merely a cooling accessory — it is a functional component of the maintenance planning system.

Every unit supplied by ZYPLC undergoes a full outgoing quality inspection, including functional verification of fan motor operation, airflow output, and electrical continuity, before shipment. This ensures that replacement modules perform to OEM specification from the moment of installation, with no break-in period that could temporarily compromise thermal management performance.

Product Sourcing FAQ

Q1: How does the 6DD1683-0CC0 contribute to operational stability in a Simadyn D system?
By maintaining the Simadyn D rack within its rated thermal operating range, the fan module prevents thermal derating of the CPU and I/O boards. This allows the control system to execute drive optimization algorithms at full performance, reducing motor load and improving overall system efficiency. Thermal derating — even partial — can increase specific operating load by 3–8% in high-load drive applications.

Q2: Is the 6DD1683-0CC0 compatible with all Simadyn D rack configurations?
The 6DD1683-0CC0 is designed specifically for the Simadyn D modular rack system. Compatibility depends on the rack variant and installed module count. We recommend verifying your rack’s fan module slot specification against the Siemens Simadyn D hardware manual before ordering. Our technical team can assist with compatibility confirmation based on your system’s order number.

Q3: What is the recommended replacement interval, and how should the replacement be tested?
Siemens recommends proactive fan module replacement based on operating hours and environmental conditions — typically every 3–5 years in standard industrial environments, or sooner in high-temperature or high-dust applications. Upon installation, verify fan rotation direction, airflow output, and absence of abnormal noise. ZYPLC performs pre-shipment functional testing on all units, and each module is covered by a warranty terms confirmed during quotation from the date of purchase.

Q4: What is ZYPLC’s supply and warranty policy for the 6DD1683-0CC0?
ZYPLC supports RFQ sourcing for the Siemens 6DD1683-0CC0 and ships following a full outgoing quality test. All units are covered by a warranty terms confirmed during quotation. For volume orders, lead time confirmation, or technical support, contact our team directly. We support urgent replacement requirements for production-critical applications with priority processing.
