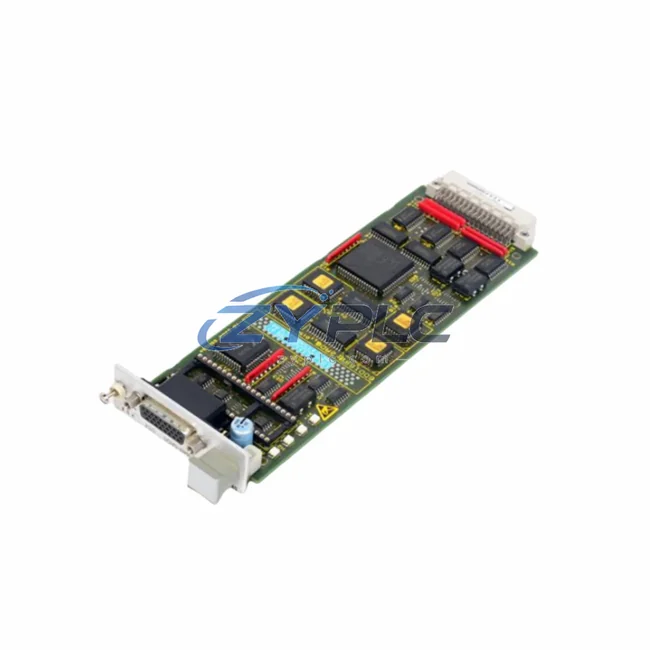

Siemens 6DD1688-0AE0 Industrial Network Interface for SIMADYN D Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices, PLC controllers, remote I/O modules, HMI panels, SCADA platforms, variable frequency drives, sensors, and supervisory systems is no longer optional — it is the foundation of operational excellence. The Siemens 6DD1688-0AE0 PROFIBUS DP Communication Submodule is engineered precisely for this mission, delivering high-speed, deterministic network communication within the SIMADYN D modular control system architecture.

As a dedicated PROFIBUS DP submodule, the 6DD1688-0AE0 enables the SIMADYN D controller to participate as a master or slave node on a PROFIBUS network operating at up to 12 Mbit/s, fully compliant with IEC 61158 and EN 50170 standards. This makes it an ideal interface component for integrating distributed automation assets — from intelligent motor starters and servo drives to remote I/O racks and field instrumentation — into a unified, real-time control network.

Compatibility & Integration Notes

Connected Automation Data Flow

The Siemens 6DD1688-0AE0 sits at the heart of a layered industrial communication architecture. In a typical smart factory deployment, signal acquisition begins at the sensor and actuator level — pressure transmitters, temperature sensors, and proximity switches feed raw process data into distributed remote I/O modules such as the Siemens ET 200M or ET 200S remote I/O stations. These field devices communicate upstream via PROFIBUS DP, with the 6DD1688-0AE0 submodule acting as the network interface within the SIMADYN D controller rack.

Within the SIMADYN D platform, the PM5 processor module and CS7 central submodule work in concert with the 6DD1688-0AE0 to execute real-time closed-loop control algorithms while simultaneously exchanging process variables with the PROFIBUS network. This tight integration ensures that cycle times remain deterministic — critical for high-speed drive control applications where the Siemens MASTERDRIVES MC or SIMOREG DC MASTER converters are coordinated across the network.

At the supervisory level, SCADA systems such as Siemens WinCC or third-party platforms connect to the PROFIBUS segment via a CP 5613 or CP 5614 PROFIBUS communication processor installed in the SCADA server. This link enables operators to monitor real-time process values, acknowledge alarms, and execute remote setpoint changes — all routed through the 6DD1688-0AE0 communication path. HMI panels, including the Siemens OP17 or TP 270 touch panels, can also be integrated as PROFIBUS DP slaves, providing local visualization at the machine level without additional protocol conversion overhead.

For applications requiring protocol bridging between PROFIBUS DP and higher-level Ethernet-based networks, a Siemens IE/PB Link PN IO gateway can be deployed alongside the 6DD1688-0AE0, transparently forwarding PROFIBUS DP data to PROFINET or Industrial Ethernet segments. This architecture supports vertical integration from the field level to the enterprise MES and ERP systems, enabling full production transparency and data-driven decision-making.

Solving Data Isolation in Industrial Sites

Legacy industrial installations frequently suffer from protocol fragmentation — islands of automation where PLCs, drives, and instrumentation speak incompatible communication dialects, creating data silos that block real-time visibility and remote diagnostics. The Siemens 6DD1688-0AE0 directly addresses this challenge by providing a standardized PROFIBUS DP interface that unifies heterogeneous field devices under a single, deterministic network protocol.

In multi-vendor environments, the PROFIBUS DP standard supported by the 6DD1688-0AE0 ensures interoperability with devices from hundreds of manufacturers, eliminating the need for proprietary point-to-point wiring between controllers and field instruments. This dramatically reduces commissioning time, simplifies network diagnostics, and lowers long-term maintenance costs.

Remote monitoring and diagnostics are further enhanced through the PROFIBUS DP diagnostic telegram mechanism, which allows the SIMADYN D system — via the 6DD1688-0AE0 — to continuously poll slave device status, detect communication faults, and trigger alarm notifications to the SCADA layer within milliseconds. This capability is essential for unattended operation in remote substations, offshore platforms, and large-scale process plants where on-site intervention is costly and time-consuming.

Production line transparency is achieved by mapping PROFIBUS DP process data directly into the SIMADYN D data memory, making all field-level variables accessible to the supervisory network without additional data conversion steps. As production requirements evolve, the PROFIBUS DP network can be extended by adding new slave devices — additional remote I/O stations, smart sensors, or drive units — without modifying the existing network infrastructure, providing a scalable path for future automation expansion.

Every Siemens 6DD1688-0AE0 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify PROFIBUS DP communication integrity, submodule initialization, and network parameter configuration. Units are shipped with a warranty terms confirmed during quotation, and our inventory is maintained to support urgent replacement requirements with fast global dispatch.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS DP transmission speed supported by the 6DD1688-0AE0?
The 6DD1688-0AE0 supports PROFIBUS DP communication at speeds up to 12 Mbit/s, fully compliant with IEC 61158. The actual operating speed is determined by the network configuration and the cable length of the PROFIBUS segment.

Q2: Is the 6DD1688-0AE0 compatible with third-party PROFIBUS DP masters and SCADA systems?
Yes. As a standard PROFIBUS DP submodule compliant with EN 50170, the 6DD1688-0AE0 is interoperable with any certified PROFIBUS DP master, including third-party SCADA communication processors, HMI gateways, and industrial PCs equipped with PROFIBUS interface cards.

Q3: Can the PROFIBUS DP network be expanded after the 6DD1688-0AE0 is commissioned?
Yes. PROFIBUS DP networks support the addition of new slave devices — such as remote I/O stations, drives, and smart sensors — without disrupting existing network operation. The 6DD1688-0AE0 supports up to 125 addressable nodes per PROFIBUS segment (with repeaters), providing substantial headroom for system expansion.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 6DD1688-0AE0?
All 6DD1688-0AE0 units are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing including PROFIBUS DP communication verification and submodule initialization checks. Expedited shipping options are available to minimize production downtime.
