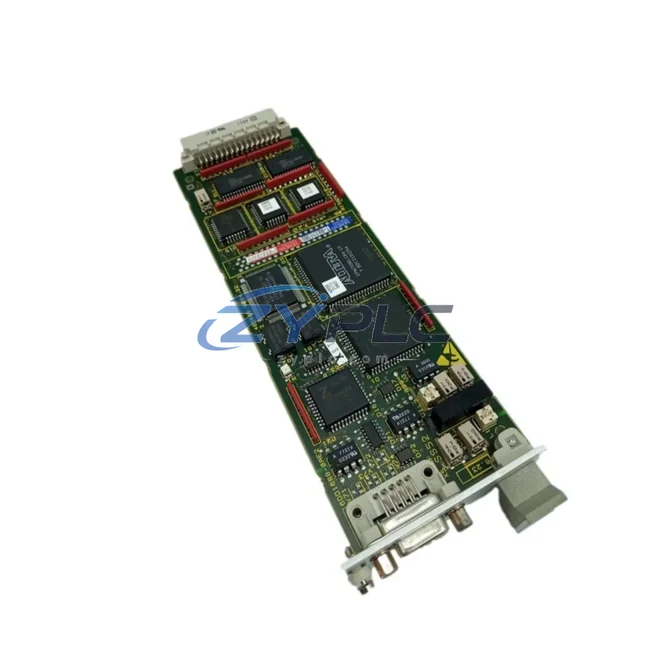

Siemens 6DD1688-0AE2 Industrial Network Interface for SS52 Systems

Siemens 6DD1688-0AE2: Industrial Data Link for Smart Factory Connectivity

The Siemens 6DD1688-0AE2 is a high-performance PROFIBUS-DP/MPI Interface Module engineered for the SS52 Series closed-loop control and drive coordination systems. Designed to bridge field-level devices with upper-level automation networks, this module serves as a critical node in the industrial data chain — enabling seamless communication between PLCs, remote I/O stations, HMI panels, SCADA platforms, and enterprise MES systems. Whether deployed in discrete manufacturing, process automation, or motion control environments, the 6DD1688-0AE2 delivers the network stability and protocol interoperability that modern smart factories demand.

In today’s industrial landscape, data isolation between field devices and supervisory systems remains one of the most persistent challenges. The 6DD1688-0AE2 directly addresses this by providing a dual-protocol gateway capability — simultaneously supporting PROFIBUS-DP for high-speed field bus communication and MPI (Multi-Point Interface) for direct PLC-to-PLC and PLC-to-HMI connectivity. This dual-port architecture eliminates the need for additional protocol converters in many SS52-based installations, reducing system complexity and improving overall network reliability.

Compatibility & Integration Notes

Connected Automation Data Flow

The 6DD1688-0AE2 sits at the heart of a layered industrial communication architecture. At the field level, sensors and actuators — including Siemens SIRIUS 3RK3 motor management relays and ET 200S distributed I/O modules — transmit process signals via PROFIBUS-DP to the interface module. The 6DD1688-0AE2 aggregates these signals and forwards structured data packets upward through the MPI bus to Siemens SIMATIC S7-300 or S7-400 PLCs, where logic execution and closed-loop control decisions are made in real time.

Within the SS52 drive coordination environment, the module interfaces directly with Siemens MASTERDRIVES MC (6SE70 series) variable frequency drives, enabling torque, speed, and position setpoints to be transmitted with sub-millisecond cycle times. This tight integration between the 6DD1688-0AE2 and the drive layer ensures that motion sequences remain synchronized even under high-load production conditions.

Moving up the automation pyramid, the module’s MPI port connects to Siemens SIMATIC HMI TP1500 or MP377 panels, providing operators with real-time visualization of drive status, fault codes, and process variables. Simultaneously, PROFIBUS-DP data is made available to Siemens WinCC SCADA or third-party SCADA platforms via CP 5611 or CP 5613 communication processors, enabling plant-wide monitoring, alarm management, and historical data logging.

For installations requiring edge intelligence, the 6DD1688-0AE2 can be integrated upstream with Siemens SCALANCE X208 industrial Ethernet switches, bridging the PROFIBUS segment into an Industrial Ethernet backbone. This allows data from the SS52 system to flow into Siemens SINEMA Remote Connect or compatible edge gateways for remote diagnostics, predictive maintenance analytics, and OPC-UA data publishing to cloud-based MES or ERP platforms.

Power integrity for the communication module is maintained through Siemens SITOP PSU100S 24V DC power supplies, which provide regulated, noise-filtered power essential for stable PROFIBUS-DP signal transmission in electrically noisy industrial environments. The complete data chain — from field sensor through PLC, drive, HMI, SCADA, and edge gateway — is thus unified under a single, coherent network architecture anchored by the 6DD1688-0AE2.

Solving Data Isolation in Industrial Sites

Many industrial facilities operating legacy SS52 or SIMADYN D systems face a common set of connectivity challenges: incompatible communication protocols between field devices and supervisory systems, data silos that prevent real-time production visibility, and the inability to perform remote diagnostics without physical site access. The Siemens 6DD1688-0AE2 directly resolves these issues through its native dual-protocol architecture.

Protocol Unification: By supporting both PROFIBUS-DP and MPI simultaneously, the 6DD1688-0AE2 eliminates the need for external protocol converters between Siemens S7 PLCs and SS52 drive systems. This reduces wiring complexity, minimizes potential failure points, and ensures deterministic communication latency across the network segment.

Production Line Transparency: With the module in place, all drive parameters, fault states, and process values from the SS52 system become accessible to WinCC SCADA dashboards and HMI panels in real time. Maintenance engineers can monitor motor load trends, identify abnormal vibration signatures, and respond to alarms before unplanned downtime occurs — transforming reactive maintenance into proactive asset management.

Remote Monitoring and Diagnostics: Through integration with Siemens SINEMA Remote Connect or compatible VPN gateways, the 6DD1688-0AE2 enables authorized engineers to access drive diagnostics, PLC program status, and network health metrics from any location. This capability is particularly valuable for multi-site manufacturers and OEM machine builders who need to support installed equipment without costly field service visits.

System Scalability: The PROFIBUS-DP segment supported by the 6DD1688-0AE2 can accommodate up to 126 addressable nodes, making it straightforward to expand the automation network as production capacity grows. Additional ET 200 remote I/O stations, drives, or intelligent field devices can be added to the segment without architectural redesign, protecting the customer’s initial investment in the SS52 platform.

All units supplied by ZYPLC undergo pre-shipment functional testing to verify communication port integrity, firmware version compatibility, and physical connector condition. Each 6DD1688-0AE2 is backed by a warranty terms confirmed during quotation covering manufacturing defects and communication failures, with global express shipping via DHL or FedEx to minimize lead times for urgent production requirements.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6DD1688-0AE2 on a PROFIBUS-DP network?
The 6DD1688-0AE2 supports PROFIBUS-DP at data rates up to 12 Mbit/s, with typical cycle times in the range of 1–10 ms depending on the number of active nodes and the configured baud rate. For time-critical SS52 drive coordination applications, it is recommended to limit the PROFIBUS segment to fewer than 32 nodes and operate at 1.5 Mbit/s or higher to achieve deterministic sub-5 ms cycle performance.

Q2: Is the 6DD1688-0AE2 compatible with Siemens SIMATIC S7-300 and S7-400 PLCs via MPI?
Yes. The MPI port on the 6DD1688-0AE2 is fully compatible with the Siemens SIMATIC S7-300 and S7-400 PLC families, as well as SIMATIC HMI panels that support MPI communication. The module can be addressed directly from STEP 7 or TIA Portal engineering environments for configuration, diagnostics, and online monitoring without additional hardware adapters.

Q3: How does ZYPLC ensure network stability for the 6DD1688-0AE2 before shipment?
Every 6DD1688-0AE2 unit undergoes a pre-shipment communication test that verifies PROFIBUS-DP and MPI port functionality, checks for firmware integrity, and confirms that all physical connectors meet Siemens mechanical specifications. Units that do not pass the full test protocol are quarantined and not shipped. This process ensures that customers receive a module that is ready for immediate installation and commissioning.

Q4: Can the 6DD1688-0AE2 be integrated into a SCADA system for remote monitoring?
Yes. The 6DD1688-0AE2 integrates with Siemens WinCC and compatible third-party SCADA platforms via PROFIBUS-DP communication processors such as the CP 5611 or CP 5613. For remote access over Industrial Ethernet or WAN networks, the PROFIBUS segment can be bridged to Ethernet using Siemens SCALANCE DP/IE Link or equivalent gateways, enabling full remote monitoring, alarm management, and historical data archiving from centralized SCADA servers.
