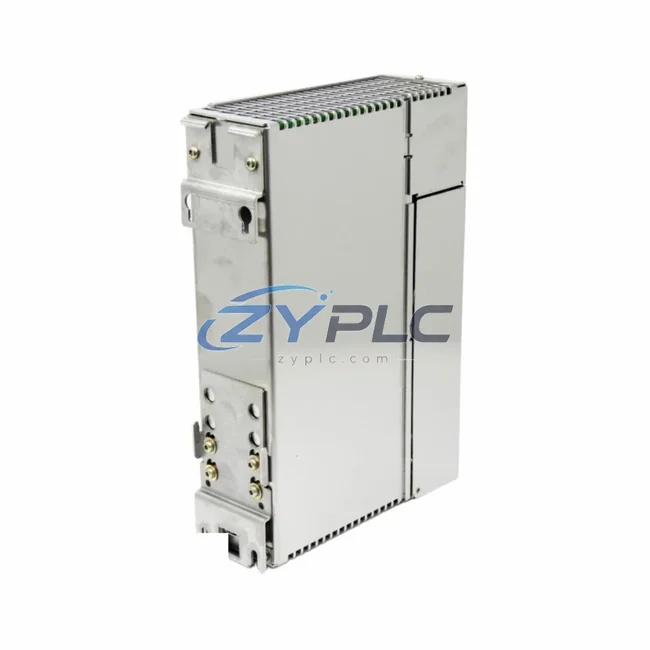

SIEMENS 6DL3100-8AA PROFIBUS Front End Module for ET 200M Systems

SIEMENS 6DL3100-8AA: Industrial Data Link for Smart Factory Connectivity

The SIEMENS 6DL3100-8AA is a high-performance PROFIBUS DP Front End Module designed for the SIMATIC ET 200M distributed I/O system. In modern smart factory environments, seamless data flow between field devices, controllers, and supervisory systems is the backbone of operational efficiency. The 6DL3100-8AA serves as a critical node in this data chain — bridging physical I/O signals from sensors, actuators, and drives with the PROFIBUS DP network that connects to upstream SIMATIC S7 PLCs, SCADA platforms, and HMI systems.

As industrial sites evolve toward fully connected architectures, the demand for reliable, low-latency communication between distributed I/O stations and central control systems has never been greater. The 6DL3100-8AA addresses this need by providing a robust PROFIBUS DP interface that supports deterministic, cyclic data exchange — ensuring that process values, alarm states, and diagnostic information are transmitted in real time across the automation network.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the SIEMENS 6DL3100-8AA sits at the heart of the distributed I/O layer, collecting signals from field-level devices and forwarding structured process data upstream. Consider a production line where SIMATIC S7-300 PLCs act as the central controllers: the 6DL3100-8AA, mounted within an ET 200M rack, connects to the PROFIBUS DP segment via an IM 153-2 interface module, enabling the PLC to read and write I/O data across multiple remote stations without direct wiring back to the control cabinet.

At the field level, SM 321 digital input modules and SM 331 analog input modules installed in the same ET 200M rack feed real-time process values — temperature readings from PT100 sensors, pressure signals from 4–20 mA transmitters, and discrete on/off states from proximity switches — through the 6DL3100-8AA into the PROFIBUS DP network. On the output side, SM 322 digital output modules and SM 332 analog output modules receive setpoint commands from the PLC, driving solenoid valves, variable frequency drives (VFDs), and servo actuators with millisecond-level response times.

For motion control integration, SINAMICS G120 variable frequency drives connected via PROFIBUS DP communicate torque, speed, and fault status data through the same network segment, allowing the SCADA system to monitor drive performance and trigger predictive maintenance alerts before failures occur. At the supervisory level, WinCC SCADA and SIMATIC HMI TP1200 Comfort panels subscribe to process data published by the S7-300 PLC, providing operators with live dashboards, trend charts, and alarm management screens that reflect the real-time state of every I/O point connected through the 6DL3100-8AA.

For sites requiring network redundancy or extended reach, PROFIBUS DP/PA segment couplers and RS-485 repeaters can be integrated into the topology, extending the PROFIBUS segment beyond the standard 1,200-meter cable length limit and ensuring communication continuity even in electrically noisy environments. Edge computing gateways — such as the SIMATIC IPC427E — can also tap into the PROFIBUS network to perform local data preprocessing, OPC UA publishing, and cloud forwarding, enabling IIoT connectivity without disrupting the real-time control loop.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation: field devices that speak different protocols, I/O stations that cannot be monitored remotely, and control systems that operate as islands without visibility into each other’s state. The SIEMENS 6DL3100-8AA directly addresses these pain points within the SIMATIC ET 200M ecosystem.

Protocol Unification: By standardizing on PROFIBUS DP as the communication backbone, the 6DL3100-8AA eliminates the need for custom point-to-point wiring between field devices and the PLC. All I/O modules in the ET 200M rack — regardless of signal type — are accessed through a single, unified PROFIBUS DP address, simplifying network configuration and reducing commissioning time.

Remote Monitoring and Diagnostics: The 6DL3100-8AA supports module-level and channel-level diagnostics that are automatically reported to the SIMATIC S7 PLC and, by extension, to connected SCADA and HMI systems. Maintenance engineers can identify faulty I/O channels, communication interruptions, or module failures from the control room without dispatching technicians to the field — reducing mean time to repair (MTTR) and minimizing unplanned downtime.

Production Line Transparency: With all field signals aggregated through the ET 200M and transmitted via PROFIBUS DP, SCADA systems gain complete visibility into production line status. OEE (Overall Equipment Effectiveness) calculations, batch tracking, and quality control data can all be derived from the real-time I/O values flowing through the 6DL3100-8AA, enabling data-driven decision-making at every level of the organization.

System Scalability: The modular architecture of the SIMATIC ET 200M allows additional I/O modules to be added to the rack as production requirements grow, without replacing the 6DL3100-8AA or reconfiguring the PROFIBUS DP network. This scalability protects the initial infrastructure investment and supports phased factory expansion strategies.

Outgoing Inspection and Stock Availability: Every SIEMENS 6DL3100-8AA unit supplied by ZYPLC undergoes pre-shipment functional testing to verify PROFIBUS DP communication integrity, I/O module recognition, and diagnostic reporting. Units are sourced from verified supply channels and held in climate-controlled storage to maintain component integrity. Stock availability is updated regularly — contact our team for lead time confirmation and volume pricing.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS DP transmission speed supported by the 6DL3100-8AA?
The 6DL3100-8AA supports PROFIBUS DP transmission rates up to 12 Mbit/s. The actual baud rate used in a network segment is determined by the master (e.g., SIMATIC S7-300 CP 342-5) and must be consistent across all devices on the same segment. For most ET 200M applications, 1.5 Mbit/s or 12 Mbit/s is recommended to balance cycle time and cable length constraints.

Q2: Is the 6DL3100-8AA compatible with SIMATIC S7-1500 and TIA Portal engineering?
The SIMATIC ET 200M with the 6DL3100-8AA Front End Module is primarily designed for use with SIMATIC S7-300 and S7-400 controllers via PROFIBUS DP. Integration with S7-1500 systems is possible through PROFIBUS DP master modules (e.g., CM 1542-5), and the ET 200M station can be configured in TIA Portal using the appropriate GSD file. For new installations, SIEMENS recommends evaluating the ET 200SP or ET 200MP platforms for native PROFINET compatibility.

Q3: How does the 6DL3100-8AA handle network interruptions or communication faults?
In the event of a PROFIBUS DP communication fault, the 6DL3100-8AA maintains the last valid output state or switches to a safe substitute value, depending on the configuration set in the SIMATIC S7 PLC’s hardware configuration (HW Config / TIA Portal). Diagnostic alarms are generated and forwarded to the PLC’s OB82 (diagnostic interrupt OB), allowing the control program to execute fault-handling routines. The SCADA system receives corresponding alarm notifications via the PLC’s data interface.

Q4: What warranty and after-sales support does ZYPLC provide for the 6DL3100-8AA?
ZYPLC provides a warranty terms confirmed during quotation on all SIEMENS 6DL3100-8AA units from the date of shipment. Warranty coverage includes replacement or repair for units that fail under normal operating conditions. Our technical team is available to assist with PROFIBUS DP configuration, GSD file integration, and TIA Portal / STEP 7 hardware configuration support. For RFQ, lead time, and technical inquiries, contact us at +86 19859288691 or plc.sales@zyplc.com.
