Siemens 6DL9200-8AA Repeater Module TDC

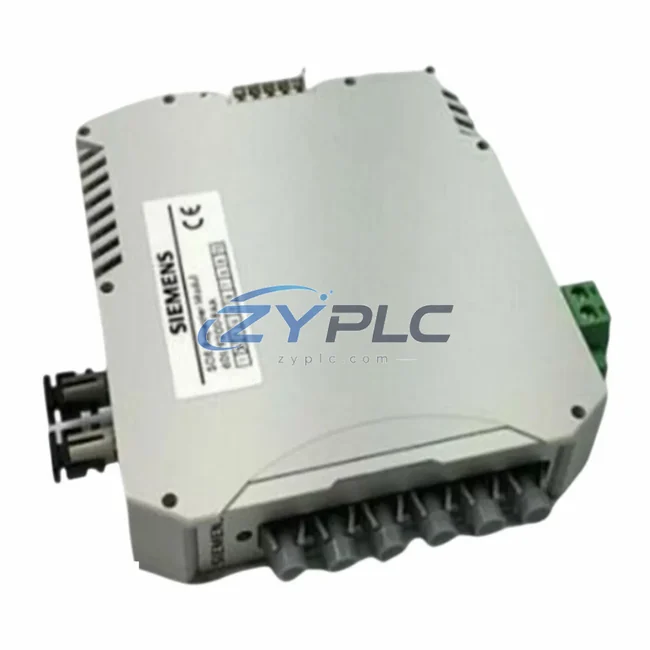

Siemens 6DL9200-8AA Repeater Module for SIMATIC TDC Automation

The Siemens 6DL9200-8AA is a high-performance repeater module designed for the SIMATIC TDC (Technology and Drive Control) platform — one of Siemens’ most capable closed-loop control and drive coordination systems. In modern industrial environments where energy efficiency is no longer optional, the 6DL9200-8AA plays a critical role in maintaining signal integrity across distributed control architectures, directly reducing the energy overhead caused by communication errors, retransmissions, and system instability.

By ensuring clean, reliable data transmission between SIMATIC TDC racks and connected subsystems, this repeater module eliminates the hidden energy costs of degraded bus communication — costs that manifest as extended cycle times, increased CPU load, and unnecessary actuator corrections. In high-throughput production lines, these inefficiencies compound rapidly. The 6DL9200-8AA addresses them at the infrastructure level, enabling the entire control system to operate at its designed efficiency baseline.

Product Specification Table

System Compatibility and Application

The Siemens 6DL9200-8AA is most effective when deployed as part of a fully integrated SIMATIC TDC control architecture. In a typical energy-optimized plant layout, the TDC system coordinates high-speed closed-loop control tasks — including motor speed regulation, tension control, and position synchronization — across multiple drive axes. The repeater module ensures that the internal rack communication bus maintains signal quality even in electrically noisy environments such as large motor rooms or high-voltage switchgear areas.

Within such architectures, the SIMATIC TDC CPU555 serves as the central processing unit, executing real-time control algorithms at sub-millisecond cycle times. The 6DL9200-8AA extends the reach and reliability of the bus connecting the CPU555 to peripheral I/O racks, including analog input modules used for current and voltage sensing. These measurements feed directly into condition monitoring loops, allowing the CP51M1 communication processor to relay real-time power consumption data to SCADA or MES layers via PROFIBUS DP.

On the drive side, Siemens SINAMICS S120 drive units — commonly paired with TDC systems in multi-axis applications — depend on accurate, low-latency setpoint delivery from the control rack. Any bus degradation between the CPU and the drive interface modules introduces setpoint jitter, which forces the drive to make unnecessary torque corrections. These micro-corrections accumulate into measurable unplanned downtime over a production shift. The 6DL9200-8AA eliminates this degradation path, keeping setpoint delivery clean and consistent.

For plants using SIMATIC S7-400 PLCs in supervisory roles alongside TDC systems, the repeater module supports stable coexistence by maintaining TDC bus integrity independently of the S7 communication layer. This separation of control planes is a key principle in energy-efficient automation design — each subsystem operates at its optimal load without interference. The ET 200M distributed I/O stations, often used for field-level signal acquisition in such hybrid architectures, benefit from the improved bus stability that the 6DL9200-8AA provides upstream.

Power monitoring at the field level is typically handled by dedicated energy measurement modules such as the SENTRON PAC3200 power monitoring device, which captures active power, reactive power, and harmonic distortion data. When this data is integrated into the TDC control loop via the CP51M1, the system can dynamically adjust drive output to minimize reactive power draw — a direct energy saving that the 6DL9200-8AA enables by keeping the communication path between measurement and control free of errors. Additionally, SIMATIC HMI TP1500 panels provide operators with real-time visibility into energy KPIs, allowing manual intervention when consumption trends deviate from baseline.

In coordinated multi-drive systems, the SINAMICS DCM DC drive converter is another component that relies on stable TDC bus communication for field current and armature current regulation. Repeater modules like the 6DL9200-8AA are essential in these legacy-compatible architectures, where the TDC platform bridges older DC drive technology with modern digital control and maintenance planning strategies.

Maintenance and Replacement Notes

In steel rolling mills, paper machines, and cement production lines — all environments where SIMATIC TDC systems are widely deployed — unplanned downtime and inefficient drive operation are the two largest contributors to excess energy consumption. The Siemens 6DL9200-8AA addresses both vectors simultaneously.

First, by maintaining bus signal integrity, the module prevents the communication timeouts that trigger safety shutdowns. Each unplanned shutdown in a continuous process line carries a significant energy penalty: restarting a large induction motor or a multi-stand rolling mill drive requires substantial inrush current and extended ramp-up time. Eliminating these events through reliable bus infrastructure directly reduces peak energy demand charges.

Second, clean bus communication enables the TDC CPU to execute its control algorithms without the latency spikes caused by retransmission cycles. In tension control applications — such as web tension in paper or foil lines — latency spikes cause the drive to overshoot and then correct, creating oscillatory torque patterns that waste energy and accelerate mechanical wear on rollers and bearings. The 6DL9200-8AA keeps the control loop tight, reducing both unplanned downtime and maintenance frequency.

From a predictive maintenance perspective, the module’s role in sustaining consistent bus performance also means that diagnostic data — fault codes, cycle time statistics, and communication error counters — remains accurate and timely. Maintenance teams relying on this data to schedule preventive interventions can do so with confidence, avoiding both premature replacements and costly run-to-failure events. This translates directly into lower spare parts consumption and reduced labor costs over the equipment lifecycle.

All units of the 6DL9200-8AA supplied by ZYPLC are sourced from verified supply channels, subjected to incoming inspection, and tested for functional performance prior to shipment. Each unit is covered by a warranty terms confirmed during quotation, ensuring that your production line investment is protected from day one of installation.

Product Sourcing FAQ

Q1: How does the 6DL9200-8AA contribute to operational stability in a SIMATIC TDC system?
The 6DL9200-8AA maintains clean signal transmission on the TDC internal bus, preventing communication errors that cause the CPU to execute unnecessary corrective cycles. In drive-intensive applications, this directly reduces the frequency of torque corrections and setpoint deviations, lowering overall energy consumption per production unit.

Q2: Is the 6DL9200-8AA compatible with all SIMATIC TDC rack configurations?
The 6DL9200-8AA is designed for use within the SIMATIC TDC rack system and is compatible with standard TDC expansion racks. It works alongside CPU555, CPU551, and CP51M1 modules. For specific multi-rack configurations or mixed-generation TDC installations, consult the system documentation or contact ZYPLC for application support.

Q3: Can the 6DL9200-8AA replace a faulty repeater in an existing TDC installation without system reconfiguration?
In most cases, yes. The 6DL9200-8AA is a direct replacement for the repeater function within compatible TDC racks. No software reconfiguration is typically required, making it a low-disruption replacement option for maintaining system uptime. ZYPLC recommends a functional test after installation to confirm bus integrity before returning the line to production.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 6DL9200-8AA unit shipped by ZYPLC undergoes incoming inspection and functional testing to verify signal regeneration performance and electrical integrity. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Units that fail during the warranty period are replaced or repaired at no additional cost. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 for warranty claims and technical support.
