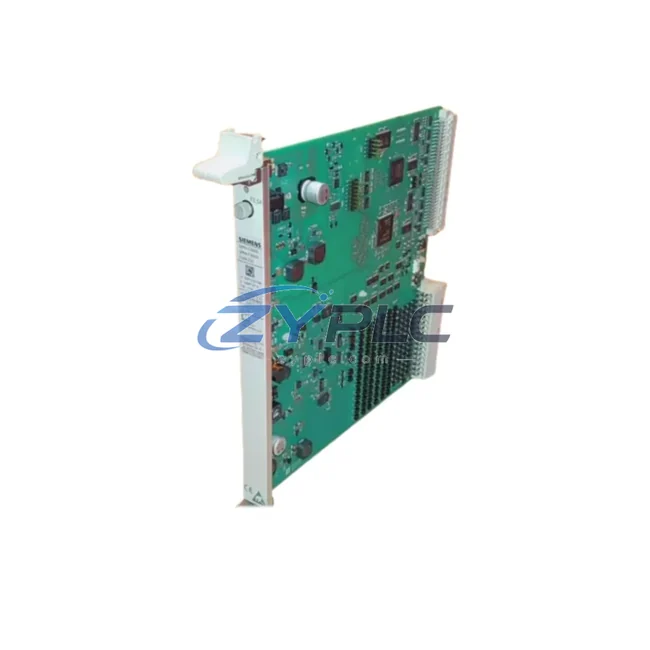

The Siemens 6DP1211-7AA FUM211 is a dedicated function module engineered for deployment within the Teleperm M distributed control system (DCS) architecture — one of Siemens’ most enduring and field-proven process automation platforms. Rather than functioning as a standalone component, the FUM211 is designed from the ground up to operate as an integrated node within a layered automation hierarchy, coordinating signal processing, logic execution, and data exchange across the control layer, I/O layer, communication layer, power supply layer, human-machine interface layer, and field execution layer. Understanding the FUM211’s role within this full-stack architecture is essential for engineers responsible for system expansion, redundancy planning, long-term maintenance, and lifecycle management of Teleperm M installations.

In process industries such as petrochemical refining, thermal power generation, water treatment, metallurgical smelting, and pharmaceutical manufacturing, the Teleperm M platform has historically served as the backbone of plant-wide automation. The 6DP1211-7AA FUM211 occupies a critical position within this backbone — executing function-block-based control logic that governs analog signal conditioning, loop control, alarm management, and interlock sequencing. Its integration into the Teleperm M rack system ensures that all upstream sensor signals and downstream actuator commands pass through a consistent, validated processing environment, reducing the risk of signal distortion, timing mismatches, or protocol incompatibilities that can arise when mixing components from different generations or vendors.

Product Specification Table

System Compatibility Notes

The 6DP1211-7AA FUM211 does not operate in isolation. Its value is realized through its coordinated interaction with the full range of Teleperm M system components. At the controller level, the FUM211 works in conjunction with the Siemens 6DP1610-7AA AS230 automation station, which serves as the central processing unit for the Teleperm M rack. The AS230 orchestrates the execution sequence of all function modules installed in the subrack, ensuring that the FUM211’s logic outputs are synchronized with the overall control cycle.

On the I/O layer, the FUM211 interfaces with analog input modules such as the 6DP1232-7AA AIM and digital I/O modules including the 6DP1233-7AA DIM, which aggregate field signals from transmitters, thermocouples, pressure sensors, and limit switches. These signals are pre-processed and passed to the FUM211 for function-block execution — including PID control, ratio control, signal selection, and alarm limit monitoring. The processed outputs are then forwarded to analog output modules such as the 6DP1234-7AA AOM, which drive control valves, variable frequency drives, and other final control elements in the field.

At the communication layer, the Teleperm M platform relies on the CS275 plant bus and SINEC H1 Ethernet infrastructure to connect automation stations, operator stations, and engineering workstations. The FUM211’s data — including process values, setpoints, and alarm states — is made available to the operator interface through Siemens WinCC or the legacy OS525 operator station, enabling real-time visualization and supervisory control. Communication gateway modules such as the 6DP1611-7AA CS275 bus coupler ensure seamless data exchange between the rack-level bus and the plant-wide network.

Power integrity is maintained through dedicated Teleperm M power supply modules, including the 6DP1231-7AA PS module, which provides regulated 24 VDC to all modules in the subrack. In high-availability installations, redundant power supply configurations are employed to eliminate single points of failure, ensuring that the FUM211 and its associated modules remain operational during power supply maintenance or fault events. Terminal modules and marshalling panels — including Siemens ET 200 distributed I/O nodes — extend the system’s I/O reach to remote field locations without compromising signal integrity or scan cycle performance.

For redundancy-critical applications, the Teleperm M architecture supports hot-standby configurations where a secondary automation station mirrors the primary AS230’s execution state. In such configurations, the FUM211 must be present in both the primary and standby racks, with identical firmware versions and function block configurations, to ensure bumpless transfer during switchover events. This redundancy design is particularly important in power plant boiler control, refinery distillation column management, and water treatment dosing systems where process continuity is non-negotiable.

Industrial Application Notes

The Siemens 6DP1211-7AA FUM211 has been deployed across a wide range of process industries where the Teleperm M platform established its installed base during the 1980s through 2000s, and where ongoing maintenance, spare parts sourcing, and system expansion remain active engineering priorities.

In thermal power generation, the FUM211 is commonly found in boiler combustion control loops, turbine governor systems, and feedwater regulation circuits. Its function-block architecture supports cascade control strategies that coordinate fuel flow, air flow, and steam pressure setpoints across multiple control loops simultaneously. Power plant engineers rely on the FUM211’s proven stability and deterministic scan cycle to maintain tight control margins during load-following operations and startup/shutdown sequences.

In petrochemical and refinery applications, the FUM211 supports distillation column pressure and temperature control, reactor feed ratio management, and compressor surge protection logic. The module’s ability to execute complex function block chains — including signal selectors, lead-lag compensators, and override controllers — makes it well-suited for the multi-variable control strategies required in continuous process environments.

Water treatment and municipal utility plants have also relied on the Teleperm M platform, with the FUM211 managing dosing pump control, filter backwash sequencing, and reservoir level regulation. In these applications, the module’s long-term reliability and low maintenance overhead are particularly valued, as utility operators typically prioritize system stability over frequent technology upgrades.

In metallurgical and mining applications — including blast furnace control, rolling mill automation, and ore processing — the FUM211 contributes to temperature profile management, material flow control, and equipment protection interlocks. The harsh operating environments in these industries demand modules with robust electrical isolation, wide operating temperature tolerance, and resistance to electromagnetic interference, all of which are characteristics of the Teleperm M hardware design philosophy.

Product Compatibility FAQ

Q1: Is the 6DP1211-7AA FUM211 compatible with both early and late-generation Teleperm M racks, and can it be mixed with other FUM variants in the same subrack?
The FUM211 is designed for the standard Teleperm M subrack form factor and is compatible with the full range of Teleperm M automation stations, including the AS220 and AS230 series. Multiple FUM variants — including the FUM210, FUM212, and FUM220 — can coexist in the same subrack, provided that the automation station’s function block license and memory capacity support the combined module configuration. Engineers should verify the AS230’s configuration database and function block allocation table before adding new FUM modules to an existing rack to avoid resource conflicts.

Q2: What are the recommended practices for replacing a FUM211 in a live Teleperm M system, and how does the warranty terms confirmed during quotation support maintenance planning?
Replacing a FUM211 in a live system requires careful coordination with the plant’s maintenance window schedule. The recommended procedure involves downloading the existing function block configuration from the engineering workstation, powering down the affected subrack slot, physically replacing the module, and reloading the configuration before returning the loop to automatic mode. The warranty terms confirmed during quotation provided with each 6DP1211-7AA FUM211 sourced from ZYPLC covers functional defects identified during this commissioning process, providing engineering teams with confidence that replacement modules will perform to specification from day one. Warranty coverage also supports procurement planning by reducing the financial risk associated with spare parts inventory investment.

Q3: How does the FUM211 support long-term system maintainability in aging Teleperm M installations where original Siemens support may be limited?
As the Teleperm M platform has reached end-of-life status with Siemens’ official support channels, the availability of tested, warranted spare modules from specialist suppliers becomes the primary mechanism for sustaining system operation. The 6DP1211-7AA FUM211 available through ZYPLC is sourced, inspected, and functionally tested to ensure compatibility with existing Teleperm M installations. Each module is verified against its original specification before shipment, and the warranty terms confirmed during quotation provides a structured support framework for post-installation issues. For plants operating Teleperm M systems beyond their original design life, maintaining a strategic inventory of FUM211 modules — alongside compatible power supply, I/O, and communication modules — is the most effective approach to ensuring control system continuity without the cost and risk of a full DCS migration.
