Siemens 6DP1230-7AA Industrial Network Interface for SIMOCODE Systems: Bridging Industrial Data Links in Smart Factory Environments

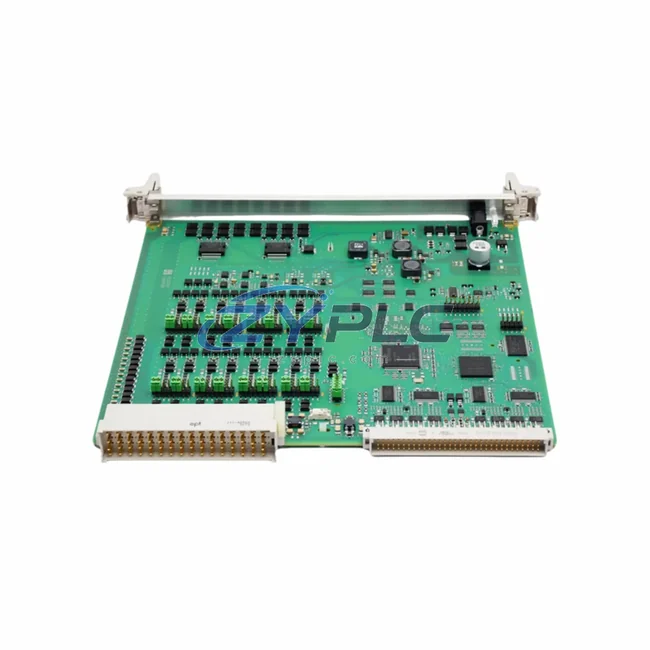

The Siemens 6DP1230-7AA is an analog encoder preparation module engineered for the SIMOCODE motor management system, serving as a critical node in the industrial data chain that connects field-level devices to supervisory control and monitoring platforms. In modern smart factory deployments, the ability to accurately capture, condition, and transmit analog encoder signals across a unified industrial network is fundamental to achieving real-time visibility, predictive maintenance, and seamless automation integration. The 6DP1230-7AA fulfills this role by preparing analog encoder feedback signals for reliable transmission over PROFIBUS-DP, enabling precise motor speed and position data to flow from the drive level up through PLC controllers, SCADA systems, and HMI interfaces without signal degradation or communication latency.

At the heart of its design, the 6DP1230-7AA interfaces directly with the SIMOCODE pro motor management platform, conditioning raw analog encoder outputs into structured digital data packets compatible with the PROFIBUS-DP fieldbus protocol. This protocol conversion capability eliminates the data isolation that commonly occurs when legacy analog devices are integrated into modern digital control architectures. By standardizing the signal format at the source, the module ensures that upstream systems — including Siemens S7-300 and S7-400 PLCs, SCALANCE X industrial Ethernet switches, and SIMATIC WinCC SCADA platforms — receive consistent, high-integrity data streams that support real-time monitoring and closed-loop control.

Compatibility & Integration Notes

Connected Automation Data Flow

The 6DP1230-7AA operates within a layered industrial communication architecture where signal integrity and protocol consistency are paramount. At the field level, analog encoders mounted on motors and mechanical drives generate continuous position and speed feedback signals. The 6DP1230-7AA captures these signals, conditions them, and prepares them for transmission across the PROFIBUS-DP network segment. This prepared data is then consumed by the SIMOCODE pro V basic unit — such as the 3UF7010-1AB00-0 — which aggregates motor protection parameters, thermal overload data, and encoder feedback into a unified device profile accessible to the control layer.

Within the PROFIBUS-DP network, the data flows upstream to Siemens S7-315 or S7-317 PLCs equipped with CP 342-5 PROFIBUS communication processors, where the encoder feedback is processed alongside I/O signals from distributed remote I/O stations such as the ET 200S or ET 200M series. The PLC executes closed-loop speed regulation algorithms and forwards operational status data to the SIMATIC WinCC SCADA platform via Industrial Ethernet, using SCALANCE X208 or SCALANCE X216 managed switches to maintain deterministic network performance across the plant floor. Operators monitoring the system through SIMATIC HMI panels — including the KTP700 Basic or TP1200 Comfort — receive real-time encoder feedback visualized as trend graphs and alarm dashboards, enabling immediate response to speed deviations or encoder faults.

For drive-level integration, the encoder data prepared by the 6DP1230-7AA can be correlated with speed reference signals issued by SINAMICS G120 or SINAMICS S120 variable frequency drives, creating a tightly synchronized motion control loop. In applications involving conveyor systems, hoisting equipment, or precision positioning stages, this synchronization is critical to maintaining throughput and product quality. The module’s compatibility with the broader SIMOCODE ecosystem also allows it to work alongside the 6DP1231-8AA digital encoder preparation module and the 6DP1280-8AA expansion module, enabling hybrid encoder configurations where both analog and digital feedback sources are managed within a single SIMOCODE node.

At the network edge, industrial IoT gateways — such as the SIMATIC IPC227E or third-party edge computing platforms — can subscribe to the PROFIBUS-DP data stream via OPC UA proxies, forwarding encoder telemetry to cloud-based MES or ERP systems for production analytics and predictive maintenance modeling. This end-to-end data flow, from the analog encoder through the 6DP1230-7AA, across the PROFIBUS-DP backbone, through the PLC and SCADA layers, and ultimately to enterprise systems, exemplifies the connected automation architecture that defines Industry 4.0 deployments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of legacy analog devices alongside modern digital control infrastructure. Analog encoders, while mechanically reliable and widely deployed, generate continuous voltage or current signals that are inherently incompatible with digital fieldbus protocols without proper signal conditioning. Without a dedicated interface module like the 6DP1230-7AA, these analog signals remain isolated at the device level, invisible to SCADA systems, inaccessible to remote diagnostic tools, and unable to participate in the real-time data exchange that drives smart factory operations.

The 6DP1230-7AA directly addresses this data isolation problem by acting as a protocol bridge between the analog encoder domain and the PROFIBUS-DP digital network. Once the encoder signal is digitized and structured within the SIMOCODE framework, it becomes a first-class data object within the plant network — queryable by SCADA operators, loggable by historian servers, and actionable by PLC control programs. This transformation enables production line transparency, where supervisors can track motor speed trends, identify encoder drift before it causes positioning errors, and schedule predictive maintenance interventions based on actual performance data rather than fixed time intervals.

For facilities managing multiple production lines or geographically distributed equipment, the 6DP1230-7AA’s integration with PROFIBUS-DP also supports remote diagnostics and fault isolation. When an encoder anomaly is detected, the SIMOCODE system generates a structured alarm message that propagates through the PROFIBUS-DP network to the PLC and SCADA layers, triggering automated notifications and logging the event with timestamp and device address. Maintenance teams can use SIMATIC PDM (Process Device Manager) or STEP 7 diagnostic tools to interrogate the SIMOCODE node remotely, identifying whether the fault originates in the encoder itself, the preparation module, or the network connection — without requiring physical access to the field device. This remote diagnostic capability significantly reduces mean time to repair (MTTR) and minimizes unplanned downtime in high-availability production environments.

System expansion is equally straightforward. As production capacity grows, additional SIMOCODE nodes equipped with 6DP1230-7AA modules can be added to the PROFIBUS-DP segment without disrupting existing network traffic. The modular architecture of the SIMOCODE pro platform supports up to 31 devices per PROFIBUS-DP segment, and with repeaters or segment couplers, the network can scale to cover large plant footprints. Each new node is automatically recognized by the PLC’s hardware configuration, and its encoder data is immediately available to the SCADA system, enabling rapid commissioning of new production equipment.

Industrial Connectivity FAQ

Q1: What communication protocol does the Siemens 6DP1230-7AA support, and is it compatible with existing PROFIBUS-DP networks?
The 6DP1230-7AA is designed for integration within the SIMOCODE pro motor management system, which communicates over PROFIBUS-DP. It is fully compatible with existing PROFIBUS-DP network segments operating at standard baud rates, and it integrates with Siemens S7 PLCs, ET 200 remote I/O stations, and SIMATIC SCADA platforms without requiring additional protocol converters.

Q2: How does the module handle communication latency in time-sensitive motor control applications?
The 6DP1230-7AA conditions and digitizes analog encoder signals locally within the SIMOCODE node, minimizing the processing delay before data enters the PROFIBUS-DP network. PROFIBUS-DP’s deterministic communication cycle ensures that encoder data is delivered to the PLC within the configured bus cycle time, typically in the range of 1–10 ms depending on network configuration, which is well within the tolerance of most motor speed and position control applications.

Q3: Can the 6DP1230-7AA be used alongside digital encoder modules in the same SIMOCODE system?
Yes. The SIMOCODE pro platform supports mixed encoder configurations. The 6DP1230-7AA can operate in the same SIMOCODE node alongside digital encoder preparation modules such as the 6DP1231-8AA, allowing systems with both analog and digital encoder feedback sources to be managed within a unified motor management framework. This flexibility is particularly valuable in retrofit projects where existing analog encoders are retained while new digital devices are added.

Q4: What warranty and pre-shipment testing does the 6DP1230-7AA include?
Every 6DP1230-7AA unit supplied by ZYPLC undergoes functional testing prior to shipment to verify communication integrity, signal conditioning performance, and module identification on the PROFIBUS-DP network. All units are covered by a warranty terms confirmed during quotation from the date of shipment, with availability confirmed by RFQ availability supporting rapid global delivery to minimize project lead times.
