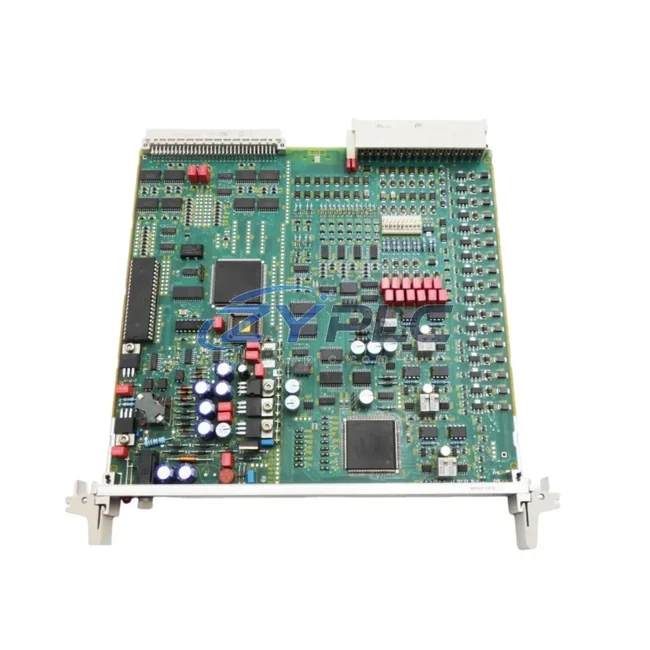

The Siemens 6DP1280-8AB (FUM 280) is a dedicated Function Module engineered for deployment within the Teleperm XP Distributed Control System (DCS) architecture — one of Siemens’ most robust and field-proven process automation platforms. Rather than functioning as a standalone component, the 6DP1280-8AB is designed to operate as an integral node within a layered control hierarchy, coordinating signal processing, logic execution, and data exchange across the control layer, I/O layer, communication layer, and field device layer simultaneously. Understanding its role within the full system architecture is essential for engineers responsible for system expansion, redundancy planning, and long-term maintenance strategy.

In a complete Teleperm XP installation, the 6DP1280-8AB occupies the function processing tier, working in close coordination with the central automation unit (AS 620 series), the communication processors (CP 2000 series), and the distributed I/O modules mounted on the same or adjacent subrack assemblies. The module receives pre-processed signals from analog and digital input modules — such as the IM 614 or SM 614 series — executes the configured control algorithms, and passes output commands downstream to actuator-level devices. This tightly integrated signal flow ensures deterministic response times and consistent process control across multi-loop applications.

System architects deploying the 6DP1280-8AB within power generation, petrochemical refining, or large-scale water treatment facilities will recognize its value in maintaining control system consistency across geographically distributed substations. When paired with the Teleperm XP bus coupler modules and the SINEC H1 or PROFIBUS-DP communication infrastructure, the FUM 280 enables seamless data exchange between the field level and the operator station (OS) layer — typically running on SIMATIC WinCC or the legacy Teleperm XP OS platform. This vertical integration from field sensor to HMI display is a defining characteristic of the Teleperm XP architecture and a key reason why the 6DP1280-8AB remains a critical spare and expansion component in long-lifecycle plant environments.

Product Specification Table

System Compatibility Notes

The 6DP1280-8AB achieves its full operational value when integrated within a coordinated Teleperm XP system architecture. In a typical multi-loop process control cabinet, the FUM 280 is installed alongside the AS 620 automation server, which manages the overall control program and communicates with the operator station via the plant bus. The subrack housing the 6DP1280-8AB also accommodates the PS 620 power supply module, which provides stable 24 V DC to all installed modules and must be correctly sized to support the full module complement.

On the I/O side, the FUM 280 interfaces with analog input modules such as the AI 614 and digital input/output modules including the DI 614 and DO 614, which collect field signals from transmitters, limit switches, and solenoid valves. For applications requiring high-availability or redundant control, the 6DP1280-8AB can be deployed in a redundant FUM configuration, where a standby module mirrors the active module’s state and assumes control within milliseconds of a detected fault — a critical requirement in nuclear auxiliary systems, turbine control, and continuous chemical processing.

Communication integrity is maintained through the CP 2000 communication processor, which bridges the Teleperm XP internal bus to the plant-wide SINEC H1 Ethernet backbone or PROFIBUS-DP field network. This allows the 6DP1280-8AB’s processed data to be transmitted to SIMATIC WinCC operator stations or archived in the plant historian without latency-inducing protocol conversions. For installations requiring gateway connectivity to modern SCADA platforms, the IM 308 interface module provides the necessary protocol translation layer, preserving the investment in legacy Teleperm XP infrastructure while enabling integration with contemporary supervisory systems.

Terminal modules and marshalling components — including the TM 614 terminal module series — provide the physical wiring interface between field cables and the subrack-mounted I/O modules, simplifying commissioning and enabling hot-swap maintenance without disturbing field wiring. This modular wiring architecture, combined with the 6DP1280-8AB’s role as the central function processing node, ensures that system engineers can isolate, replace, and recommission individual modules without interrupting adjacent control loops.

Industrial Application Notes

The Siemens 6DP1280-8AB has been deployed across a wide range of heavy industrial and process automation environments where system reliability, long service life, and deterministic control are non-negotiable requirements. In thermal power generation plants, the FUM 280 manages boiler combustion control loops, coordinating fuel flow, air-to-fuel ratio, and steam pressure regulation within the Teleperm XP DCS framework. Its ability to execute complex PID and feedforward algorithms at the function module level — without burdening the central automation server — makes it particularly well-suited for high-loop-count power plant applications.

In petrochemical and refinery environments, the 6DP1280-8AB is deployed within distillation column control systems, reactor temperature management loops, and compressor surge control architectures. The module’s deterministic scan cycle and robust electrical isolation characteristics allow it to operate reliably in environments with significant electromagnetic interference from variable frequency drives, large motor starters, and high-voltage switchgear.

Water and wastewater treatment facilities operating multi-stage filtration, chemical dosing, and pumping systems benefit from the 6DP1280-8AB’s ability to manage sequential and continuous control strategies within a single module, reducing the total module count and cabinet footprint. Mining and metallurgical processing plants — including ore crushing, flotation, and smelting operations — rely on the FUM 280’s rugged design and extended temperature tolerance to maintain control system availability in harsh ambient conditions. Packaging and discrete manufacturing lines that have integrated Teleperm XP for process monitoring and interlock management also utilize the 6DP1280-8AB as a function processing node within their hybrid continuous/discrete control architectures.

Across all these applications, the availability of the 6DP1280-8AB as a tested, warranted spare component — backed by ZYPLC’s warranty terms confirmed during quotation and global inventory supply — is a critical factor in plant maintenance planning. Engineering teams responsible for aging Teleperm XP installations can source the FUM 280 with confidence, knowing that each unit has been inspected, functionally verified, and is ready for immediate integration into the existing control architecture.

Product Compatibility FAQ

Q1: Is the Siemens 6DP1280-8AB compatible with all Teleperm XP subrack configurations, and can it be added to an existing system without a full architecture review?
A1: The 6DP1280-8AB is designed for the standard Teleperm XP subrack bus and is compatible with the established FUM slot assignments within the AS 620 architecture. In most cases, adding or replacing a FUM 280 in an existing installation requires only verification of the subrack slot assignment, the configured function module address in the automation server, and the power supply loading of the PS 620. A full architecture review is not typically required for like-for-like replacement, though expansion into previously unused slots should be validated against the system’s total I/O and communication load budget.

Q2: Does the warranty terms confirmed during quotation cover the 6DP1280-8AB in both active control and cold-standby redundant configurations?
A2: Yes. ZYPLC’s warranty terms confirmed during quotation applies to the 6DP1280-8AB regardless of its deployment mode — whether installed as the active function module, as a hot-standby redundant unit, or held as a commissioned cold spare within the control cabinet. The warranty covers manufacturing defects and functional failures under normal operating conditions as defined by Siemens’ Teleperm XP environmental specifications. Units that fail during the warranty period are replaced or repaired at no additional cost, supporting the long-term maintenance strategy of plant engineering teams.

Q3: How does system integration support long-term maintenance and system upgrades for Teleperm XP installations using the 6DP1280-8AB?
A3: system integration refers to the 6DP1280-8AB’s ability to be introduced into an existing Teleperm XP architecture without requiring modifications to adjacent modules, communication configurations, or operator station software. Because the FUM 280 adheres to the established Teleperm XP module interface standard, it integrates directly into the existing control program structure, preserving all configured function block assignments, loop parameters, and alarm setpoints. This minimizes commissioning time during maintenance replacements and ensures that system upgrades — such as expanding the I/O count or adding redundant function processing — can be executed during planned maintenance windows without extended process shutdowns.
