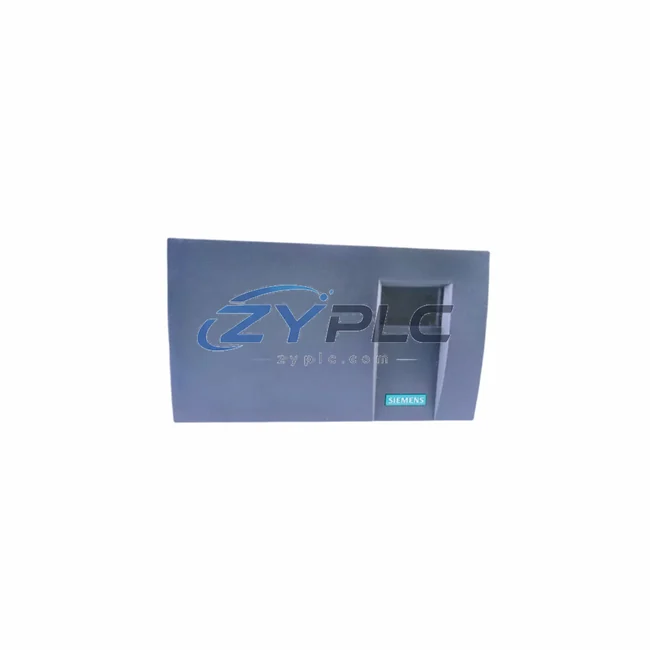

Siemens 6DR5010-0NG00-0AA0 HART Positioner SIPART PS2

Siemens 6DR5010-0NG00-0AA0 HART Positioner SIPART PS2: Industrial Data Link for Smart Factory Valve Control

The Siemens 6DR5010-0NG00-0AA0 is an electropneumatic positioner from the SIPART PS2 series, engineered for precision valve control and seamless integration into modern industrial communication networks. Supporting the HART (Highway Addressable Remote Transducer) protocol, this positioner bridges the gap between field-level actuators and upper-level control systems — enabling real-time data exchange, remote diagnostics, and transparent process visibility across the entire automation chain. Whether deployed in chemical processing, oil and gas, power generation, or water treatment facilities, the 6DR5010-0NG00-0AA0 delivers the connectivity and reliability demanded by Industry 4.0 smart factory environments.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the Siemens 6DR5010-0NG00-0AA0 sits at the intersection of the physical process and the digital control layer. Signal acquisition begins at the field level, where process sensors — such as the Siemens SITRANS P320 pressure transmitter — feed real-time measurements into the control loop. The 6DR5010-0NG00-0AA0 receives a 4–20 mA setpoint signal from the Siemens SIMATIC S7-1500 PLC, executing precise valve positioning while simultaneously transmitting HART diagnostic data back upstream.

This bidirectional HART communication is routed through a HART multiplexer or a dedicated HART-to-Ethernet gateway — such as the Siemens SITRANS AW210 or a compatible third-party HART gateway — which converts field-level HART frames into Ethernet/IP or PROFINET packets for consumption by the plant SCADA system. The Siemens SIMATIC WinCC SCADA platform receives this data stream, enabling operators to monitor valve position, travel deviation, and actuator health from a centralized HMI panel such as the Siemens SIMATIC HMI TP1200 Comfort.

For distributed control architectures, the 6DR5010-0NG00-0AA0 integrates naturally with remote I/O stations such as the Siemens ET 200SP, which aggregates field signals and forwards them over PROFINET to the main controller. Network infrastructure is provided by Siemens SCALANCE X208 industrial Ethernet switches, ensuring deterministic, low-latency data transmission across the plant floor. In drive-intensive applications — such as pump or compressor control — the positioner works in coordination with Siemens SINAMICS G120 variable frequency drives, where valve position and drive speed are co-regulated to optimize process efficiency.

At the edge layer, an industrial edge gateway running Siemens Industrial Edge applications can aggregate HART diagnostic data from multiple 6DR5010-0NG00-0AA0 positioners, applying analytics to detect valve wear, predict maintenance intervals, and push alerts to maintenance teams via the plant MES or ERP system. This end-to-end data flow — from field actuator through PLC, remote I/O, SCADA, and edge analytics — exemplifies the connected automation architecture that the SIPART PS2 series is designed to support.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the inability to extract actionable intelligence from field devices due to protocol fragmentation, legacy infrastructure, or the absence of a unified communication backbone. The Siemens 6DR5010-0NG00-0AA0 directly addresses this challenge through its native HART protocol support, which allows digital diagnostic and configuration data to coexist with the standard 4–20 mA analog signal on the same two-wire loop, requiring no additional wiring investment.

In facilities where multiple communication standards coexist — such as PROFIBUS PA, Foundation Fieldbus, and HART — the 6DR5010-0NG00-0AA0 can be integrated via protocol conversion gateways that normalize data into a unified format for the SCADA or DCS layer. This eliminates the data silos that arise when field devices speak incompatible protocols, enabling a single operator interface to monitor valve status, process variables, and device health across the entire plant.

Remote monitoring capabilities are equally critical for geographically distributed facilities or unmanned substations. The HART communication channel of the 6DR5010-0NG00-0AA0 supports remote configuration, calibration, and diagnostics without requiring a technician to be physically present at the valve. Alarm thresholds, travel limits, and diagnostic parameters can all be adjusted remotely through a HART communicator or asset management software such as Siemens SIMATIC PDM (Process Device Manager), reducing maintenance costs and minimizing process downtime.

For production line transparency, the 6DR5010-0NG00-0AA0 contributes to a fully digitized process loop where every valve position change is logged, timestamped, and traceable. This audit trail supports regulatory compliance, quality management, and continuous process improvement initiatives — key requirements in pharmaceutical, food and beverage, and chemical manufacturing environments. System expansion is straightforward: additional SIPART PS2 positioners can be added to the HART network without architectural changes, supporting scalable growth as production capacity increases.

Industrial Connectivity FAQ

Q1: What is the communication latency of the HART protocol used by the 6DR5010-0NG00-0AA0?
HART communication operates at 1200 baud, with typical response times of 250–500 ms for digital data transactions. This latency is acceptable for diagnostic and configuration data, while the underlying 4–20 mA analog signal provides continuous, real-time process control with no digital latency. For applications requiring faster digital communication, Siemens offers PROFIBUS PA and Foundation Fieldbus variants within the SIPART PS2 series.

Q2: Is the 6DR5010-0NG00-0AA0 compatible with third-party DCS and SCADA systems?
Yes. The HART protocol is an open, internationally recognized standard (IEC 61158), ensuring compatibility with DCS platforms from Emerson, Honeywell, ABB, Yokogawa, and others, as well as SCADA systems that support HART asset management. Device Description (DD) files for the 6DR5010-0NG00-0AA0 are available for integration with major asset management platforms.

Q3: How does the positioner maintain network stability in electrically noisy industrial environments?
The SIPART PS2 series is designed to operate reliably in environments with high electromagnetic interference (EMI), conforming to IEC 61000 EMC standards. The HART signal is frequency-shift keyed (FSK) at 1200 Hz and 2200 Hz, providing inherent noise immunity over standard shielded instrument cable. Proper cable shielding, grounding practices, and the use of HART filters on power supply lines further ensure stable communication in demanding plant environments.

Q4: What warranty and pre-shipment testing does the 6DR5010-0NG00-0AA0 carry?
Every 6DR5010-0NG00-0AA0 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects. Prior to shipment, each unit undergoes functional verification including communication protocol testing, analog signal calibration check, and physical inspection. Availability is confirmed via RFQ for shipment arranged after confirmation, with expedited shipping options to minimize lead times for urgent maintenance or project requirements.
