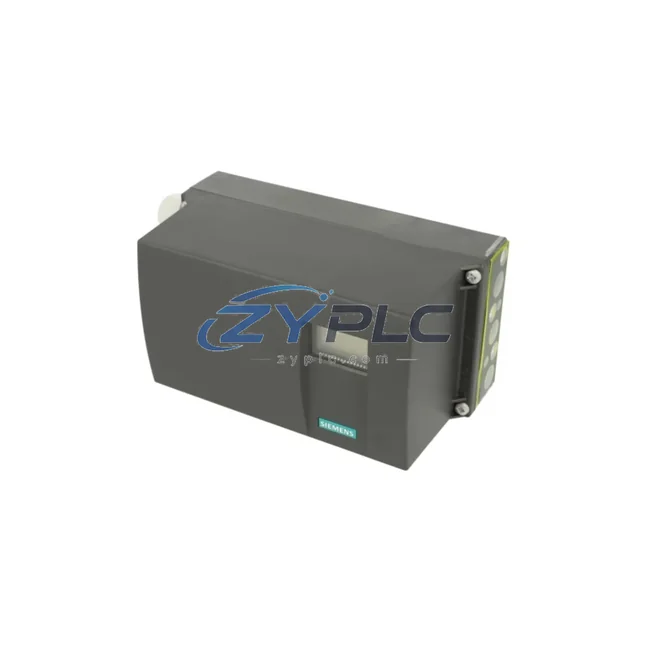

Siemens 6DR5020-0NG00-0AA0 Valve Positioner for SIPART PS2

Siemens 6DR5020-0NG00-0AA0 Valve Positioner for SIPART PS2

The Siemens 6DR5020-0NG00-0AA0 is a high-performance digital valve positioner engineered for seamless integration within the SIPART PS2 control system architecture. Designed to operate as a precision final control element in layered industrial automation environments, this positioner bridges the execution layer with the control layer, enabling accurate, repeatable valve positioning across demanding process applications. Whether deployed in chemical processing, oil and gas, power generation, water treatment, or pharmaceutical manufacturing, the 6DR5020-0NG00-0AA0 delivers the signal fidelity, diagnostic capability, and mechanical reliability that modern distributed control systems require.

In a complete automation architecture, the 6DR5020-0NG00-0AA0 does not operate in isolation. It functions as the terminal node in a signal chain that originates at the controller level — typically a Siemens SIMATIC S7-300 or S7-400 PLC, or a SIMATIC PCS 7 distributed control system — and passes through analog or HART-capable I/O modules such as the SM 331 or SM 332 signal modules. The positioner receives a 4–20 mA command signal from the control layer and translates it into precise pneumatic output to actuate the valve, closing the loop between process measurement and physical control action.

System architects integrating the 6DR5020-0NG00-0AA0 into a SIPART PS2 platform benefit from its native HART communication capability, which allows the positioner to transmit diagnostic data — including valve travel, deviation alarms, and actuator health indicators — back to the control room without additional wiring infrastructure. This bidirectional communication supports integration with Siemens SIMATIC PDM (Process Device Manager) for centralized device configuration and predictive maintenance scheduling, reducing unplanned downtime across the entire valve network.

At the field bus and network layer, the 6DR5020-0NG00-0AA0 is compatible with PROFIBUS PA configurations when paired with appropriate segment couplers or DP/PA links, enabling it to participate in fully digital fieldbus architectures alongside other PROFIBUS-enabled field devices. This compatibility ensures that the positioner can be incorporated into redundant communication topologies, where network integrity is maintained even during segment failures or maintenance windows.

Power supply stability is a critical consideration in any control cabinet design. The 6DR5020-0NG00-0AA0 operates on a standard 4–20 mA loop-powered configuration, eliminating the need for a separate auxiliary power supply at the field device level. This simplifies panel design and reduces the load on the 24 VDC power distribution modules — such as the Siemens SITOP PSU100S or equivalent regulated power supplies — that serve the I/O and communication infrastructure within the control cabinet.

For human-machine interface integration, process operators monitoring valve positions and positioner diagnostics through a Siemens SIMATIC WinCC SCADA system or a TP700 Comfort Panel HMI will find that the HART diagnostic data from the 6DR5020-0NG00-0AA0 can be surfaced as real-time process variables, enabling operators to identify valve stiction, actuator wear, or calibration drift before these conditions escalate into process upsets. This integration between the execution layer and the HMI layer is a defining characteristic of a well-engineered SIPART PS2 system architecture.

In redundant process architectures — common in safety-instrumented systems and high-availability production lines — the 6DR5020-0NG00-0AA0 can be paired with a redundant actuator assembly or deployed in a split-range valve configuration, where two positioners control complementary valve segments to maintain process continuity during partial actuator failure. This approach is frequently used in conjunction with Siemens SIMATIC S7-400H redundant CPUs and ET 200M remote I/O stations to create a fully fault-tolerant control loop.

From an engineering commissioning perspective, the 6DR5020-0NG00-0AA0 features an automatic self-calibration routine that identifies valve end stops, actuator spring range, and travel characteristics without manual intervention. This significantly reduces commissioning time on large projects where dozens or hundreds of control valves must be calibrated and verified before plant startup. The positioner’s local display and push-button interface allow field technicians to perform zero and span adjustments, run partial stroke tests, and review diagnostic counters directly at the device, without requiring a laptop or handheld communicator.

Long-term maintenance efficiency is further supported by the positioner’s modular construction. The electronics module can be replaced independently of the pneumatic assembly, allowing maintenance teams to swap out the control electronics during a planned shutdown without disturbing the valve packing, actuator mounting, or process piping. This modularity, combined with the availability of genuine Siemens spare parts and the warranty terms confirmed during quotation provided on all units supplied by ZYPLC, ensures that the total cost of ownership remains predictable over the operational life of the installation.

ZYPLC maintains availability subject to RFQ confirmation of the Siemens 6DR5020-0NG00-0AA0 and supports global procurement requirements with fast lead times, export documentation, and technical pre-sales consultation. All units are tested prior to shipment and covered by a warranty terms confirmed during quotation, providing engineering teams and procurement managers with the confidence needed to specify this positioner for both new installations and replacement projects.

Product Specification Table

System Compatibility Notes

The 6DR5020-0NG00-0AA0 achieves its full potential when deployed as part of a coordinated SIPART PS2 control system. At the controller level, a Siemens SIMATIC S7-400 CPU 414-3 PN/DP or S7-300 CPU 315-2 DP generates the setpoint signal that drives the positioner. Analog output is delivered through SM 332 AO 4×12Bit signal modules housed in an ET 200M IM 153-2 remote I/O station, which communicates with the central controller over PROFIBUS DP. At the field device level, the 6DR5020-0NG00-0AA0 receives the 4–20 mA command and executes the valve positioning action with sub-1% accuracy.

For HART-enabled architectures, a Siemens HART Multiplexer or a SIMATIC PDM-compatible HART modem aggregates diagnostic data from multiple positioners — including the 6DR5020-0NG00-0AA0 — and routes it to the asset management layer, where maintenance engineers can monitor valve health trends across the entire plant. In PROFIBUS PA configurations, a DP/PA Link IM 157 segment coupler connects the PA field segment to the DP backbone, allowing the positioner to participate in the same network topology as Siemens SITRANS P320 pressure transmitters and SITRANS F M MAG 5100W flow meters.

Control cabinet power distribution for the I/O infrastructure is typically handled by a Siemens SITOP PSU100S 24V/10A regulated power supply, which provides stable DC power to the ET 200M station and associated signal conditioning modules. Terminal connections between the field wiring and the I/O modules are managed through Siemens SIMATIC S7 front connectors or Phoenix Contact PTFIX distribution blocks, ensuring organized, maintainable wiring within the control panel. The operator interface is provided by a Siemens SIMATIC TP1200 Comfort Panel running WinCC Comfort, which displays real-time valve positions, positioner diagnostics, and process trends sourced from the SIPART PS2 control loop.

Industrial Application Notes

The Siemens 6DR5020-0NG00-0AA0 is widely applied across industries where precise, reliable valve control is essential to process integrity. In chemical and petrochemical plants, the positioner controls reactant feed valves, pressure control valves, and temperature regulation valves within continuous process loops, where deviation from setpoint can result in off-specification product or safety incidents. Its ATEX-certified variants are suitable for Zone 1 and Zone 2 hazardous area installations, making it a standard choice for flammable gas and vapor environments.

In power generation facilities — including thermal, combined-cycle, and waste-to-energy plants — the 6DR5020-0NG00-0AA0 is used to control steam bypass valves, feedwater control valves, and turbine inlet valves, where fast response and high positioning accuracy are critical to load following and grid stability. The positioner’s self-diagnostics and partial stroke test capability support the functional safety requirements of SIL-rated safety instrumented systems in these applications.

In water and wastewater treatment plants, the positioner controls flow control valves on filtration, dosing, and aeration systems, where consistent flow rates are essential to treatment efficacy and regulatory compliance. Its IP66 enclosure rating makes it suitable for outdoor and wash-down environments typical of water utility installations. In mining and minerals processing operations, the 6DR5020-0NG00-0AA0 manages slurry control valves and reagent dosing valves in flotation and leaching circuits, where abrasive media and harsh environmental conditions demand robust, low-maintenance field instrumentation.

For pharmaceutical and food and beverage manufacturers operating under GMP or HACCP requirements, the positioner’s precise control and comprehensive audit trail — accessible via SIMATIC PDM — support validation documentation and batch record integrity. Its cleanable stainless steel housing options and compatibility with hygienic valve designs make it suitable for CIP/SIP process environments.

Product Compatibility FAQ

Q1: Is the Siemens 6DR5020-0NG00-0AA0 compatible with existing SIMATIC S7-300 and S7-400 control systems, and does it require any additional hardware for HART communication?

A: Yes, the 6DR5020-0NG00-0AA0 is fully compatible with SIMATIC S7-300 and S7-400 control systems when connected via standard 4–20 mA analog output modules such as the SM 332. HART communication is superimposed on the same two-wire loop and does not require additional field wiring. To access HART diagnostic data within the control system, a HART-capable analog input module (such as the SM 331 with HART support) or an external HART multiplexer connected to SIMATIC PDM is required. No modifications to the existing control cabinet wiring are necessary for basic positioner operation.

Q2: What commissioning steps are required when integrating the 6DR5020-0NG00-0AA0 into a PROFIBUS PA fieldbus architecture, and how does this affect system startup time?

A: Integration into a PROFIBUS PA architecture requires configuration of the positioner’s GSD (General Station Description) file within the SIMATIC STEP 7 or TIA Portal hardware configuration. The positioner must be assigned a unique PROFIBUS PA address using the local address switch, and the DP/PA Link segment coupler must be configured to include the device in the PA segment. SIMATIC PDM can then be used to perform online parameterization, including setpoint characterization, split-range configuration, and diagnostic alarm mapping. The automatic self-calibration routine — initiated via PDM or the local push-button interface — typically completes within 5 to 15 minutes per device, significantly reducing overall commissioning time compared to manual calibration methods.

Q3: What does the warranty terms confirmed during quotation cover for the 6DR5020-0NG00-0AA0, and what support is available for long-term maintenance and spare parts procurement?

A: All Siemens 6DR5020-0NG00-0AA0 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. The warranty covers the complete positioner assembly, including the electronics module, pneumatic block, and position sensor. In the event of a warranty claim, ZYPLC provides replacement units or repair support with minimal lead time to minimize process downtime. For long-term maintenance, ZYPLC maintains ongoing stock of the 6DR5020-0NG00-0AA0 and associated SIPART PS2 spare parts, including electronics modules, pneumatic kits, and mounting hardware, supporting both planned maintenance programs and emergency replacement requirements. Technical consultation for system architecture, compatibility verification, and installation support is available through ZYPLC’s engineering team.
