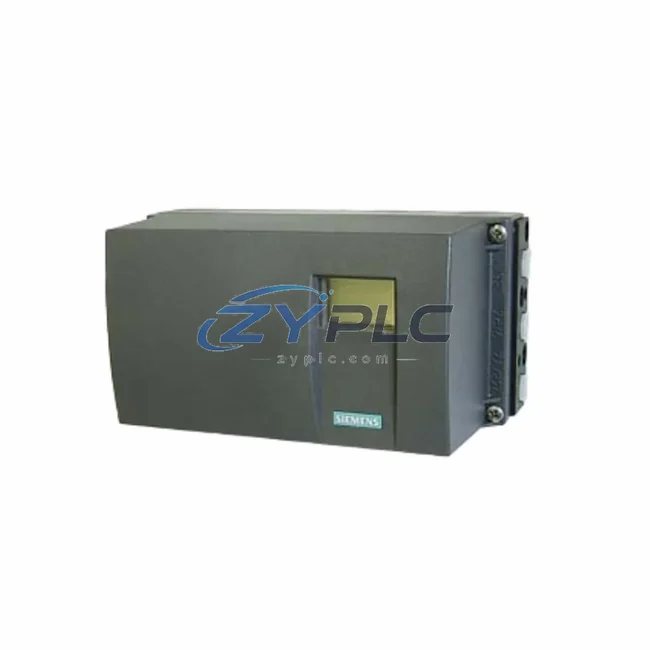

Siemens 6DR5120-0NN00-0AA0 Positioner PS2

Siemens 6DR5120-0NN00-0AA0 Positioner PS2: Compatibility and Replacement Notes

The Siemens 6DR5120-0NN00-0AA0 is an electropneumatic positioner belonging to the SIPART PS2 family, engineered to serve as a precision field-level actuator interface within layered industrial automation architectures. Rather than functioning as a standalone device, the 6DR5120-0NN00-0AA0 is designed from the ground up to integrate seamlessly into distributed control system (DCS) and programmable logic controller (PLC) environments, where signal fidelity, mechanical reliability, and long-term calibration stability are non-negotiable requirements. Its role within the control hierarchy spans the boundary between the control layer and the execution layer, translating 4–20 mA analog command signals from upstream controllers into precise pneumatic actuator positioning — making it a critical link in the signal chain of any process automation system.

In modern industrial facilities, the positioner does not operate in isolation. It is embedded within a broader architecture that includes CPU modules, I/O signal distributors, communication gateways, power supply units, human-machine interfaces, and field bus networks. The 6DR5120-0NN00-0AA0 is specifically optimized for this kind of system integration, supporting both single-acting and double-acting pneumatic actuators while maintaining compatibility with HART communication overlays that allow asset management software to interrogate device health, calibration status, and diagnostic data without interrupting the live control loop. This system integration capability is central to its value proposition in complex, multi-loop process environments.

Product Specification Table

System Compatibility Notes

The 6DR5120-0NN00-0AA0 achieves its highest operational value when deployed as part of a coordinated, multi-layer control system. At the control layer, a Siemens SIMATIC S7-300 or S7-400 CPU — such as the 6ES7315-2AH14-0AB0 or 6ES7416-3XR05-0AB0 — generates the setpoint signal that travels through the I/O layer to reach the positioner. Analog output modules such as the 6ES7332-5HD01-0AB0 (SM 332 AO 4×12Bit) provide the 4–20 mA signal conditioning required to drive the positioner’s input stage with the resolution and accuracy demanded by tight process control loops.

At the network layer, PROFIBUS PA or HART multiplexers — for example, the 6ES7157-0AC83-0XA0 DP/PA Link — bridge the fieldbus communication between the DCS backbone and field instruments, enabling the 6DR5120-0NN00-0AA0 to participate in asset management routines via SIMATIC PDM or PCS 7 Asset Management. This integration allows engineers to perform remote calibration, stroke adjustment, and diagnostic polling without physical access to the field device, dramatically reducing maintenance downtime in hazardous or hard-to-reach installations.

The power layer supporting this architecture typically relies on Siemens SITOP PSU100S or 6EP1334-3BA10 power supply modules, which deliver stable 24 VDC rails to the I/O racks and communication gateways. Stable power is especially critical in positioner applications because voltage fluctuations can introduce drift in the 4–20 mA reference, causing the positioner to misinterpret setpoint commands. At the human-machine interface layer, Siemens SIMATIC HMI panels — such as the 6AV2124-0GC01-0AX0 (TP700 Comfort) — provide operators with real-time valve position feedback, loop trend visualization, and alarm management, closing the supervisory loop above the positioner’s physical operation.

For applications requiring redundancy, the 6DR5120-0NN00-0AA0 can be paired with a redundant I/O station using 6ES7153-2BA02-0XB0 ET 200M interface modules, ensuring that a single I/O card failure does not interrupt the analog output signal to the positioner. Terminal modules such as the 6ES7193-4CA40-0AA0 provide the field wiring interface, simplifying loop commissioning and enabling hot-swap maintenance without loop interruption. Together, these components form a tightly integrated execution environment in which the 6DR5120-0NN00-0AA0 operates as a reliable, diagnostics-capable field device within a fully coordinated Siemens control architecture.

Industrial Application Notes

The 6DR5120-0NN00-0AA0 is deployed across a wide spectrum of process industries where precise valve positioning is essential to product quality, safety, and regulatory compliance. In chemical and petrochemical plants, the positioner controls feed valves, reflux valves, and pressure control loops in distillation columns and reactor systems, where positioning accuracy directly affects yield and safety margins. Its IP65 enclosure and wide ambient temperature range make it suitable for outdoor installations in refineries and offshore platforms.

In power generation facilities — including thermal, combined-cycle, and waste-to-energy plants — the 6DR5120-0NN00-0AA0 manages steam control valves, feedwater regulation valves, and combustion air dampers. The HART diagnostic capability is particularly valued in these environments, where predictive maintenance programs rely on continuous device health monitoring to prevent unplanned outages. In water and wastewater treatment systems, the positioner controls dosing valves, filter backwash valves, and flow control gates, operating reliably in humid, corrosive environments where long service intervals are required.

Mining and metallurgical applications leverage the positioner’s robust mechanical design for slurry control valves, flotation cell feed valves, and furnace atmosphere control. In food and beverage and pharmaceutical manufacturing, the 6DR5120-0NN00-0AA0 supports hygienic process control by providing repeatable, auditable valve positioning that satisfies GMP and FDA process validation requirements. Across all these sectors, the positioner’s ability to self-calibrate via its integrated microprocessor — adapting to actuator friction, hysteresis, and supply pressure variations — reduces the engineering burden during commissioning and ensures long-term positioning accuracy without manual recalibration.

Product Compatibility FAQ

Q1: Is the 6DR5120-0NN00-0AA0 compatible with both SIMATIC PCS 7 and S7-300/400 standalone PLC architectures?
Yes. The 6DR5120-0NN00-0AA0 accepts a standard 4–20 mA analog input signal, which is generated by any Siemens analog output module regardless of whether the controller is a PCS 7 DCS system or a standalone S7-300/400 PLC. For HART-enabled asset management, the positioner integrates with SIMATIC PDM (Process Device Manager) in both architectures, allowing full parameterization and diagnostics from the engineering station. No special firmware or hardware modification is required for either platform.

Q2: How does the 6DR5120-0NN00-0AA0 support long-term maintenance efficiency in large-scale installations?
The positioner’s integrated self-calibration routine (initiated via local pushbuttons or HART commands) automatically determines actuator travel limits, adjusts the control algorithm for actuator-specific friction and hysteresis, and stores calibration data in non-volatile memory. This eliminates the need for manual span and zero adjustments during routine maintenance. Combined with HART-based remote diagnostics — including partial stroke testing (PST) for safety-critical valves — maintenance teams can assess device condition, predict seal wear, and schedule interventions proactively, reducing unplanned downtime and extending mean time between maintenance (MTBM) across the valve population. All units supplied by ZYPLC include a warranty terms confirmed during quotation covering functional defects and calibration integrity.

Q3: What installation configurations are supported, and how does the positioner handle supply pressure variations in the field?
The 6DR5120-0NN00-0AA0 supports both direct NAMUR mounting (IEC 60534-6) on rotary and linear actuators and remote bracket mounting via standard accessory kits. Its internal pressure regulator accommodates supply pressure variations between 1.4 and 7 bar without requiring external pressure conditioning equipment, making it suitable for plant air systems with moderate pressure fluctuations. The positioner’s microprocessor-based control algorithm continuously compensates for supply pressure changes, maintaining positioning accuracy within ±0.1% of travel range. For installations in classified hazardous areas, the Ex-rated variants of the SIPART PS2 family should be selected; the 6DR5120-0NN00-0AA0 is the standard (non-Ex) variant intended for safe-area or purged-enclosure installations.
