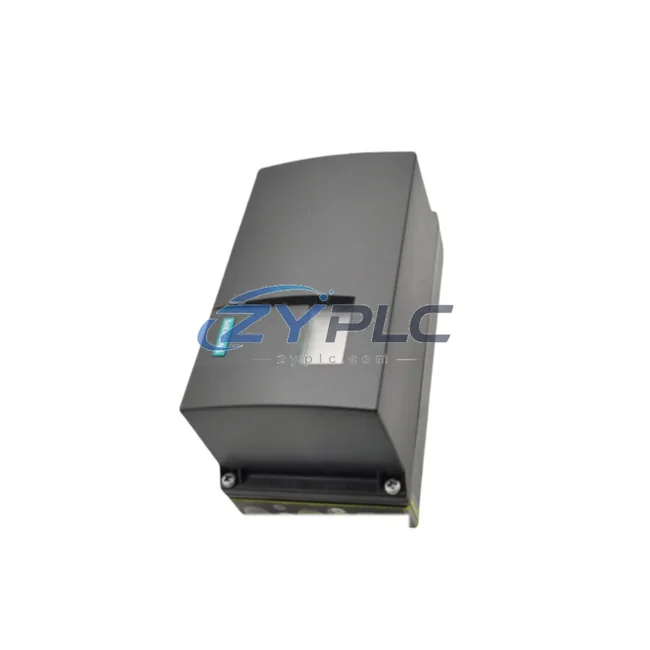

Siemens 6DR5220-0EM21-0AA0 Positioner for SIPART PS2

Siemens 6DR5220-0EM21-0AA0 Positioner for SIPART PS2: Control System Coordination and Upstream–Downstream Integration

The Siemens 6DR5220-0EM21-0AA0 is a SIPART PS2 series smart valve positioner engineered for seamless integration within layered industrial control architectures. Rather than functioning as a standalone field device, this positioner is designed to operate as a precision execution-layer component within a fully coordinated automation system — receiving setpoint commands from the control layer, reporting valve position feedback through the communication layer, and interfacing with the power and safety layers to ensure reliable, repeatable process control across demanding industrial environments.

In modern distributed control system (DCS) and safety instrumented system (SIS) architectures, the execution layer — where final control elements such as control valves operate — must maintain tight synchronization with the I/O layer, the controller layer, and the network layer. The 6DR5220-0EM21-0AA0 achieves this through its dual-protocol communication capability, supporting both HART and PROFIBUS PA, enabling it to coexist within hybrid fieldbus architectures where legacy 4–20 mA analog signals and digital fieldbus networks operate in parallel. This flexibility makes it a preferred choice for system engineers managing phased automation upgrades or multi-vendor control environments.

Within a complete SIPART PS2 system architecture, the 6DR5220-0EM21-0AA0 works in close coordination with upstream components including Siemens SIMATIC S7-300 and S7-400 series PLCs acting as the central control layer, Siemens ET 200M and ET 200S distributed I/O modules handling field-level signal acquisition, and PROFIBUS PA segment couplers such as the Siemens DP/PA Coupler 6ES7157-0AC83-0XA0 bridging the PROFIBUS DP backbone to the PA field segment. On the power layer, the positioner is typically supplied through PROFIBUS PA power conditioners and segment power supplies, ensuring stable bus voltage even under high device-count segment configurations.

The positioner’s integrated HART communication channel enables asset management integration with Siemens SIMATIC PDM (Process Device Manager) or third-party AMS systems, allowing engineers to perform remote diagnostics, valve signature analysis, and predictive maintenance scheduling without interrupting process operations. This capability is particularly valuable in continuous process industries — petrochemical, refining, power generation, and water treatment — where unplanned shutdowns carry significant operational and safety consequences.

From a signal flow perspective, the 6DR5220-0EM21-0AA0 receives its position setpoint either as a 4–20 mA analog command or as a digital PROFIBUS PA cyclic data telegram, converts this to a precise pneumatic output signal driving the actuator, and simultaneously transmits actual valve position, travel deviation, and diagnostic status back to the control system. This closed-loop feedback architecture ensures that the control layer — whether a Siemens SIMATIC PCS 7 DCS or a third-party control platform — always has accurate, real-time knowledge of valve state, enabling advanced process control strategies including cascade control, ratio control, and feedforward compensation.

For system architects designing redundant control architectures, the 6DR5220-0EM21-0AA0 supports integration with Siemens SIMATIC S7-400H redundant controller pairs and redundant PROFIBUS PA segment configurations, ensuring that positioner communication is maintained even during controller switchover events. This redundancy capability is critical in safety-critical applications such as emergency shutdown (ESD) valve control, where the positioner must respond reliably to both normal process commands and safety system trip signals.

Installation and commissioning of the 6DR5220-0EM21-0AA0 is supported by its integrated auto-calibration function, which automatically determines valve travel limits, characterizes the actuator response, and optimizes the positioner’s internal PID control parameters without requiring manual adjustment. This significantly reduces commissioning time in large-scale projects involving hundreds of control valves, and ensures consistent positioner performance across all installed units — a key factor in maintaining system-wide control loop performance.

Long-term maintenance efficiency is further enhanced by the positioner’s partial stroke testing (PST) capability, which allows engineers to verify valve mechanical integrity and actuator functionality during normal plant operation without fully stroking the valve. This is particularly important for on-off valves in safety instrumented functions (SIF), where proof testing is required at defined intervals to maintain the required safety integrity level (SIL). The PST results are logged internally and can be retrieved via HART or PROFIBUS PA for inclusion in plant maintenance records.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, with stock maintained for rapid dispatch to support both planned project deliveries and urgent replacement requirements. Our technical team provides pre-sales architecture consultation to confirm compatibility with your existing control system platform, fieldbus segment design, and pneumatic supply configuration.

Product Specification Table

System Compatibility Notes

The 6DR5220-0EM21-0AA0 achieves its full performance potential when deployed as part of a coordinated, multi-layer control system. In a typical PROFIBUS PA architecture, the positioner connects to a PA field segment managed by a Siemens DP/PA Coupler or DP/PA Link, which in turn interfaces with the PROFIBUS DP backbone connected to a Siemens ET 200M remote I/O station. The ET 200M, equipped with IM 153-2 interface modules, communicates upstream to a Siemens SIMATIC S7-400 or S7-300 CPU — or in redundant configurations, to a Siemens S7-400H high-availability controller pair.

At the HMI and SCADA layer, the positioner’s real-time position data and diagnostic information are visualized through Siemens WinCC or SIMATIC PCS 7 operator stations, giving process operators continuous visibility of valve state and enabling rapid response to process deviations. For asset management, Siemens SIMATIC PDM integrates directly with the positioner via HART or PROFIBUS PA, providing access to device parameters, calibration records, and diagnostic logs without requiring physical access to the field device.

In safety-instrumented architectures, the 6DR5220-0EM21-0AA0 may be paired with Siemens SIMATIC S7-300F or S7-400F fail-safe CPUs and Siemens ET 200S F-modules, ensuring that safety shutdown commands are transmitted and executed with the required response time and reliability. Terminal modules such as Siemens TM-E series and Siemens BU-type base units in the ET 200S system provide the physical I/O interface between the safety controller and field wiring, completing the signal chain from controller to actuator.

Industrial Application Notes

The 6DR5220-0EM21-0AA0 is deployed across a wide range of process industries where precise, reliable valve control is essential to operational safety and product quality. In petrochemical and refining plants, the positioner controls feed, reflux, and product flow valves in distillation columns, reactors, and heat exchanger trains, where tight flow control directly impacts yield and energy efficiency. Its ATEX Zone 1 certification makes it suitable for installation in hazardous areas where flammable vapors or gases may be present.

In power generation facilities — including thermal, combined-cycle, and waste-to-energy plants — the positioner manages steam control valves, feedwater control valves, and combustion air dampers, where fast, accurate response to setpoint changes is critical to maintaining boiler drum level, steam pressure, and turbine load. The positioner’s high-resolution position feedback and low hysteresis characteristics ensure that control loops remain stable even under rapidly changing process conditions.

Water and wastewater treatment plants use the 6DR5220-0EM21-0AA0 to control chemical dosing valves, filter backwash valves, and effluent discharge valves, where the positioner’s corrosion-resistant enclosure and wide ambient temperature range ensure reliable operation in outdoor and semi-outdoor installations. Mining and mineral processing operations deploy the positioner in slurry flow control, flotation cell level control, and tailings management applications, where the positioner’s robust mechanical design and self-cleaning pneumatic circuit resist the effects of particulate contamination.

In pharmaceutical and food-grade manufacturing environments, the positioner’s hygienic-compatible variants and precise flow characterization capability support clean-in-place (CIP) valve sequencing and batch process control, where repeatable valve positioning is essential to product consistency and regulatory compliance.

Product Compatibility FAQ

Q1: Is the 6DR5220-0EM21-0AA0 compatible with both PROFIBUS PA and HART simultaneously, and how does this affect system architecture design?
The 6DR5220-0EM21-0AA0 supports PROFIBUS PA as its primary digital communication protocol and HART as a secondary channel for configuration and diagnostics. In a PROFIBUS PA architecture, the positioner connects to the PA segment and communicates cyclically with the DCS or PLC via the DP/PA coupler. The HART channel can be used simultaneously for local configuration using a HART communicator or for integration with an asset management system such as Siemens SIMATIC PDM, without interfering with the PROFIBUS PA cyclic communication. This dual-protocol capability simplifies system architecture by allowing a single device to serve both process control and asset management functions.

Q2: What are the key considerations for integrating the 6DR5220-0EM21-0AA0 into a redundant PROFIBUS PA segment architecture?
In redundant PROFIBUS PA configurations, the segment coupler or DP/PA link must support redundant DP master connections, and the PA segment itself must be designed with sufficient power margin to support all connected devices including the positioner. The 6DR5220-0EM21-0AA0 draws a nominal current of approximately 11 mA from the PA bus, which must be accounted for in segment power budget calculations. For safety-critical applications, the positioner should be connected to a dedicated PA segment with its own power conditioner and surge protection, isolated from non-safety devices to prevent common-cause failures. ZYPLC’s technical team can assist with segment design review and device compatibility verification prior to project execution.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance planning?
All 6DR5220-0EM21-0AA0 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. The warranty covers repair or replacement of defective units and includes technical support for installation and commissioning issues. For long-term maintenance planning, ZYPLC supports RFQ sourcing for the 6DR5220-0EM21-0AA0 and related SIPART PS2 series components to support scheduled maintenance shutdowns, spare parts programs, and emergency replacement requirements. Our team can provide lead time commitments and consignment stock arrangements for customers with large installed bases.
