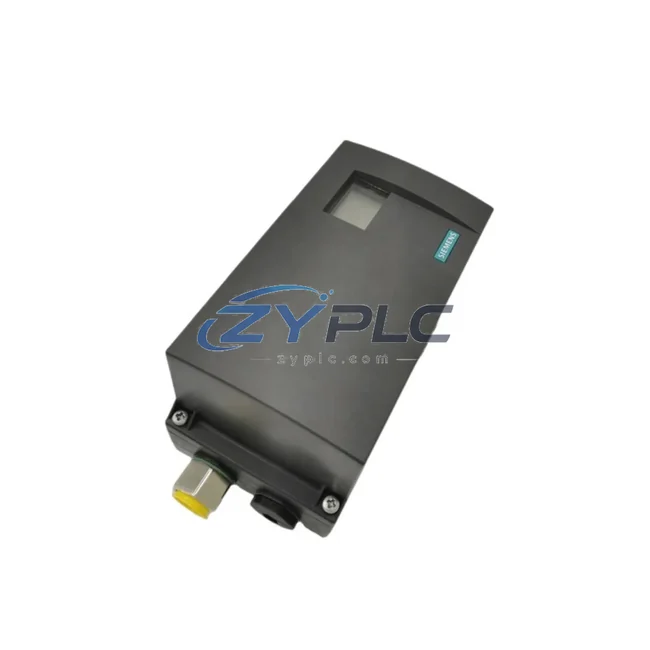

Siemens 6DR5220-0EN00-0AA0 SIPART PS2 Electropneumatic Positioner

Siemens 6DR5220-0EN00-0AA0 SIPART PS2: Industrial Data Link for Smart Factory Valve Control

The Siemens 6DR5220-0EN00-0AA0 is a high-performance electropneumatic positioner from the SIPART PS2 series, engineered to serve as a critical node in the industrial data chain between field-level control valves and upper-level automation systems. Designed for demanding process environments, this unit integrates HART (Highway Addressable Remote Transducer) communication protocol, enabling bidirectional digital data exchange over standard 4–20 mA analog signal lines. In modern smart factory architectures, the 6DR5220-0EN00-0AA0 does not merely actuate a valve — it actively participates in the plant’s data ecosystem, transmitting real-time position feedback, diagnostic status, and process variables directly to SCADA platforms, DCS controllers, and asset management systems without additional signal converters.

As industrial sites transition toward IIoT-enabled operations, the ability of a positioner to communicate intelligently across the automation hierarchy becomes a decisive factor in system design. The SIPART PS2 6DR5220-0EN00-0AA0 fulfills this role by supporting HART protocol overlay on the existing 4–20 mA loop, allowing it to coexist seamlessly with legacy wiring infrastructure while delivering digital diagnostics and parameterization capabilities. This dual-mode operation — analog control with digital communication — makes it an ideal bridge device in hybrid automation environments where full fieldbus migration is not yet feasible.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the 6DR5220-0EN00-0AA0 sits at the intersection of the physical process layer and the digital control layer. The data flow begins at the valve actuator, where the SIPART PS2 reads the mechanical position of the valve stem via its internal position sensor. This position value is encoded as a HART process variable and transmitted upstream through the 4–20 mA loop to a Siemens S7-300 or S7-1500 PLC equipped with a HART-capable analog input module such as the SM 331 or ET 200SP AI module. The PLC processes the position data against the setpoint received from the DCS or SCADA layer and issues corrective output signals back to the positioner, completing the closed-loop control cycle.

At the network level, a HART multiplexer — such as the Pepperl+Fuchs HiDMux2700 or a Siemens SITRANS FM HART gateway — aggregates HART data from multiple positioners across the field and routes it to the plant’s asset management system. This allows maintenance engineers working at an ABB System 800xA or Emerson DeltaV DCS console to remotely access the 6DR5220-0EN00-0AA0’s diagnostic variables, including travel accumulation, zero-point deviation, and actuator friction trends, without dispatching field personnel. Integration with Siemens SIMATIC PCS 7 or SIMATIC WinCC SCADA further enables alarm generation based on positioner fault codes, supporting predictive maintenance workflows.

For remote I/O architectures, the positioner’s HART signal can be routed through a Siemens ET 200M or ET 200iSP remote I/O station connected via PROFIBUS DP to the main PLC rack. In this topology, the 6DR5220-0EN00-0AA0 effectively becomes a PROFIBUS-accessible device through the HART-to-PROFIBUS gateway function of the remote I/O head station, extending its digital reach across the plant network without requiring a dedicated fieldbus variant. Similarly, in installations using Siemens SITRANS P pressure transmitters or SITRANS F flow meters alongside the positioner, all HART devices share the same infrastructure, simplifying network design and reducing commissioning time.

Edge computing nodes, such as the Siemens SIMATIC IPC227E or a third-party industrial edge gateway, can subscribe to the HART data stream via OPC UA or MQTT bridges, forwarding positioner telemetry to cloud-based analytics platforms for long-term trend analysis and digital twin synchronization. This positions the 6DR5220-0EN00-0AA0 not merely as a valve controller but as a data-generating endpoint in the plant’s IIoT architecture.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in process automation is the fragmentation of device data across incompatible protocols and isolated control islands. Many plants operate legacy 4–20 mA positioners that provide no diagnostic feedback, leaving maintenance teams blind to valve degradation until a process upset occurs. The Siemens 6DR5220-0EN00-0AA0 directly addresses this problem by superimposing HART digital communication on the existing analog loop, eliminating the need for rewiring while unlocking a rich stream of device-level data.

Protocol unification is achieved through the HART layer, which allows the positioner to coexist with PROFIBUS PA, FOUNDATION Fieldbus, and Modbus-based devices in the same plant by using HART gateways and protocol converters at the network boundary. Data silos are broken down as the positioner’s position, setpoint deviation, and diagnostic status become accessible to the plant’s SCADA historian, enabling cross-system correlation with flow, pressure, and temperature data from other field instruments.

Remote monitoring is a core value proposition of the 6DR5220-0EN00-0AA0. Through HART communication, operators can perform remote valve diagnostics, adjust positioner parameters, and execute partial stroke tests from the control room without interrupting the process. This capability is particularly valuable in hazardous areas or physically inaccessible valve locations, where manual inspection carries safety risks and operational costs. Production line transparency is enhanced as valve performance data feeds into OEE (Overall Equipment Effectiveness) calculations, allowing plant managers to correlate valve health with throughput and quality metrics.

System expansion is straightforward: additional SIPART PS2 positioners can be added to the HART network without architectural changes, as each device is individually addressable via its HART polling address. This scalability supports phased plant upgrades and greenfield expansions alike, ensuring that the investment in HART infrastructure continues to deliver value as the automation footprint grows.

Industrial Connectivity FAQ

Q1: What is the communication latency of the HART protocol used by the 6DR5220-0EN00-0AA0?
HART communication operates at 1200 baud, with a typical command-response cycle of 250–500 ms per device. This latency is suitable for diagnostic and parameterization tasks but is not intended for real-time closed-loop control, which is handled by the faster 4–20 mA analog signal. For applications requiring sub-100 ms control response, the analog loop remains the primary control channel while HART handles supervisory data exchange.

Q2: Is the 6DR5220-0EN00-0AA0 compatible with existing DCS HART I/O cards and asset management systems?
Yes. The SIPART PS2 6DR5220-0EN00-0AA0 is fully compliant with the HART Communication Foundation standard (HART 5/6/7), making it compatible with HART I/O cards from Siemens, Emerson, Honeywell, ABB, and Yokogawa. It supports standard HART Device Description (DD) files, enabling plug-and-play integration with asset management systems such as Emerson AMS Device Manager, ABB Asset Vision, and Siemens SIMATIC PDM.

Q3: How does the positioner maintain network stability in electrically noisy industrial environments?
The HART protocol uses frequency-shift keying (FSK) modulation at 1200 Hz and 2200 Hz, which is inherently resistant to low-frequency electrical noise common in industrial environments. The 6DR5220-0EN00-0AA0’s electronics are designed to meet EMC standards IEC 61000-4 series, and the IP66/NEMA 4X enclosure protects internal circuitry from dust, moisture, and corrosive atmospheres. Proper loop impedance (250–600 Ω) must be maintained for reliable HART communication.

Q4: What warranty and pre-shipment testing does the 6DR5220-0EN00-0AA0 come with?
Every Siemens 6DR5220-0EN00-0AA0 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment. Prior to dispatch, each unit undergoes functional testing including position feedback verification, HART communication check, and pneumatic leak test to ensure it meets Siemens factory specifications. Units are shipped with original packaging and documentation where available. For RFQ, lead time, and stock availability, contact ZYPLC directly.
