Siemens 6DS1200-8BA Industrial Network Interface for Teleperm XP Systems

Siemens 6DS1200-8BA Industrial Network Interface for Teleperm XP Systems: Enabling Seamless DCS Data Links in Smart Factories

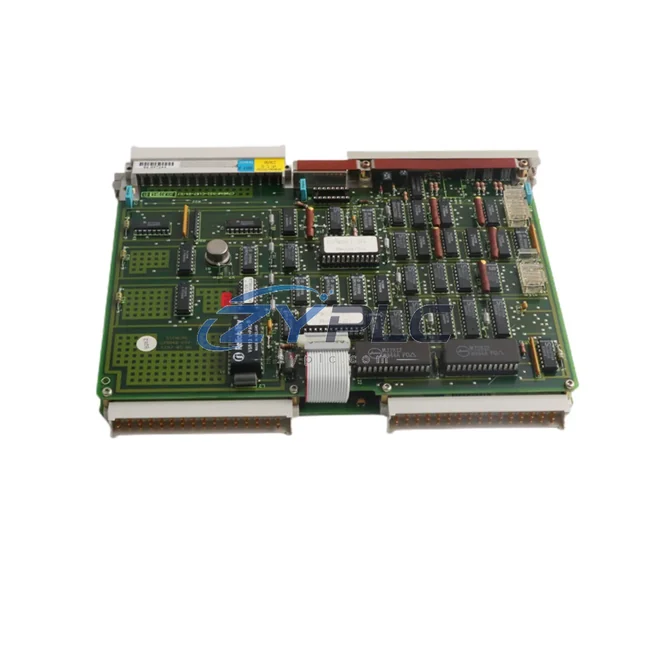

The Siemens 6DS1200-8BA is a high-reliability Enable Bus Module engineered for the Teleperm XP Distributed Control System platform. Designed to serve as the critical communication backbone between field instrumentation, process controllers, and supervisory systems, this module ensures deterministic, low-latency data exchange across complex industrial network architectures. Whether deployed in petrochemical refineries, power generation facilities, or large-scale continuous process plants, the 6DS1200-8BA delivers the protocol integrity and bus stability that modern smart factory environments demand.

In today’s industrial landscape, the ability to move process data reliably from field sensors through the control layer to SCADA and MES platforms is not optional — it is the foundation of operational transparency. The 6DS1200-8BA addresses this need by providing a robust enable bus interface that synchronizes communication between Teleperm XP AS 488/TM automation stations and their associated I/O subsystems, eliminating data isolation and ensuring every signal reaches its destination with full fidelity.

Compatibility & Integration Notes

Connected Automation Data Flow

The 6DS1200-8BA sits at the heart of the Teleperm XP communication architecture, enabling structured data flow from the lowest field level up through the control and supervisory layers. At the field level, process transmitters — including Siemens SITRANS P pressure transmitters and SITRANS F flow meters — deliver analog and HART signals into the Teleperm XP remote I/O racks. The 6DS1200-8BA enable bus module coordinates the handshake between these I/O modules and the AS 488/TM automation station, ensuring that every measurement cycle is captured without dropout or latency spike.

Moving up the data chain, the AS 488/TM automation station processes the incoming field data and executes control logic before passing structured process values to the CS 275 communication server. The 6DS1200-8BA’s bus enable function is what makes this handoff reliable — it gates the bus transactions so that only valid, synchronized data frames propagate through the system. This is particularly critical in applications where the Siemens SIMATIC S7-400 PLC or S7-300 series controllers are integrated alongside the Teleperm XP platform for hybrid automation architectures, requiring precise bus timing to avoid collision or data corruption.

At the supervisory level, the OS 525 operator station and WinCC SCADA platform receive real-time process values, alarm states, and diagnostic data from the Teleperm XP network. The 6DS1200-8BA ensures that this upstream data flow is continuous and uninterrupted, supporting the operator’s ability to monitor trends, acknowledge alarms, and execute setpoint changes from the HMI without communication gaps. For plants that have extended their architecture to include Siemens SCALANCE industrial Ethernet switches for plant-wide networking, the 6DS1200-8BA provides the stable DCS bus foundation that feeds data into the broader OT network.

In drive integration scenarios, Siemens SINAMICS G120 and S120 variable frequency drives connected to the process network rely on consistent PLC and DCS communication to execute speed references and report operational status. The 6DS1200-8BA’s role in maintaining bus integrity directly supports the reliability of these drive feedback loops. Similarly, edge gateway devices — such as the Siemens SINEMA Remote Connect platform — depend on stable DCS data sources to deliver accurate remote diagnostics to maintenance teams operating off-site.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial installations is data isolation — the condition where field devices, controllers, and supervisory systems operate in communication silos, preventing plant-wide visibility and coordinated control. The Siemens 6DS1200-8BA directly addresses this challenge within the Teleperm XP ecosystem by providing the enable bus infrastructure that allows all nodes on the DCS network to participate in a unified data exchange.

Protocol fragmentation is a common root cause of data isolation. Plants that have evolved over decades often run multiple communication standards simultaneously — PROFIBUS DP for field devices, HART for intelligent transmitters, proprietary DCS bus protocols for legacy controllers, and Industrial Ethernet for modern SCADA connectivity. The 6DS1200-8BA, as the enable bus module for the Teleperm XP platform, acts as the protocol anchor that keeps the DCS layer coherent while gateway modules handle translation to and from adjacent network segments.

Remote monitoring and diagnostics are increasingly non-negotiable for modern plant operations. With the 6DS1200-8BA maintaining bus stability, maintenance engineers can rely on the Teleperm XP diagnostic tools to perform remote fault isolation, identify failing I/O channels, and assess module health without requiring physical access to the control cabinet. This capability directly reduces mean time to repair (MTTR) and supports predictive maintenance strategies that are central to Industry 4.0 initiatives.

Production line transparency — the ability to see real-time process KPIs from raw material intake through to finished product output — depends on an unbroken data chain from field to enterprise. The 6DS1200-8BA ensures that the DCS layer of this chain is robust, enabling plant managers to access live dashboards, historical trend data, and alarm analytics through the SCADA and MES layers without data gaps caused by bus communication failures. System expansion is equally well-supported: as plants add new process units or integrate additional remote I/O racks, the 6DS1200-8BA’s enable bus architecture scales to accommodate new nodes without requiring a redesign of the communication topology.

Every 6DS1200-8BA unit supplied by ZYPLC undergoes pre-shipment functional testing to verify bus communication integrity, module initialization, and signal handshake performance. Units are shipped with full export documentation and are backed by a warranty terms confirmed during quotation, with availability confirmed by RFQ availability ensuring minimal lead times for urgent maintenance and replacement requirements.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 6DS1200-8BA support, and is it compatible with PROFIBUS networks?
The 6DS1200-8BA operates on the Teleperm XP internal enable bus protocol, which governs communication between the AS 488/TM automation station and its associated I/O modules. While it is not a standalone PROFIBUS DP master or slave, it functions within Teleperm XP architectures that interface with PROFIBUS segments through dedicated gateway modules, making it compatible with broader PROFIBUS-based plant networks when deployed as part of the complete Teleperm XP system.

Q2: How does the 6DS1200-8BA contribute to network stability in high-availability DCS environments?
The module’s enable bus function provides deterministic bus access control, preventing data collisions and ensuring that each I/O module communicates with the automation station in a synchronized, orderly sequence. This deterministic behavior is essential in high-availability process control environments where communication jitter or bus contention could trigger spurious alarms or control upsets. Redundant system configurations within the Teleperm XP platform further enhance stability by providing failover paths if a primary communication route is interrupted.

Q3: Can the 6DS1200-8BA be integrated into a SCADA or HMI system for remote monitoring?
Yes. The 6DS1200-8BA enables the Teleperm XP DCS to deliver real-time process data to the OS 525 operator station and WinCC-based SCADA platforms. Through the CS 275 communication server, process values, alarm states, and diagnostic information are made available to HMI displays and remote monitoring dashboards, supporting full plant visibility from the control room or remote operations center.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each 6DS1200-8BA unit is tested for bus communication initialization, module identification, and signal handshake integrity using Teleperm XP-compatible test equipment. Units that do not meet functional specifications are quarantined and not shipped. Warranty claims are supported with replacement units from RFQ-confirmed sourcing, minimizing downtime for the end user.
