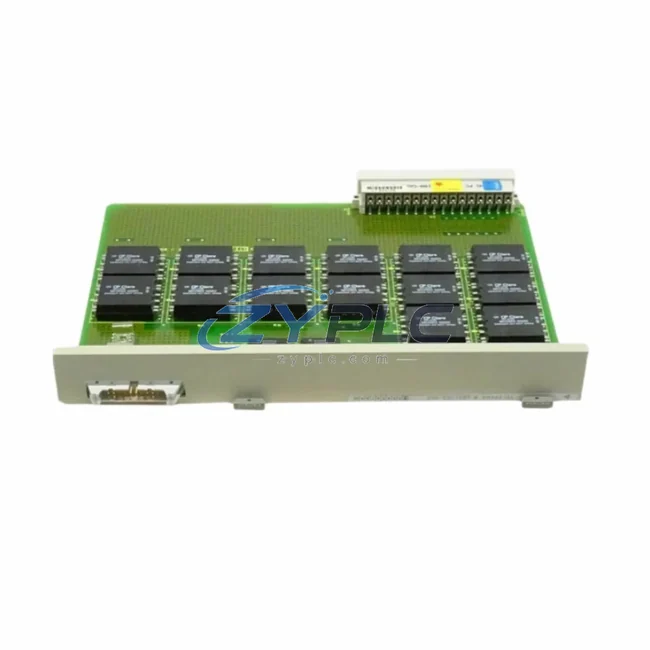

Siemens 6DS1703-8AB Industrial Network Interface for Teleperm M

Siemens 6DS1703-8AB Industrial Network Interface for Teleperm M Systems

In modern industrial environments where data continuity is the backbone of operational efficiency, the Siemens 6DS1703-8AB Communication Gateway serves as a critical bridge within the Teleperm M distributed control system architecture. Designed to handle the demanding requirements of process industries — including chemical, petrochemical, power generation, and large-scale manufacturing — this gateway enables seamless data exchange between field-level devices and supervisory control layers, eliminating the communication barriers that have historically fragmented industrial networks.

The 6DS1703-8AB is engineered to support Profibus protocol communication, one of the most widely deployed fieldbus standards in process automation. By acting as a protocol conversion and data routing node, it allows legacy Teleperm M controllers to communicate with modern field instruments, remote I/O stations, and upper-level SCADA platforms without requiring a full system overhaul. This makes it an indispensable component for plants seeking to extend the operational life of their existing DCS infrastructure while progressively integrating smart factory capabilities.

Within a typical Teleperm M installation, the 6DS1703-8AB interfaces directly with AS 488/TM automation stations, collecting real-time process data from distributed field nodes and forwarding structured data packets upstream to the OM 650 operator station or connected SCADA servers. This bidirectional data flow ensures that operators have continuous visibility into process variables — temperatures, pressures, flow rates, valve positions — without communication latency that could compromise control decisions.

The gateway also plays a pivotal role in connecting ET 200 remote I/O systems deployed across extended plant areas. By aggregating signals from multiple I/O nodes over a single Profibus segment, the 6DS1703-8AB significantly reduces wiring complexity and improves network scalability. Plants running Simatic S7-400 PLCs alongside legacy Teleperm M systems can leverage this gateway to create a unified communication backbone, allowing both platforms to share process data through a common network layer.

For drive integration, the 6DS1703-8AB supports connectivity with Sinamics S120 and Micromaster 440 variable frequency drives via Profibus DP, enabling real-time speed reference, torque feedback, and fault status exchange between the drive layer and the DCS. This integration is essential for maintenance-focused motor control strategies, where the control system must continuously adjust drive parameters based on process demand rather than running motors at fixed speeds.

Signal acquisition from intelligent field transmitters — such as Sitrans P series pressure transmitters and Sitrans F flow meters — is handled efficiently through the gateway’s Profibus interface, allowing HART-over-Profibus or native Profibus PA devices to report diagnostic data alongside process values. This dual-channel approach supports predictive maintenance workflows by surfacing device health indicators directly within the SCADA or DCS historian, long before a failure event occurs.

Remote diagnostics capability is another key strength of the 6DS1703-8AB. Through its network interface, maintenance engineers can interrogate connected field devices, retrieve communication statistics, and identify segment faults from a central engineering workstation running Simatic PDM (Process Device Manager). This eliminates the need for physical site visits to diagnose communication issues, reducing mean time to repair and keeping production lines running at target throughput.

For plants integrating HMI layers, the gateway’s data output is fully compatible with WinCC SCADA visualization platforms, enabling real-time tag updates, alarm forwarding, and trend logging without additional protocol conversion middleware. The structured data architecture of the Teleperm M system, combined with the 6DS1703-8AB’s routing capabilities, ensures that HMI screens reflect live plant conditions with minimal scan cycle delay.

Every unit of the Siemens 6DS1703-8AB available through ZYPLC undergoes a comprehensive pre-shipment functional test, verifying communication port integrity, protocol handshake performance, and power supply stability before dispatch. Units are sourced from verified supply channels, held in climate-controlled inventory, and shipped with full documentation. A warranty terms confirmed during quotation is provided on all units, covering manufacturing defects and communication failures under normal operating conditions.

Compatibility & Integration Notes

Connected Automation Data Flow

The data flow architecture enabled by the 6DS1703-8AB begins at the field level, where Sitrans P320 pressure transmitters and Sitrans F M MAG 5100W electromagnetic flow meters transmit process values over Profibus PA segments. The gateway aggregates these signals and routes them to the AS 488/TM automation station, which executes the control logic defined in the Teleperm M engineering environment.

Upstream from the automation station, the 6DS1703-8AB forwards structured process data to the OM 650 operator station, where operators monitor live plant conditions through graphical displays. Simultaneously, the data stream is made available to WinCC SCADA servers for historian logging, alarm management, and KPI dashboards accessible from the control room or remote engineering terminals.

For motor-driven processes, the gateway maintains a live Profibus DP link to Sinamics S120 drive units, exchanging speed setpoints and actual feedback values in real time. Adjacent to the drive layer, ET 200S remote I/O modules collect discrete and analog signals from field actuators and sensors, feeding this data back through the 6DS1703-8AB into the main control loop. Maintenance teams use Simatic PDM connected via the same Profibus backbone to perform online device diagnostics and parameter adjustments without interrupting production.

For plants with mixed automation generations, the 6DS1703-8AB also supports coexistence with Simatic S7-400 controllers on shared Profibus segments, allowing gradual migration from Teleperm M to modern Simatic platforms without a hard cutover, protecting capital investment while enabling incremental modernization.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in mature process plants is data isolation — where field devices, legacy DCS controllers, and modern SCADA systems operate in parallel but cannot exchange information efficiently. The Siemens 6DS1703-8AB directly addresses this by providing a standardized Profibus communication layer that bridges protocol gaps between Teleperm M’s proprietary data structures and open industrial network standards.

Plants that have expanded over decades often find themselves with multiple communication islands: a Teleperm M DCS managing core process loops, standalone PLCs controlling auxiliary systems, and modern edge gateways collecting data for cloud analytics — none of which communicate natively with each other. The 6DS1703-8AB acts as the integration node that connects these islands, enabling a unified data view across the entire plant without requiring parallel wiring infrastructure or protocol conversion appliances at every endpoint.

Remote monitoring is another area where the gateway delivers measurable value. By making Teleperm M process data available over Profibus to SCADA-connected systems, plant managers can access real-time production metrics, operating load data, and equipment status from centralized dashboards — enabling faster decision-making and reducing the dependency on local operator presence for routine monitoring tasks.

System expansion is simplified as well. Adding new field devices, remote I/O stations, or drive units to an existing Teleperm M network requires only Profibus-compatible hardware and correct address configuration — the 6DS1703-8AB handles the protocol routing transparently, allowing the network to grow without architectural redesign.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 6DS1703-8AB support?
The 6DS1703-8AB primarily supports Profibus DP and Profibus PA protocols, making it compatible with a wide range of Siemens field devices, remote I/O systems, drives, and third-party Profibus-certified instruments. It is designed for integration within the Teleperm M DCS environment and can coexist on shared Profibus segments with Simatic S7 controllers.

Q2: Is the 6DS1703-8AB compatible with modern SCADA and HMI systems?
Yes. The gateway’s Profibus interface allows process data to be accessed by SCADA platforms such as WinCC and third-party OPC-compatible systems. When paired with appropriate communication servers, the 6DS1703-8AB enables live data feeds to HMI displays, historian databases, and remote monitoring dashboards without additional protocol conversion hardware.

Q3: What testing is performed before shipment?
Every 6DS1703-8AB unit undergoes a pre-shipment functional test covering communication port verification, protocol handshake validation, and power supply integrity checks. Units are tested under simulated Profibus network conditions to confirm stable data transmission before dispatch. Full test documentation is available upon request.

Q4: What does the warranty terms confirmed during quotation cover?
The warranty terms confirmed during quotation covers manufacturing defects, communication hardware failures, and component malfunctions arising under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. ZYPLC provides technical support throughout the warranty period to assist with integration and troubleshooting.
