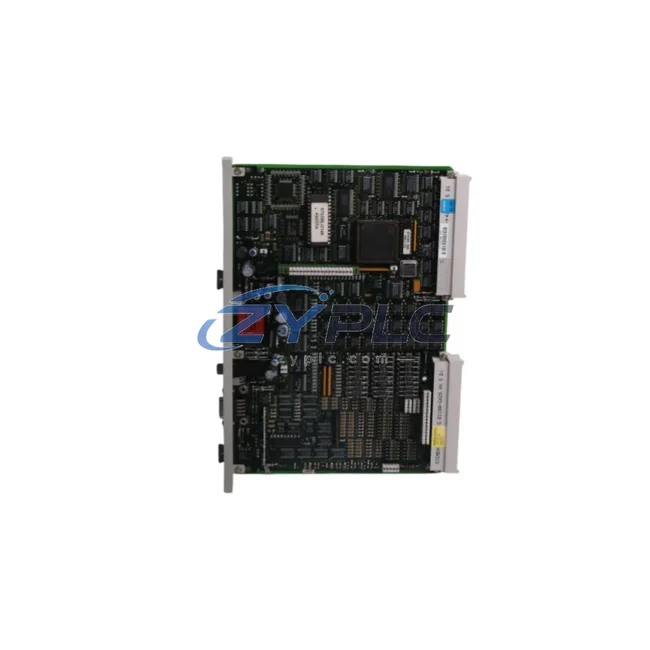

Siemens 6DS1723-8BB Analog Output for TELEPERM M

Siemens 6DS1723-8BB Analog Output for TELEPERM M

The Siemens 6DS1723-8BB is a precision analog output module engineered for deployment within the TELEPERM M distributed control system (DCS) architecture. Designed to operate as a core signal-conditioning and output-driving component within Siemens’ legacy yet widely deployed process automation platform, this module delivers reliable, deterministic analog signal transmission across demanding industrial environments. Rather than functioning as a standalone device, the 6DS1723-8BB is conceived as an integral node within a layered control hierarchy — coordinating seamlessly with CPU modules, I/O backplanes, power supply units, communication gateways, and field-level actuators to maintain system-wide signal integrity and operational continuity.

In modern industrial facilities where TELEPERM M systems continue to govern critical process loops — including refinery distillation columns, power plant boiler controls, chemical reactor management, and water treatment dosing systems — the availability of a verified, system-compatible analog output module such as the 6DS1723-8BB is essential for both ongoing operations and planned maintenance cycles. ZYPLC maintains tested inventory of this module backed by a warranty terms confirmed during quotation, ensuring procurement confidence for engineering teams managing long-lifecycle DCS installations.

Product Specification Table

System Compatibility Notes

The 6DS1723-8BB achieves its full operational value when integrated within a complete TELEPERM M control cabinet architecture. At the control layer, Siemens TELEPERM M central processing units — such as the 6DS1300-8AA or 6DS1310-8AA CPU modules — execute the process logic and issue setpoint commands that are ultimately translated into analog output signals by the 6DS1723-8BB. These CPU modules communicate with I/O modules via the TELEPERM M internal backplane bus, ensuring low-latency, deterministic signal delivery across the rack.

Power integrity is maintained through dedicated TELEPERM M power supply modules such as the 6DS9200-8AA or equivalent 24 V DC rail units, which provide stable, filtered power to all rack-mounted modules including the 6DS1723-8BB. Voltage fluctuations or power rail instability directly affect analog output accuracy; therefore, pairing this module with a verified TELEPERM M power supply is a fundamental system engineering requirement.

On the input side, analog input modules such as the 6DS1703-8BB or 6DS1711-8BB acquire process variable signals from field transmitters — pressure, temperature, flow, and level sensors — and feed these values to the CPU for closed-loop control computation. The 6DS1723-8BB then closes the loop by driving the corresponding control output signal to field actuators such as control valves, variable frequency drives (VFDs), or positioners.

For installations requiring digital I/O coordination, digital output modules such as the 6DS1601-8AA operate in parallel within the same rack, handling discrete switching commands for motor starters, solenoid valves, and alarm outputs. This mixed analog-digital I/O architecture is characteristic of TELEPERM M process control cabinets in refinery, power generation, and chemical plant applications.

Communication gateways and interface modules — including PROFIBUS DP adapters compatible with the TELEPERM M platform — enable integration with supervisory SCADA systems and modern DCS migration layers, allowing the 6DS1723-8BB to participate in hybrid automation architectures where legacy TELEPERM M hardware coexists with contemporary Siemens PCS 7 or SIMATIC S7 infrastructure. Subrack backplane assemblies such as the 6DS9100-8AA provide the physical and electrical interconnection framework within which the 6DS1723-8BB is installed, and their condition directly affects module seating, signal isolation, and long-term reliability.

Human-machine interface (HMI) layers — whether legacy TELEPERM M operator stations or modern SIMATIC WinCC-based panels — receive process data upstream from the CPU and display real-time analog output values driven by the 6DS1723-8BB, enabling operators to monitor valve positions, drive speeds, and dosing rates in real time. This end-to-end signal chain — from field sensor through analog input module, CPU, analog output module, and field actuator — represents the fundamental control loop architecture that the 6DS1723-8BB supports.

Industrial Application Notes

The Siemens 6DS1723-8BB finds application across a broad spectrum of process industries where TELEPERM M DCS installations remain operational and require ongoing component support:

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, TELEPERM M systems govern boiler feedwater control, turbine governor loops, and flue gas desulfurization (FGD) processes. The 6DS1723-8BB drives control valve positioners and burner management actuators, maintaining precise combustion ratios and steam pressure setpoints critical to plant efficiency and safety compliance.

Petrochemical and Refinery Operations: Distillation column reflux control, crude oil feed rate regulation, and reactor temperature management in petrochemical facilities rely on stable, accurate analog output signals. The 6DS1723-8BB provides the milliamp-level output precision required to position control valves within ±0.1% of setpoint, supporting product quality consistency and process safety integrity.

Water and Wastewater Treatment: Municipal water treatment plants and industrial effluent systems use TELEPERM M-based control architectures to manage chemical dosing pumps, aeration blowers, and filtration backwash cycles. The 6DS1723-8BB drives variable-speed pump drives and dosing valve actuators, enabling proportional chemical feed control based on real-time water quality measurements.

Metallurgy and Mining: Ore processing facilities, smelting operations, and mineral separation plants deploy TELEPERM M systems for furnace temperature control, conveyor speed regulation, and flotation cell level management. The analog output capability of the 6DS1723-8BB supports precise drive speed commands and heating element power regulation in high-temperature, electrically noisy environments.

Packaging and Discrete Manufacturing: While TELEPERM M is primarily a process control platform, its analog output modules support tension control, web speed regulation, and fill-level management in continuous packaging lines where analog signal precision directly affects product consistency and waste reduction.

Product Compatibility FAQ

Q1: Is the 6DS1723-8BB compatible with all TELEPERM M subrack configurations, and can it be mixed with other I/O module types in the same rack?
Yes. The 6DS1723-8BB is designed for standard TELEPERM M subrack backplanes and is fully compatible with mixed I/O rack configurations. It can be installed alongside analog input modules (e.g., 6DS1703-8BB), digital I/O modules (e.g., 6DS1601-8AA), and communication interface modules within the same rack assembly. Slot assignment and module addressing must be configured in accordance with the TELEPERM M system engineering documentation to ensure correct CPU recognition and I/O mapping. No hardware modification is required for mixed-module rack deployment.

Q2: How does the 6DS1723-8BB support long-term maintenance and architecture continuity in aging TELEPERM M installations?
The 6DS1723-8BB is a direct replacement-compatible module for existing TELEPERM M analog output positions, requiring no firmware updates or system reconfiguration when substituting a failed unit of the same type. Its availability as tested, warranted stock through ZYPLC allows maintenance engineers to execute like-for-like replacements during planned shutdowns or emergency corrective maintenance without system re-engineering. The warranty terms confirmed during quotation provided by ZYPLC covers functional verification and operational reliability, reducing the risk associated with sourcing legacy DCS components from unverified channels.

Q3: What should engineers verify during installation and commissioning of the 6DS1723-8BB in an existing TELEPERM M system?
Prior to installation, engineers should verify subrack backplane connector integrity, confirm 24 V DC power rail voltage within specification at the target slot, and review the existing I/O configuration database to ensure the replacement module’s slot address matches the original assignment. During commissioning, analog output loop calibration should be performed using a calibrated milliamp source/meter to confirm 4–20 mA output linearity across the full engineering range. Field wiring polarity, cable shielding continuity, and actuator input impedance compatibility should also be verified. ZYPLC’s technical support team is available to assist with pre-installation verification and commissioning guidance for all warranted modules.
