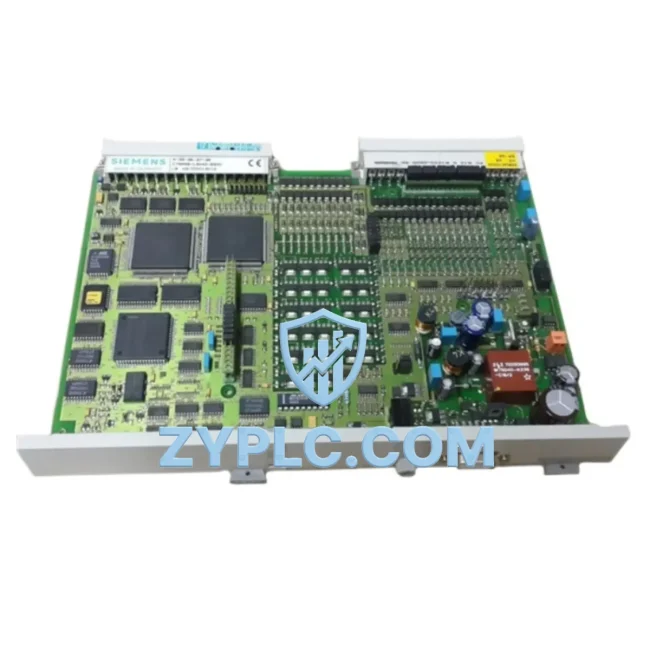

Siemens 6DS1723-8RU Analog Output for TELEPERM M

Siemens 6DS1723-8RU Analog Output for TELEPERM M

The Siemens 6DS1723-8RU is a precision analog output module purpose-built for integration within the TELEPERM M distributed control system (DCS) architecture. Rather than functioning as a standalone component, this module is engineered to operate as a coordinated element within a multi-layer industrial automation hierarchy — contributing directly to signal fidelity, process stability, and long-term system maintainability across demanding industrial environments.

In a fully realized TELEPERM M control architecture, the 6DS1723-8RU occupies a critical position at the I/O layer, translating digital control commands from the central processing units into precise analog signals that drive field actuators, control valves, variable-speed drives, and positioners. Its role is not isolated — it is deeply embedded in the upstream and downstream signal chain, where consistency of output directly determines process quality and regulatory compliance.

At the control layer, the 6DS1723-8RU interfaces with TELEPERM M central processing modules such as the AS 235 and AS 488/TM automation stations, receiving setpoint data and translating it into calibrated 4–20 mA or 0–10 V analog output signals. This tight coupling between the CPU and the output module ensures minimal latency in control loop execution, which is essential in fast-response processes such as combustion control, pressure regulation, and flow management.

Within the I/O layer, the 6DS1723-8RU is typically installed alongside complementary modules including the 6DS1703-8RU analog input module and the 6DS1601-8AA digital input/output module. These modules share the same TELEPERM M subrack and backplane bus, enabling synchronized data exchange without additional wiring overhead. The modular backplane design of the TELEPERM M system allows engineers to configure I/O density precisely to process requirements, and the 6DS1723-8RU fits seamlessly into this expandable architecture.

From a network and communication perspective, the 6DS1723-8RU operates within the TELEPERM M bus structure, which supports deterministic data transmission between I/O modules and the automation station. This architecture ensures that analog output updates are delivered with consistent timing, a prerequisite for closed-loop control stability. In larger installations, the system may incorporate SINEC H1 or PROFIBUS DP communication gateways to bridge TELEPERM M segments with higher-level SCADA or DCS supervisory platforms, maintaining system integration across the entire plant network.

At the power layer, the 6DS1723-8RU is supplied through the TELEPERM M rack power supply units, which provide regulated DC voltage to all installed modules. Proper power distribution design — including the use of redundant power supply modules where process criticality demands — ensures that the analog output module maintains continuous operation even during partial power system faults. Engineers specifying this module should account for the aggregate current draw of all installed I/O modules when sizing rack power supplies.

For human-machine interface integration, the analog output values driven by the 6DS1723-8RU are typically visualized on SIMATIC WinCC or legacy TELEPERM M operator stations, where process engineers monitor setpoint tracking, output saturation, and loop performance in real time. The ability to observe analog output behavior at the HMI layer is essential for rapid fault diagnosis and process optimization during commissioning and ongoing operations.

At the execution layer, the 4–20 mA signals generated by the 6DS1723-8RU connect directly to field instruments including control valves with SIPART PS2 positioners, frequency converters, and electropneumatic transducers. The accuracy and resolution of the analog output directly influence the precision of final control elements, making the selection of a correctly specified and fully functional output module a critical engineering decision.

Product Specification Table

System Compatibility Notes

The 6DS1723-8RU achieves its full performance potential when deployed as part of a coordinated TELEPERM M system architecture. A typical installation integrating this module will include the AS 235 or AS 488/TM automation station as the central processing unit, responsible for executing control algorithms and issuing output commands. Alongside the 6DS1723-8RU, the 6DS1703-8RU analog input module captures process variable feedback, closing the control loop with high-resolution signal acquisition.

Digital I/O requirements within the same control cabinet are addressed by the 6DS1601-8AA digital input/output module, which handles discrete signals for motor starters, solenoid valves, and limit switches. The TELEPERM M subrack backplane provides the shared communication bus that ties these modules together, eliminating point-to-point wiring between I/O components and the CPU.

For installations requiring communication with plant-wide networks, the CS 275 bus coupler or a PROFIBUS DP gateway module bridges the TELEPERM M segment to higher-level systems. Redundant power supply modules within the rack ensure that a single power unit failure does not interrupt analog output continuity. Terminal modules and marshalling panels complete the field wiring interface, providing organized and maintainable connection points for the 4–20 mA loops driven by the 6DS1723-8RU. In drive-intensive applications, SINAMICS or MICROMASTER frequency converters receive the analog setpoint signals from this module, enabling precise speed and torque control of process motors.

Industrial Application Notes

The Siemens 6DS1723-8RU finds application across a broad range of process industries where the TELEPERM M platform has been deployed as the primary control infrastructure. In power generation facilities, this module controls turbine governor valves, boiler feedwater control valves, and combustion air dampers, where analog output precision directly impacts thermal efficiency and emissions compliance. The module’s integration within the TELEPERM M architecture ensures that control loop updates are synchronized with plant-wide supervisory commands.

In petrochemical and refinery environments, the 6DS1723-8RU drives control valves regulating distillation column reflux ratios, reactor feed rates, and heat exchanger bypass flows. The deterministic output behavior of the TELEPERM M bus architecture supports the tight process tolerances required in these applications. Water and wastewater treatment plants utilize this module to control dosing pump speeds, aeration blower outputs, and filter backwash valve positions, where reliable analog output is essential for regulatory compliance and process efficiency.

Mining and metallurgical operations benefit from the module’s robust design, deploying it in ore processing control systems, smelter temperature regulation, and conveyor speed control applications. Packaging and discrete manufacturing lines integrate the 6DS1723-8RU within TELEPERM M-based supervisory systems to coordinate filling machine speeds, tension control systems, and temperature profiling in heat-sealing processes. Across all these applications, the 12-Month Warranty provides procurement and maintenance teams with confidence in long-term operational reliability and supply continuity.

Product Compatibility FAQ

Q1: Is the 6DS1723-8RU compatible with both AS 235 and AS 488/TM automation stations in the same TELEPERM M architecture?
Yes. The 6DS1723-8RU is designed for the TELEPERM M I/O bus and is compatible with both the AS 235 and AS 488/TM automation stations. When integrating this module into an existing architecture, engineers should verify subrack slot assignments and bus address configuration to ensure conflict-free operation alongside other installed I/O modules such as the 6DS1703-8RU and 6DS1601-8AA.

Q2: How does the 6DS1723-8RU support redundancy requirements in critical process control architectures?
While the 6DS1723-8RU itself operates as a standard I/O module, system-level redundancy in TELEPERM M architectures is typically achieved through redundant automation stations and duplicated I/O racks. In high-availability installations, a mirrored rack configuration with a second 6DS1723-8RU module on a standby subrack ensures seamless switchover in the event of a primary module fault. Redundant power supply modules within each rack further protect analog output continuity.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance for legacy TELEPERM M systems?
The 12-Month Warranty covers functional defects in the 6DS1723-8RU under normal operating and installation conditions, providing assurance for both new deployments and system expansion projects. ZYPLC maintains inventory of TELEPERM M compatible modules to support long-term maintenance strategies for installed base systems. For engineering support, spare parts planning, or system compatibility verification, contact our technical team directly.
