Siemens 6ED1052-1MD00-0BA7 Industrial Network Interface for LOGO! Systems

Siemens 6ED1052-1MD00-0BA7: Industrial Data Link for Smart Factory Connectivity

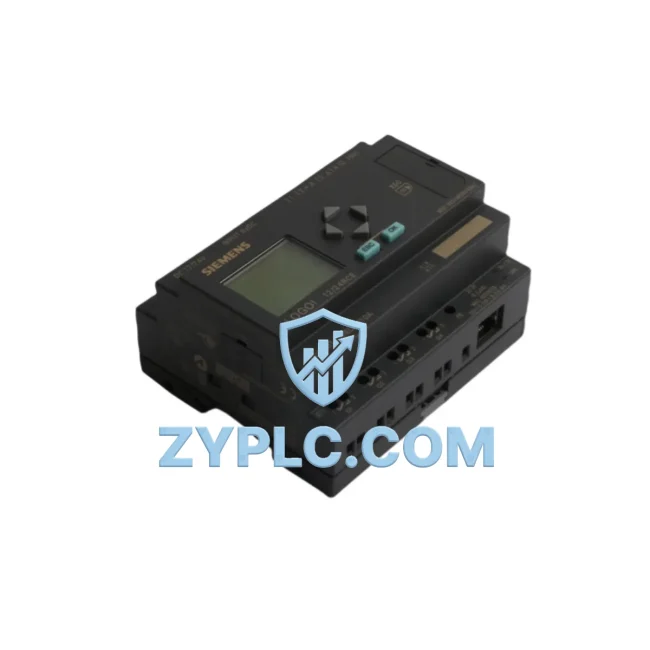

The Siemens 6ED1052-1MD00-0BA7 is a high-performance Ethernet logic module from the LOGO! 12/24RCE series, engineered to serve as a critical industrial network interface between field-level devices and upper-level control and monitoring systems. Designed for demanding automation environments, this compact yet powerful unit bridges the gap between physical I/O signals and digital data networks, enabling seamless communication across the full automation hierarchy — from sensors and actuators on the shop floor to SCADA platforms and cloud-based MES systems in the control room.

In modern smart factory deployments, data isolation remains one of the most persistent challenges. The 6ED1052-1MD00-0BA7 addresses this directly by providing native Ethernet connectivity with integrated web server functionality, allowing engineers and system integrators to access real-time process data, configure logic programs remotely, and monitor operational status without requiring physical access to the control cabinet. This capability is especially valuable in distributed manufacturing sites where remote diagnostics and predictive maintenance are essential to minimizing unplanned downtime.

The module supports 12 digital inputs and 8 digital outputs in a 12/24V DC/AC configuration, making it compatible with a wide range of field devices including proximity sensors, photoelectric sensors, solenoid valves, and relay-driven actuators. Its onboard Ethernet port enables direct integration with industrial switches such as the Siemens SCALANCE X series, allowing the LOGO! module to participate in structured plant network topologies with VLAN segmentation and managed bandwidth allocation.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory data flow, the 6ED1052-1MD00-0BA7 acts as the intelligent edge node that collects discrete signals from field instruments and translates them into structured Ethernet data packets for upstream consumption. Consider a production line where temperature sensors, pressure transmitters, and proximity switches feed raw signals into the LOGO! module’s 12 digital inputs. The onboard logic engine — programmed via LOGO! Soft Comfort — processes these signals according to predefined control logic, triggering relay outputs to actuate conveyor motors, pneumatic valves, or warning indicators.

This processed data is simultaneously transmitted over the Ethernet port to a Siemens SIMATIC S7-1200 or S7-1500 PLC acting as the line controller, using S7 communication protocol for deterministic data exchange. The S7 PLC aggregates data from multiple LOGO! nodes distributed across the production floor and forwards consolidated process variables to a Siemens SIMATIC HMI TP700 Comfort panel, where operators can visualize real-time machine states, acknowledge alarms, and adjust setpoints without interrupting production.

At the SCADA level, a WinCC or WinCC OA server subscribes to the data streams via OPC UA or Modbus TCP, enabling plant-wide visibility across multiple production cells. Remote I/O modules such as the Siemens ET 200SP or ET 200MP can be integrated into the same Ethernet backbone, extending the I/O capacity of the control system without additional wiring infrastructure. Variable frequency drives — for example, Siemens SINAMICS G120 series — connected to the same network segment can receive speed reference commands and return actual speed feedback through the shared Ethernet bus, enabling coordinated motion control across the production line.

For edge computing and IIoT gateway functions, the 6ED1052-1MD00-0BA7 can interface with industrial edge gateways such as the Siemens SIMATIC IPC127E, which aggregates data from multiple LOGO! modules and pushes it to cloud platforms like Siemens MindSphere or third-party MQTT brokers for advanced analytics, digital twin modeling, and AI-driven predictive maintenance. Industrial power supplies such as the Siemens SITOP PSU8600 ensure stable 24V DC supply to the LOGO! module and connected field devices, maintaining network uptime even during grid fluctuations.

Solving Data Isolation in Industrial Sites

One of the most common pain points in legacy industrial installations is protocol fragmentation — where PLCs, drives, sensors, and HMI systems speak different communication languages, creating data silos that prevent unified monitoring and control. The Siemens 6ED1052-1MD00-0BA7 directly addresses this challenge by providing a standardized Ethernet interface that can communicate with both legacy serial-based systems (via protocol converters) and modern IP-based automation networks.

Its built-in web server eliminates the need for dedicated engineering workstations for routine diagnostics. Maintenance engineers can access the module’s status page from any browser on the plant network, view I/O states, check program execution status, and download diagnostic logs — all without interrupting the running process. This capability is critical for remote monitoring in multi-site manufacturing operations where on-site visits are costly and time-consuming.

For production line transparency, the 6ED1052-1MD00-0BA7 enables real-time data visibility at every node in the automation hierarchy. By integrating with SCADA systems through Modbus TCP or S7 communication, plant managers gain access to live KPIs including OEE (Overall Equipment Effectiveness), cycle times, fault frequencies, and energy consumption — data that was previously locked inside individual controllers and inaccessible to higher-level business systems.

System expansion is equally straightforward. The LOGO! series supports up to 24 digital and analog I/O points with expansion modules, and the Ethernet interface allows multiple LOGO! units to be networked together in a peer-to-peer or master-slave topology, scaling the control system as production capacity grows without requiring a complete architecture redesign. All units shipped from ZYPLC undergo pre-shipment functional testing to verify communication integrity, I/O response, and network connectivity before dispatch.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 6ED1052-1MD00-0BA7 support?
The 6ED1052-1MD00-0BA7 supports Ethernet TCP/IP natively, with S7 communication for integration with Siemens SIMATIC PLCs and Modbus TCP capability when configured via LOGO! Soft Comfort. Its built-in web server also allows HTTP-based access for remote monitoring and diagnostics from standard browsers.

Q2: Is the 6ED1052-1MD00-0BA7 compatible with existing SCADA and HMI systems?
Yes. The module integrates with Siemens WinCC, WinCC OA, and third-party SCADA platforms via Modbus TCP or OPC-compatible gateways. It also communicates directly with Siemens SIMATIC HMI panels using S7 protocol, making it a plug-and-play addition to existing Siemens automation architectures.

Q3: How does the module ensure network stability in industrial environments?
The 6ED1052-1MD00-0BA7 is designed to operate in industrial-grade electrical environments with high EMI tolerance. Its 10/100 Mbps Ethernet port supports standard industrial network topologies including star, ring, and line configurations when used with managed switches like the Siemens SCALANCE X series. The module’s deterministic logic execution ensures consistent response times regardless of network load.

Q4: What warranty and pre-shipment testing does ZYPLC provide?
Every Siemens 6ED1052-1MD00-0BA7 supplied by ZYPLC comes with a warranty terms confirmed during quotation covering manufacturing defects and communication failures. Prior to shipment, each unit undergoes functional verification including I/O point testing, Ethernet connectivity confirmation, and logic execution validation to ensure the module arrives ready for immediate installation.
