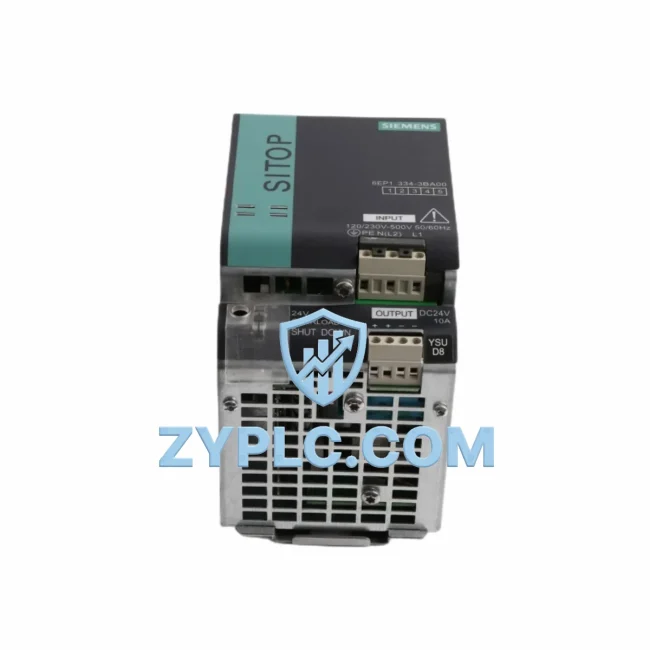

Siemens 6EP1334-3BA00 Industrial Network Interface for SITOP PSU200M Systems

Siemens 6EP1334-3BA00: Industrial Data Link and Smart Factory Power Connectivity

The Siemens 6EP1334-3BA00 is a high-performance SITOP PSU200M series industrial power supply delivering a stable 24VDC/10A output, engineered for demanding automation environments where network reliability and real-time data integrity are non-negotiable. As industrial sites evolve toward fully connected smart factory architectures, the role of a PROFINET-ready power supply extends far beyond simple voltage conversion — it becomes a foundational node in the industrial data chain, ensuring that every downstream device from field sensors to SCADA systems receives clean, uninterrupted power while remaining fully visible to the network management layer.

In modern industrial automation, the 6EP1334-3BA00 is deployed alongside Siemens SIMATIC S7-1500 and S7-1200 PLC controllers, where it provides the stable 24VDC bus voltage required for CPU modules, digital I/O cards, and communication processors. Its PROFINET compatibility allows the power supply to be monitored directly through the TIA Portal engineering environment, enabling engineers to read real-time load status, output voltage deviation, and fault diagnostics without leaving the control system interface. This tight integration with the SIMATIC ecosystem reduces commissioning time and eliminates the need for separate power monitoring hardware.

The data flow enabled by the 6EP1334-3BA00 begins at the field level, where sensors, actuators, and remote I/O modules — such as the ET 200SP distributed I/O system — draw regulated 24VDC power while simultaneously transmitting process data upstream via PROFINET. The power supply’s diagnostic output signal can be wired directly into a SIMATIC S7 digital input module, triggering alarm routines in the PLC program the moment output voltage drops below threshold. This signal chain continues upward through the PROFINET network to WinCC SCADA or WinCC Unified HMI panels, where operators receive real-time power status overlays on process graphics, enabling immediate response to potential supply failures before production is impacted.

For multi-axis drive applications, the 6EP1334-3BA00 supplies the 24VDC control voltage for SINAMICS G120 and S120 variable frequency drives, whose own PROFINET interfaces report speed, torque, and fault codes back to the S7-1500 controller. In this architecture, the power supply is not merely a passive component — it is the energy foundation upon which the entire drive communication network depends. A stable, diagnostics-capable supply like the PSU200M series ensures that drive communication is never interrupted by voltage sag or transient overload events that would otherwise cause PROFINET timeout faults and unplanned shutdowns.

Remote diagnostics and predictive maintenance workflows are further enhanced when the 6EP1334-3BA00 is integrated with edge computing platforms such as the SIMATIC IPC427E or third-party edge gateways. These devices aggregate power supply status data alongside PLC cycle times, drive load curves, and sensor health metrics, forwarding consolidated datasets to MES or cloud-based analytics platforms via OPC UA or MQTT protocols. This end-to-end visibility — from the 24VDC rail monitored by the PSU200M to the enterprise dashboard — is the essence of Industry 4.0 connectivity, and the 6EP1334-3BA00 is a proven participant in that architecture.

In panel-building and control cabinet integration projects, the 6EP1334-3BA00 is frequently specified alongside the SITOP UPS1600 uninterruptible power supply module, which provides buffered 24VDC output during mains interruptions, allowing the S7-1500 CPU and connected HMI panels to execute controlled shutdown sequences and preserve process data. The combination of PSU200M primary supply and UPS1600 buffer module represents a complete power resilience solution for critical automation cells. Additionally, the SITOP PSE200U selective circuit protection module is commonly deployed downstream of the 6EP1334-3BA00 to protect individual 24VDC branch circuits feeding sensors, solenoid valves, and communication modules, with each channel’s status reported back to the PROFINET network for centralized fault isolation.

All units supplied by ZYPLC undergo pre-shipment functional testing, verifying output voltage accuracy, current limiting behavior, and diagnostic signal integrity before dispatch. Stock availability is maintained for rapid fulfillment, and every 6EP1334-3BA00 unit is covered by a 12-month warranty against manufacturing defects, with technical support available throughout the warranty period.

Network Communication Table

Connected Automation Data Flow

The 6EP1334-3BA00 sits at the heart of a layered automation architecture. At the field level, it powers ET 200SP remote I/O modules collecting analog signals from pressure transmitters, temperature sensors, and flow meters. These signals are processed by the SIMATIC S7-1500 CPU, which communicates over PROFINET with SINAMICS G120 drives controlling conveyor motors and pump systems. The drive status — including running frequency, output current, and fault codes — is transmitted in real time to a SIMATIC HMI TP1500 Comfort panel, giving operators a live view of the production line. Simultaneously, the WinCC SCADA system aggregates data from multiple S7-1500 controllers across the plant, building a plant-wide process overview that includes power supply health status sourced from the PSU200M diagnostic output. For plants implementing edge analytics, a SIMATIC IPC427E edge controller collects OPC UA data streams from the S7-1500 and forwards key performance indicators to cloud dashboards, enabling remote engineering teams to monitor power infrastructure and process efficiency from any location. The SITOP UPS1600 buffer module ensures that during brief mains interruptions, the entire data chain — from field I/O through PLC to HMI — continues operating without communication loss, protecting both process data and network session integrity.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols and isolated subsystems. Older installations may combine legacy Modbus RTU devices, PROFIBUS DP networks, and newer PROFINET segments, creating data silos where information from one layer cannot be accessed by systems in another. The 6EP1334-3BA00, as a PROFINET-native device within the SITOP PSU200M family, supports the migration toward unified network architectures by providing a diagnostics-capable power supply that integrates directly into the PROFINET topology without requiring additional protocol converters for power monitoring functions.

For sites where protocol heterogeneity remains a reality, the 6EP1334-3BA00 is deployed in conjunction with SIMATIC communication processors or third-party protocol gateways that bridge Modbus TCP, EtherNet/IP, and PROFINET segments, allowing the power supply’s status data to be surfaced in SCADA systems regardless of the upstream protocol. This approach eliminates the data isolation that previously made power infrastructure invisible to plant-level monitoring systems, enabling true end-to-end transparency from the 24VDC rail to the enterprise dashboard.

Remote monitoring capabilities further address the challenge of geographically distributed production sites, where on-site inspection of control cabinets is impractical. By integrating the 6EP1334-3BA00 diagnostic output into the PROFINET network and forwarding status data through secure VPN tunnels to centralized SCADA or remote maintenance platforms, engineering teams can detect power supply degradation trends, schedule preventive maintenance, and respond to fault conditions without dispatching field technicians — reducing downtime and operational costs across multi-site manufacturing operations.

Industrial Connectivity FAQ

Q: Does the Siemens 6EP1334-3BA00 support real-time PROFINET communication for power supply monitoring?
A: The 6EP1334-3BA00 provides a digital diagnostic output signal that can be wired into a SIMATIC S7 digital input module and monitored in real time via PROFINET. While the power supply itself does not carry a PROFINET MAC address, its status is fully integrated into the PROFINET-based control system through this signal interface, enabling real-time alarm generation and SCADA visualization without additional hardware.

Q: Is the 6EP1334-3BA00 compatible with TIA Portal and WinCC SCADA systems?
A: Yes. The 6EP1334-3BA00 is fully compatible with the Siemens TIA Portal engineering environment. Its diagnostic signal integrates with S7-1500 and S7-1200 PLC programs configured in TIA Portal, and the resulting status data can be displayed on WinCC Runtime Professional SCADA screens or WinCC Unified HMI panels, providing operators with power supply health information within the existing automation interface.

Q: How does the PSU200M series handle network stability during overload conditions?
A: The SITOP PSU200M series, including the 6EP1334-3BA00, features an electronic current limiting and hiccup-mode overload response that protects downstream devices during short-circuit events. The output OK diagnostic signal changes state immediately upon overload detection, triggering alarm routines in the connected PLC and notifying SCADA operators within one PLC scan cycle, ensuring that network-connected devices are informed of power anomalies before cascading failures can occur.

Q: What warranty and pre-shipment testing does ZYPLC provide for the 6EP1334-3BA00?
A: Every 6EP1334-3BA00 unit supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects. Prior to shipment, each unit undergoes functional testing to verify output voltage accuracy, current limiting behavior, and diagnostic signal operation. In-stock units are available for immediate dispatch, and our technical team provides support throughout the warranty period for any application or integration questions.
