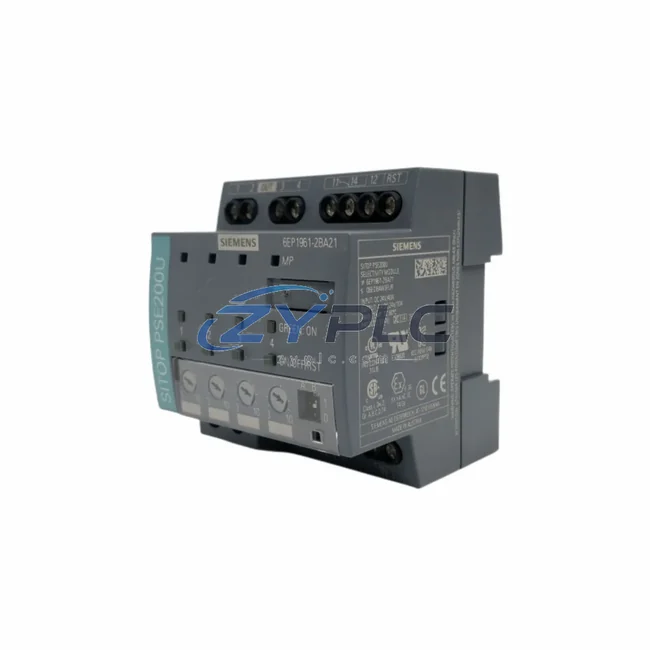

Siemens 6EP1961-2BA21 Selectivity Module SITOP

Siemens 6EP1961-2BA21 Selectivity Module SITOP: Precision Power Control for Optimized Automation

The Siemens 6EP1961-2BA21 is a high-performance selectivity module from the SITOP power supply series, engineered to deliver intelligent, fault-selective power distribution across multi-branch industrial control systems. In modern manufacturing environments where unplanned downtime translates directly into unplanned downtime and production loss, the 6EP1961-2BA21 provides a critical layer of protection and efficiency — ensuring that a fault in one downstream branch does not cascade into a full-system shutdown.

By enabling selective load disconnection, this module dramatically reduces the energy footprint of fault-response cycles. Instead of cutting power to an entire panel or line segment, the 6EP1961-2BA21 isolates only the affected circuit, keeping the rest of the production line running at full efficiency. This targeted response minimizes idle operating load during fault recovery and shortens mean time to repair (MTTR), directly improving overall equipment effectiveness (OEE).

Product Specification Table

System Compatibility and Application

The 6EP1961-2BA21 is most effective when integrated into a well-structured industrial automation system. In a typical deployment, a SITOP PSU200M 24 V/20 A power supply feeds the main 24 V DC bus, while the 6EP1961-2BA21 distributes and protects downstream branches supplying Siemens S7-1200 or S7-1500 PLCs, digital I/O modules such as the ET 200SP distributed I/O system, and field devices including sensors and actuators.

On the drive side, energy-intensive loads like servo axes driven by Siemens SINAMICS S120 servo drives or variable-speed pump and fan motors controlled via SINAMICS G120 frequency inverters benefit indirectly from the selectivity module’s fault isolation — a short circuit on a 24 V control branch will not interrupt the drive’s operational power, preserving motor control continuity and avoiding costly ramp-down and restart cycles that consume significant energy.

For condition monitoring, the 6EP1961-2BA21 pairs naturally with SITOP PSU8600 smart power supply systems, which offer integrated current monitoring per output channel. Combined with a SIMATIC Energy Manager or third-party power analyzers connected via PROFINET or PROFIBUS, plant engineers can track per-branch operating load in real time, identify inefficient load profiles, and schedule predictive maintenance before overcurrent conditions develop into faults.

Communication-level integration is equally important. When the 6EP1961-2BA21 is used alongside SITOP Select modules with signaling contacts, fault status can be fed directly into the PLC’s digital input card, triggering automated alarm routines or operational-efficiency standby modes via the SIMATIC S7 program. This closed-loop feedback between power distribution and control logic is the foundation of a truly energy-optimized production cell.

Panel-level visualization is supported through SIMATIC HMI TP700 Comfort or similar operator panels, where power distribution status, branch fault history, and energy KPIs can be displayed in real time — giving line operators immediate visibility into power health without requiring engineering intervention.

Maintenance and Replacement Notes

Consider a multi-station assembly line where each workstation is powered by a dedicated 24 V DC branch from a central power distribution panel. Without selective protection, a wiring fault at Station 4 would trip the main breaker, halting all eight stations simultaneously. Recovery requires a full-line restart — a process that consumes a surge of inrush current across all motor loads and PLCs, wastes the energy stored in partially completed work-in-progress, and adds 15–30 minutes of unproductive time to the shift.

With the Siemens 6EP1961-2BA21 installed, the same fault at Station 4 triggers only the corresponding output channel to disconnect. Stations 1–3 and 5–8 continue operating without interruption. The PLC receives a fault signal via the module’s signaling contact, logs the event, and alerts the maintenance team. The faulty branch is isolated, inspected, and restored — often within minutes — while the rest of the line maintains its production rhythm and energy efficiency.

This capability directly reduces unplanned downtime in three measurable ways: it eliminates unnecessary full-line restart inrush events, it prevents the energy cost of reheating or re-processing work-in-progress that would otherwise be scrapped after an uncontrolled shutdown, and it reduces the frequency of thermal cycling in power supplies and drives — extending component life and reducing the embodied energy cost of replacement parts.

From a predictive maintenance perspective, the 6EP1961-2BA21’s per-channel current monitoring capability (when used with compatible SITOP smart modules) enables trend analysis of load current over time. A gradual increase in branch current — indicating insulation degradation, connector corrosion, or motor bearing wear — can be detected and addressed during planned maintenance windows rather than during unplanned fault events, further optimizing energy use and equipment utilization rates.

All units supplied by ZYPLC are sourced from verified supply channels, undergo outgoing inspection and functional testing prior to shipment, and are covered by a warranty terms confirmed during quotation. Stock is maintained for prompt dispatch, supporting your procurement and production scheduling requirements.

Product Sourcing FAQ

Q1: How does the 6EP1961-2BA21 contribute to operational stability compared to standard fuse-based protection?
Traditional fuse-based branch protection requires manual fuse replacement after a fault, during which the entire panel may remain de-energized. The 6EP1961-2BA21 uses electronic selectivity to isolate only the faulted branch in milliseconds, keeping all other branches live. This eliminates the energy cost of full-panel restart inrush currents and reduces production downtime — both of which have a direct impact on energy efficiency per unit of output.

Q2: Is the 6EP1961-2BA21 compatible with existing SITOP power supplies already installed in my facility?
Yes. The 6EP1961-2BA21 is designed to work within the SITOP ecosystem and is compatible with a wide range of SITOP power supplies operating at 24 V DC, including the PSU100S and PSU200M series. It connects directly to the DC bus output and requires no additional interface modules for basic operation. For signaling integration with PLCs, a standard digital input connection is sufficient.

Q3: What is the recommended replacement or upgrade path if I am currently using older SITOP selectivity modules?
The 6EP1961-2BA21 is a current-generation SITOP selectivity module and serves as a direct functional replacement for earlier 4-channel SITOP select variants. If you are upgrading from an older module, verify the output current rating per channel matches your load profile. ZYPLC’s technical team can assist with compatibility assessment and provide equivalent or upgraded alternatives where required.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
All 6EP1961-2BA21 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm output channel operation, signaling contact continuity, and input voltage response. Units that do not pass inspection are not dispatched. Warranty claims are handled directly through ZYPLC’s after-sales support team.
