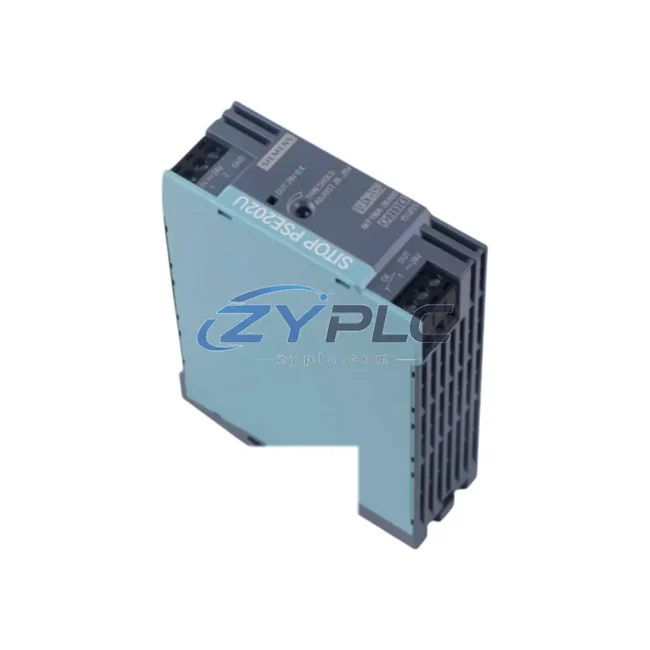

Siemens 6EP1964-2BA00 Redundancy Module SITOP

Siemens 6EP1964-2BA00 Redundancy Module SITOP: Precision Power Control for Optimized Production Lines

The Siemens 6EP1964-2BA00 is a high-efficiency redundancy module designed for the SITOP PSU8600 modular power supply system. In modern industrial environments where unplanned downtime translates directly into unplanned downtime and production loss, this module delivers seamless power path redundancy — ensuring that your automation infrastructure maintains continuous, stable DC supply without interruption. Whether integrated into a SIMATIC S7-1500 PLC control cabinet or deployed alongside distributed I/O systems, the 6EP1964-2BA00 is engineered to eliminate single points of failure in your power architecture while actively contributing to measurable energy efficiency gains across the production line.

Product Specification Table

System Compatibility and Application

The 6EP1964-2BA00 does not operate in isolation — it is the power backbone that enables every downstream component in your automation system to perform at peak efficiency. When paired with the SITOP PSU8600 base power supply unit, the redundancy module enables active current sharing between two parallel supply paths, which means neither supply is ever running at full thermal load. This directly reduces resistive losses and extends the operational lifespan of both the power supply and the connected field devices.

In a typical SIMATIC S7-1500 control architecture, the CPU module — such as the CPU 1516-3 PN/DP — relies on a stable, ripple-free 24 V DC bus to maintain deterministic scan cycle times. Any voltage sag or micro-interruption caused by a failing power supply can introduce jitter into the PLC scan cycle, which cascades into positioning errors in servo drives like the SINAMICS S120 or torque inconsistencies in variable frequency drives such as the SINAMICS G120. By maintaining uninterrupted power delivery, the 6EP1964-2BA00 protects the integrity of the entire motion and drive control chain.

On the I/O side, distributed peripherals connected via ET 200SP or ET 200MP remote I/O stations depend on consistent bus power to maintain accurate signal acquisition. Sensors feeding into condition monitoring modules — such as the SENTRON PAC3200 power analyzer — require stable supply voltage to deliver accurate kWh, power factor, and harmonic distortion readings. When the power supply is redundant and load-balanced, measurement drift caused by supply instability is eliminated, giving your maintenance planning system a reliable data foundation for optimization decisions.

For facilities running PROFINET-based communication backbones, the SITOP PSU8600 system with the 6EP1964-2BA00 module integrates directly into the PROFINET topology, enabling real-time diagnostics of power supply health via the TIA Portal engineering environment. Operators can monitor current draw per channel, detect load imbalances, and receive predictive maintenance alerts — all without additional hardware. This level of visibility is essential when managing energy budgets across multi-line production facilities.

Panel builders integrating SIRIUS 3RV2 motor protection circuit breakers or SIRIUS 3RT2 contactors alongside the SITOP PSU8600 system benefit from the redundancy module’s ability to sustain inrush current events during motor starts without causing voltage collapse on the 24 V control bus. This is particularly relevant in applications where multiple motors are started in sequence as part of a production line startup routine, where control voltage stability directly affects the reliability of the startup interlock logic.

Maintenance and Replacement Notes

In automotive body shop welding lines, food and beverage packaging systems, and semiconductor wafer handling equipment, the cost of an unplanned power interruption is measured not just in lost production time, but in wasted energy from restart cycles, scrap material, and re-qualification runs. The Siemens 6EP1964-2BA00 addresses this at the infrastructure level by ensuring that the transition between primary and backup power paths is bumpless — occurring in under 20 milliseconds, well within the hold-up time of most SIMATIC CPU modules and SINAMICS drive controllers.

From an energy consumption perspective, the active load-sharing architecture of the 6EP1964-2BA00 means that both power supply modules in a redundant pair operate at approximately 50% of their rated load under normal conditions. This operating point corresponds to the highest efficiency region on the power supply’s efficiency curve — typically above 93% — compared to a single non-redundant supply running at 80–90% load, which operates in a less efficient thermal region. The net result is a measurable reduction in heat dissipation within the control cabinet, which in turn reduces the duty cycle of cabinet cooling systems, further lowering facility energy consumption.

Predictive maintenance integration is another key maintenance planning lever. Through PROFINET diagnostics exposed via the SITOP PSU8600 system, maintenance teams can track the degradation of individual power supply modules over time. Replacing a module before it fails — rather than after — avoids the energy-intensive restart sequences and production recovery procedures that follow an unplanned outage. Combined with the SINEMA Remote Connect remote monitoring platform, facilities managers can access power supply health data from anywhere, enabling proactive maintenance planning without on-site intervention.

Every unit supplied by ZYPLC undergoes a full outgoing functional test prior to shipment, verifying output voltage regulation, load sharing balance, and PROFINET communication integrity. This ensures that the 6EP1964-2BA00 arrives ready for immediate installation and commissioning, minimizing the energy and labor cost associated with incoming inspection and pre-installation testing. All units are covered by a warranty terms confirmed during quotation, with availability subject to RFQ confirmation for prompt dispatch to support both planned maintenance schedules and emergency replacement requirements.

Product Sourcing FAQ

Q1: How does the 6EP1964-2BA00 contribute to measurable operational stability in a production environment?
By enabling active load sharing between two SITOP PSU8600 power supply modules, the 6EP1964-2BA00 keeps both units operating in their peak efficiency range (≥93%), reducing resistive losses and cabinet heat load. Lower cabinet temperatures reduce cooling system energy consumption, and the elimination of unplanned downtime avoids energy-intensive restart and recovery cycles.

Q2: Is the 6EP1964-2BA00 compatible with existing SIMATIC S7 and TIA Portal environments?
Yes. The SITOP PSU8600 system, including the 6EP1964-2BA00 redundancy module, integrates natively with TIA Portal for diagnostics and configuration. It is compatible with SIMATIC S7-300, S7-400, S7-1200, and S7-1500 CPU families, as well as ET 200SP and ET 200MP distributed I/O systems communicating over PROFINET.

Q3: Can this module replace an existing SITOP redundancy module, and what is the recommended replacement process?
The 6EP1964-2BA00 is a direct replacement for compatible SITOP PSU8600 redundancy modules. The hot-swap capable design allows module replacement under live system conditions without interrupting the 24 V DC output to connected loads, provided the second power supply module in the redundant pair remains operational. No special tools or re-parameterization are required for a like-for-like replacement.

Q4: What does the warranty terms confirmed during quotation cover, and what testing is performed before shipment?
All 6EP1964-2BA00 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes a full outgoing functional test covering output voltage accuracy, load sharing performance, and communication interface integrity. Test records are available upon request for quality assurance documentation purposes.
