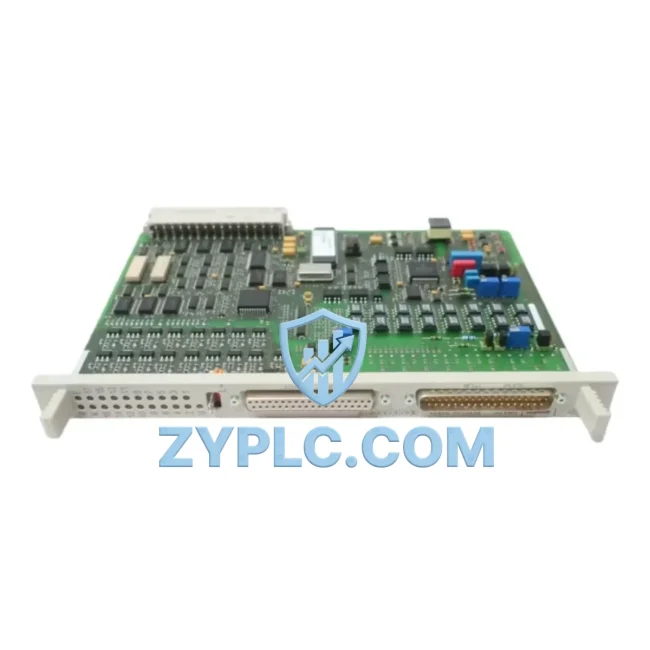

Siemens 6ES5244-3AB31 Network Interface for SIMATIC S5

Siemens 6ES5244-3AB31 Network Interface for SIMATIC S5: Industrial Data Link and Smart Factory Connectivity

The Siemens 6ES5244-3AB31 is an analog temperature control module designed for the SIMATIC S5 programmable controller platform. In modern industrial environments where data transparency and network connectivity define operational efficiency, this module serves as a critical node in the plant-wide communication chain — bridging field-level thermal sensing with upper-level control, monitoring, and SCADA systems. Whether deployed in chemical processing, food manufacturing, metal forming, or energy management, the 6ES5244-3AB31 delivers reliable analog signal acquisition and closed-loop temperature regulation that feeds directly into the plant’s digital data backbone.

At the field level, the 6ES5244-3AB31 receives analog inputs from thermocouples and RTD sensors distributed across the production line. These signals are conditioned, digitized, and passed to the SIMATIC S5 CPU — such as the S5-115U or S5-135U — through the backplane bus. The CPU then executes PID control algorithms and transmits setpoint corrections back to actuators, heaters, or cooling systems in real time. This closed-loop architecture eliminates thermal drift, reduces scrap rates, and ensures product consistency across every production batch.

What makes the 6ES5244-3AB31 particularly valuable in today’s connected factory is its role in the broader data flow architecture. The SIMATIC S5 rack, equipped with communication processors such as the CP 5430 TF or CP 5431 FMS, connects the controller to PROFIBUS-DP or Industrial Ethernet segments. This allows temperature data captured by the 6ES5244-3AB31 to be transmitted upstream to SIMATIC WinCC SCADA systems or third-party HMI platforms, where operators can visualize trends, configure alarm thresholds, and generate compliance reports — all without interrupting the control loop.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 6ES5244-3AB31 sits at the intersection of physical process measurement and digital control logic. Temperature sensors installed on furnaces, reactors, or conveyor heating zones feed analog signals into the module’s input channels. The module processes these signals and delivers structured data to the SIMATIC S5 CPU via the internal backplane — a high-speed, deterministic bus that ensures no measurement is lost between scan cycles.

From the CPU, process data travels outward through communication processors. A CP 5431 FMS module installed in the same S5 rack enables PROFIBUS-FMS communication, allowing the S5 controller to exchange data with remote I/O stations such as the ET 200M distributed I/O system. Simultaneously, a CP 1430 TCP module can bridge the S5 network to Industrial Ethernet, enabling integration with plant-level MES or ERP systems. This multi-layer communication architecture — from field sensor to enterprise database — is made possible by the reliable analog acquisition performed by the 6ES5244-3AB31 at the base of the data chain.

For operators working at the control room level, SIMATIC WinCC or SIMATIC OP panels display real-time temperature curves, alarm states, and historical trends sourced directly from the 6ES5244-3AB31’s measurement data. When a temperature deviation exceeds the configured tolerance band, the SCADA system triggers an alarm, logs the event, and — if configured — initiates an automatic corrective action through the S5 CPU’s output modules. This closed-loop feedback, from sensor to controller to SCADA to operator, is the foundation of modern industrial data transparency.

In multi-zone temperature control applications, the 6ES5244-3AB31 works alongside SIMATIC S5 digital output modules and analog output cards to drive proportional control valves, SCR power controllers, and variable-speed drives. The integration of the 6ES5244-3AB31 with a SIMATIC S5 power supply module — such as the PS 951 — ensures stable 24V DC operation across the entire rack, even in environments with significant electrical noise from motor drives or welding equipment.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — where field devices, PLCs, and upper-level systems operate in disconnected silos, making it impossible to achieve real-time production visibility. The Siemens 6ES5244-3AB31 addresses this challenge by providing accurate, repeatable analog temperature data that can be structured, transmitted, and consumed by any layer of the automation hierarchy.

In plants where SIMATIC S5 controllers coexist with newer SIMATIC S7 systems, the 6ES5244-3AB31’s data can be bridged through protocol gateways or SIMATIC NET communication links, allowing legacy temperature data to appear alongside modern process variables in unified SCADA dashboards. This eliminates the need for manual data collection, reduces operator workload, and enables predictive maintenance strategies based on temperature trend analysis.

Remote diagnostics is another area where the 6ES5244-3AB31 delivers measurable value. When connected to a PROFIBUS network with remote I/O capability, maintenance engineers can query module status, review historical temperature logs, and identify sensor drift or channel faults without physically accessing the control cabinet. This capability reduces mean time to repair (MTTR), minimizes unplanned downtime, and supports the shift from reactive to condition-based maintenance.

For facilities expanding their production capacity, the modular architecture of the SIMATIC S5 platform means that additional 6ES5244-3AB31 modules can be added to existing racks without redesigning the control system. Each new module integrates seamlessly into the existing PROFIBUS or Ethernet network, extending temperature monitoring coverage to new zones while maintaining a single, unified data view in the SCADA system. This scalability makes the 6ES5244-3AB31 a long-term investment for plants committed to progressive digitalization.

Every 6ES5244-3AB31 unit supplied by ZYPLC is sourced from verified inventory channels, subjected to functional testing prior to shipment, and backed by a 12-month warranty. Fast global shipping via DHL and FedEx ensures minimal lead times for maintenance replacements or system expansions.

Industrial Connectivity FAQ

Q1: What communication protocols does the 6ES5244-3AB31 support for SCADA integration?
The 6ES5244-3AB31 itself communicates via the SIMATIC S5 backplane bus. For SCADA integration, the S5 rack requires a communication processor such as the CP 5430 TF (PROFIBUS-DP) or CP 1430 TCP (Industrial Ethernet). These CPs transmit temperature data from the 6ES5244-3AB31 to WinCC, iFIX, or other SCADA platforms in real time.

Q2: Is the 6ES5244-3AB31 compatible with both thermocouple and RTD inputs?
Yes. The module supports multiple analog input types including thermocouples (Type J, K, etc.) and RTD sensors (PT100). Input type configuration is performed via hardware jumpers or parameter settings in the STEP 5 programming environment, allowing flexible deployment across different temperature measurement applications.

Q3: Can the 6ES5244-3AB31 be used in a network with mixed SIMATIC S5 and S7 controllers?
Yes, through PROFIBUS-DP or Industrial Ethernet gateways, data from the S5 system — including values processed by the 6ES5244-3AB31 — can be shared with SIMATIC S7 or S7-1500 controllers. Protocol conversion modules or SIMATIC NET links enable seamless data exchange between legacy and modern Siemens platforms.

Q4: What is the warranty and testing policy for the 6ES5244-3AB31?
All 6ES5244-3AB31 units supplied by ZYPLC carry a 12-month warranty from the date of shipment. Each unit undergoes functional testing before dispatch to verify analog input accuracy, channel integrity, and backplane communication. In the event of a verified fault within the warranty period, ZYPLC provides replacement or repair at no additional cost.
