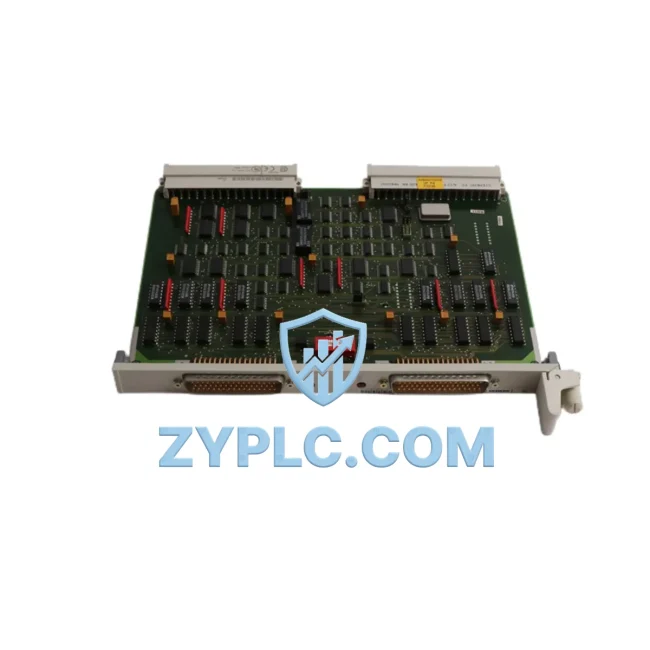

Siemens 6ES5304-3UB11 Industrial Network Interface for SIMATIC S5

Siemens 6ES5304-3UB11 IM304: Industrial Data Link for SIMATIC S5 Network Architecture

The Siemens 6ES5304-3UB11 is a high-performance IM304 Interface Module engineered for multi-rack expansion within the SIMATIC S5 automation platform. As a critical node in the industrial network architecture, this module enables seamless data exchange between the central controller rack and up to three expansion racks, forming the backbone of a distributed I/O topology that underpins modern smart factory connectivity. Whether deployed in discrete manufacturing, process control, or utility automation, the 6ES5304-3UB11 delivers the deterministic communication and rack-level integration that SIMATIC S5 systems demand.

In today’s industrial environments, the ability to bridge field-level devices with supervisory systems is non-negotiable. The 6ES5304-3UB11 serves as the physical and logical gateway between the S5 CPU rack and remote expansion racks, ensuring that signal data from sensors, actuators, and remote I/O modules is reliably transported to the central processing unit without latency or data loss. This makes it an indispensable component for facilities running legacy SIMATIC S5 infrastructure that must meet contemporary uptime and transparency requirements.

Network Communication Table

Connected Automation Data Flow

Understanding the 6ES5304-3UB11 requires tracing the full data flow it enables across the automation hierarchy. At the field level, sensors — including temperature transmitters, pressure transducers, and proximity switches — feed analog and digital signals into SIMATIC S5 SM321/SM322 digital I/O modules and SM331/SM332 analog I/O modules housed in expansion racks. The 6ES5304-3UB11, installed in the central CPU rack, pairs with a receive-side IM314 or IM324 module in each expansion rack to form a dedicated rack-to-rack communication channel. This pairing ensures that all field-level data is continuously and deterministically transferred to the SIMATIC S5-115U, S5-135U, or S5-155U CPU for real-time processing.

Once processed by the S5 CPU, control outputs are dispatched back through the same interface path to drive actuators, motor starters, and variable frequency drives on the plant floor. In facilities where PROFIBUS DP communication is layered over the S5 architecture, a CP5431 Communications Processor or a dedicated PROFIBUS gateway module can be integrated into the central rack alongside the 6ES5304-3UB11, enabling the S5 system to exchange data with modern SIMATIC S7-300 or S7-400 controllers, ET 200M remote I/O stations, and third-party devices on the same PROFIBUS segment.

At the supervisory level, WinCC SCADA or SIMATIC PCS 7 platforms connect to the S5 network via serial or PROFIBUS links, pulling real-time process values, alarm states, and diagnostic data from the CPU. SIMATIC OP/TP HMI panels — such as the OP7, OP17, or TP270 — interface directly with the S5 CPU through the MPI or serial port, providing operators with live visualization of the data flowing through the 6ES5304-3UB11 interface path. For edge connectivity and remote monitoring, an industrial edge gateway or SINAUT ST7 telecontrol module can be deployed to forward aggregated process data to cloud-based analytics platforms or enterprise MES/ERP systems, completing the digital thread from field device to boardroom dashboard.

This end-to-end data chain — from field sensor through the 6ES5304-3UB11 interface module, across the S5 CPU, up through SCADA and HMI layers, and out to edge and cloud systems — is the foundation of production transparency and smart factory operation in SIMATIC S5 environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy automation environments is data isolation: field devices and expansion racks that cannot communicate reliably with the central controller, leaving operators blind to real-time process conditions. The 6ES5304-3UB11 directly addresses this by providing a dedicated, high-integrity interface path between the S5 CPU rack and up to three expansion racks, eliminating the communication gaps that cause data silos in multi-rack SIMATIC S5 installations.

Protocol fragmentation is another common pain point. Many industrial sites run a mix of legacy S5 parallel bus devices alongside newer PROFIBUS DP or Industrial Ethernet nodes. By anchoring the S5 rack expansion architecture with the 6ES5304-3UB11 and pairing it with appropriate communications processors, system integrators can build a coherent protocol bridge that allows legacy and modern devices to coexist on the same network without data loss or synchronization errors.

Remote monitoring and diagnostics are equally critical. When a fault occurs in an expansion rack, the 6ES5304-3UB11 ensures that diagnostic signals are immediately propagated to the CPU and, from there, to the SCADA or HMI system — enabling rapid fault localization without requiring technicians to physically inspect each rack. This capability is essential for reducing mean time to repair (MTTR) and maintaining production line transparency.

For facilities planning system expansion, the 6ES5304-3UB11 provides a scalable foundation. Additional expansion racks can be integrated into the existing multi-rack topology without redesigning the central control architecture, protecting the capital investment in the SIMATIC S5 platform while accommodating growing I/O requirements. Every unit supplied by ZYPLC is fully tested and inspected prior to shipment, backed by a 12-month warranty, and supported by in-stock inventory for rapid global deployment.

Industrial Connectivity FAQ

Q1: What is the maximum communication distance supported by the 6ES5304-3UB11 interface path?
The 6ES5304-3UB11 (IM304) operates over the S5 parallel bus backplane interface. When paired with the IM314 or IM324 receive modules, the rack-to-rack cable can extend up to 1.5 meters between adjacent racks in a standard multi-rack configuration. For longer distances, Siemens PROFIBUS DP gateway solutions or fiber-optic repeaters should be considered to maintain signal integrity and network stability.

Q2: Is the 6ES5304-3UB11 compatible with both SIMATIC S5-135U and S5-155U systems?
Yes. The IM304 interface module is designed for use across the SIMATIC S5 high-performance range, including the S5-115U, S5-135U, and S5-155U platforms. Protocol compatibility is maintained across all three systems, and the module integrates directly into the standard S5 rack slot without additional hardware adaptation.

Q3: How does ZYPLC ensure the 6ES5304-3UB11 is functional before shipment?
Every 6ES5304-3UB11 unit in ZYPLC’s inventory undergoes a full functional test and visual inspection prior to dispatch. This includes verification of the rack interface connectors, backplane communication integrity, and module identification. All units are shipped with a 12-month warranty, and our technical team is available to support installation and commissioning queries.

Q4: Can the 6ES5304-3UB11 be used in a system that also includes PROFIBUS DP devices?
Absolutely. The 6ES5304-3UB11 handles the S5 rack expansion layer, while PROFIBUS DP connectivity is managed by a separate communications processor such as the CP5431 or CP5511 installed in the same CPU rack. This architecture allows the S5 system to simultaneously manage local rack I/O through the IM304 interface and communicate with PROFIBUS DP slaves — including ET 200M remote I/O stations, SINAMICS drives, and third-party field devices — on the same automation network.
