Siemens 6ES5312-3AB32: Industrial PROFIBUS Data Link for SIMATIC S5 Smart Factory Networks

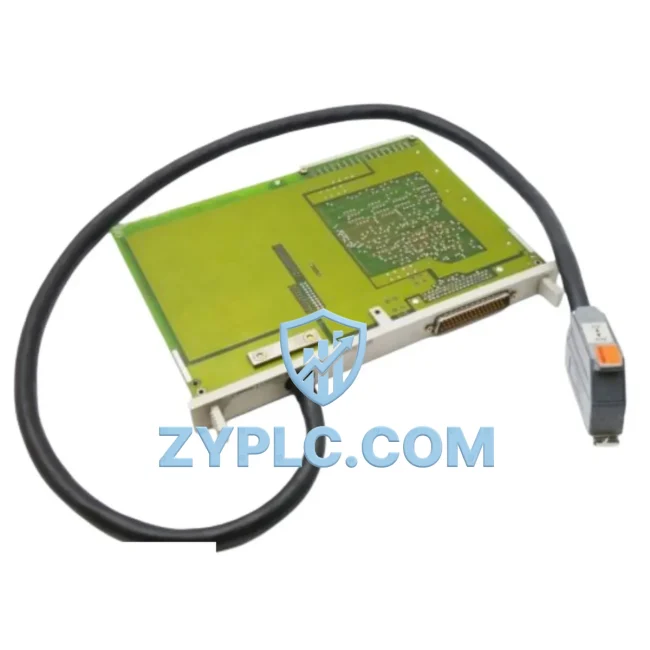

The Siemens 6ES5312-3AB32 is a high-performance PROFIBUS Interface Module engineered for the SIMATIC S5 programmable controller platform. Designed to serve as a critical node in industrial communication architectures, this module enables seamless data exchange between field-level devices, PLC controllers, remote I/O stations, HMI panels, SCADA systems, and upper-level management networks. In an era where smart factory connectivity defines operational efficiency, the 6ES5312-3AB32 delivers the protocol reliability and network stability that modern industrial sites demand.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 6ES5312-3AB32 acts as the PROFIBUS gateway that bridges the SIMATIC S5 central processing unit with distributed field devices across the production floor. Signal acquisition begins at the sensor layer — pressure transmitters, proximity switches, and temperature sensors feed real-time process values into ET 200M or ET 200S remote I/O stations via PROFIBUS-DP. The 6ES5312-3AB32 collects this data stream and routes it upstream to the S5 CPU, where ladder logic and function block programs execute control decisions in milliseconds.

Within the same PROFIBUS segment, Siemens SINAMICS G120 variable frequency drives receive speed and torque setpoints from the S5 controller through the 6ES5312-3AB32, enabling closed-loop motor control without analog signal degradation. Simultaneously, a Siemens OP270 or TP900 HMI panel connected to the PROFIBUS network reads live process variables — conveyor speeds, tank levels, valve positions — and displays them to operators in real time. Alarm thresholds configured in the HMI trigger immediate feedback loops back through the 6ES5312-3AB32 to the S5 CPU, ensuring sub-second response to process deviations.

At the network layer, a Siemens SCALANCE X208 industrial Ethernet switch bridges the PROFIBUS segment to the plant’s Ethernet backbone, allowing SCADA software such as Siemens WinCC or SIMATIC PCS 7 to poll the S5 controller via OPC-DA or S7 communication drivers. The 6ES5312-3AB32 ensures that PROFIBUS telegram integrity is maintained even under high bus load conditions, supporting up to 126 addressable nodes per segment. For multi-segment architectures, a CP 5431 FMS/DP communication processor can be paired with the 6ES5312-3AB32 to extend the network across repeaters and fiber-optic links, maintaining deterministic cycle times across large plant footprints.

Edge gateway devices — such as the Siemens SINEMA Remote Connect or third-party IIoT gateways — tap into the PROFIBUS data stream via the 6ES5312-3AB32 interface, forwarding aggregated process data to cloud-based MES or ERP platforms. This end-to-end data chain — from field sensor through PROFIBUS module, PLC, SCADA, and up to enterprise systems — is what transforms a legacy S5 installation into a fully transparent, data-driven smart factory node.

Solving Data Isolation in Industrial Sites

Many industrial facilities operating legacy SIMATIC S5 systems face a common challenge: protocol fragmentation and data silos that prevent unified visibility across production lines. The 6ES5312-3AB32 directly addresses these pain points by providing a standardized PROFIBUS-DP/FMS interface that consolidates communication from heterogeneous field devices — regardless of whether they speak RS-485, 4–20 mA analog, or proprietary vendor protocols — into a single, coherent data bus.

Remote monitoring becomes straightforward when the 6ES5312-3AB32 is integrated with a SCADA gateway: operators at a central control room or remote workstation can access live PLC data, historical trends, and alarm logs without physically visiting the machine. This capability is especially valuable in hazardous environments — chemical plants, offshore platforms, and high-voltage substations — where remote diagnostics reduce personnel exposure and maintenance costs.

Production line transparency is achieved by mapping every PROFIBUS device address to a SCADA tag, enabling real-time OEE dashboards that track availability, performance, and quality metrics. When a drive fault or sensor dropout occurs, the 6ES5312-3AB32 propagates the diagnostic telegram to the S5 CPU, which triggers an alarm in WinCC and simultaneously logs the event to a historian database. This closed-loop fault management eliminates the manual data collection that previously created reporting delays of hours or even days.

System expansion is equally seamless: adding a new remote I/O station or a SINAMICS drive to an existing PROFIBUS segment requires only address assignment and GSD file import — no rewiring of the 6ES5312-3AB32 or the S5 backplane. This plug-and-play scalability protects capital investment in legacy S5 infrastructure while enabling incremental modernization toward Industry 4.0 standards.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS transmission speed supported by the 6ES5312-3AB32?
The 6ES5312-3AB32 supports PROFIBUS-DP and PROFIBUS-FMS at transmission rates from 9.6 kbps up to 12 Mbps. The actual operating speed is automatically negotiated based on cable length and the lowest-speed device on the segment, ensuring network stability without manual configuration.

Q2: Is the 6ES5312-3AB32 compatible with both SIMATIC S5 and S7 networks?
The module is natively designed for the SIMATIC S5 platform (S5-115U, S5-135U, S5-155U). It communicates with PROFIBUS-DP slaves and FMS devices across the network, and PROFIBUS data can be bridged to S7 systems or Ethernet-based SCADA via appropriate communication processors or gateways, ensuring cross-generation compatibility in mixed-platform environments.

Q3: How is network stability guaranteed in high-noise industrial environments?
The 6ES5312-3AB32 uses RS-485 differential signaling with built-in bus termination support, providing strong immunity to electromagnetic interference common in motor-drive and high-voltage environments. Pre-shipment functional testing verifies PROFIBUS telegram integrity, bus arbitration, and error recovery behavior before the module leaves our facility.

Q4: What warranty and after-sales support is provided?
Every 6ES5312-3AB32 unit is covered by a 12-month warranty from the date of shipment. Each module undergoes pre-shipment functional testing to verify communication performance. In-stock units are available for immediate dispatch via DHL or FedEx with full tracking. Our technical team provides remote diagnostic support to assist with installation, configuration, and troubleshooting throughout the warranty period.
