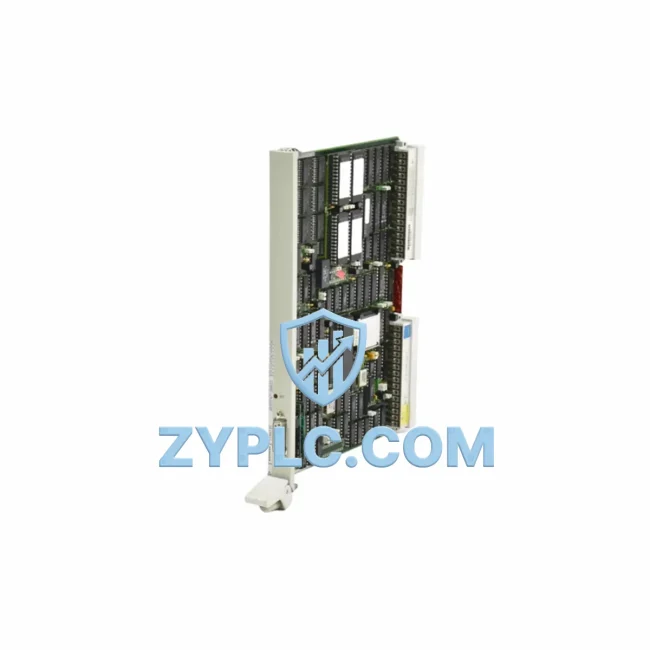

Siemens 6ES5947-3UA22 Industrial Network Interface for SIMATIC S5 Systems

Siemens 6ES5947-3UA22 CPU947: Industrial Data Link for SIMATIC S5 Smart Factory Networks

The Siemens 6ES5947-3UA22 is a high-performance CPU947 Processor Module engineered for the SIMATIC S5 automation platform. Designed to serve as the central processing and communication node in demanding industrial environments, this module enables seamless data exchange across field devices, PLC controllers, remote I/O stations, HMI panels, SCADA systems, variable frequency drives, sensors, and upper-level MES/ERP systems. As factories accelerate their journey toward Industry 4.0, the 6ES5947-3UA22 remains a proven backbone for reliable, real-time industrial connectivity.

In a typical smart factory deployment, the 6ES5947-3UA22 sits at the heart of the control architecture, orchestrating data flow from signal acquisition at the field level all the way to supervisory control and remote diagnostics. Field sensors and actuators feed process data into the CPU via the SIMATIC S5 backplane bus, where the module processes logic at high cycle speeds and routes structured data upstream through compatible communication processors such as the Siemens CP 5431 FMS/DP or CP 5511, enabling PROFIBUS DP and MPI protocol transmission across the plant network.

Network Communication Table

Connected Automation Data Flow

The 6ES5947-3UA22 operates as the central intelligence in a layered industrial network. At the field level, distributed I/O modules such as the Siemens ET 200M remote I/O station collect analog and digital signals from pressure transmitters, flow meters, and proximity sensors. These signals are transmitted over PROFIBUS DP to the CPU947, which executes the control program and generates output commands in real time.

For operator interaction, the CPU communicates with Siemens OP7 and OP17 HMI panels via the MPI interface, delivering live process values, alarm states, and trend data to the operator station. Simultaneously, a Siemens CP 5431 FMS/DP communication processor installed in the same S5 rack bridges the SIMATIC S5 network to higher-level SCADA platforms such as Siemens WinCC or third-party supervisory systems, enabling plant-wide visibility and centralized alarm management.

In drive integration scenarios, the 6ES5947-3UA22 exchanges speed references and feedback data with Siemens MICROMASTER 440 variable frequency drives via PROFIBUS, enabling closed-loop motor control without additional signal converters. For legacy serial device integration, the Siemens CP 521 SI serial communication module extends the S5 network to barcode readers, weighing terminals, and third-party PLCs using RS-232/RS-485 protocols.

At the network edge, an industrial Ethernet gateway such as the Siemens SCALANCE X208 managed switch aggregates data from multiple S5 racks and forwards structured packets to the plant’s Ethernet backbone, where MES and ERP systems consume real-time production data. This end-to-end data chain — from sensor to cloud — is anchored by the processing reliability of the 6ES5947-3UA22.

Solving Data Isolation in Industrial Sites

Many legacy manufacturing sites operate with fragmented automation islands: SIMATIC S5 controllers running isolated programs, drives with no network visibility, and HMI panels that cannot push data to SCADA. The Siemens 6ES5947-3UA22 directly addresses these data isolation challenges by providing a robust, protocol-aware processing core that bridges field-level signals with plant-level systems.

Protocol heterogeneity is resolved through the CPU947’s compatibility with PROFIBUS DP/FMS and MPI, allowing it to communicate natively with both legacy S5 peripherals and newer S7-compatible gateways. Remote monitoring is enabled by pairing the module with communication processors that expose process data over industrial Ethernet, eliminating the need for on-site technicians to diagnose routine faults. Production line transparency is achieved through continuous data streaming to WinCC SCADA, where KPIs such as OEE, cycle time, and alarm frequency are visualized in real time.

System expansion is straightforward: additional S5 racks, remote I/O drops, or new PROFIBUS segments can be integrated without replacing the CPU, protecting the existing automation investment. All units supplied by ZYPLC undergo pre-shipment functional testing to verify communication integrity, memory consistency, and I/O response before dispatch, ensuring that replacement modules are production-ready upon arrival.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 6ES5947-3UA22 support?
The 6ES5947-3UA22 CPU947 supports SINEC H1 industrial Ethernet (via CP), PROFIBUS DP/FMS (via CP 5431), MPI for HMI and programming device connections, and legacy S5 serial interfaces. It is compatible with SIMATIC S5 peripherals and can be bridged to SIMATIC S7 networks using appropriate gateway modules.

Q2: Can the 6ES5947-3UA22 integrate with modern SCADA and HMI systems?
Yes. When paired with a PROFIBUS or Ethernet communication processor, the CPU947 can exchange data with Siemens WinCC, SIMATIC HMI panels (OP/TP series), and third-party SCADA platforms via OPC or PROFIBUS FMS. This makes it suitable for both legacy system maintenance and hybrid modernization projects.

Q3: How is network stability ensured in continuous production environments?
The 6ES5947-3UA22 is designed for 24/7 industrial operation with deterministic cycle times and watchdog monitoring. Its backplane bus architecture minimizes communication latency, and PROFIBUS DP’s token-passing protocol ensures predictable, collision-free data transmission even in electrically noisy factory environments.

Q4: What warranty and testing does ZYPLC provide for this module?
Every 6ES5947-3UA22 supplied by ZYPLC carries a 12-month warranty covering hardware defects and communication failures. Each unit undergoes pre-shipment functional testing including CPU self-diagnostics, memory verification, and bus communication checks. Global shipping via DHL and FedEx is available with tracking, and our technical team provides post-sale support for integration and commissioning queries.
