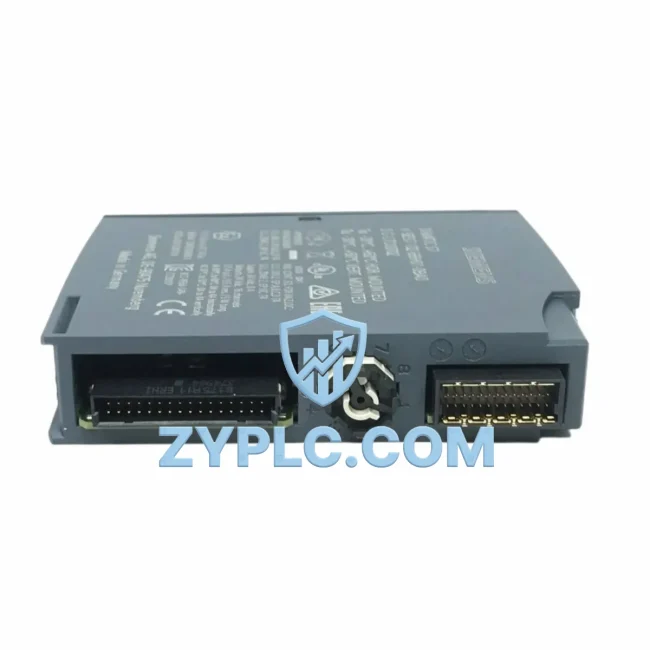

Siemens 6ES7132-6BH01-0BA0 Network Interface for ET 200SP Systems

Siemens 6ES7132-6BH01-0BA0 Network Interface for ET 200SP Systems: Industrial Data Link and Smart Factory Connectivity

The Siemens 6ES7132-6BH01-0BA0 is a high-density digital output module designed for the ET 200SP distributed I/O system, delivering 16 channels of 24 VDC / 0.5 A output capacity over a PROFINET-based architecture. In modern industrial environments where data transparency, real-time control, and seamless device integration define operational excellence, this module serves as a critical node in the field-level communication chain — bridging PLC logic execution with physical actuator response across distributed production sites.

Rather than functioning as a standalone component, the 6ES7132-6BH01-0BA0 is engineered to operate within a layered automation network. It connects upstream to SIMATIC S7-1500 or S7-1200 CPU controllers via PROFINET IO, receives cyclic process data at deterministic scan rates, and drives downstream actuators — solenoid valves, contactors, indicator lamps, and relay coils — with precision timing that supports high-speed production line sequencing. Its role in the data flow is not passive: each output channel status is reflected back to the controller in real time, enabling closed-loop feedback, diagnostic transparency, and remote fault isolation without physical intervention.

Network Communication Table

Connected Automation Data Flow

Understanding the 6ES7132-6BH01-0BA0 requires viewing it within the full data chain of a PROFINET-based automation system. At the controller level, a SIMATIC S7-1500 CPU — such as the CPU 1515-2 PN or CPU 1516-3 PN/DP — executes the control program and transmits cyclic output data frames over the PROFINET network. These frames are received by the ET 200SP interface module, specifically the IM 155-6 PN ST (6ES7155-6AU01-0BN0) or IM 155-6 PN HF (6ES7155-6AU00-0CN0), which acts as the PROFINET IO device head and distributes data across the ET 200SP backplane to each installed module.

The 6ES7132-6BH01-0BA0 receives its assigned output byte from the IM interface module via the internal backplane bus, activating or deactivating its 16 output channels in synchronization with the PLC scan cycle. On the field side, these outputs connect to actuators — pneumatic valve terminals, motor starter contactors, signal towers, or relay modules — that execute the physical process commands. The return diagnostic data, including channel status, short-circuit flags, and load voltage monitoring, travels back through the same backplane path to the IM module and then upstream to the S7-1500 CPU, where it is available for SCADA visualization via OPC UA or PROFINET-based HMI panels such as the SIMATIC TP700 Comfort or TP1200 Comfort.

In larger installations, the ET 200SP station housing the 6ES7132-6BH01-0BA0 may coexist with digital input modules such as the 6ES7131-6BH01-0BA0 (DI 16×24VDC), analog input modules like the 6ES7134-6GD01-0BA1 (AI 4×U/I/RTD/TC), and technology modules for high-speed counting or positioning. This modular co-installation allows a single ET 200SP station to handle mixed signal types — digital outputs, digital inputs, analog measurements, and communication — within one compact rail-mounted assembly, reducing cabinet footprint and wiring complexity.

For applications requiring network redundancy or high availability, the ET 200SP system supports Media Redundancy Protocol (MRP) ring topologies when paired with PROFINET-capable managed switches such as the SCALANCE X208 or SCALANCE XC208. In these configurations, the 6ES7132-6BH01-0BA0 continues to receive output commands even during a single network cable failure, as the MRP ring automatically reconfigures within milliseconds. This is particularly valuable in continuous process industries — chemical plants, water treatment facilities, and power generation sites — where output interruption can trigger safety shutdowns or product loss.

Integration with SIMATIC WinCC or WinCC Unified SCADA platforms allows operators to monitor the real-time status of every output channel on the 6ES7132-6BH01-0BA0 from a centralized control room. Alarm management, trend logging, and remote acknowledgment are all supported through the PROFINET data path, eliminating the need for dedicated fieldbus wiring to each remote I/O station. For edge computing and IIoT connectivity, the SIMATIC IOT2050 or SIMATIC S7-1500 with integrated OPC UA server can publish output module status data to cloud platforms or MES systems, enabling production transparency at the enterprise level.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, PLCs, HMIs, and enterprise systems operate in disconnected silos, preventing real-time visibility and coordinated control. The 6ES7132-6BH01-0BA0, as part of the ET 200SP PROFINET ecosystem, directly addresses this problem by providing a standardized, diagnostics-rich output interface that integrates seamlessly into the plant-wide data architecture.

In facilities where legacy systems use proprietary fieldbus protocols such as PROFIBUS DP or DeviceNet, the ET 200SP system can be deployed alongside PROFIBUS DP interface modules or protocol gateways to bridge old and new network segments. This allows the 6ES7132-6BH01-0BA0 to serve as a modern output node in a hybrid network, receiving commands from a PROFINET controller while coexisting with legacy PROFIBUS devices on the same production floor — without requiring a full system replacement.

For production line transparency, the channel-level diagnostics of the 6ES7132-6BH01-0BA0 provide granular fault information that traditional relay output panels cannot offer. When a solenoid valve coil fails or a wiring fault develops, the module immediately reports the affected channel to the S7-1500 CPU, which can trigger an alarm in WinCC, log the event with a timestamp, and notify maintenance personnel via SMS or email through integrated notification systems. This predictive fault visibility reduces unplanned downtime and supports condition-based maintenance strategies that lower total cost of ownership over the equipment lifecycle.

System expansion is equally straightforward. The ET 200SP architecture supports up to 64 modules per station (depending on the IM interface module variant), allowing additional 6ES7132-6BH01-0BA0 output modules to be added as production lines grow — without modifying the PROFINET network topology or replacing the controller. Each new module is automatically recognized by the S7-1500 CPU during hardware configuration in TIA Portal, reducing commissioning time and engineering effort for plant expansions.

Energy Optimization FAQ

Q1: Is the 6ES7132-6BH01-0BA0 compatible with both S7-1200 and S7-1500 controllers?
Yes. The 6ES7132-6BH01-0BA0 is a PROFINET IO device that operates within the ET 200SP distributed I/O system. It is compatible with any PROFINET IO controller, including the SIMATIC S7-1200 (CPU 1214C and above with PROFINET interface) and the full SIMATIC S7-1500 range. Configuration is performed in TIA Portal using the standard ET 200SP hardware catalog, and the module’s GSD file ensures plug-and-play integration with third-party PROFINET controllers as well.

Q2: What BaseUnit is required for the 6ES7132-6BH01-0BA0, and can it be installed in any slot position?
The 6ES7132-6BH01-0BA0 requires a compatible BaseUnit — typically the BU15-P16+A0+2B (light-colored, for modules without potential group change) or the BU15-P16+A0+2B (dark-colored, for new potential group). The module can be installed in any slot position within the ET 200SP station, subject to the maximum module count and power budget of the IM interface module. TIA Portal’s hardware configuration tool will flag any slot or power violations during project compilation.

Q3: What does the 12-Month Warranty cover, and what is the pre-shipment testing process?
Every 6ES7132-6BH01-0BA0 supplied by ZYPLC is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification testing — including output channel activation, diagnostic response, and backplane communication checks — to confirm operational integrity. The warranty covers manufacturing defects and functional failures under normal operating conditions. Replacement or repair is arranged promptly upon confirmed fault diagnosis. Contact [email protected] for warranty claims or technical support.

Q4: Can the 6ES7132-6BH01-0BA0 be used in safety-rated or SIL-certified applications?
The standard 6ES7132-6BH01-0BA0 is a non-safety digital output module and is not rated for use in SIL 2 or SIL 3 safety functions. For safety-rated output requirements within the ET 200SP platform, Siemens offers dedicated F-DQ modules such as the 6ES7136-6DC00-0CA0 (F-DQ 4×24VDC/2A PP HF), which are certified for use in SIMATIC Safety Integrated applications. The standard 6ES7132-6BH01-0BA0 can coexist in the same ET 200SP station as F-modules, provided the station is configured with an F-capable IM interface module.
