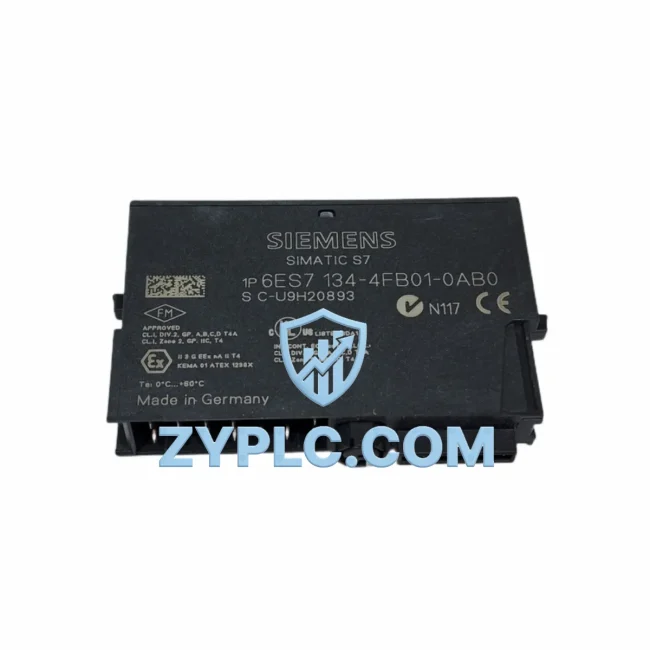

Siemens 6ES7134-4FB01-0AB0 Industrial Network Interface for ET 200S

Siemens 6ES7134-4FB01-0AB0 Industrial Network Interface for ET 200S Systems

The Siemens 6ES7134-4FB01-0AB0 is a high-precision 2-channel analog input module engineered for the ET 200S distributed I/O platform, operating seamlessly within PROFIBUS DP industrial communication networks. Designed for demanding smart factory environments, this module serves as a critical data acquisition node — converting real-world analog signals from field sensors, transmitters, and transducers into structured digital data that flows upstream through the PROFIBUS backbone to SIMATIC S7-300 and S7-400 PLCs, SCADA systems, and HMI panels. With 16-bit resolution and a measurement range supporting current and voltage inputs, the 6ES7134-4FB01-0AB0 delivers the signal fidelity required for precision process control, energy monitoring, and predictive maintenance applications across manufacturing, chemical, water treatment, and automotive production lines.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 6ES7134-4FB01-0AB0 sits at the edge of the automation pyramid, collecting analog signals — 4–20 mA current loops or 0–10 V voltage signals — from field instruments such as pressure transmitters, flow meters, temperature sensors, and level transducers. These signals are digitized at 16-bit resolution and transmitted over the PROFIBUS DP network at speeds up to 12 Mbit/s to the upstream control layer.

The module slots directly into the ET 200S station alongside the Siemens 6ES7151-1AA05-0AB0 IM151-1 interface module, which acts as the PROFIBUS DP master gateway, managing cyclic data exchange with the SIMATIC S7-300 CPU 315-2 DP or S7-400 CPU 414-3 DP controllers. In multi-drop PROFIBUS segments, the ET 200S station shares the bus with other distributed nodes — including Siemens ET 200M IM153-2 remote I/O racks, SINAMICS G120 variable frequency drives with CBE20 PROFIBUS communication boards, and Siemens SIRIUS 3RK1 motor starters — enabling a unified data backbone across the production floor.

Analog process values acquired by the 6ES7134-4FB01-0AB0 are mapped into the S7 PLC’s process image and made available to WinCC SCADA and WinCC flexible HMI panels via the S7 communication layer, enabling real-time trend visualization, alarm management, and operator dashboards. For plants running SIMATIC PCS 7 distributed control systems, the module integrates natively through the PROFIBUS DP fieldbus hierarchy, feeding analog data into the process historian and supporting batch reporting and regulatory compliance workflows.

In edge computing architectures, analog data from the 6ES7134-4FB01-0AB0 can be forwarded through a Siemens SCALANCE X208 industrial Ethernet switch — after S7 processing — to an IE/PB Link PN IO gateway that bridges PROFIBUS DP segments to PROFINET, enabling integration with cloud-based MES platforms, OPC UA data servers, and IIoT analytics engines. This multi-layer connectivity ensures that field-level analog signals from sensors and transmitters are not isolated at the device level but flow continuously through the automation hierarchy to support production transparency, energy management, and predictive maintenance strategies.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is data isolation — field devices generating valuable process signals that never reach the control room, SCADA system, or enterprise MES because of protocol mismatches, aging wiring infrastructure, or fragmented automation architectures. The Siemens 6ES7134-4FB01-0AB0 directly addresses this challenge within PROFIBUS DP networks.

Protocol Unification: Many plants operate mixed environments where older 4–20 mA analog loops coexist with digital fieldbus networks. The 6ES7134-4FB01-0AB0 bridges this gap by converting legacy analog signals into PROFIBUS DP digital data frames, eliminating the need for separate signal converters or protocol gateways and reducing wiring complexity in the ET 200S cabinet.

Production Line Transparency: By feeding real-time analog values — flow rates, pressures, temperatures, and levels — directly into the SIMATIC S7 PLC and onward to WinCC SCADA, plant operators gain continuous visibility into process conditions without manual data collection. Alarm thresholds configured in the PLC trigger immediate HMI notifications and SCADA event logs, enabling rapid response to process deviations and reducing unplanned downtime.

Remote Monitoring and Diagnostics: The ET 200S platform supports PROFIBUS DP diagnostic messaging, allowing the 6ES7134-4FB01-0AB0 to report module faults, wire-break conditions, and out-of-range signal errors back to the S7 CPU and SCADA system without requiring physical inspection. Remote engineering stations running SIMATIC STEP 7 or TIA Portal can access diagnostic data over the PROFIBUS network, enabling remote fault isolation and reducing mean time to repair (MTTR) in distributed plant environments.

System Scalability: The modular ET 200S architecture allows additional analog input modules — including the 6ES7134-4GB11-0AB0 (4-channel analog input) and 6ES7135-4FB01-0AB0 analog output modules — to be added to the same station without rewiring the PROFIBUS segment, supporting phased plant expansions and capacity upgrades with minimal engineering effort.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6ES7134-4FB01-0AB0 on a PROFIBUS DP network?
PROFIBUS DP cyclic data exchange at 12 Mbit/s typically achieves bus cycle times of 1–10 ms depending on the number of slaves and data volume. For the ET 200S station hosting the 6ES7134-4FB01-0AB0, analog input data is refreshed every PLC scan cycle, ensuring near-real-time process value availability for control and SCADA applications.

Q2: Is the 6ES7134-4FB01-0AB0 compatible with SIMATIC S7-1500 and TIA Portal?
Yes. While the module is native to S7-300/400 PROFIBUS DP systems, it can be integrated into S7-1500 architectures via a PROFIBUS DP master CM 1542-5 communication module or through an IE/PB Link gateway, with full GSD-based configuration supported in TIA Portal V13 and later.

Q3: How is network stability ensured in multi-drop PROFIBUS segments with this module?
The ET 200S platform uses active PROFIBUS termination and supports bus topology with up to 32 nodes per segment (extendable with repeaters). The 6ES7134-4FB01-0AB0 complies with PROFIBUS DP IEC 61158 electrical specifications, and Siemens recommends using PROFIBUS FC Standard Cable with proper shielding and grounding to maintain signal integrity in electrically noisy industrial environments.

Q4: What does the 12-month warranty cover, and has the module been tested before shipment?
Every 6ES7134-4FB01-0AB0 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify analog input accuracy, PROFIBUS DP communication, and module self-diagnostics. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. In-stock units are available for immediate dispatch, with DHL Express and sea freight options for global delivery.
