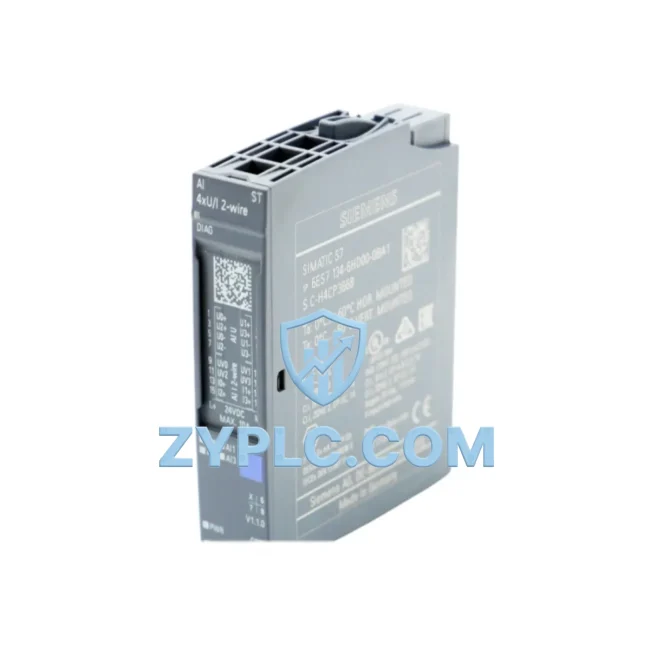

Siemens 6ES7134-6HD00-0BA1 ET 200SP Analog Input Module

Siemens 6ES7134-6HD00-0BA1 ET 200SP Analog Input Module: Precision Energy Control for Optimized Automation

The Siemens 6ES7134-6HD00-0BA1 is a high-resolution analog input module designed for the ET 200SP distributed I/O system, engineered to deliver precise signal acquisition at the field level while minimizing the energy overhead associated with traditional analog processing architectures. In modern manufacturing environments where every watt of consumed power translates directly into operational cost, the 6ES7134-6HD00-0BA1 plays a foundational role in building a leaner, more responsive energy management loop — from sensor-level data capture all the way through to drive-level corrective action.

With support for up to 4 analog input channels and a measurement resolution of up to 16 bits, this module captures voltage and current signals from field instruments — including temperature transmitters, pressure sensors, flow meters, and power transducers — with the accuracy required to feed reliable data into energy optimization algorithms running on the host SIMATIC S7-1500 CPU. When paired with the SIMATIC ET 200SP base unit and a high-speed PROFINET backplane, the 6ES7134-6HD00-0BA1 ensures that analog process values are delivered to the controller with minimal latency, enabling closed-loop energy control strategies that respond to real-time load fluctuations rather than scheduled polling cycles.

Efficiency Performance Table

Energy-Aware Automation Architecture

Effective industrial energy optimization is not achieved through a single component — it is the result of a tightly integrated system where each layer communicates efficiently and acts on accurate data. The Siemens 6ES7134-6HD00-0BA1 sits at the data acquisition layer of this architecture, feeding analog process values upward into the control and drive layers where energy-saving decisions are executed.

At the controller level, the SIMATIC S7-1500 CPU processes the analog inputs from the 6ES7134-6HD00-0BA1 and executes energy management programs written in TIA Portal. These programs can implement load-shedding logic, demand-response routines, and adaptive setpoint control — all of which depend on the high-fidelity analog data that this module provides. The S7-1500’s integrated energy measurement functions, when combined with the SENTRON PAC3200 power monitoring device, allow the controller to correlate analog process variables with actual power consumption in real time.

On the drive side, the SINAMICS G120 variable frequency drive receives speed and torque reference signals that are ultimately derived from the analog feedback loop anchored by the 6ES7134-6HD00-0BA1. When a flow meter connected to an analog input channel reports that process demand has dropped, the S7-1500 can instruct the SINAMICS G120 to reduce motor speed proportionally — eliminating the energy waste associated with running motors at fixed speed under partial load. This kind of dynamic motor control, enabled by accurate analog input data, is one of the most impactful energy-saving strategies available in process and discrete manufacturing.

For servo-driven axes, the SINAMICS S120 drive system similarly benefits from precise analog feedback. When the 6ES7134-6HD00-0BA1 captures torque or position feedback from a servo amplifier’s analog output, the S7-1500 can optimize motion profiles to reduce peak current draw and regenerative braking losses — directly improving the energy efficiency of high-cycle production lines.

The ET 200SP system’s modular design allows the 6ES7134-6HD00-0BA1 to be combined with digital output modules such as the 6ES7132-6BF00-0BA0 DQ 8x24VDC module to create mixed I/O stations that handle both analog measurement and digital actuation within a single compact footprint. This reduces wiring complexity, lowers panel space requirements, and minimizes the power distribution losses associated with distributed terminal blocks. The SIMATIC ET 200SP IM 155-6 PN ST interface module manages PROFINET communication for the entire I/O station, ensuring that all analog and digital data reaches the S7-1500 with deterministic cycle times suitable for energy-critical control loops.

At the HMI layer, a SIMATIC TP700 Comfort Panel or KTP900 Basic Panel can display real-time analog trends — including power factor, motor current, and process flow rates — giving operators immediate visibility into energy consumption patterns. When operators can see the relationship between process variables and energy use on a single screen, they are better positioned to make manual adjustments that complement the automated energy optimization running in the S7-1500.

Power Optimization in Real Production Lines

In a typical continuous process application — such as a water treatment plant, HVAC system, or chemical dosing line — the 6ES7134-6HD00-0BA1 monitors the 4–20 mA output of flow transmitters and pressure sensors installed throughout the process. The S7-1500 uses these analog values to implement a cascade control strategy: when downstream demand decreases, the controller reduces the speed reference sent to the SINAMICS G120 driving the primary pump motor. This single feedback loop, made possible by the accurate analog input data from the 6ES7134-6HD00-0BA1, can reduce pump motor energy consumption by 20–50% compared to fixed-speed operation — a saving that compounds across every hour of production.

In discrete manufacturing environments, the module supports energy monitoring at the machine level. By connecting the analog output of a SENTRON PAC3200 or similar power meter to an input channel of the 6ES7134-6HD00-0BA1, the S7-1500 can track the real-time power draw of individual machines or production cells. This data feeds into OEE (Overall Equipment Effectiveness) calculations and predictive maintenance algorithms: a gradual increase in motor current at constant load, captured through the analog input, is an early indicator of bearing wear or mechanical misalignment — allowing maintenance teams to intervene before a failure causes unplanned downtime and the associated energy waste of emergency restarts.

The 6ES7134-6HD00-0BA1 also supports production line takt optimization. In assembly lines where conveyor speed is controlled by a SINAMICS G120 or G130 drive, the analog input module captures the output of a line speed sensor or encoder interface. The S7-1500 uses this feedback to synchronize conveyor speed with upstream and downstream process rates — eliminating the energy wasted when conveyors run faster than the process requires and reducing the mechanical stress that leads to premature component failure.

All units supplied by ZYPLC are tested prior to shipment and covered by a 12-month warranty. Stock is maintained to support rapid deployment, minimizing the lead time between procurement and commissioning. Whether you are replacing a failed module in a running production line or specifying components for a new energy optimization project, the 6ES7134-6HD00-0BA1 is available for immediate dispatch.

Energy Optimization FAQ

Q1: How does the 6ES7134-6HD00-0BA1 contribute to measurable energy savings in a production environment?
The module enables closed-loop energy control by providing the S7-1500 with accurate, real-time analog process data. When this data is used to modulate drive speed via the SINAMICS G120 or G130, motor energy consumption can be reduced by 20–50% in variable-load applications such as pumps, fans, and compressors. The savings are proportional to the accuracy of the analog input — making the 16-bit resolution of the 6ES7134-6HD00-0BA1 a direct contributor to energy efficiency outcomes.

Q2: Is the 6ES7134-6HD00-0BA1 compatible with existing SIMATIC S7-300 or S7-400 systems?
The 6ES7134-6HD00-0BA1 is natively designed for the ET 200SP distributed I/O system, which communicates via PROFINET. It can be integrated into S7-300 and S7-400 systems through a PROFINET-capable CPU or a PN/DP coupler. For direct backplane integration with S7-300, the ET 200M system with the 6ES7134-4NB01-0AB0 analog input module is the recommended alternative. ZYPLC can advise on the most suitable migration path based on your existing infrastructure.

Q3: What is the recommended replacement or upgrade path if the 6ES7134-6HD00-0BA1 is end-of-life in my system?
The 6ES7134-6HD00-0BA1 is a current-generation ET 200SP module with active Siemens support. For systems requiring higher channel density or integrated diagnostics, the 6ES7134-6JD00-0BA1 (4-channel high-feature analog input) offers enhanced diagnostic capabilities and faster conversion times. ZYPLC maintains stock of both variants and can provide direct replacements or upgrade recommendations based on your application requirements.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 6ES7134-6HD00-0BA1 unit supplied by ZYPLC undergoes functional testing prior to dispatch, verifying analog input accuracy across all four channels, backplane communication integrity, and power consumption within specification. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, ZYPLC provides a replacement unit from stock to minimize production downtime. Contact our team at plc.sales@zyplc.com or +86 19859288691 for warranty support.
