Siemens 6ES7135-6TD00-0CA1 Industrial Network Interface for ET 200SP Systems

Siemens 6ES7135-6TD00-0CA1: Industrial Data Link for ET 200SP Smart Factory Networks

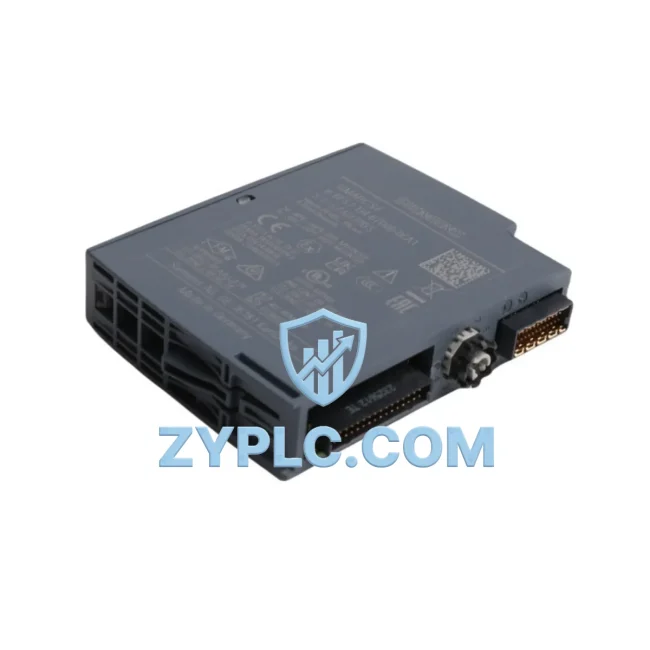

The Siemens 6ES7135-6TD00-0CA1 is a high-precision HART-enabled analog output module designed for the ET 200SP distributed I/O system. Operating seamlessly within PROFINET-based industrial networks, this module serves as a critical data link between field-level actuators and upper-level control systems — including SIMATIC S7-1500 PLCs, SCADA platforms, and HMI visualization layers. With four analog output channels supporting the HART communication protocol, it enables simultaneous process control and device diagnostics over a single 4–20 mA signal loop, dramatically reducing wiring complexity while enhancing real-time transparency across the production floor.

In modern smart factory architectures, the 6ES7135-6TD00-0CA1 plays a pivotal role in closing the loop between digital control commands and physical process execution. Whether driving control valves, positioners, or variable-speed drives, the module transmits precise analog signals while simultaneously exchanging HART diagnostic data with asset management systems such as Siemens SIMATIC PDM or PACTware. This dual-channel communication capability — process value and device status on the same wire — is fundamental to achieving predictive maintenance and reducing unplanned downtime in continuous process industries.

Network Communication Table

Connected Automation Data Flow

The 6ES7135-6TD00-0CA1 sits at the heart of a layered industrial communication architecture. At the field level, it interfaces directly with HART-enabled smart actuators and positioners — such as Siemens SIPART PS2 valve positioners — receiving digital setpoints from the control layer and returning real-time device diagnostics. These diagnostics travel upstream through the ET 200SP backplane bus to the SIMATIC S7-1500 CPU (e.g., CPU 1515-2 PN), which aggregates process data and executes control logic at scan cycle speeds below 1 ms.

The S7-1500 communicates over PROFINET to a SCALANCE X208 managed industrial Ethernet switch, which provides the network backbone for deterministic, real-time data exchange across the plant floor. From the switch, data flows to the SIMATIC WinCC SCADA system for operator visualization, alarm management, and historical trending. Simultaneously, the SIMATIC HMI TP1200 Comfort Panel provides local operators with live process values and device status directly from the HART layer — without requiring additional wiring or secondary instrumentation.

For remote I/O expansion, the ET 200SP system can be extended with additional modules such as the 6ES7131-6BF01-0BA0 digital input module or the 6ES7132-6BF01-0BA0 digital output module, all sharing the same BaseUnit infrastructure and PROFINET connection. In applications requiring gateway functionality — for example, integrating legacy Modbus RTU devices into the PROFINET network — a SIMATIC S7-1200 with CM 1241 RS485 communication module can serve as a protocol bridge, feeding data into the same TIA Portal project environment.

At the edge layer, a SIMATIC IPC227E industrial PC or a third-party edge gateway running MQTT/OPC-UA can aggregate HART diagnostic data from multiple 6ES7135-6TD00-0CA1 modules and forward it to cloud-based asset management platforms, enabling enterprise-wide predictive maintenance dashboards. Variable-speed drives such as the Siemens SINAMICS G120 can also receive analog setpoints from this module, with drive status fed back via PROFINET for closed-loop speed regulation — completing the data loop from SCADA command to physical motor response.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of multiple communication protocols across different generations of equipment. Legacy 4–20 mA devices, HART instruments, PROFIBUS DP nodes, and modern PROFINET controllers often operate in isolation, creating data silos that prevent plant-wide visibility and slow down fault diagnosis. The 6ES7135-6TD00-0CA1 directly addresses this challenge by embedding HART communication within the standard analog output infrastructure of the ET 200SP system — no additional gateway hardware is required to access HART device parameters from the TIA Portal engineering environment.

For sites where protocol fragmentation is more severe — mixing Modbus, PROFIBUS, and PROFINET — the ET 200SP ecosystem supports IM 155-6 PN interface modules that can host multiple communication-specific modules on a single rack, centralizing protocol conversion and reducing the number of independent network segments. This architecture eliminates the need for standalone protocol converters and simplifies network topology, reducing both capital expenditure and ongoing maintenance overhead.

Remote monitoring and diagnostics are equally critical in geographically distributed plants or unmanned substations. The HART diagnostic data surfaced by the 6ES7135-6TD00-0CA1 — including loop current, device status, and process variable secondary values — can be forwarded via OPC-UA to remote SCADA servers, enabling maintenance engineers to assess field device health without physical site visits. Combined with TIA Portal’s integrated diagnostic buffer and the S7-1500’s web server functionality, this creates a fully transparent remote diagnostic chain from field instrument to enterprise dashboard.

Production line transparency is further enhanced through integration with MES (Manufacturing Execution Systems) and ERP platforms. By exposing real-time analog output values and HART device data through standardized OPC-UA interfaces, the 6ES7135-6TD00-0CA1 enables production managers to correlate process parameters with batch records, quality metrics, and energy consumption data — supporting both ISO 9001 quality management and Industry 4.0 digital twin initiatives. System expansion is straightforward: additional ET 200SP modules can be hot-swapped without powering down the station, and the PROFINET network can be extended with additional SCALANCE switches to accommodate new production cells or remote I/O islands.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6ES7135-6TD00-0CA1 in a PROFINET network?
The module operates within the ET 200SP’s PROFINET cycle, which supports update rates as fast as 250 µs in IRT (Isochronous Real-Time) mode. For standard RT (Real-Time) applications, cycle times of 1–4 ms are typical, ensuring that analog output updates and HART diagnostic polling do not introduce measurable delays in closed-loop control applications.

Q2: Is the 6ES7135-6TD00-0CA1 compatible with third-party SCADA and DCS systems?
Yes. While natively integrated with Siemens TIA Portal, WinCC, and SIMATIC PDM, the module’s HART data can be accessed by any SCADA or DCS platform supporting OPC-UA or OPC-DA interfaces via the S7-1500 OPC-UA server. Third-party asset management tools compatible with the HART-IP standard can also communicate directly with HART devices through the module’s HART pass-through functionality.

Q3: How is network stability ensured in high-vibration or electrically noisy industrial environments?
The 6ES7135-6TD00-0CA1 is designed to IEC 61131-2 standards, with EMC immunity ratings suitable for industrial environments with high electromagnetic interference. The ET 200SP system uses shielded backplane connectors and supports redundant PROFINET ring topologies (MRP — Media Redundancy Protocol) via SCALANCE switches, ensuring network recovery within 200 ms in the event of a cable fault.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every 6ES7135-6TD00-0CA1 unit supplied by ZYPLC undergoes functional verification prior to shipment, including analog output accuracy testing across all four channels, HART communication handshake validation, and PROFINET enumeration testing on an ET 200SP test rack. The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions, with direct technical support available from our engineering team throughout the warranty period.

—
