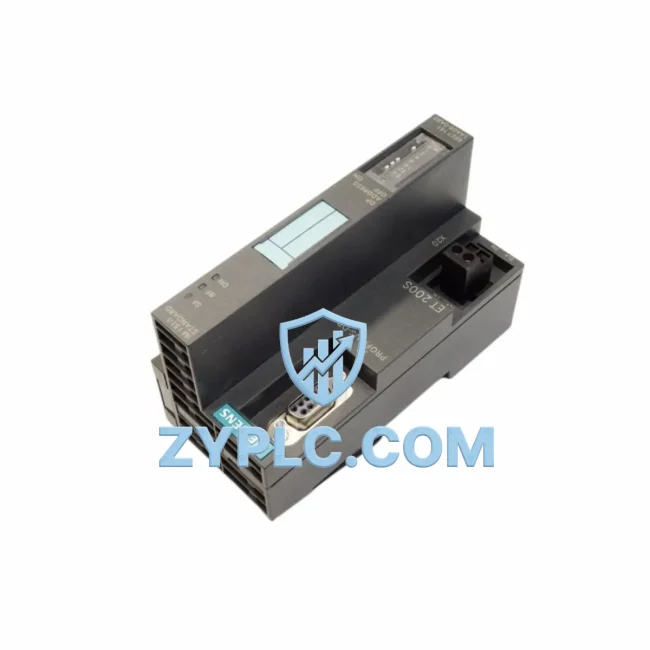

Siemens 6ES7151-1AA06-0AB0 PROFIBUS Interface Module | ET200S IM151-1

Siemens 6ES7151-1AA06-0AB0: Industrial Data Link for ET200S PROFIBUS Networks

The Siemens 6ES7151-1AA06-0AB0 is the IM151-1 Interface Module at the heart of the ET200S distributed I/O station, engineered to deliver seamless PROFIBUS DP communication between field-level devices and upper-level control systems. In modern smart factory environments where milliseconds matter and data continuity is non-negotiable, this interface module serves as the critical gateway that bridges physical process signals with the digital intelligence of the automation network.

From the moment a sensor detects a process deviation on the production floor, the 6ES7151-1AA06-0AB0 captures that signal through the ET200S I/O station, encodes it into PROFIBUS DP protocol frames, and transmits it upstream to the SIMATIC S7-300 or S7-400 PLC controller at cycle times as fast as 1.5 ms. This deterministic, real-time data path is what separates a truly connected factory from a collection of isolated machines.

Network Communication Table

Connected Automation Data Flow

In a typical smart manufacturing cell, the 6ES7151-1AA06-0AB0 sits at the junction of multiple data streams. Consider a bottling line where temperature sensors and flow meters feed analog signals into ET200S PM-E power modules and 2AI I-4WIRE analog input modules. The IM151-1 interface module collects all this distributed I/O data and transmits it over the PROFIBUS DP segment to a SIMATIC S7-315-2 DP CPU, which executes the control logic and issues output commands back down the same network within a single scan cycle.

Further up the architecture, the S7-315-2 DP communicates via Industrial Ethernet to a SIMATIC ET200M remote I/O rack installed in a hazardous zone panel, while a CP 343-1 communications processor bridges the PROFIBUS segment to the plant-wide PROFINET backbone. At the supervisory level, WinCC SCADA software polls real-time process values from all connected ET200S stations, displaying live dashboards for operators and triggering alarm notifications when parameters drift outside setpoints.

Drive integration is equally seamless: SINAMICS G120 variable frequency drives connected via PROFIBUS DP slave adapters appear as standard I/O nodes to the 6ES7151-1AA06-0AB0 master station, allowing speed references and fault diagnostics to flow through the same network infrastructure. For edge analytics, a SIMATIC IPC427E industrial PC running SINEMA Remote Connect aggregates data from multiple PROFIBUS segments, enabling remote diagnostics and predictive maintenance without requiring on-site intervention.

HMI panels such as the SIMATIC TP700 Comfort connect to the S7 controller via PROFIBUS or MPI, presenting operators with real-time process visualization that reflects the live data flowing through the 6ES7151-1AA06-0AB0 interface. This end-to-end data chain — from field sensor through distributed I/O, across the PROFIBUS network, into the PLC, up to SCADA and HMI — is what the IM151-1 module makes possible with consistent, validated reliability.

Solving Data Isolation in Industrial Sites

Many industrial facilities still operate with legacy equipment running proprietary protocols that cannot natively communicate with modern control platforms. The 6ES7151-1AA06-0AB0 addresses this challenge by acting as a standardized PROFIBUS DP gateway, allowing older field devices — including third-party sensors, actuators, and drives — to be integrated into a unified SIMATIC network without replacing existing hardware.

Data silos are eliminated when every ET200S station on the PROFIBUS segment reports its status to a central S7 controller in real time. Production line transparency improves dramatically: instead of operators walking the floor to check individual machine states, all process data is visible on WinCC dashboards and accessible remotely via SINEMA Remote Connect. Alarm management becomes proactive rather than reactive, with the SCADA system generating maintenance tickets automatically when the IM151-1 module reports communication faults or I/O errors.

System expansion is straightforward with the ET200S platform. Additional I/O modules — digital inputs, analog outputs, safety modules, or technology modules — can be inserted into the existing ET200S rail without reconfiguring the PROFIBUS network address or replacing the 6ES7151-1AA06-0AB0 interface module. This modularity protects capital investment and allows production capacity to scale in line with business growth.

All units supplied by ZYPLC are pre-tested before shipment, with full functional verification of PROFIBUS communication, I/O bus integrity, and power supply compatibility. Stock is maintained for immediate dispatch, and every module is covered by a 12-month warranty, giving procurement teams and maintenance engineers the confidence to specify the 6ES7151-1AA06-0AB0 for both new installations and emergency replacement scenarios.

Industrial Connectivity FAQ

Q: What is the maximum PROFIBUS DP transmission speed supported by the 6ES7151-1AA06-0AB0?
A: The IM151-1 interface module supports PROFIBUS DP transmission rates from 9.6 kbit/s up to 12 Mbit/s. The actual operating speed is automatically negotiated with the PROFIBUS master (e.g., S7-315-2 DP) during network initialization, ensuring compatibility across mixed-speed segments.

Q: Is the 6ES7151-1AA06-0AB0 compatible with TIA Portal and Step 7 programming environments?
A: Yes. The module is fully supported in both SIMATIC Step 7 (v5.x) and TIA Portal (v13 and above) via the standard ET200S hardware catalog. GSD files are available for integration with third-party PROFIBUS masters that are not part of the SIMATIC ecosystem.

Q: How does ZYPLC ensure network stability for replacement modules?
A: Every 6ES7151-1AA06-0AB0 unit undergoes pre-shipment functional testing, including PROFIBUS DP communication verification and I/O bus load testing. Modules are shipped with original firmware versions to ensure plug-and-play compatibility with existing ET200S stations, minimizing commissioning time and network downtime.

Q: What warranty and after-sales support does ZYPLC provide?
A: All modules are covered by a 12-month warranty from the date of shipment. ZYPLC provides technical support for installation, configuration, and network troubleshooting. Replacement units are dispatched from stock within 24 hours for urgent maintenance requirements.
