Siemens 6ES7153-2BA10-0XB0 Industrial Network Interface for ET 200M Systems

Siemens 6ES7153-2BA10-0XB0 Industrial Network Interface for ET 200M Systems: Bridging the Industrial Data Link in Smart Factory Environments

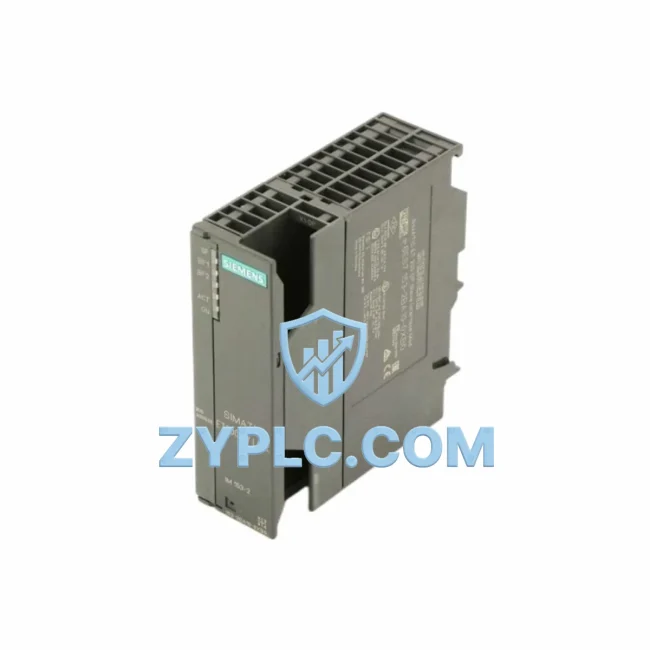

The Siemens 6ES7153-2BA10-0XB0 is a high-performance PROFIBUS DP interface module engineered for the ET 200M distributed I/O station. Designed to serve as the communication backbone between field-level devices and upper-level control systems, this module enables seamless data exchange across the full automation hierarchy — from sensors and actuators on the plant floor to SCADA platforms and MES systems in the control room. In an era where industrial connectivity defines production efficiency, the 6ES7153-2BA10-0XB0 delivers the protocol stability, real-time throughput, and system integration depth that modern smart factories demand.

Whether deployed in automotive assembly lines, chemical processing plants, water treatment facilities, or discrete manufacturing cells, this PROFIBUS DP gateway ensures that every signal — from a proximity sensor on a conveyor to a torque reading from a servo drive — reaches the right controller at the right time, with zero data loss and minimal latency.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 6ES7153-2BA10-0XB0 sits at the heart of the distributed I/O architecture. Field devices — including Siemens SIRIUS 3RK3 motor management relays, SITRANS pressure transmitters, and third-party proximity sensors — connect to the ET 200M I/O station via standard signal wiring. The 6ES7153-2BA10-0XB0 aggregates these signals and transmits them upstream over the PROFIBUS DP network at speeds up to 12 Mbit/s, ensuring that the SIMATIC S7-400 or S7-300 PLC controller receives real-time process data with cycle times well within the demands of closed-loop control.

As data flows from the field level upward, the PROFIBUS DP segment connects to higher-level systems through SIMATIC NET CP 342-5 or CP 443-5 communication processors, which bridge the PROFIBUS network to Industrial Ethernet (PROFINET). This protocol conversion step is critical in hybrid automation environments where legacy PROFIBUS field devices must coexist with modern PROFINET-based controllers and cloud-connected edge gateways. The 6ES7153-2BA10-0XB0 ensures that this transition is transparent — field device data is preserved in full fidelity as it traverses the protocol boundary.

At the HMI and SCADA layer, operators interact with live process data through SIMATIC WinCC or third-party SCADA platforms connected via OPC UA or OPC DA servers. The 6ES7153-2BA10-0XB0’s reliable PROFIBUS DP communication ensures that tag updates, alarm states, and diagnostic messages are delivered to the SCADA system without delay. When a SINAMICS G120 variable frequency drive reports an overcurrent fault, or when a SIWAREX weighing module detects a load cell deviation, the alarm propagates through the ET 200M station, across the PROFIBUS DP segment, through the S7 controller, and into the WinCC alarm management system — all within milliseconds.

For remote diagnostics and predictive maintenance, the 6ES7153-2BA10-0XB0 supports PROFIBUS DP V1 acyclic communication, allowing engineering tools such as SIMATIC PDM (Process Device Manager) to read and write device parameters without interrupting the cyclic data exchange. This capability is essential for remote calibration of SITRANS flow meters, parameter adjustment of SIRIUS soft starters, and firmware updates on intelligent field devices — all performed from the control room or even from a remote engineering workstation over a secure VPN connection.

In multi-segment PROFIBUS networks, the 6ES7153-2BA10-0XB0 can be paired with SIMATIC DP/DP couplers or RS485 repeaters to extend the network reach across large plant areas, maintaining signal integrity and deterministic communication timing across all segments. This scalability makes it an ideal choice for phased factory expansions where new ET 200M stations are added to an existing PROFIBUS backbone without disrupting ongoing production.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and supervisory systems operate in disconnected silos, preventing plant managers from achieving true production transparency. The Siemens 6ES7153-2BA10-0XB0 directly addresses this challenge by providing a standardized, high-speed PROFIBUS DP communication link that unifies data from diverse field devices under a single, coherent network architecture.

Protocol Fragmentation: Many industrial sites operate a mix of legacy serial devices, PROFIBUS DP nodes, and newer PROFINET components. The 6ES7153-2BA10-0XB0, when used in conjunction with SIMATIC protocol gateways and CP communication modules, enables seamless data aggregation across these protocol boundaries. Field devices that previously could not share data with the control system are brought online, eliminating blind spots in the production data landscape.

Remote Monitoring and Alarm Management: Without reliable field-to-SCADA communication, remote monitoring is impossible. The 6ES7153-2BA10-0XB0 ensures that every process variable — temperature, pressure, flow rate, motor speed, valve position — is continuously available to the SCADA system. Operators can monitor production KPIs in real time, respond to alarms immediately, and drill down into device-level diagnostics without leaving the control room.

Production Line Transparency: By connecting all ET 200M I/O stations across the plant floor to the central S7 controller via PROFIBUS DP, the 6ES7153-2BA10-0XB0 enables end-to-end production visibility. Every machine state, every cycle count, every quality measurement is captured and made available for MES integration, OEE calculation, and continuous improvement initiatives.

System Scalability: As production requirements evolve, new ET 200M stations and I/O modules can be added to the PROFIBUS DP network without redesigning the communication architecture. The 6ES7153-2BA10-0XB0 supports up to 125 PROFIBUS DP slaves per segment, providing ample headroom for future expansion. Combined with the modular design of the ET 200M platform, this scalability ensures that the communication infrastructure grows with the factory.

Pre-Shipment Testing and 12-Month Warranty: Every 6ES7153-2BA10-0XB0 unit supplied by ZYPLC undergoes functional communication testing before shipment. PROFIBUS DP connectivity, data throughput, and diagnostic response are verified against Siemens factory specifications. All units are covered by a 12-month warranty, with full replacement or refund on any verified defect — giving procurement teams and maintenance engineers the confidence to deploy with zero risk.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS DP transmission speed supported by the 6ES7153-2BA10-0XB0, and does network cable length affect it?
The 6ES7153-2BA10-0XB0 supports PROFIBUS DP transmission rates from 9.6 kbit/s up to 12 Mbit/s. At 12 Mbit/s, the maximum segment length is 100 meters using standard PROFIBUS cable (Type A). At lower baud rates such as 187.5 kbit/s, segment length can extend up to 1,000 meters. For larger plant areas, RS485 repeaters can be used to extend the network without reducing baud rate, ensuring that communication latency remains within the deterministic bounds required for real-time control.

Q2: Is the 6ES7153-2BA10-0XB0 compatible with both SIMATIC S7-300 and S7-400 controllers, and can it operate with third-party PROFIBUS DP masters?
Yes. The 6ES7153-2BA10-0XB0 is fully compatible with SIMATIC S7-300 and S7-400 PLC systems as the DP master. It also supports standard PROFIBUS DP V0/V1/V2 protocol, making it interoperable with third-party DP masters from other manufacturers that comply with the IEC 61158 standard. GSD (General Station Description) files are available for integration into non-Siemens engineering environments.

Q3: How does the 6ES7153-2BA10-0XB0 support network stability in high-noise industrial environments?
The module is designed to operate reliably in electrically noisy industrial environments. PROFIBUS DP uses RS485 differential signaling, which provides inherent noise immunity. The ET 200M station’s shielded backplane bus further reduces electromagnetic interference. For installations near high-power drives or welding equipment, proper cable shielding, grounding, and the use of PROFIBUS-certified connectors are recommended. The module’s diagnostic functions continuously monitor network health and report bus errors to the S7 controller, enabling proactive maintenance before communication failures occur.

Q4: What does the 12-month warranty cover, and what is the process for warranty claims?
The 12-month warranty covers all verified hardware defects, including communication failures, connector damage, and component faults that arise under normal operating conditions. Each unit is tested for PROFIBUS DP connectivity and data integrity before shipment. To initiate a warranty claim, contact ZYPLC at [email protected] or +86 19859288691 with your order number and a description of the fault. ZYPLC will arrange for unit inspection and provide a full replacement or refund upon defect confirmation, typically within 5–7 business days.
