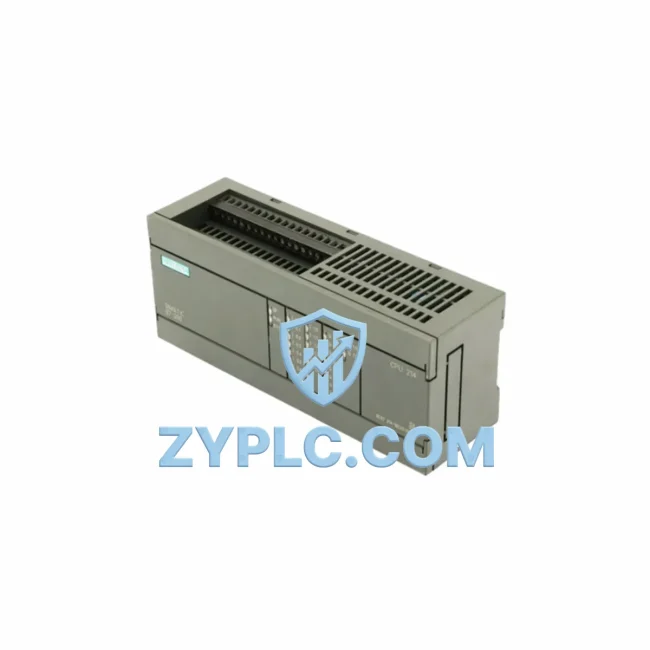

Siemens 6ES7214-1BC01-0XB0 Industrial Network Interface for S7-200 Systems

Siemens 6ES7214-1BC01-0XB0: Industrial Data Link for S7-200 Smart Factory Networks

The Siemens 6ES7214-1BC01-0XB0 is a CPU 214 programmable logic controller from the SIMATIC S7-200 series, engineered to serve as a reliable industrial network interface at the heart of field-level automation. With native MPI and PPI communication support, this compact CPU bridges the gap between field devices, remote I/O modules, HMI panels, SCADA systems, and upper-level control platforms — enabling seamless, real-time data flow across the entire production network.

In modern smart factory environments, the ability to maintain uninterrupted data transmission between sensors, actuators, drives, and supervisory systems is critical. The 6ES7214-1BC01-0XB0 delivers exactly that: a deterministic, low-latency communication backbone that supports protocol-level integration with both legacy field buses and contemporary industrial Ethernet architectures.

Network Communication Table

Connected Automation Data Flow

The 6ES7214-1BC01-0XB0 operates as the central processing node in a layered industrial communication architecture. At the field level, digital and analog signals from proximity sensors, temperature transmitters, and pressure transducers are wired directly into the CPU’s onboard I/O. These signals are processed in real time and made available to the broader network through the CPU’s MPI port.

For applications requiring expanded I/O capacity, the Siemens 6ES7231-7PB22-0XA0 analog input module connects seamlessly to the S7-200 bus, feeding process variables such as flow rates and temperature readings into the CPU’s data registers. Similarly, the Siemens 6ES7222-1HF32-0XB0 digital output module extends the CPU’s control reach to actuators, solenoid valves, and motor starters across the production line.

For network-level communication, the Siemens 6ES7212-1BB23-0XB0 PPI communication PLC can operate in a multi-master PPI network alongside the 6ES7214-1BC01-0XB0, enabling peer-to-peer data exchange between controllers without requiring a dedicated communication processor. Where PROFIBUS DP integration is required, the Siemens 6ES7972-0BB12-0XA0 PROFIBUS DP connector provides the physical layer interface to connect the S7-200 network segment to higher-level PROFIBUS masters, including S7-300 and S7-400 systems.

For facilities transitioning toward Industrial Ethernet and PROFINET architectures, the Siemens 6ES7288-1ST40-0AA0 PROFINET gateway for S7-200 SMART and the Siemens 6ES7288-1SR40-0AA0 Ethernet CPU module provide protocol conversion capabilities, allowing legacy S7-200 data to be published onto modern TCP/IP networks and consumed by SCADA platforms, MES systems, and cloud-based analytics engines.

At the HMI layer, operator panels connected via MPI receive real-time process data from the 6ES7214-1BC01-0XB0, enabling operators to monitor production KPIs, acknowledge alarms, and issue setpoint changes without interrupting the control cycle. The Siemens 6ES7214-1AD23-0XB8 MPI gateway PLC further extends this capability by acting as a protocol bridge between the S7-200 MPI segment and upstream SCADA servers running WinCC or third-party supervisory software.

For distributed control topologies, the Siemens 6ES7216-2AD23-0XB0 CPU module in the S7-200 series can be deployed as a remote station, exchanging data with the 6ES7214-1BC01-0XB0 master CPU over PPI, enabling coordinated multi-zone control across large factory floors. The Siemens 6ES7214-1BC10-0XB0 MPI communication CPU provides an alternative node option with enhanced MPI throughput for high-frequency data polling applications.

Where analog signal conditioning is required at remote measurement points, the Siemens 6ES7231-0HC22-0XA8 analog input module integrates into the S7-200 expansion bus, delivering 4–20 mA and 0–10 V signal acquisition directly to the CPU’s process image. This complete data chain — from sensor to CPU to network to SCADA — forms the backbone of a transparent, connected smart factory.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Older field devices may speak only PPI or RS-485 serial, while newer SCADA platforms expect Ethernet-based OPC-UA or PROFINET data streams. The 6ES7214-1BC01-0XB0 addresses this directly: its MPI port supports multi-master communication, allowing multiple HMI panels, programming devices, and gateway modules to simultaneously access process data without bus contention.

Data silos — where production data is trapped inside a single controller and invisible to plant management systems — are eliminated by pairing the CPU with appropriate communication modules. Protocol conversion gateways translate MPI/PPI data into Modbus TCP, PROFINET, or OPC-UA, making the 6ES7214-1BC01-0XB0’s process variables available to enterprise-level systems for production reporting, OEE calculation, and predictive maintenance analytics.

Remote monitoring and diagnostics are supported through the MPI network: engineering workstations running STEP 7 Micro/WIN can connect to the CPU remotely via MPI repeaters or PC adapters, enabling online program monitoring, force table operations, and fault diagnostics without physical access to the control cabinet. This capability is essential for multi-site operations where minimizing on-site maintenance visits reduces operational costs.

System scalability is built into the S7-200 architecture. As production lines expand, additional expansion modules, communication processors, and remote I/O stations can be added to the network without replacing the core CPU. The 6ES7214-1BC01-0XB0 supports up to 7 expansion modules, providing a clear upgrade path as automation requirements grow. Every unit shipped undergoes functional testing and communication verification before dispatch, ensuring plug-and-play reliability on arrival.

Industrial Connectivity FAQ

Q: What communication protocols does the 6ES7214-1BC01-0XB0 support natively?
A: The CPU 214 natively supports MPI (Multi-Point Interface) and PPI (Point-to-Point Interface) protocols via its RS-485 serial port. PROFIBUS DP connectivity can be added through compatible CP communication modules. For Industrial Ethernet and PROFINET integration, protocol gateway modules such as the 6ES7288-1ST40-0AA0 are recommended.

Q: Can this CPU integrate with SCADA and HMI systems?
A: Yes. The 6ES7214-1BC01-0XB0 is fully compatible with SIMATIC HMI panels and WinCC SCADA software via MPI. Third-party SCADA systems can access process data through MPI-to-Ethernet gateways or OPC server software, enabling real-time visualization, alarm management, and historical data logging.

Q: How is network stability ensured in multi-node MPI configurations?
A: The MPI network supports up to 32 nodes with deterministic token-passing communication, ensuring predictable cycle times even under high polling loads. Proper termination resistors and cable shielding are recommended for installations exceeding 50 meters. The CPU’s watchdog timer and diagnostic buffers provide automatic fault detection and network health monitoring.

Q: What warranty and pre-shipment testing is provided?
A: Every 6ES7214-1BC01-0XB0 unit is covered by a 12-month warranty. Prior to shipment, each unit undergoes functional testing including power-on verification, I/O channel testing, and communication port validation. Stock is maintained for immediate dispatch, with lead times typically within 3–5 business days for standard orders.
