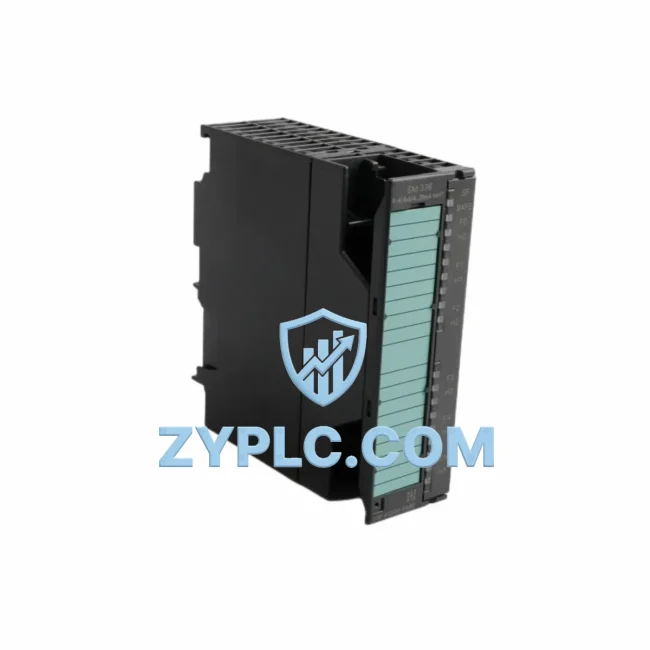

Siemens 6ES7336-4GE00-0AB0 Industrial Network Interface for S7-300 Systems

Siemens 6ES7336-4GE00-0AB0 SM 336 F-AI: Industrial Data Link for Smart Factory Connectivity

The Siemens 6ES7336-4GE00-0AB0 is a high-integrity SM 336 F-AI (Failsafe Analog Input) module engineered for the SIMATIC S7-300 platform. Designed to serve as a critical node in industrial data networks, this module bridges field-level analog signals — from pressure transmitters, temperature sensors, and flow meters — directly into the PROFIBUS-DP communication backbone, enabling real-time data acquisition, protocol-transparent transmission, and seamless integration with SCADA, DCS, and HMI supervisory systems. In smart factory environments where data continuity and functional safety are non-negotiable, the 6ES7336-4GE00-0AB0 delivers the reliability and deterministic response times that modern industrial automation demands.

At its core, the SM 336 F-AI module captures analog process values from up to 6 failsafe input channels, converting them into digital engineering values that are transmitted over PROFIBUS-DP to the S7-300 CPU — such as the CPU 315F-2 PN/DP or CPU 317F-2 DP — for processing within the safety program. This signal chain forms the foundation of a transparent, low-latency data flow that supports both standard automation tasks and IEC 61508 SIL 2 / SIL 3 safety functions. The module’s tight integration with the SIMATIC S7-300 rack architecture ensures minimal cycle time overhead, making it ideal for high-speed process control loops in chemical plants, oil and gas facilities, and automotive manufacturing lines.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 6ES7336-4GE00-0AB0 sits at the intersection of field instrumentation and the plant-wide communication network. Field devices — including SITRANS P320 pressure transmitters, SITRANS TH400 temperature transmitters, and safety-rated flow sensors — feed analog 4–20 mA or ±10 V signals into the SM 336 F-AI’s input channels. These signals are digitized and transmitted over the PROFIBUS-DP segment to the S7-300 safety CPU, where the F-CPU 315F-2 PN/DP executes the safety program and forwards process data upstream.

The PROFIBUS-DP master interface on the CPU connects to a SCALANCE X208 industrial Ethernet switch via a DP/PN coupler (6GK1415-2AA10), bridging the PROFIBUS segment into the plant’s PROFINET backbone. From there, data flows to the SIMATIC WinCC SCADA server for real-time visualization, alarm management, and historian logging. Operators at SIMATIC HMI TP1200 Comfort panels can monitor analog process values, acknowledge safety alarms, and initiate remote diagnostics without leaving the control room.

For distributed installations, the SM 336 F-AI can be deployed in an ET 200M remote I/O station connected via PROFIBUS-DP to the central S7-300 rack, extending the safety network across large plant footprints. The IM 153-2 interface module within the ET 200M station manages the PROFIBUS communication, ensuring that failsafe analog data from remote field zones reaches the safety CPU with deterministic timing. Variable-speed drives such as the SINAMICS G120 frequency inverter can also be integrated into the same PROFIBUS segment, allowing the safety CPU to monitor drive status and trigger safe-stop functions based on analog process feedback from the SM 336 F-AI.

At the edge, SIMATIC IPC427E industrial PCs running edge analytics software can subscribe to process data via OPC UA gateways, enabling predictive maintenance algorithms to analyze analog trend data from the 6ES7336-4GE00-0AB0 alongside vibration and temperature readings from other field devices. This end-to-end data chain — from sensor to edge to cloud — exemplifies the connectivity value that the SM 336 F-AI delivers in Industry 4.0 architectures.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation: field devices speaking proprietary analog protocols that cannot be directly integrated into modern PROFIBUS-DP or PROFINET networks. The Siemens 6ES7336-4GE00-0AB0 addresses this by acting as a protocol gateway at the I/O level — converting raw analog signals into structured PROFIBUS-DP data frames that any DP master can consume. This eliminates the data silos that arise when safety-critical analog measurements are trapped in standalone instruments with no network connectivity.

Remote monitoring is another area where the SM 336 F-AI excels. By integrating with the S7-300 safety CPU’s diagnostic buffer and PROFIBUS-DP alarm reporting, the module enables remote fault detection and channel-level diagnostics accessible from the SCADA system or via the SIMATIC Remote Service platform. Maintenance engineers can identify a failing sensor channel, review the analog value history, and dispatch a technician — all without a physical site visit, reducing mean time to repair (MTTR) and minimizing unplanned downtime.

Production line transparency is achieved through the module’s cyclic data exchange, which ensures that every scan cycle delivers fresh analog values to the control system. This real-time visibility supports OEE (Overall Equipment Effectiveness) calculations, energy monitoring, and quality control applications. As production requirements evolve, the S7-300 platform’s modular architecture allows additional SM 336 F-AI modules to be added to the rack or distributed ET 200M stations, scaling the safety I/O network without redesigning the communication infrastructure.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6ES7336-4GE00-0AB0 on a PROFIBUS-DP network?
The SM 336 F-AI participates in the PROFIBUS-DP cyclic data exchange managed by the S7-300 CPU. Typical bus cycle times range from 1 ms to 10 ms depending on the number of DP slaves and the configured baud rate (up to 12 Mbit/s). For safety applications, the F-CPU’s safety program cycle time adds an additional layer of determinism, ensuring that failsafe analog values are processed within the configured F-monitoring time.

Q2: Is the 6ES7336-4GE00-0AB0 compatible with both SIL 2 and SIL 3 safety applications?
Yes. The SM 336 F-AI is certified to IEC 61508 for use in SIL 2 applications in single-channel configuration and SIL 3 applications in redundant or diverse configurations when combined with an appropriate F-CPU and safety program. Compatibility with the specific safety architecture must be verified against the module’s Safety Manual (A5E00085586).

Q3: Can the SM 336 F-AI be used in an ET 200M distributed I/O station for remote installations?
Absolutely. The 6ES7336-4GE00-0AB0 is fully compatible with the ET 200M distributed I/O system using the IM 153-2 or IM 153-4 PN interface module. This allows failsafe analog inputs to be located up to 1,200 m from the S7-300 CPU over PROFIBUS-DP (at 187.5 kbit/s), making it ideal for large-scale process plants where field devices are distributed across multiple zones.

Q4: What quality assurance and warranty coverage is provided with this module?
Every Siemens 6ES7336-4GE00-0AB0 supplied by ZYPLC undergoes pre-shipment functional testing to verify channel integrity, PROFIBUS-DP communication, and failsafe diagnostic response. All units are covered by a 12-month warranty from the date of shipment. In-stock inventory is available for immediate dispatch, with global shipping support. For volume orders or urgent requirements, contact our team directly.
