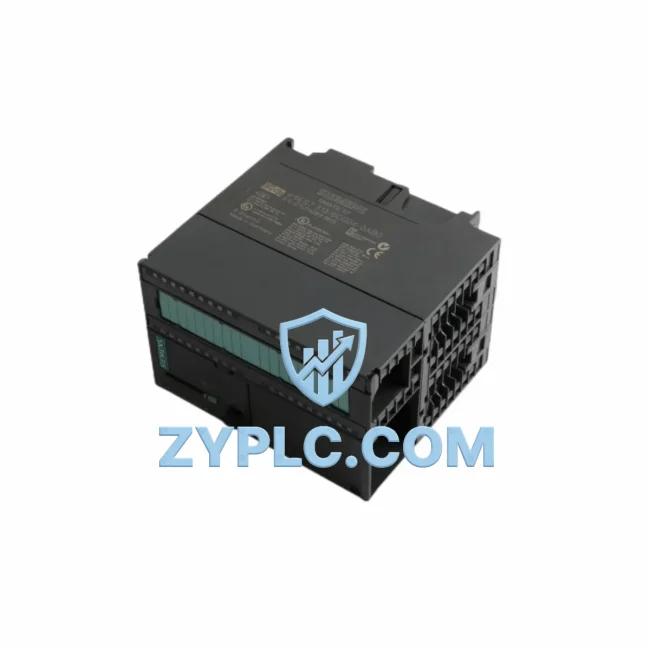

Siemens 6ES7354-1AH01-0AE0 FM354 Industrial Network Interface for S7-300 Systems

Siemens 6ES7354-1AH01-0AE0 FM354: Industrial Data Link and Smart Factory Connectivity for S7-300 Systems

The Siemens 6ES7354-1AH01-0AE0 FM 354 Positioning Module is a high-performance industrial network interface engineered for seamless integration within SIMATIC S7-300 automation architectures. Designed to bridge the gap between field-level motion control and plant-wide data networks, this module delivers deterministic, real-time axis positioning data across PROFIBUS-DP communication backbones — making it a critical node in modern smart factory deployments where data transparency, low-latency feedback, and system interoperability are non-negotiable.

In today’s industrial environment, the ability to move accurate positioning data from servo drives and stepper actuators up through PLC controllers, into SCADA supervisory systems, and ultimately to MES or cloud-based analytics platforms defines operational excellence. The 6ES7354-1AH01-0AE0 fulfills this role by acting as a dedicated function module within the S7-300 rack, offloading complex motion calculations from the CPU and transmitting structured process data over the PROFIBUS-DP network at cycle times that match the demands of high-speed production lines.

Network Communication Table

Connected Automation Data Flow

Understanding how the 6ES7354-1AH01-0AE0 fits into a complete industrial data chain is essential for system integrators and automation engineers. At the field level, encoder feedback signals and drive command outputs are processed directly by the FM 354 module. These signals originate from servo drives or stepper motor controllers — such as those in the SINAMICS S120 drive family — and are conditioned into structured positioning data blocks that the S7-300 CPU can consume via the internal backplane bus.

Once the CPU — for example, a SIMATIC S7-315-2 DP or S7-317-2 DP — receives the positioning status data, it forwards aggregated process values upstream over the PROFIBUS-DP network. Remote I/O stations such as the ET 200S or ET 200M distributed I/O systems can coexist on the same PROFIBUS segment, collecting sensor signals from proximity switches, photoelectric barriers, and pressure transducers, all feeding into the same data pipeline.

At the supervisory layer, SIMATIC WinCC SCADA software or a SIMATIC HMI panel — such as the TP700 Comfort or KTP900 Basic — reads real-time axis position, velocity setpoints, and fault status registers from the S7-300 CPU via MPI or PROFIBUS-DP. This enables operators to visualize machine state, configure motion profiles, and acknowledge alarms without interrupting production cycles. For plants requiring remote access, a SCALANCE X208 industrial Ethernet switch or a SINAUT telecontrol gateway can bridge the PROFIBUS segment to a higher-level Ethernet backbone, enabling remote diagnostics and OPC UA data publishing to MES or cloud platforms.

In multi-axis or multi-zone production environments, the FM 354 module can be paired with additional function modules within the same S7-300 rack — such as the FM 353 stepper module or FM 357-2 multi-axis module — allowing engineers to scale positioning capability without redesigning the network topology. Each module communicates independently with the CPU, ensuring that a fault in one axis does not cascade across the entire control network.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and mixed-generation industrial facilities is protocol fragmentation. Older field devices may communicate over RS-232, RS-485, or proprietary serial protocols, while newer equipment expects PROFIBUS-DP or Industrial Ethernet. The 6ES7354-1AH01-0AE0, operating natively within the SIMATIC S7-300 ecosystem, eliminates the need for external protocol converters on the motion control segment by providing a standardized PROFIBUS-DP data interface that any DP master can interrogate.

Data silos — where positioning data remains trapped inside a standalone motion controller with no upstream visibility — are directly addressed by the FM 354’s integration into the S7-300 CPU data exchange model. Process values, fault codes, and positioning completion signals are all mapped into the CPU’s process image, making them immediately available to SCADA polling cycles, alarm management systems, and historian databases without additional middleware.

For remote monitoring scenarios, the combination of the FM 354 with a SIMATIC S7-300 CPU featuring integrated PROFIBUS-DP master functionality allows plant engineers to monitor axis status from a central control room or via a VPN-connected engineering workstation running SIMATIC STEP 7 or TIA Portal. This dramatically reduces the need for on-site intervention during fault diagnosis, cutting mean time to repair (MTTR) and improving overall equipment effectiveness (OEE).

Production line transparency is further enhanced when the FM 354’s data is integrated into a plant-wide MES. By publishing positioning cycle counts, error rates, and throughput metrics through the SCADA layer, production managers gain actionable insight into machine utilization, predictive maintenance windows, and quality control checkpoints — all without modifying the underlying motion control logic.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6ES7354-1AH01-0AE0 over PROFIBUS-DP?
The FM 354 exchanges data with the S7-300 CPU via the synchronous backplane bus, with PROFIBUS-DP cycle times configurable from approximately 1 ms to several hundred milliseconds depending on network load and baud rate (up to 12 Mbit/s). For most positioning applications, a DP cycle of 5–10 ms provides sufficient real-time response for axis control and status feedback.

Q2: Is the 6ES7354-1AH01-0AE0 compatible with TIA Portal and STEP 7 V5.x?
Yes. The FM 354 is fully supported under SIMATIC STEP 7 V5.x with the corresponding FM 354 function block library. It is also operable in TIA Portal environments when used with legacy S7-300 hardware configurations. GSD files for PROFIBUS-DP integration are available from Siemens for third-party DP master systems.

Q3: Can the FM 354 module be used in a network with mixed PROFIBUS-DP devices from different vendors?
Yes. PROFIBUS-DP is an open, IEC 61158-compliant standard. The 6ES7354-1AH01-0AE0 operates as a DP slave and can coexist on a PROFIBUS segment with devices from other manufacturers, provided the DP master correctly loads the module’s GSD file and assigns a valid station address. Network stability depends on correct termination, cable quality, and baud rate selection.

Q4: What warranty and quality assurance does ZYPLC provide for the 6ES7354-1AH01-0AE0?
All units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each module undergoes pre-shipment functional testing to verify communication integrity, axis control response, and backplane bus compatibility before dispatch. In-stock units are available for immediate shipment, and our technical team provides post-sale support for integration and commissioning queries.
