Siemens 6ES7390-1AB60-0AA0 Mounting Rail S7-300

Siemens 6ES7390-1AB60-0AA0 Mounting Rail S7-300: Precision Infrastructure for Energy-Efficient Automation

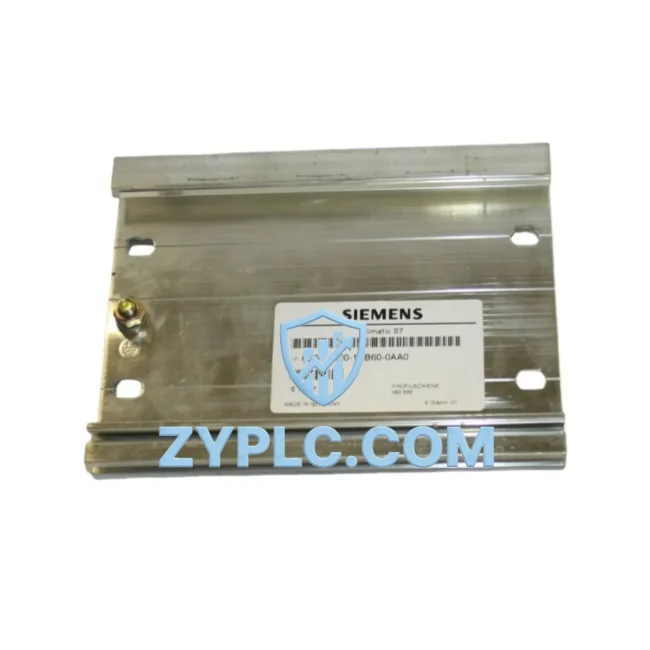

The Siemens 6ES7390-1AB60-0AA0 is a 160mm DIN mounting rail engineered specifically for the SIMATIC S7-300 programmable logic controller platform. Far from being a passive structural component, this mounting rail is the physical backbone that determines how efficiently your entire control cabinet operates — influencing thermal management, module accessibility, signal integrity, and ultimately the energy efficiency of your production line. When your S7-300 modules are correctly seated on a properly rated rail like the 6ES7390-1AB60-0AA0, you eliminate micro-vibration contact losses, reduce heat buildup from poor module seating, and ensure that every CPU, I/O module, and communication processor operates within its optimal thermal envelope.

In modern industrial energy optimization strategies, the physical layer of a control system is often overlooked. Yet a misaligned or undersized mounting rail can cause intermittent module faults, force unnecessary CPU restarts, and introduce latency into control loops — all of which translate directly into wasted energy and reduced equipment utilization. The 6ES7390-1AB60-0AA0 eliminates these risks by providing a rigid, corrosion-resistant steel rail with precise slot geometry that ensures every S7-300 module — from the CPU 314C-2 DP to the SM 321 digital input module and SM 331 analog input module — locks in with zero mechanical play.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6ES7390-1AB60-0AA0 mounting rail is designed to host a complete S7-300 automation node. In a typical energy-optimized production cell, the rail supports a CPU 315-2 DP as the central processing unit, coordinating real-time control loops across the production line via PROFIBUS-DP. Alongside the CPU, engineers commonly install the SM 374 I/O simulation module during commissioning to validate control logic without energizing field devices — a practice that significantly reduces energy consumption during system startup and testing phases.

For drive-level energy control, the S7-300 system mounted on this rail communicates directly with SINAMICS G120 variable frequency drives via PROFIBUS or PROFINET, enabling precise motor speed regulation that eliminates the energy waste of fixed-speed operation. When a conveyor or pump runs at 60% of its rated speed rather than 100%, the energy savings follow the cube law — a 40% speed reduction yields up to 78% reduction in power consumption. The 6ES7390-1AB60-0AA0 rail ensures the CP 342-5 PROFIBUS communication processor maintains a stable physical connection to sustain this drive communication without packet loss or retransmission overhead.

Power quality monitoring is equally critical. The SENTRON PAC3200 power monitoring device, when integrated into the same control architecture, feeds real-time energy consumption data back to the S7-300 CPU, enabling the controller to make dynamic load-shedding decisions. This closed-loop energy feedback — from field sensor through I/O module, CPU processing, and drive output — depends entirely on the mechanical stability that the 6ES7390-1AB60-0AA0 provides. A loose module connection at any point in this chain introduces signal noise that degrades control accuracy and increases energy waste.

For analog process control, the SM 331 8-channel analog input module mounted on this rail captures temperature, pressure, and flow signals from field transmitters. These signals feed the CPU’s PID control blocks, which regulate heating elements, pumps, and actuators to maintain process setpoints with minimal overshoot — directly reducing the energy wasted in overcorrection cycles. Similarly, the SM 332 analog output module translates CPU commands into 4–20mA or 0–10V signals that drive proportional control valves and servo amplifiers with the precision needed for energy-efficient process control.

In multi-axis motion applications, the FM 357-2 motion control module can be installed on the same 6ES7390-1AB60-0AA0 rail to coordinate servo drives, ensuring that acceleration and deceleration profiles are optimized for minimum energy consumption while maintaining production throughput targets. The IM 360 interface module extends the rack configuration when additional I/O capacity is required, maintaining the same mechanical and electrical integrity across expanded system configurations.

Power Optimization in Real Production Lines

In automotive body welding lines, food processing facilities, and pharmaceutical packaging operations, the S7-300 platform mounted on 6ES7390-1AB60-0AA0 rails has demonstrated measurable contributions to energy efficiency improvements. The key mechanism is equipment utilization optimization: when the PLC control system operates without hardware-induced faults, production lines maintain their designed cycle times, and machines spend less time in idle or fault-recovery states — both of which consume energy without producing output.

Consider a bottling line where the S7-300 CPU controls filling, capping, and labeling stations. If a loose module connection on a substandard rail causes a sporadic I/O fault, the entire line stops, pneumatic systems continue pressurizing, conveyor motors continue drawing standby current, and heating elements in the filling station maintain temperature — all while producing zero output. A single such fault event lasting 15 minutes on a 200kW production line wastes 50kWh of energy. The 6ES7390-1AB60-0AA0’s precision-machined rail profile prevents exactly this class of fault.

For predictive maintenance integration, the stable module seating provided by this rail ensures that diagnostic data from S7-300 modules — including module temperature, cycle time deviations, and communication error counters — is reliably transmitted to SCADA systems and MES platforms. This data feeds predictive maintenance algorithms that schedule maintenance during planned downtime rather than forcing emergency stops, which are among the most energy-inefficient events in industrial operations.

Inventory management for spare mounting rails is a frequently underestimated aspect of energy efficiency programs. Facilities that maintain a stock of 6ES7390-1AB60-0AA0 rails can execute cabinet rebuilds and system expansions during scheduled maintenance windows, avoiding the extended downtime that occurs when spare parts must be sourced reactively. ZYPLC maintains ready stock of this part, with pre-shipment functional verification and a 12-month warranty on every unit, ensuring that your replacement rail performs identically to the original factory specification.

Energy Optimization FAQ

Q1: How does a mounting rail contribute to energy efficiency in an S7-300 system?
The mounting rail directly affects module contact quality and mechanical stability. Poor module seating increases contact resistance at the backplane bus connectors, which generates heat and can cause intermittent communication errors. These errors trigger CPU fault routines that interrupt production cycles, forcing machines into energy-wasting idle states. The 6ES7390-1AB60-0AA0’s precision geometry ensures consistent module engagement, maintaining optimal backplane bus performance and minimizing fault-induced energy waste.

Q2: Is the 6ES7390-1AB60-0AA0 compatible with all S7-300 modules?
Yes. This rail is the standard 160mm mounting rail for the entire SIMATIC S7-300 module family, including all CPU variants (CPU 312 through CPU 319), all SM digital and analog I/O modules, FM function modules, CP communication processors, and IM interface modules. It is also compatible with PS 307 power supply units. For larger configurations requiring more than 8 modules, additional rails connected via IM 360/361 interface modules are recommended.

Q3: What is the recommended replacement process, and how does ZYPLC support it?
Replacement should be performed during a planned maintenance window. The process involves powering down the S7-300 rack, documenting module positions, removing all modules, unbolting the existing rail, installing the new 6ES7390-1AB60-0AA0 rail, reinstalling modules in their original positions, and performing a system restart with diagnostic verification. ZYPLC provides pre-tested units with a 12-month warranty, and our technical team can advise on replacement procedures. Contact us at plc.sales@zyplc.com or +86 19859288691 for support.

Q4: Does ZYPLC offer testing and warranty coverage for this part?
Every 6ES7390-1AB60-0AA0 unit shipped by ZYPLC undergoes pre-shipment inspection to verify dimensional accuracy and surface finish compliance with Siemens specifications. All units are covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, ZYPLC provides replacement or refund processing within standard lead times. We maintain consistent inventory levels to support both planned procurement and urgent replacement requirements.
