Siemens 6ES7400-0HR51-4AB0 Industrial Network Interface for S7-400 Systems

Siemens 6ES7400-0HR51-4AB0: Industrial Data Link and Smart Factory Connectivity for S7-400 Systems

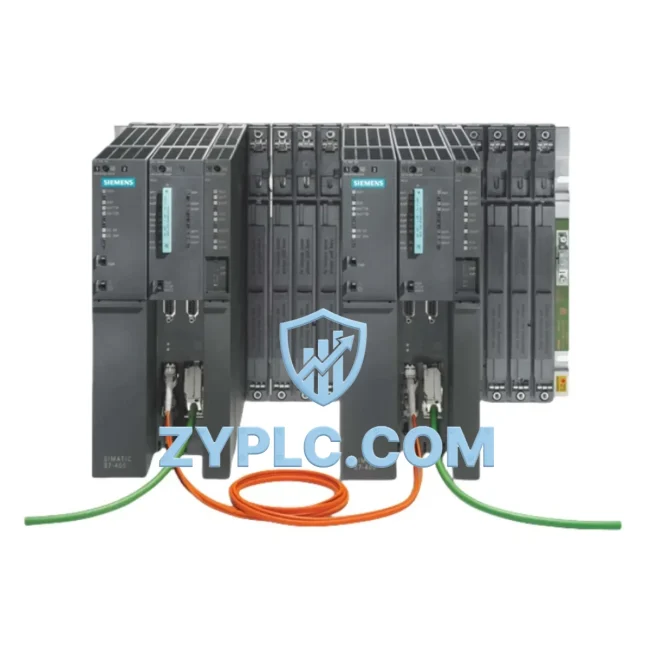

The Siemens 6ES7400-0HR51-4AB0 is a high-density rack module engineered for the SIMATIC S7-400 platform — one of the most robust and widely deployed process automation controllers in heavy industry. Designed to serve as the physical and logical backbone of a distributed control architecture, this rack provides the structural foundation and backplane communication bus that enables seamless data exchange between CPU modules, communication processors, signal modules, and power supply units within the S7-400 chassis. In smart factory environments where uptime, deterministic communication, and real-time data visibility are non-negotiable, the 6ES7400-0HR51-4AB0 delivers the structural integrity and electrical performance required to sustain continuous industrial operations.

At the heart of any SIMATIC S7-400 installation, the rack module defines the system’s scalability and communication density. The 6ES7400-0HR51-4AB0 supports multi-slot expansion, allowing engineers to populate the chassis with a combination of CP 443-1 Ethernet communication processors, CP 443-5 PROFIBUS interface modules, FM 455 function modules for closed-loop control, and IM 460/461 interface modules for multi-rack configurations. This modular architecture ensures that as production lines evolve — adding new sensors, drives, or remote I/O nodes — the control system can scale without requiring a complete redesign.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory, the 6ES7400-0HR51-4AB0 rack sits at the center of a layered communication architecture. Field-level signals originate from distributed sensors — including Siemens SITRANS pressure transmitters, temperature probes, and flow meters — which feed data upward through ET 200M remote I/O stations connected via PROFIBUS-DP. The DP master interface, hosted on a CPU 414-3 or CPU 416-3 PN/DP installed in this rack, cyclically polls all slave nodes, aggregating process values with scan times as low as 1 ms for time-critical loops.

At the drive level, Siemens SINAMICS S120 and G120 variable frequency drives communicate their speed references, torque feedback, and fault diagnostics directly to the S7-400 CPU via PROFIBUS or PROFINET, depending on the CP module installed in the 6ES7400-0HR51-4AB0 rack. This bidirectional data flow enables the PLC to execute coordinated motion sequences, energy optimization routines, and predictive maintenance triggers without relying on manual operator intervention.

For supervisory visibility, the rack’s CPU modules establish an Industrial Ethernet connection — typically through a CP 443-1 Advanced communication processor — to the plant’s SCADA layer. Siemens WinCC or WinCC OA servers receive real-time process data, alarm states, and trend histories from the S7-400 controller, enabling operators to monitor production KPIs, acknowledge faults, and issue setpoint changes from centralized HMI panels or remote workstations. The TP1500 Comfort Panel and TP2200 Comfort Panel are commonly paired with S7-400 systems in this architecture, providing high-resolution visualization of process flows.

At the network infrastructure level, Siemens SCALANCE X208 and X308-2 managed industrial Ethernet switches provide the backbone connectivity between the S7-400 rack, remote I/O cabinets, drive panels, and the SCADA server room. These switches support PROFINET IRT (Isochronous Real-Time) communication, ensuring that time-sensitive control telegrams are delivered with microsecond-level jitter tolerance — a critical requirement for synchronized multi-axis motion and high-speed packaging lines.

For edge computing and remote diagnostics, the S7-400 system can be extended with a Siemens SINEMA Remote Connect gateway or an IE/PB Link PN IO module, enabling secure VPN-based remote access to the controller’s diagnostic buffers, program blocks, and I/O status tables. This capability allows maintenance engineers to perform remote fault analysis, firmware updates, and parameter adjustments without dispatching field technicians — reducing mean time to repair (MTTR) and minimizing unplanned downtime.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — where older field devices speak proprietary or legacy communication standards that cannot natively interface with modern Ethernet-based SCADA and MES systems. The SIMATIC S7-400 platform, anchored by the 6ES7400-0HR51-4AB0 rack, addresses this challenge through its multi-protocol communication architecture. By populating the rack with a combination of CP 443-5 PROFIBUS modules and CP 443-1 Ethernet processors, engineers can simultaneously bridge legacy PROFIBUS DP/PA field networks and modern PROFINET or OPC UA data highways — eliminating data silos without requiring a full system replacement.

Production line transparency is another critical requirement for manufacturers pursuing Industry 4.0 objectives. The S7-400 system’s ability to expose real-time process data via OPC UA server functionality — available through the CP 443-1 Advanced module installed in the 6ES7400-0HR51-4AB0 rack — enables direct integration with MES platforms, ERP systems, and cloud-based analytics engines. This data pathway transforms raw sensor readings and machine states into actionable production intelligence, supporting OEE tracking, quality traceability, and energy consumption monitoring at the line level.

System expansion is handled gracefully through the rack’s IM interface coupling capability. By connecting multiple 6ES7400-0HR51-4AB0 racks via IM 460-3 and IM 461-3 interface modules, engineers can extend the S7-400 system to accommodate hundreds of additional I/O channels without modifying the existing CPU program structure. This scalability is particularly valuable in phased plant expansion projects, where new production cells must be integrated into an existing control architecture with minimal disruption to ongoing operations.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 6ES7400-0HR51-4AB0 support?
The 6ES7400-0HR51-4AB0 rack itself provides the backplane bus infrastructure for the SIMATIC S7-400 system. Protocol support is determined by the communication processor (CP) modules installed in the rack. Common configurations include CP 443-5 for PROFIBUS-DP/PA, CP 443-1 for Industrial Ethernet and PROFINET, and MPI via the CPU’s onboard interface. This multi-protocol flexibility makes the S7-400 platform compatible with virtually all industrial field device ecosystems.

Q2: How does the S7-400 rack ensure network stability in high-interference industrial environments?
The 6ES7400-0HR51-4AB0 is designed to meet IEC 61131-2 environmental standards, with robust EMC shielding and vibration resistance suitable for heavy industrial applications. The backplane bus architecture isolates inter-module communication from external electrical noise, while the PROFIBUS and PROFINET protocols incorporate built-in error detection and retry mechanisms that maintain data integrity even in electrically noisy environments such as welding shops, motor control centers, and high-voltage switchgear rooms.

Q3: Can the 6ES7400-0HR51-4AB0 rack be integrated with third-party SCADA and HMI systems?
Yes. Through OPC DA/UA server functionality available via the CP 443-1 Advanced communication processor, the S7-400 system can expose its process data to any OPC-compliant SCADA platform, including Wonderware, iFIX, Ignition, and Inductive Automation systems. Additionally, the system supports S7 communication protocol, which is natively supported by most industrial HMI and SCADA software packages, ensuring broad third-party compatibility.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 6ES7400-0HR51-4AB0?
Every 6ES7400-0HR51-4AB0 unit supplied by ZYPLC undergoes pre-shipment functional verification, including visual inspection, power-on testing, and communication bus integrity checks. All units are covered by a 12-month warranty from the date of shipment. ZYPLC maintains in-stock inventory of S7-400 series components to support urgent project timelines, with global DHL/FedEx express shipping and full export documentation available for international orders.

—
