Siemens 6ES7511-1CK01-0AB0 Industrial Network Interface for SIMATIC S7-1500

Siemens 6ES7511-1CK01-0AB0 Industrial Network Interface for SIMATIC S7-1500 Systems

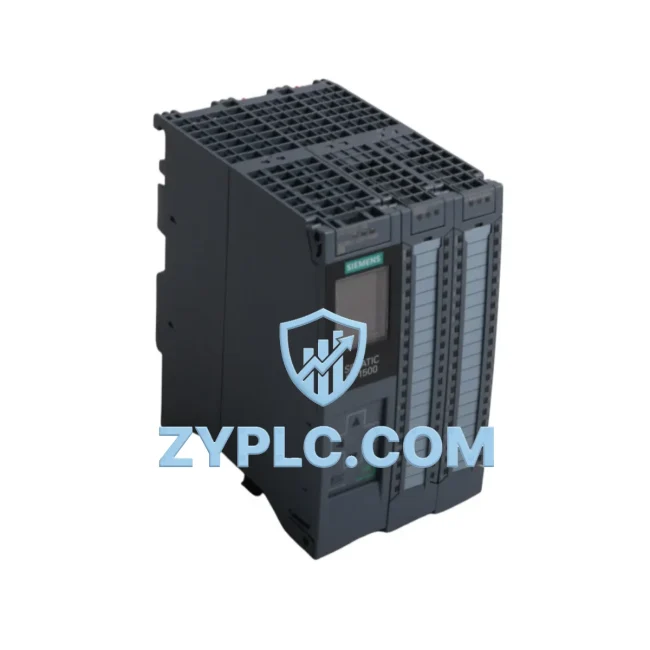

The Siemens 6ES7511-1CK01-0AB0 is a high-performance Compact CPU module from the SIMATIC S7-1500 series, engineered to serve as the central intelligence and industrial network interface in modern smart factory environments. Designed for demanding automation applications, this unit integrates PROFINET communication natively, enabling seamless data exchange across field devices, distributed I/O systems, HMI panels, SCADA platforms, and enterprise-level MES/ERP systems. Whether deployed in discrete manufacturing, process automation, or hybrid production lines, the 6ES7511-1CK01-0AB0 delivers the connectivity, determinism, and diagnostic depth that Industry 4.0 demands.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory architecture, the Siemens 6ES7511-1CK01-0AB0 acts as the central data hub connecting every layer of the automation pyramid. At the field level, distributed sensors and actuators — including Siemens SIRIUS 3RK3 motor management relays and ET 200SP remote I/O modules — transmit real-time process values via PROFINET IO to the CPU. The 6ES7511-1CK01-0AB0 processes these signals at sub-millisecond cycle times, ensuring deterministic control even in high-speed packaging or precision assembly lines.

Moving up the network hierarchy, the CPU interfaces directly with Siemens SIMATIC HMI Comfort Panels (such as the TP1200 Comfort) over PROFINET, delivering live process visualization, alarm management, and operator control without additional gateway hardware. For multi-controller environments, the 6ES7511-1CK01-0AB0 communicates peer-to-peer with other S7-1500 CPUs — including the 6ES7515-2AM01-0AB0 and 6ES7516-3AN01-0AB0 — using S7 communication and open IE protocols, enabling coordinated motion sequences and synchronized production zones.

At the SCADA and MES integration layer, the CPU’s built-in OPC UA server capability allows WinCC SCADA systems and third-party supervisory platforms to subscribe to live process tags without custom middleware. Siemens SCALANCE X208 and X308-2 managed industrial Ethernet switches provide the network backbone, ensuring ring redundancy (MRP) and prioritized PROFINET traffic across the plant floor. For legacy device integration, a Siemens CM 1241 RS485 communication module or CP 1542-5 PROFIBUS master can be mounted on the S7-1500 rack, bridging older Modbus RTU sensors, PROFIBUS DP drives, and third-party frequency inverters into the unified PROFINET data stream.

Variable-speed drives such as the Siemens SINAMICS G120 series connect to the 6ES7511-1CK01-0AB0 via PROFINET with PROFIdrive profile, enabling closed-loop speed and torque control with full diagnostic feedback — motor temperature, fault codes, and energy consumption — all visible in real time through the TIA Portal engineering environment. Edge computing nodes, such as the Siemens SIMATIC IPC227E industrial PC, can subscribe to OPC UA data published by the CPU, enabling local AI inference, predictive maintenance algorithms, and cloud forwarding to Siemens MindSphere or third-party IoT platforms without disrupting the real-time control layer.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across generations of equipment. A typical plant may operate PROFIBUS DP legacy drives alongside newer PROFINET IO devices, Modbus TCP energy meters, and proprietary serial sensors — each forming a data silo that prevents unified monitoring and control. The Siemens 6ES7511-1CK01-0AB0 directly addresses this challenge through its multi-protocol support architecture and the TIA Portal’s integrated communication function blocks.

By centralizing protocol conversion within the S7-1500 CPU — rather than relying on standalone gateways — the 6ES7511-1CK01-0AB0 reduces network latency, eliminates single points of failure, and simplifies diagnostics. Plant engineers can use the CPU’s integrated web server to access real-time diagnostic pages from any browser on the plant network, identifying communication faults, cycle time overruns, or device dropouts without physical access to the control cabinet. Remote access via Siemens SINEMA Remote Connect or a SCALANCE M876 LTE router further extends this visibility to off-site maintenance teams, enabling remote firmware updates, parameter changes, and fault acknowledgment.

For production line transparency, the 6ES7511-1CK01-0AB0 supports structured data logging to SIMATIC S7-1500 DataLogs, which can be exported via FTP or read by WinCC DataConnector for long-term trend analysis and OEE reporting. System expansion is equally straightforward: additional ET 200MP or ET 200SP I/O stations can be added to the PROFINET ring without stopping production, and the TIA Portal’s hardware configuration tool automatically detects and integrates new devices. This scalability ensures that the 6ES7511-1CK01-0AB0 remains the connectivity backbone as production capacity grows.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6ES7511-1CK01-0AB0 in PROFINET IRT mode?
In PROFINET IRT (Isochronous Real-Time) mode, the 6ES7511-1CK01-0AB0 achieves cycle times as low as 250 µs with jitter below 1 µs, making it suitable for high-precision motion control and synchronized multi-axis applications. Standard RT mode supports cycle times from 1 ms, sufficient for the majority of process and discrete automation tasks.

Q2: Is the 6ES7511-1CK01-0AB0 compatible with third-party PROFINET devices and non-Siemens SCADA systems?
Yes. The 6ES7511-1CK01-0AB0 is fully compliant with the PROFINET IO standard (IEC 61158 / IEC 61784), ensuring interoperability with certified PROFINET devices from any manufacturer. Its OPC UA server interface (DA and Alarm & Conditions) is compatible with third-party SCADA platforms including Wonderware, Ignition, and iFIX, enabling open integration without vendor lock-in.

Q3: How is network stability ensured in large-scale PROFINET topologies?
The 6ES7511-1CK01-0AB0 supports Media Redundancy Protocol (MRP) for ring topology fault recovery in under 200 ms, and works in conjunction with Siemens SCALANCE managed switches to implement PROFINET-aware VLAN segmentation and bandwidth reservation. Integrated network diagnostics in TIA Portal provide real-time topology views, port statistics, and alarm forwarding to the SCADA layer.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every 6ES7511-1CK01-0AB0 unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including power-on self-test, PROFINET communication handshake validation, and firmware version confirmation. The 12-month warranty covers hardware defects and communication failures under normal operating conditions. Replacement or repair is arranged promptly, with technical support available via +86 19859288691 or [email protected].
