Siemens 6ES7592-1AM00-0XB0 Industrial Network Interface for S7-1500 Systems

Siemens 6ES7592-1AM00-0XB0: Industrial Data Link Interface for SIMATIC S7-1500 Smart Factory Systems

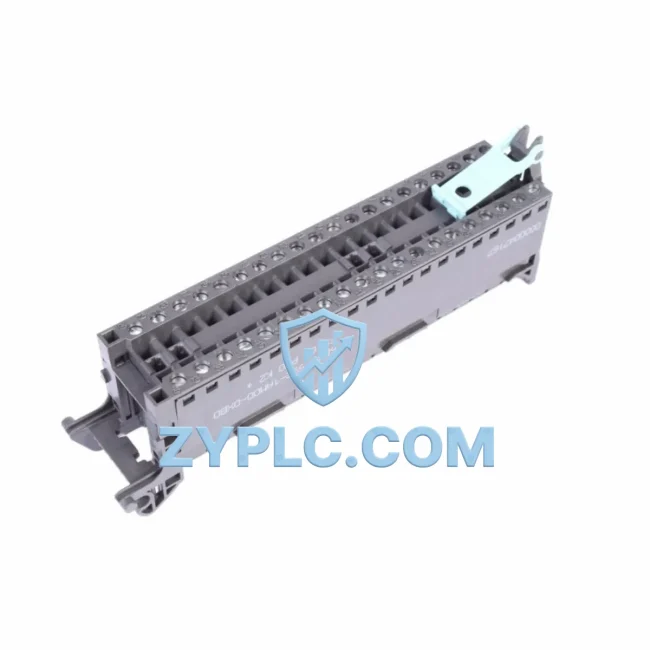

The Siemens 6ES7592-1AM00-0XB0 is a 40-pin screw-type front connector engineered for the SIMATIC S7-1500 PLC series, serving as the critical physical interface between field-level signal wiring and the CPU’s I/O modules. In modern smart factory environments, where data must flow seamlessly from sensors and actuators through PLC controllers to SCADA systems and MES platforms, the integrity of every wiring connection point is non-negotiable. The 6ES7592-1AM00-0XB0 delivers exactly that — a robust, vibration-resistant, and electrically reliable termination point that underpins the entire automation data chain.

Designed for 35mm DIN rail mounting and compatible with a wide range of S7-1500 signal modules, this front connector supports the dense I/O architectures demanded by high-channel-count production lines. Whether deployed in automotive body-in-white assembly, pharmaceutical batch processing, food and beverage packaging, or energy management substations, the 6ES7592-1AM00-0XB0 ensures that every digital and analog signal reaches the CPU without loss, noise, or interruption.

Network Communication Table

Connected Automation Data Flow

In a fully integrated SIMATIC S7-1500 automation architecture, the 6ES7592-1AM00-0XB0 front connector sits at the very first node of the industrial data chain. Field-level sensors — including Siemens SIRIUS 3RG series proximity sensors and IO-Link-enabled smart sensors — terminate their signal cables directly into this connector, which then interfaces with S7-1500 digital input modules such as the 6ES7521-1BH00-0AB0 (DI 16x24VDC HF). From there, the S7-1500 CPU — for example the CPU 1515-2 PN (6ES7515-2AM02-0AB0) — processes the incoming signals and executes the control logic in real time.

On the output side, the front connector equally serves S7-1500 digital output modules like the 6ES7522-1BH01-0AB0 (DQ 16x24VDC/0.5A HF), driving actuators, solenoid valves, and motor starters across the production floor. Analog signals from pressure transmitters, flow meters, and temperature sensors are routed through analog input modules such as the 6ES7531-7KF00-0AB0 (AI 8xU/I/RTD/TC ST), with the 6ES7592-1AM00-0XB0 providing the secure screw-terminal connection that prevents signal drift under vibration or thermal cycling.

At the network layer, the S7-1500 CPU communicates upstream via PROFINET to a Siemens SCALANCE X208 industrial Ethernet switch, aggregating data from multiple PLCs across the production line into a unified network segment. This data is then forwarded to a Siemens SINAUT ST7 remote gateway or directly to a WinCC SCADA server, where operators monitor real-time process values, set alarm thresholds, and generate production reports. Remote I/O stations — such as the ET 200SP distributed I/O system with its own front connectors (6ES7592-1BM00-0XA0 for 15mm modules) — extend the S7-1500 network to field cabinets located hundreds of meters from the main control panel, all communicating over PROFINET with deterministic cycle times.

Variable frequency drives (VFDs) such as the Siemens SINAMICS G120 series receive speed and torque setpoints from the S7-1500 via PROFINET or USS protocol, with the drive’s status feedback looped back through the same network to the SCADA dashboard. HMI panels — including the Siemens SIMATIC HMI TP1200 Comfort — display live process data pulled directly from the S7-1500 data blocks, giving line operators immediate visibility into machine states, cycle counts, and fault conditions. Edge computing gateways such as the Siemens SIMATIC IPC127E aggregate historian data from multiple S7-1500 controllers and push it to cloud-based MES or ERP platforms, completing the data flow from physical signal at the 6ES7592-1AM00-0XB0 terminal all the way to enterprise-level analytics.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is data isolation — where field devices, PLCs, and supervisory systems operate in disconnected silos, making it impossible to achieve true production transparency. The Siemens 6ES7592-1AM00-0XB0, as part of the SIMATIC S7-1500 ecosystem, directly addresses this problem by providing a standardized, reliable wiring interface that supports the full PROFINET and PROFIBUS communication stack.

When plants upgrade from older S7-300 or S7-400 systems to the S7-1500 platform, the front connector design ensures that existing field wiring can be re-terminated quickly and accurately, reducing migration downtime. The screw-type termination accommodates wire cross-sections from 0.14mm² to 1.5mm², covering the full range of sensor and actuator cables used in industrial installations, and the color-coded connector body prevents mis-wiring during commissioning.

For remote monitoring and diagnostics, the S7-1500 CPU’s built-in web server and TIA Portal integration allow engineers to access module diagnostics, channel-level fault information, and network statistics without physically visiting the control cabinet. This capability — enabled by the reliable signal path that starts at the 6ES7592-1AM00-0XB0 — reduces mean time to repair (MTTR) and supports predictive maintenance strategies. Production line transparency is further enhanced through OPC UA server functionality built into the S7-1500 CPU, allowing SCADA, MES, and cloud platforms to subscribe to real-time process data using a vendor-neutral protocol.

System expansion is equally straightforward: additional S7-1500 I/O modules can be added to the rack and wired using additional 6ES7592-1AM00-0XB0 front connectors, with TIA Portal automatically recognizing the new hardware configuration. This plug-and-expand architecture means that as production capacity grows, the automation network scales without requiring redesign of the existing wiring infrastructure.

Every unit of the 6ES7592-1AM00-0XB0 supplied by ZYPLC undergoes pre-shipment functional testing to verify connector integrity, terminal torque compliance, and compatibility with S7-1500 module slots. Stock is maintained for immediate dispatch, and all units are covered by a 12-month warranty from the date of shipment.

Industrial Connectivity FAQ

Q1: Is the 6ES7592-1AM00-0XB0 compatible with all S7-1500 I/O modules?
The 6ES7592-1AM00-0XB0 is designed for S7-1500 I/O modules with a 35mm module width. For 15mm-wide modules (such as those in the ET 200SP family), the correct front connector is the 6ES7592-1BM00-0XA0. Always verify the module width before ordering to ensure mechanical compatibility.

Q2: Does this front connector affect PROFINET communication latency?
No. The 6ES7592-1AM00-0XB0 is a passive wiring interface and does not introduce any latency into the PROFINET or PROFIBUS communication cycle. Network cycle times are determined entirely by the S7-1500 CPU configuration and the PROFINET controller settings in TIA Portal. Proper termination using this connector actually reduces signal noise, which can improve communication reliability in electrically noisy environments.

Q3: Can the front connector be replaced without rewiring the field cables?
Yes. The 6ES7592-1AM00-0XB0 is designed to be removed from the I/O module while retaining the field wiring in the connector body. This means that if an I/O module needs to be replaced, the front connector — with all its wired terminals — can be unplugged from the faulty module and plugged directly into the replacement module, eliminating the need to re-terminate individual wires and dramatically reducing module swap time.

Q4: What warranty and testing does ZYPLC provide for this part?
All 6ES7592-1AM00-0XB0 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit is tested before dispatch to verify mechanical integrity and terminal function. In-stock units are available for same-day or next-day shipment. For volume orders or urgent requirements, contact our team directly for lead time confirmation and pricing.
