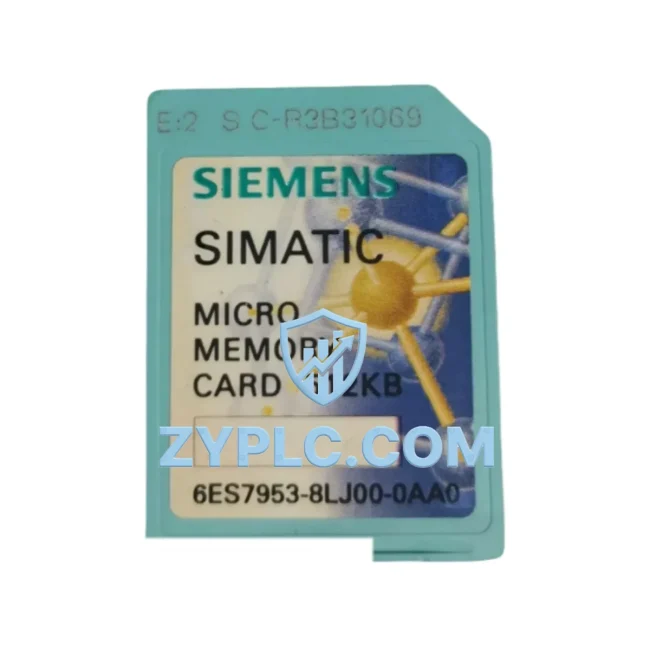

Siemens 6ES7953-8LJ00-0AA0 MMC for S7-300 Architecture

Siemens 6ES7953-8LJ00-0AA0 MMC for S7-300 Architecture: Control System Coordination and Upstream-Downstream Synergy

The Siemens 6ES7953-8LJ00-0AA0 is a Micro Memory Card (MMC) engineered specifically for the SIMATIC S7-300 programmable logic controller platform. Within a layered industrial automation architecture, this component occupies a foundational role at the control layer — serving as the non-volatile program and data storage medium for the CPU module. Unlike volatile RAM-based storage, the MMC retains the user program, configuration data, and force tables independently of the power supply state, making it indispensable for system reliability, rapid restart capability, and long-term maintenance efficiency across demanding industrial environments.

In a complete S7-300 control system, the 6ES7953-8LJ00-0AA0 interfaces directly with the CPU module — such as the CPU 314, CPU 315-2 DP, or CPU 317-2 PN/DP — and stores the compiled STEP 7 program blocks, data blocks, and system function blocks that govern the entire automation sequence. The MMC is inserted into the dedicated card slot on the CPU front panel and is recognized automatically upon power-up, enabling the CPU to load the program without requiring a programming device connection. This plug-and-play architecture significantly reduces commissioning time during initial installation and accelerates recovery during unplanned downtime events.

From a system architecture perspective, the 6ES7953-8LJ00-0AA0 supports the seamless coordination between the control layer and the I/O layer. When paired with digital input/output modules such as the SM 321 or SM 322, or analog I/O modules from the SM 331/SM 332 series, the CPU relies on the MMC-stored program to execute scan cycles, process field signals, and generate control outputs with deterministic timing. The integrity of the stored program directly determines the accuracy of signal flow from field instruments through the I/O bus to the CPU and back to actuators and drives.

At the network layer, the S7-300 CPU modules that utilize this MMC are commonly configured for PROFIBUS-DP or PROFINET communication. The MMC stores the GSD-based network configuration and communication parameters that define how the CPU interacts with distributed I/O stations, remote ET 200 I/O racks, frequency inverters, and intelligent field devices. Maintaining a correctly programmed MMC ensures that network topology changes, baud rate settings, and device address assignments are preserved across power cycles — a critical requirement in multi-node PROFIBUS architectures where re-parameterization would otherwise require manual intervention.

The power layer of the S7-300 system — typically anchored by a PS 307 power supply module — provides the stable 24 VDC rail that powers both the CPU and the MMC interface. Because the 6ES7953-8LJ00-0AA0 is a non-volatile flash-based device, it does not require a backup battery for program retention, unlike earlier EPROM-based memory solutions. This eliminates a common maintenance burden and reduces the risk of program loss due to battery depletion, contributing to lower total cost of ownership over the system lifecycle.

In human-machine interface (HMI) integration scenarios, the program stored on the 6ES7953-8LJ00-0AA0 defines the data tags, alarm structures, and communication variables that are exposed to SIMATIC HMI panels such as the TP700 Comfort or MP377. The consistency between the CPU program and the HMI project depends on the MMC holding the correct and version-matched program image. During system upgrades or panel replacements, the MMC serves as the authoritative source of the control logic, ensuring that the HMI visualization layer remains synchronized with the actual automation behavior.

For redundancy-conscious system designs, the 6ES7953-8LJ00-0AA0 supports rapid CPU replacement strategies. In the event of a CPU hardware failure, a replacement CPU module can be inserted with the original MMC, and the system will automatically load the stored program and resume operation — a capability that dramatically reduces mean time to repair (MTTR) in critical process environments such as power generation, petrochemical processing, and water treatment facilities. This hot-swap-compatible memory architecture is a key enabler of high-availability control system design without the complexity of full redundant CPU configurations.

The 6ES7953-8LJ00-0AA0 is also compatible with the S7-300 modular rack system, which accommodates up to 8 signal modules per rack and supports multi-rack expansion via the IM 360/IM 361 interface modules. As the system scales — adding additional SM 323 combined I/O modules, CP 343-1 communication processors, or FM 350 counter modules — the MMC-stored program grows in complexity, and the 8 MB capacity of this card provides ample headroom for large-scale S7-300 configurations. Engineers can store multiple program versions, diagnostic data, and recipe datasets within the available memory space, supporting flexible production management and batch control applications.

All units of the Siemens 6ES7953-8LJ00-0AA0 supplied by ZYPLC are covered by a 12-Month Warranty and undergo functional verification prior to dispatch. Our inventory is sourced from authorized distribution channels, and each card is tested for read/write integrity and compatibility with standard S7-300 CPU platforms. We support contextual integration inquiries — including program transfer procedures, CPU compatibility verification, and system architecture consultation — to ensure that your procurement decision aligns with your specific control system requirements.

Architecture Specification Table

Coordinated Control System Design

The 6ES7953-8LJ00-0AA0 operates at the heart of a coordinated S7-300 control system. A typical architecture built around this MMC includes the following coordinated components:

The CPU 315-2 DP or CPU 317-2 PN/DP serves as the processing core, executing the program stored on the MMC at each scan cycle. The PS 307 5A power supply module provides the regulated 24 VDC bus that powers the CPU rack and all installed signal modules. Digital I/O is handled by SM 321 (32 DI) and SM 322 (32 DO) modules, which receive field signals from sensors and transmit switching commands to actuators. Analog process values — such as temperature, pressure, and flow — are acquired through SM 331 (8 AI) modules and converted to engineering units within the CPU program stored on the MMC.

Network connectivity is extended via the CP 343-1 Lean communication processor, which enables Ethernet-based PROFINET communication to supervisory SCADA systems and remote HMI stations. For PROFIBUS-DP field networks, the CPU’s integrated DP port connects to distributed ET 200M remote I/O stations, expanding the I/O footprint beyond the local rack without additional CPU resources. The IM 360 / IM 361 interface modules support multi-rack expansion, allowing the S7-300 system to grow from a single 8-slot rack to a three-rack configuration while the MMC-stored program manages all rack resources transparently.

At the field level, the FM 350-1 counter module handles high-speed pulse counting for encoder feedback and positioning applications, with its parameterization stored on the MMC as part of the system configuration. Terminal modules and SM 323 combined DI/DO modules complete the I/O layer, providing flexible signal routing within compact cabinet installations. Together, these components form a cohesive, MMC-anchored control architecture where the 6ES7953-8LJ00-0AA0 serves as the single source of truth for system behavior.

Application in Layered Automation Systems

The Siemens 6ES7953-8LJ00-0AA0 is deployed across a wide range of industrial sectors where the S7-300 platform is the established control standard:

Manufacturing and Assembly Lines: In automotive body shop and general manufacturing environments, the MMC stores the sequence control programs that coordinate robotic welding stations, conveyor indexing, and quality inspection triggers. The ability to replace a failed CPU and restore full operation within minutes — simply by transferring the MMC — is a critical advantage in high-throughput production environments where downtime costs are significant.

Power Generation and Utilities: Substation automation and auxiliary control systems in power plants rely on S7-300 CPUs with MMC-stored programs to manage switchgear sequencing, transformer protection interlocks, and load shedding logic. The non-volatile nature of the MMC ensures that control logic survives power outages and is immediately available upon system restoration.

Petrochemical and Process Industries: Continuous process control applications in refineries and chemical plants use S7-300 systems with MMC-stored PID control blocks, safety interlock routines, and alarm management programs. The MMC’s flash memory architecture supports frequent program updates during turnaround maintenance without requiring specialized memory programming equipment.

Water and Wastewater Treatment: Municipal water treatment facilities deploy S7-300 controllers with this MMC to manage pump sequencing, dosing control, and SCADA data acquisition. The long operational life of flash memory and the 12-Month Warranty coverage provided by ZYPLC align with the extended maintenance cycles typical of water infrastructure projects.

Mining and Metallurgy: Conveyor drive control, crusher sequencing, and smelting process automation in mining operations benefit from the S7-300’s robust architecture and the MMC’s ability to retain programs in high-vibration, high-temperature environments. The 6ES7953-8LJ00-0AA0’s wide storage temperature range makes it suitable for spare parts storage in remote mining locations.

Architecture Engineering FAQ

Q1: Is the 6ES7953-8LJ00-0AA0 compatible with all S7-300 CPU variants, and how do I verify compatibility before installation?
The 6ES7953-8LJ00-0AA0 is compatible with all S7-300 CPU modules that feature a dedicated MMC slot, including the CPU 312, 314, 315-2 DP, 316-2 DP, 317-2 PN/DP, and 319-3 PN/DP. Compatibility can be verified by checking the CPU’s order number against Siemens’ SIMATIC S7-300 system manual or the SIOS product compatibility database. CPUs that use the older Flash EPROM (FEPROM) memory format are not compatible with the MMC form factor. ZYPLC’s technical team can assist with compatibility verification as part of our contextual integration support service.

Q2: How do I transfer an existing program to the 6ES7953-8LJ00-0AA0, and can the card be used across multiple CPU replacements?
Program transfer to the MMC can be performed via STEP 7 (Simatic Manager) or TIA Portal using a standard MPI/PROFIBUS programming cable or Ethernet connection. Alternatively, the CPU’s built-in copy function allows direct program transfer from the CPU’s internal RAM to the MMC without a programming device. The MMC can be rewritten multiple times and reused across CPU replacements, making it a cost-effective long-term asset. Each ZYPLC-supplied unit is pre-tested for read/write integrity to ensure reliable program storage from the first use.

Q3: What does the 12-Month Warranty cover, and what support is available for system integration and long-term maintenance?
The 12-Month Warranty covers hardware defects, read/write failures, and compatibility issues identified under normal operating conditions within the S7-300 system architecture. ZYPLC provides replacement or refund for any unit that fails to perform as specified during the warranty period. For long-term maintenance planning, we recommend maintaining at least one spare MMC per S7-300 CPU in critical applications, pre-loaded with the current production program. Our contextual integration support includes program transfer guidance, CPU compatibility consultation, and spare parts planning advice. Contact us at +86 19859288691 or plc.sales@zyplc.com for architecture-specific inquiries.
