Siemens 6ES7953-8LJ30-0AA0 Industrial Network Interface for S7-300 Systems

Siemens 6ES7953-8LJ30-0AA0: Industrial Data Link and Smart Factory Connectivity for S7-300 Systems

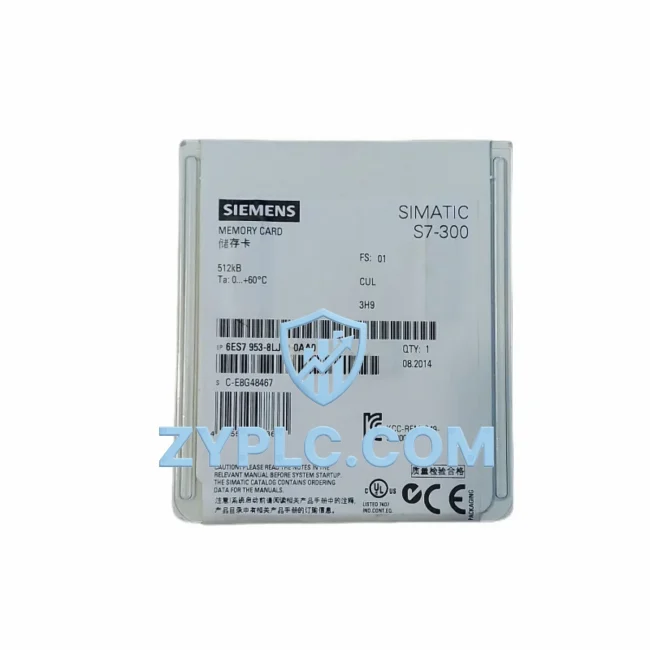

The Siemens 6ES7953-8LJ30-0AA0 is a 512 KB Micro Memory Card engineered for the SIMATIC S7-300 PLC platform, serving as a critical non-volatile storage medium that anchors the data integrity of industrial communication networks. In modern smart factory environments, where uninterrupted data flow between field devices, controllers, and supervisory systems is non-negotiable, this memory card functions as the persistent backbone of the entire automation data chain. From the moment a machine cycle begins, the 6ES7953-8LJ30-0AA0 ensures that every ladder logic block, function block, data block, and system configuration is retained with zero data loss — even through power interruptions, emergency shutdowns, or firmware updates.

Designed to slot directly into the CPU module of the S7-300 family — including the CPU 314C-2 PN/DP, CPU 315-2 DP, and CPU 317-2 PN/DP — this Micro Memory Card enables seamless program transfer, firmware archiving, and recipe management across distributed production lines. Its role extends beyond simple storage: it is the configuration carrier that allows rapid CPU replacement without reprogramming, dramatically reducing mean time to repair (MTTR) in high-availability industrial sites.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory, the 6ES7953-8LJ30-0AA0 sits at the heart of the S7-300 CPU’s communication stack, enabling the controller to manage data exchange across every layer of the automation pyramid. At the field level, sensors and actuators connected via PROFIBUS-DP remote I/O modules — such as the Siemens ET 200S or ET 200M distributed I/O stations — continuously feed process values into the CPU. The Micro Memory Card stores the I/O mapping tables and communication parameters that define how these signals are interpreted and routed.

Moving up the network hierarchy, the S7-300 CPU exchanges real-time data with PROFINET-enabled devices, including Siemens SCALANCE X industrial Ethernet switches, which provide the managed switching infrastructure for deterministic data transmission across the plant floor. The stored configuration on the 6ES7953-8LJ30-0AA0 governs the CPU’s PROFINET device table, ensuring that every connected node — from Siemens SINAMICS G120 variable frequency drives controlling conveyor motors to Siemens SITOP power supply units monitoring bus voltage — is correctly addressed and polled within the network cycle time.

At the HMI and SCADA integration layer, the S7-300 CPU communicates with Siemens SIMATIC HMI TP700 Comfort panels and WinCC SCADA servers via Industrial Ethernet, with the memory card preserving the S7 communication blocks (PUT/GET, BSEND/BRCV) that enable bidirectional data exchange. Alarm states, production counters, and recipe parameters flow from the PLC to the SCADA historian in real time, while operator commands from the HMI are written back to the CPU data blocks stored on the 6ES7953-8LJ30-0AA0.

For remote diagnostics and edge connectivity, the S7-300 platform integrates with Siemens SINEMA Remote Connect gateways and SCALANCE M industrial routers, enabling secure VPN-based remote access to the CPU’s diagnostic buffers and online monitoring functions. The Micro Memory Card’s stored program ensures that even after a remote firmware update or parameter download, the CPU resumes operation with the correct configuration — a critical requirement for unmanned substations, water treatment facilities, and offshore automation sites.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — older PROFIBUS-DP segments operating alongside newer PROFINET networks, with no unified data path to the SCADA layer. The Siemens 6ES7953-8LJ30-0AA0, when installed in a CPU 315-2 PN/DP, directly resolves this by enabling the CPU to act as a dual-port gateway: simultaneously mastering a PROFIBUS-DP network of legacy remote I/O and sensors while participating as a PROFINET IO controller on the Ethernet backbone. This eliminates the need for standalone protocol converters and reduces network latency by keeping data translation within the CPU’s own communication stack.

Data silos — where machine-level data never reaches the MES or ERP layer — are addressed through the S7-300’s open communication capabilities stored on this memory card. Using S7 communication, TCP/IP, and ISO-on-TCP protocols, the CPU can push production data directly to Siemens SIMATIC IT manufacturing execution systems or third-party OPC-UA servers, enabling full production line transparency without additional middleware. Downtime events, cycle counts, and quality rejection rates become visible at the enterprise level in real time.

Remote monitoring challenges — particularly in geographically distributed plants — are solved by the CPU’s diagnostic buffer and module status functions, all of which depend on the program stored on the 6ES7953-8LJ30-0AA0. Maintenance engineers can remotely access the CPU via STEP 7 or TIA Portal over a VPN connection, read the diagnostic buffer, force I/O states for troubleshooting, and download updated programs — all without physical site visits. System expansion is equally straightforward: adding new ET 200 remote I/O stations or SINAMICS drives to the network requires only a configuration update downloaded to the Micro Memory Card, with no hardware changes to the CPU itself.

Industrial Connectivity FAQ

Q1: Does the 6ES7953-8LJ30-0AA0 support both PROFIBUS-DP and PROFINET communication simultaneously?
Yes — when installed in a dual-port CPU such as the CPU 315-2 PN/DP or CPU 317-2 PN/DP, the Micro Memory Card stores the configuration for both PROFIBUS-DP and PROFINET interfaces, allowing the CPU to master both networks concurrently. This is the standard architecture for mixed-protocol plants transitioning from legacy PROFIBUS to PROFINET without a full network overhaul.

Q2: What is the communication cycle time impact of using this Micro Memory Card?
The 6ES7953-8LJ30-0AA0 has no measurable impact on CPU scan cycle time or network communication latency. Program execution speed is determined by the CPU’s processor, not the memory card. The card’s read/write operations occur only during program download, upload, or CPU startup — not during normal runtime communication cycles.

Q3: Can this memory card be used for CPU replacement without reprogramming?
Absolutely. This is one of the primary use cases for the Micro Memory Card. The complete CPU program, including all organization blocks, function blocks, data blocks, and hardware configuration, is stored on the 6ES7953-8LJ30-0AA0. In the event of a CPU failure, simply transfer the card to a replacement CPU of the same type and the system restarts with the full program intact — minimizing production downtime to the time required for physical hardware replacement.

Q4: What warranty and quality assurance does ZYPLC provide for this product?
All units of the Siemens 6ES7953-8LJ30-0AA0 supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify read/write integrity and compatibility with S7-300 CPU hardware. Stock is sourced from authorized distribution channels, and units are shipped with original Siemens packaging. Global delivery is available via DHL Express and FedEx International Priority.
