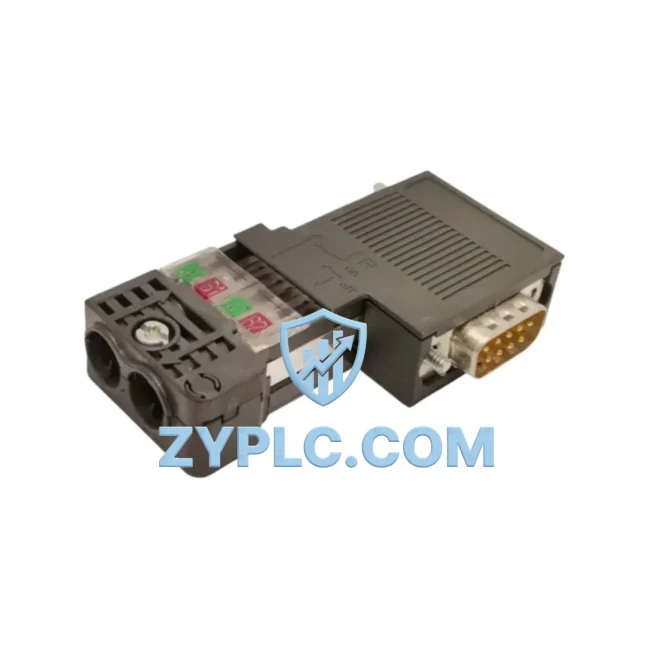

Siemens 6ES7972-0BA50-0XA0 Industrial Network Interface for S7 Systems

Siemens 6ES7972-0BA50-0XA0: Industrial Data Link for Smart Factory Network Integration

The Siemens 6ES7972-0BA50-0XA0 is a PROFIBUS DP bus connector engineered for high-reliability industrial network communication in demanding automation environments. Designed to interface directly with PROFIBUS DP-compatible controllers, remote I/O stations, drives, and field devices, this connector serves as a critical physical-layer component in the data chain that links field instrumentation to supervisory control systems. Whether deployed in discrete manufacturing, process automation, or hybrid smart factory architectures, the 6ES7972-0BA50-0XA0 ensures signal integrity, network stability, and seamless protocol continuity across the entire automation hierarchy.

In modern industrial sites, data flows from sensors and actuators through field buses to PLC controllers, then upward to SCADA platforms and MES systems. The 6ES7972-0BA50-0XA0 occupies a foundational role in this chain — its 90° cable exit design and integrated termination resistor allow it to be installed at bus segment ends without signal reflection or impedance mismatch, preserving the integrity of real-time data transmission at speeds up to 12 Mbit/s.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 6ES7972-0BA50-0XA0 connects directly to the PROFIBUS DP port of a SIMATIC S7-315-2 PN/DP CPU (6ES7315-2EH14-0AB0), forming the physical backbone of the field bus segment. From this controller, the PROFIBUS network extends outward to distributed I/O stations such as the ET 200M with IM 153-1 interface module (6ES7153-1AA03-0XB0), where digital and analog signals from proximity sensors, pressure transmitters, and flow meters are aggregated and forwarded upstream in real time.

For sites requiring protocol bridging between PROFIBUS DP and Industrial Ethernet, the CP 343-1 communication processor (6GK7343-1EX30-0XE0) installed in the S7-300 rack enables transparent data exchange with SCADA servers running WinCC or third-party OPC UA clients. This gateway function eliminates data silos between legacy PROFIBUS segments and modern Ethernet-based control layers, enabling plant-wide visibility without replacing existing field infrastructure.

Drive integration is equally seamless. SINAMICS G120 variable frequency drives (6SE6440-2UD21-5AA1) connect to the PROFIBUS segment via their CBP2 communication boards, receiving speed setpoints and torque commands from the S7 CPU while returning actual values, fault codes, and energy consumption data — all traversing the bus through connectors of the 6ES7972-0BA50-0XA0 family. Adjacent bus nodes, including additional DP connectors such as the 6ES7972-0BB52-0XA0 (straight cable exit variant), maintain consistent bus topology across multi-drop installations.

At the HMI layer, a SIMATIC HMI TP1200 Comfort Panel (6AV2124-0GC01-0AX0) connected via MPI/PROFIBUS displays real-time process values, alarm states, and trend data sourced directly from the field bus. Operators can acknowledge alarms, adjust setpoints, and initiate remote diagnostic routines without leaving the control room. For sites with mixed vendor environments, the CP 341 serial communication module (6ES7341-1AH02-0AE0) extends connectivity to legacy Modbus RTU or ASCII devices, ensuring that older instrumentation remains integrated within the PROFIBUS-centric architecture.

Edge computing nodes and industrial IoT gateways installed at the network boundary collect aggregated data from the PROFIBUS segment and forward it to cloud-based analytics platforms or on-premise MES systems, completing the data flow from physical sensor to enterprise dashboard. Throughout this chain, the 6ES7972-0BA50-0XA0 ensures that every node on the bus receives clean, stable, and correctly terminated signals — a prerequisite for deterministic communication in time-critical automation applications.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols and isolated network segments. Legacy equipment often communicates via proprietary serial interfaces or older fieldbus standards, while modern controllers and SCADA systems demand Ethernet-based, high-bandwidth connectivity. The 6ES7972-0BA50-0XA0 addresses this at the physical layer by providing a reliable, standards-compliant PROFIBUS DP termination point that supports the full range of PROFIBUS transmission speeds — from 9.6 kbit/s for long-distance, noise-prone environments to 12 Mbit/s for high-speed, short-segment applications.

By standardizing the physical connection across all PROFIBUS nodes in a segment, engineers eliminate the impedance mismatches and signal reflections that cause intermittent communication faults, spurious alarms, and unplanned downtime. The integrated switchable termination resistor simplifies bus commissioning: only the two physical endpoints of each segment require termination, and the 6ES7972-0BA50-0XA0 makes this configuration straightforward without additional external components.

For remote monitoring and diagnostics, the PROFIBUS network enabled by this connector supports SIMATIC PDM (Process Device Manager) and other asset management tools that allow engineers to read device parameters, calibration data, and diagnostic registers from field instruments without physical access. This capability is essential for predictive maintenance strategies in smart factories, where early detection of sensor drift or drive faults can prevent costly production interruptions.

System expansion is equally well-supported. Adding new PROFIBUS nodes — whether additional ET 200 remote I/O stations, new drive axes, or third-party PROFIBUS-compatible sensors — requires only the insertion of a new bus connector and the assignment of a unique station address. The 6ES7972-0BA50-0XA0’s robust mechanical design and gold-plated contacts ensure long-term connection reliability even in environments with vibration, thermal cycling, and industrial-grade EMI.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing and is backed by a 12-month warranty, with full export documentation, commercial invoices, and packing lists provided for international logistics compliance.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS DP transmission speed supported by the 6ES7972-0BA50-0XA0?
The connector supports the full PROFIBUS DP speed range from 9.6 kbit/s to 12 Mbit/s. The maximum achievable speed in a given installation depends on cable length, cable quality, and the number of nodes on the segment.

Q2: Is the 6ES7972-0BA50-0XA0 compatible with both S7-300 and S7-400 controllers?
Yes. The connector is compatible with all SIMATIC S7-300 and S7-400 CPUs equipped with a PROFIBUS DP interface, as well as ET 200 distributed I/O systems, SINAMICS drives with CBP2 boards, and any other device with a standard 9-pin Sub-D PROFIBUS DP port.

Q3: How does the integrated termination resistor affect network stability?
The switchable termination resistor, when activated at the physical end of a bus segment, absorbs signal reflections that would otherwise cause data corruption and communication errors. Proper termination is mandatory for reliable PROFIBUS operation, especially at speeds above 1.5 Mbit/s. The 6ES7972-0BA50-0XA0 simplifies this by integrating the resistor directly into the connector body.

Q4: Does ZYPLC provide warranty and testing documentation for this product?
Yes. All units are pre-shipment tested and covered by a 12-month warranty from the date of delivery. ZYPLC provides full export documentation including commercial invoices, packing lists, and certificates of origin. For bulk orders or urgent requirements, please contact our sales team directly for lead time confirmation and RFQ processing.
