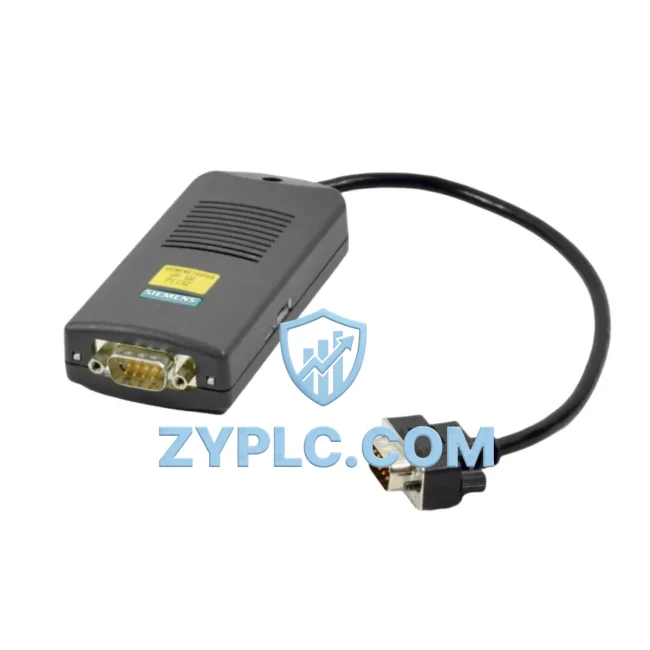

Siemens 6ES7972-0CA23-0XA0 Industrial Network Interface for SIMATIC S7 Systems

Siemens 6ES7972-0CA23-0XA0 Industrial Network Interface: Bridging PROFIBUS Data Links in Smart Factory Environments

The Siemens 6ES7972-0CA23-0XA0 is a high-performance USB-to-PROFIBUS PC Adapter designed to establish a seamless, low-latency communication bridge between engineering workstations, SCADA systems, and PROFIBUS DP/FMS field networks. As industrial facilities accelerate their transition toward smart manufacturing, the demand for reliable, protocol-transparent gateways has never been greater. This adapter serves as the critical last-mile connector that enables real-time data acquisition, remote diagnostics, and system-wide transparency across the entire automation hierarchy — from field-level sensors and actuators all the way up to enterprise MES and ERP platforms.

Engineered to meet the rigorous demands of continuous industrial operation, the 6ES7972-0CA23-0XA0 supports PROFIBUS DP and FMS protocols at transmission rates up to 12 Mbit/s, ensuring that time-critical process data — including drive status signals, I/O module feedback, and controller diagnostics — is delivered to the host PC with minimal cycle-time overhead. Its USB 2.0 interface eliminates the need for dedicated ISA or PCI slots, making it compatible with modern industrial PCs, panel PCs, and ruggedized laptops used in field commissioning and maintenance workflows.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 6ES7972-0CA23-0XA0 sits at the intersection of the field bus layer and the supervisory control layer. Consider a production line where a Siemens SIMATIC S7-300 CPU 315-2 DP acts as the primary PLC controller, orchestrating a network of distributed I/O nodes such as the ET 200M IM 153-2 remote I/O station. The PC Adapter connects the engineering workstation running SIEMENS STEP 7 v5.x or TIA Portal directly to this PROFIBUS DP segment, enabling online monitoring, parameter downloads, and fault diagnostics without interrupting the live production cycle.

Moving upstream, process visualization is handled by a Siemens WinCC SCADA server or a SIMATIC HMI TP1200 Comfort Panel, both of which rely on accurate, low-latency data from the PROFIBUS network to display real-time alarm states, trend curves, and production KPIs. The 6ES7972-0CA23-0XA0 ensures that the data pipeline between the field bus and these supervisory systems remains stable and deterministic, even in electrically noisy environments typical of heavy manufacturing floors.

For drive integration, the adapter supports direct communication with Siemens SINAMICS G120 and S120 variable frequency drives connected as PROFIBUS DP slaves. This allows engineers to read drive parameters, monitor motor current and speed feedback, and execute remote start/stop commands from the SCADA layer — a capability that is essential for predictive maintenance programs and energy optimization initiatives. Similarly, Siemens SIRIUS 3RK3 motor management relays and smart motor controllers on the same PROFIBUS segment can be polled for thermal overload data and operational statistics.

At the sensor and instrumentation level, PROFIBUS PA field devices — including Siemens SITRANS pressure transmitters and flow meters — feed process variables into the network via DP/PA couplers. The 6ES7972-0CA23-0XA0 enables the host PC to access these instrument-level readings for calibration, loop testing, and asset management tasks. When integrated with an edge gateway or industrial IoT concentrator, the data collected through this adapter can be forwarded to cloud analytics platforms, enabling remote condition monitoring and digital twin synchronization across geographically distributed plant sites.

For legacy system integration scenarios, the adapter bridges older SIMATIC S5-compatible PROFIBUS nodes with modern TIA Portal engineering environments, preserving the investment in existing field infrastructure while enabling gradual migration to Industry 4.0-ready architectures. This interoperability is particularly valuable in brownfield projects where complete network replacement is not economically feasible.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A facility may operate PROFIBUS DP networks alongside PROFINET, Modbus RTU, and DeviceNet segments, each forming a data silo that prevents unified monitoring and control. The 6ES7972-0CA23-0XA0 directly addresses the PROFIBUS layer of this challenge by providing a standardized, software-transparent access point that integrates with Siemens’ full suite of engineering and SCADA tools.

Remote monitoring is another critical pain point in large-scale industrial facilities. Without a reliable PC-to-fieldbus interface, maintenance engineers must physically access control panels to diagnose faults, leading to extended mean-time-to-repair (MTTR) and unnecessary production downtime. By deploying the 6ES7972-0CA23-0XA0 at remote substations or satellite control rooms, facilities can enable remote online diagnostics through VPN-connected engineering workstations, dramatically reducing the need for on-site intervention.

Production line transparency — the ability to see real-time status of every connected device from a single supervisory interface — is a foundational requirement for lean manufacturing and OEE (Overall Equipment Effectiveness) improvement programs. This adapter enables the SCADA and MES layers to receive granular, device-level data from the PROFIBUS network, supporting accurate downtime tracking, shift reporting, and root-cause analysis workflows. As production volumes scale and new equipment is added to the network, the adapter’s support for up to 126 PROFIBUS nodes per segment ensures that the communication infrastructure can grow without requiring hardware replacement.

Every 6ES7972-0CA23-0XA0 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify USB enumeration, PROFIBUS segment detection, and data throughput at rated speeds. This ensures that the unit arrives ready for immediate deployment, minimizing commissioning time and reducing the risk of integration delays on critical project timelines.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS transmission rate supported by the 6ES7972-0CA23-0XA0, and does it affect communication latency in time-critical applications?
The 6ES7972-0CA23-0XA0 supports PROFIBUS DP/FMS transmission rates from 9.6 kbit/s up to 12 Mbit/s. At 12 Mbit/s, bus cycle times for typical network configurations (32 slaves, mixed I/O) are well within the millisecond range, making it suitable for monitoring and diagnostic applications. For hard real-time control tasks, the PLC’s onboard PROFIBUS DP interface remains the primary communication path, while this adapter serves the engineering and SCADA access layer.

Q2: Is the 6ES7972-0CA23-0XA0 compatible with both STEP 7 Classic and TIA Portal engineering environments?
Yes. The adapter is fully compatible with SIEMENS STEP 7 v5.4 and higher, as well as TIA Portal V13 and above. It is recognized as a standard PC Adapter USB device within both environments, requiring only the installation of the appropriate driver package. It supports online access to S7-300, S7-400, S7-1200 (via PROFIBUS CP), and S7-1500 (via PROFIBUS CP) controllers, as well as ET 200 distributed I/O systems and third-party PROFIBUS DP slaves.

Q3: How does the adapter maintain network stability when connected to a live PROFIBUS segment during production?
The 6ES7972-0CA23-0XA0 operates as a passive master (Class 2 DP master) on the PROFIBUS segment, meaning it does not interfere with the cyclic data exchange managed by the primary PLC controller. It can be connected and disconnected from the bus without disrupting ongoing I/O communication, provided standard PROFIBUS termination and cable topology rules are observed. This hot-plug capability is essential for maintenance and diagnostic tasks on running production lines.

Q4: What warranty and post-sales support does ZYPLC provide for the 6ES7972-0CA23-0XA0?
All units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit is pre-tested before shipment to verify full operational compliance. Our technical team provides post-sales support for installation guidance, driver configuration, and network integration questions. For urgent requirements, expedited shipping options are available to minimize project lead times.
