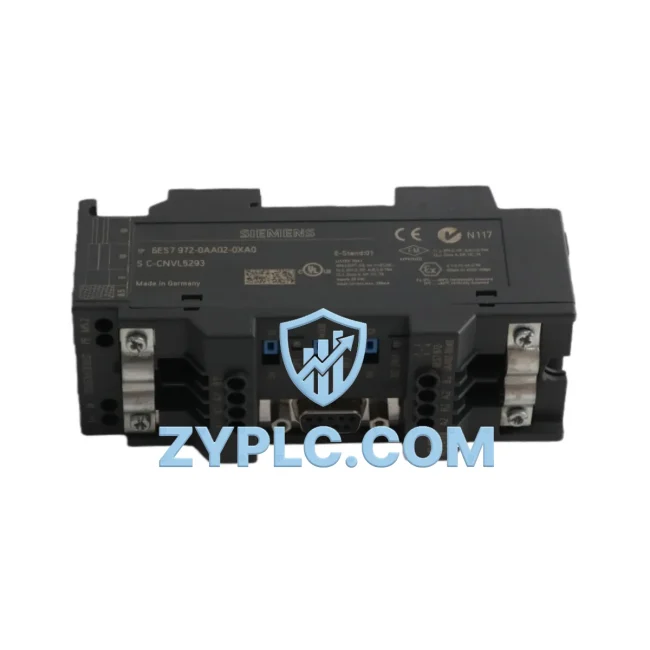

The Siemens 6ES7972-4AA02-0XA0 is a high-performance PROFIBUS RS485 Repeater engineered for the SIMATIC NET communication architecture. Designed to extend and regenerate PROFIBUS DP/FMS network segments in demanding industrial environments, this repeater plays a critical role in maintaining signal integrity across long-distance fieldbus topologies. Whether deployed in automotive assembly lines, chemical processing plants, power distribution substations, or discrete manufacturing cells, the 6ES7972-4AA02-0XA0 ensures uninterrupted data flow between field devices, controllers, and supervisory systems — forming the backbone of a transparent, connected smart factory.

In modern industrial automation, the reliability of the communication layer directly determines the responsiveness of the entire production system. The 6ES7972-4AA02-0XA0 addresses this by amplifying and retiming RS485 signals on PROFIBUS segments, allowing network designers to overcome the physical distance limitations of standard PROFIBUS installations. With support for up to 32 stations per segment and the ability to cascade multiple repeaters, this device enables scalable network architectures that grow with your plant’s automation requirements.

Network Communication Table

Connected Automation Data Flow

In a typical SIMATIC NET deployment, the 6ES7972-4AA02-0XA0 sits at the heart of the fieldbus segment, bridging the gap between distributed field devices and the central control layer. Consider a production line where a Siemens SIMATIC S7-1500 PLC serves as the master controller. Field-level sensors — including pressure transmitters, flow meters, and proximity switches — connect to a Siemens ET 200SP or ET 200M remote I/O station via PROFIBUS DP. The 6ES7972-4AA02-0XA0 repeater regenerates the RS485 signal between these remote I/O nodes and the main PROFIBUS trunk, ensuring that cyclic process data reaches the S7-1500 CPU without degradation, even across cable runs exceeding 200 meters per segment.

Upstream from the PLC, a Siemens SIMATIC HMI TP1200 Comfort Panel or a PC-based WinCC SCADA workstation subscribes to real-time process variables via the PROFIBUS network. Alarm states, setpoint deviations, and diagnostic messages generated at the field level — from devices such as Siemens SINAMICS G120 variable frequency drives controlling conveyor motors or pump systems — are transmitted through the repeater-extended PROFIBUS segment and surfaced on the HMI dashboard within milliseconds. This tight integration between the drive layer and the supervisory layer is only possible when the communication infrastructure, anchored by the 6ES7972-4AA02-0XA0, maintains deterministic, low-latency data delivery.

For plants operating mixed communication architectures, the 6ES7972-4AA02-0XA0 works alongside Siemens SCALANCE X industrial Ethernet switches and SIMATIC NET CP 343-1 or CP 443-1 communication processors to bridge PROFIBUS segments with higher-level PROFINET or Industrial Ethernet backbones. This allows process data from legacy PROFIBUS field devices to be aggregated at a Siemens SIMATIC S7-400H redundant controller or forwarded to a Siemens SINEMA Remote Connect edge gateway for cloud-based remote diagnostics. In safety-critical zones, the repeater integrates seamlessly with SIMATIC ET 200S FailSafe I/O modules and PROFIsafe-enabled drives, maintaining the integrity of the safety communication layer without requiring separate wiring infrastructure.

The data chain extends further when the 6ES7972-4AA02-0XA0 supports connectivity to Siemens SIMATIC PCS 7 distributed control systems in process industries. Here, PROFIBUS PA field instruments — including Siemens SITRANS pressure and temperature transmitters — connect through DP/PA couplers and segment couplers, with the RS485 repeater ensuring that the DP backbone remains stable under high bus load conditions. The result is a fully transparent data pipeline from sensor to SCADA, enabling real-time process visualization, historical trending, and predictive maintenance analytics across the entire plant network.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Older field devices may speak only PROFIBUS DP, while newer controllers and edge systems demand PROFINET or OPC UA connectivity. Without a robust repeater infrastructure, PROFIBUS segments degrade over distance, leading to intermittent communication faults, CRC errors, and ultimately, unplanned production downtime.

The Siemens 6ES7972-4AA02-0XA0 directly addresses these pain points. By regenerating the RS485 signal and electrically isolating PROFIBUS segments, it eliminates ground loop interference and common-mode noise that frequently cause data corruption in electrically noisy environments such as motor control centers, welding stations, and high-voltage switchgear rooms. Plant engineers can extend PROFIBUS networks into previously unreachable areas of the facility — remote pump houses, outdoor tank farms, or multi-floor process buildings — without compromising network determinism or cycle time.

From a system transparency perspective, the 6ES7972-4AA02-0XA0 supports PROFIBUS diagnostic functions, allowing SIMATIC STEP 7 or TIA Portal to detect bus faults, identify failing stations, and report segment-level errors to the SCADA layer. This capability transforms reactive maintenance into proactive network management: operators receive early warning of deteriorating cable connections or failing bus terminators before they escalate into full production stoppages. Combined with remote access via Siemens SINEMA Remote Connect or a SCALANCE M876 industrial LTE router, maintenance engineers can diagnose and resolve PROFIBUS network issues from off-site, reducing mean time to repair and minimizing the need for on-site emergency interventions.

For system integrators planning new installations or retrofitting existing plants, the 6ES7972-4AA02-0XA0 offers a straightforward path to network scalability. Each repeater adds a new segment capable of supporting up to 32 additional PROFIBUS stations, and cascading multiple repeaters allows networks to span thousands of meters across large industrial campuses. This modular expansion model protects capital investment in existing PROFIBUS infrastructure while providing a clear migration path toward hybrid PROFIBUS/PROFINET architectures as plant digitalization initiatives advance.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, power supply performance, and segment isolation before dispatch. Stock is maintained for rapid fulfillment, and all units are covered by a 12-month warranty, ensuring that your automation infrastructure remains protected from the moment of installation through the first year of operation.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS segment length supported with the 6ES7972-4AA02-0XA0?
A: At 9.6 kbps, a single PROFIBUS RS485 segment can extend up to 1,200 meters. By cascading multiple 6ES7972-4AA02-0XA0 repeaters, the total network length can be extended significantly beyond this limit, with each repeater adding a new full-length segment. The exact maximum depends on the baud rate selected and the cable type used.

Q2: Is the 6ES7972-4AA02-0XA0 compatible with both PROFIBUS DP and PROFIBUS FMS protocols?
A: Yes. The 6ES7972-4AA02-0XA0 operates transparently at the physical (RS485) layer and is compatible with all PROFIBUS protocol variants, including PROFIBUS DP (V0, V1, V2), PROFIBUS FMS, and PROFIsafe. It does not interpret or modify the protocol data, making it universally compatible with any PROFIBUS-compliant master or slave device.

Q3: How does the repeater contribute to network stability in electrically noisy industrial environments?
A: The 6ES7972-4AA02-0XA0 provides galvanic isolation between PROFIBUS segments, breaking ground loops and blocking common-mode interference from propagating across the network. This is particularly valuable in environments with large motor drives, welding equipment, or high-voltage switching, where electromagnetic interference can cause communication errors on non-isolated bus segments.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 6ES7972-4AA02-0XA0?
A: All units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification testing to confirm communication performance and hardware integrity. For volume orders or project-specific requirements, expedited fulfillment and custom documentation packages are available upon request. Contact our team at plc.sales@zyplc.com or +86 19859288691 for a quotation.
